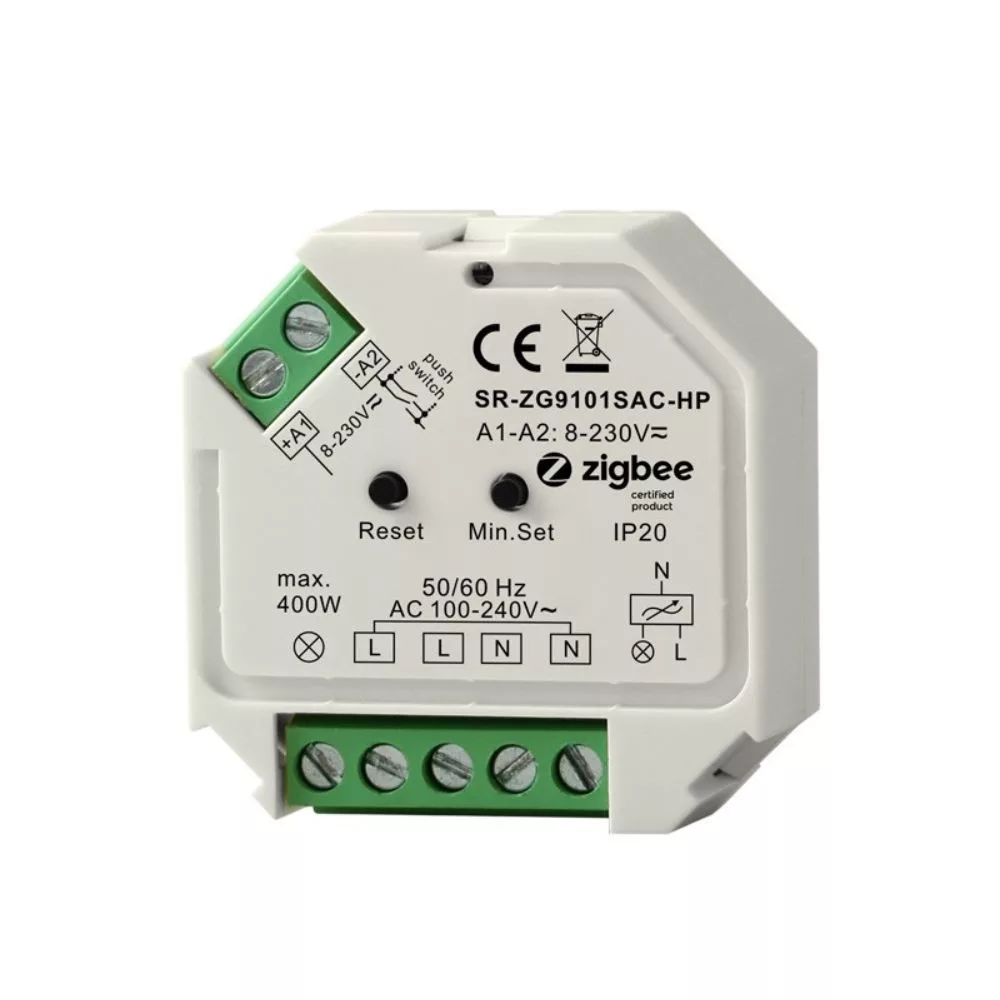

Sunricher Zigbee retrofit smart dimmer 230V AC, 400W (SR-ZG9101SAC-HP)
Brand:
Sunricher
The SR-ZG9101SAC-HP is an innovative AC phase-cut dimmer module equipped with a Zigbee control interface. The dimmer operates within an input and output voltage range of 100–240 V AC, supports 1 channel, and can control up to 400 W of power.
FOR SAME DAY DISPATCH
Don’t miss today’s dispatch – order now!
The SR-ZG9101SAC-HP is an innovative AC phase-cut dimmer module equipped with a Zigbee control interface. The dimmer operates within an input and output voltage range of 100–240 V AC, supports 1 channel, and can control up to 400 W of power.
This Zigbee AC dimmer is available in two versions: suitable for both leading-edge and trailing-edge dimming. An advanced minimum brightness setting feature allows users to define a low-end brightness level and dim up to 100% from there. The minimum brightness setting can be cleared at any time with ease.
The dimmer is compatible with universal Zigbee coordinators or gateway controllers and can be paired via the Zigbee network. It can be controlled through the Zigbee hub interface or remote controllers that are connected and paired to the same network.
The device is based on the Zigbee 3.0 standard. It supports up to 30 Zigbee Light Link-compatible remote controllers via Touchlink pairing. It also supports the Zigbee Green Power feature and can be directly paired and controlled with up to 20 Zigbee Green Power-compatible remote controllers without requiring a Zigbee hub or gateway.
About Sunricher
Sunricher specializes in the development of wireless lighting control devices and smart home components, especially in the fields of Zigbee, Bluetooth Mesh, and other modern control protocols. Their products are primarily designed for smart lighting and automation applications, offering high compatibility and reliability.
Main Product Features
- AC phase-cut dimmer with Zigbee control – adjustable dimmer with Zigbee 3.0 interface
- Fully isolated safety design – electrical isolation for reliable operation
- 100–240 V AC input and output
- 1-channel output, up to 400 W – suitable for powerful LED or traditional light sources
- Supports both leading edge and trailing edge dimming modes
- Minimum brightness setting – define and clear the lowest dimming level
- Screw terminals – secure and easy wiring
- Compact size – fits standard 86×86 mm wall boxes
Smart Home Protocols and Platform Compatibility
- Protocol: Zigbee 3.0
- Local control: with paired Zigbee remotes and wall controllers
- Platform support: compatible with Zigbee 3.0 coordinators and hubs (e.g. SmartThings, Home Assistant, Tuya, Philips Hue, Zigbee2MQTT)
- Cloud integration: accessible via Zigbee hubs (Google Home, Amazon Alexa)
- IFTTT: indirect support through Zigbee hub
- Integration: supports Zigbee2MQTT and other open-source systems
- Voice control: Alexa and Google Assistant support via Zigbee hub
- Touchlink pairing: supports up to 30 Zigbee Light Link-compatible remote controls
- Zigbee Green Power support: pair directly with up to 20 remotes without a hub
Smart Functions
- Minimum brightness level setting and clearing
- Brightness control from 0–100%
- Touchlink pairing with remotes
- Green Power compatibility – works with battery-free Zigbee remotes
- Remote control via Zigbee hub, mobile app or PC
- Create automations and scenes via Zigbee hub interface
Electrical Specifications
- Input voltage: 100–240 V AC
- Output voltage: 100–240 V AC (same as input)
- Maximum output power: 1 channel × 400 W
- Dimmer type: phase-cut (leading edge or trailing edge)
- Switch input: 1
Other Features
- Compact size: fits standard 86×86 mm wall box
- Wiring: screw terminals (L+N input, L+N output)
- Safety: galvanically isolated design for maximum protection
- IP rating: indoor use only (IP20)
This content is only available to logged in users.
Weight:
49 g/pcs
