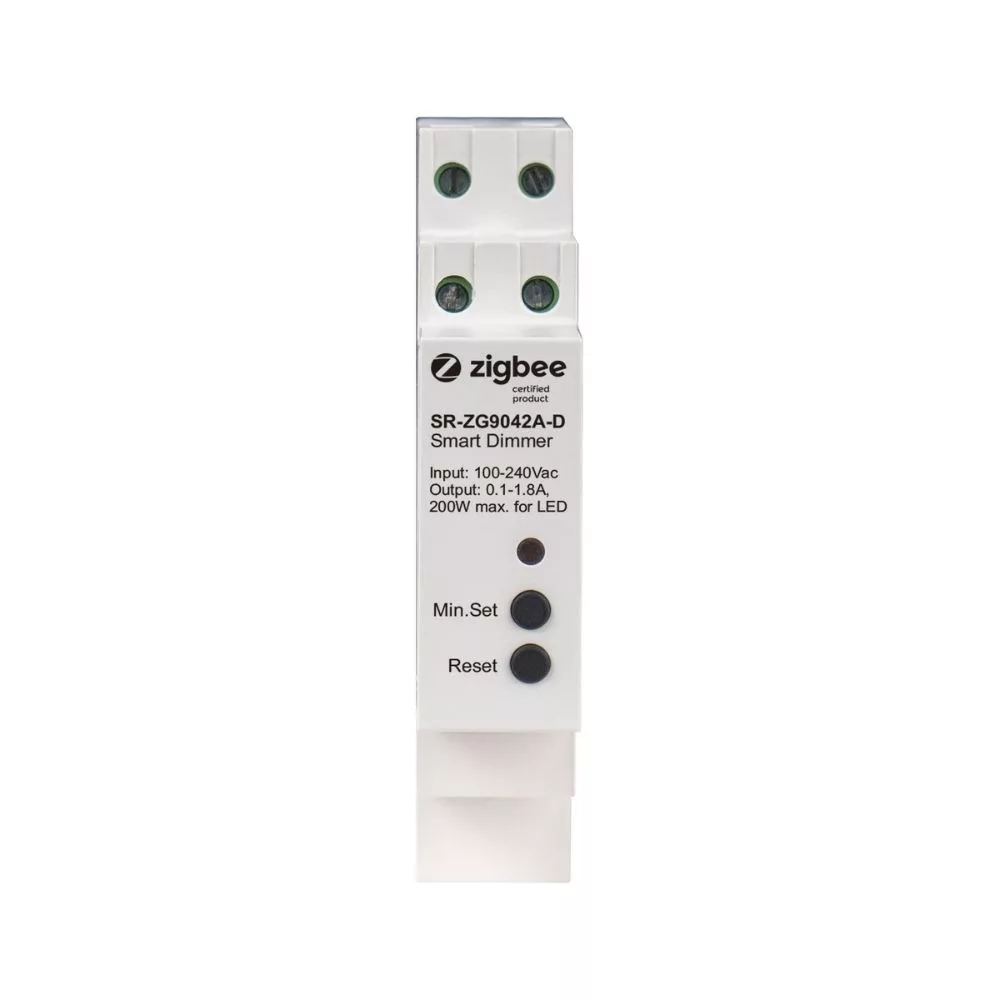

Sunricher DIN rail Zigbee smart dimmer, 230V AC no neutral, 400W (SR-ZG9042A-D)

The Sunricher SR-ZG9042A-D is a DIN rail-mounted Zigbee smart phase-cut dimmer based on the Zigbee 3.0 protocol. Thanks to its wide input and output voltage range (100–240 VAC), it is compatible with a variety of lighting loads up to 400 W. It supports resistive, capacitive, and inductive loads and is available in both leading-edge and trailing-edge dimming types, preconfigured at the factory.

The SR-ZG9042A-D is ideal for integration in residential or industrial environments. It’s a great choice for more advanced DIY users, as it can be controlled via both TouchLink and Zigbee network, offering flexible configuration options such as minimum and startup brightness levels.

The device supports energy monitoring, push-button control, and intelligent restart from minimum brightness. While not a Plug&Play product, it delivers stable and reliable performance after installation – making it particularly suitable for advanced users and professional system integrators.

About Sunricher

Sunricher is one of the leading global manufacturers of intelligent LED lighting solutions. Their product range includes dimmable LED drivers, RGB controllers, various dimmers (Zigbee, Z-Wave, KNX), and Matter-compatible devices. The brand is known for its reliability, international certifications, and high-quality OEM/ODM services.

Main Product Features

• Zigbee 3.0 connectivity – stable and reliable wireless communication
• 100–240 VAC input and output – suitable for diverse power environments
• 400 W load capacity (1 channel) – compatible with LED, halogen, and other loads
• Front-facing screw terminals – secure and dependable wiring
• TouchLink pairing and setup – works even without a dedicated Zigbee coordinator
• Energy monitoring – active power and consumption measurement
• Minimum and startup brightness setting – optimized low-level dimming behavior
• Soft start function – smooth light transition for lamp protection
• Push-button control – supports ON/OFF and dimming via momentary switches

Smart Home Protocols and Platform Compatibility

• Smart home protocol: Zigbee 3.0 – reliable wireless communication across systems
• Local control: TouchLink supported – direct pairing with Zigbee remotes without coordinator
• Platform compatibility: works with many Zigbee hubs (SmartThings, Philips Hue, Homey, etc.)
• Third-party platforms: compatible with Zigbee2MQTT, Home Assistant
• Voice control: supported via Alexa and Google Assistant through Zigbee gateways

Smart Functions

• Remote status query and control (via app or Zigbee hub)
• Minimum and startup brightness adjustment – ensures low-level operation
• Energy monitoring (logs power and consumption through the hub)
• Soft start – gradual light increase for user comfort and LED protection
• Push-button support – ON/OFF and dimming via momentary switches
• Cloud or local control – available via Zigbee network with or without cloud integration

Electrical Specifications

• Input voltage: 100–240 VAC
• Output voltage: 100–240 VAC (synchronized with input)
• Load capacity: max. 400 W (1 channel)
• LED loads: 200 W @ 230 V, 100 W @ 110 V
• Current: approx. 0.1–1.8 A
• Terminals: screw terminal block
• Dry contact switching: supports push-button control (momentary switches)
• Timing / auto-on / auto-off: supports soft start functionality

Other Features

• DIN rail mounting – space-saving design for electrical distribution boxes (90×66×18 mm)
• Built-in overheat protection – auto shut-off in case of overheating
• Neutral-free operation – minimum 20 W load required, bypass recommended below this
• Factory setting: trailing-edge dimming – can be modified depending on load type
• Phone and voice control – supported via compatible Zigbee gateways
• Built-in memory – remembers last brightness level after power loss
