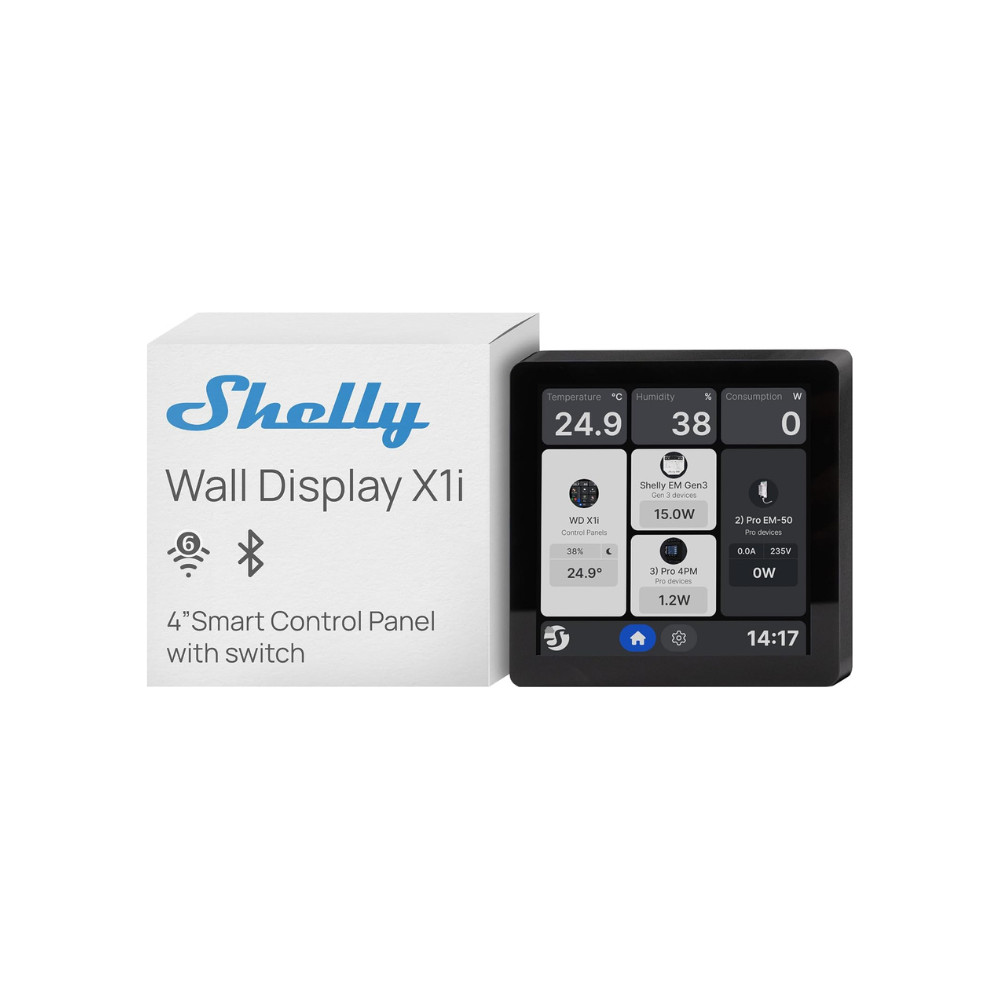

Shelly Wall Display X1i – Control panel, light switch, Wi-Fi, Bluetooth, black (SAWD-6A1XX10EU0)

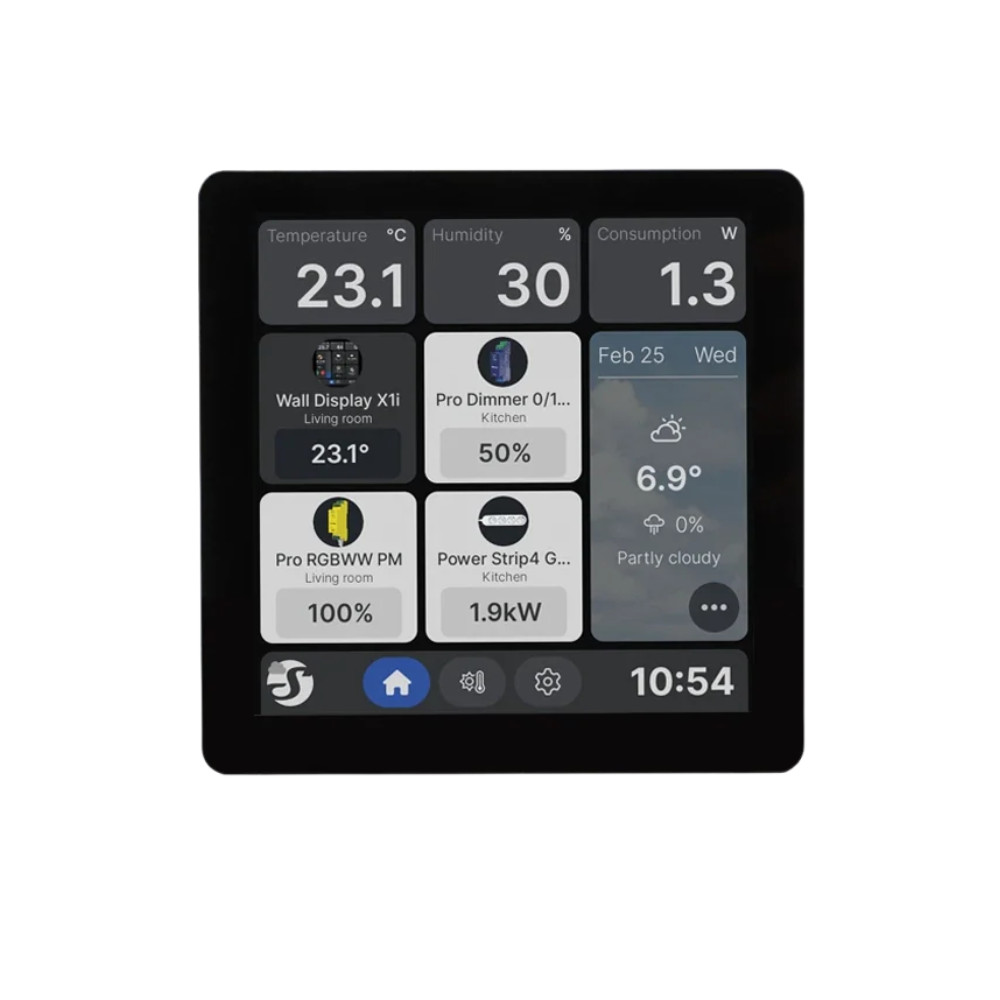

Shelly Wall Display X1i Black is an in-wall smart home control panel with a 4-inch, 720 × 720 pixel touchscreen, Wi-Fi 6 and Bluetooth 5.0 connectivity, and a replaceable Power Base module. Shelly devices, rooms, and scenes can be controlled directly from the display, while the status and energy consumption data of compatible devices can also be shown. The relay output of the Power Base can also be controlled directly from the panel.

The X1i is part of the new Wall Display i-series generation. It is equipped with a quad-core 1.5 GHz Rockchip RK3326-S processor, 1 GB of RAM, and 8 GB of storage, and runs Android 11. Compared with the previous Wall Display, new features include dual-band Wi-Fi 6, Bluetooth 5.0, more powerful hardware, 8 GB of storage, a replaceable Power Base, and a proximity sensor. The device also includes an ambient light sensor, microphone, and 1 W speaker.

The included 1-Output Power Base has one relay output rated for 5 A and one input for an external switch or push button. The Power Base is replaceable: using the separately available Shelly 2-Output Power Base allows two independent circuits to be switched. The X1i can therefore be used both as a central control interface and as a relay controller installed in place of a conventional wall switch.

About Shelly

Shelly manufactures smart home and building automation devices. Its product range includes in-wall and DIN rail-mounted relays, energy meters, dimmers, smart plugs, sensors, wall-mounted control panels, and other control devices.

A significant number of Shelly devices use Wi-Fi and Bluetooth communication, while newer product generations also include Zigbee- and Matter-compatible models. In addition to the Shelly Smart Control system, many products can be integrated with Home Assistant and other smart home systems, and can also be controlled through local HTTP/RPC and MQTT interfaces.

Key Product Features

• 4-inch touchscreen: Colour 5-point capacitive touchscreen.
• Replaceable Power Base: The Power Base includes an integrated relay for lighting control.
• 2-Output Power Base compatibility: The single-output Power Base can be replaced with the separately available Shelly 2-Output Power Base for Wall Display (i-series) module.
• Customisable user interface: Simple navigation and a customisable home screen.
• Built-in speaker: 1 W speaker.
• Built-in light sensor: Can be used to measure ambient light levels.
• Energy data display: Energy consumption data from devices assigned to a specific room in the Shelly Smart Control account can be displayed on the screen.

Smart Home Protocols and Platform Compatibility

• Wi-Fi 6 Dual Band: Can connect to both 2.4 GHz and 5 GHz Wi-Fi networks.
• Bluetooth 5.0: Supports Bluetooth communication and Bluetooth-based RPC connections.
• Shelly Smart Control: Can be managed through Shelly's own app and cloud system, while compatible Shelly devices and rooms linked to the account can be controlled from the display.
• Home Assistant: Shelly devices can be used on the local network through the Home Assistant Shelly integration.
• Amazon Alexa: The manufacturer supports Alexa integration.
• Google Home: The manufacturer supports Google Smart Home integration.
• Samsung SmartThings: The manufacturer supports SmartThings integration.
• HTTP: Supports HTTP for local network integration.
• RPC over HTTP: The Shelly RPC interface is available over HTTP.
• RPC over BLE: The Shelly RPC interface can also be used over Bluetooth.
• MQTT: Supports MQTT, allowing integration into local or custom MQTT-based systems.

Smart Features

• Central device control: Compatible devices linked to the Shelly Smart Control system can be managed directly from the display.
• Room management: Devices assigned to a room and their statuses can be displayed together in one interface.
• Scenes: Scenes created in the Shelly system can also be activated from the wall display.
• Customisable home screen: The interface layout can be adapted to the specific room and frequently used functions.
• Schedules: Up to 20 schedules can be configured.
• Webhooks: Up to 20 webhooks can be used, with two URLs per webhook.
• Remote access: When using Shelly Smart Control, connected devices can also be accessed and controlled remotely over the internet.
• Energy data: Energy consumption data from compatible Shelly PM devices assigned to a room in the Shelly Smart Control account can be displayed.
• Light sensing: The measured value from the built-in light sensor can be used as a control condition.
• Proximity sensing: The built-in proximity sensor detects when the user approaches the display.
• External temperature and humidity sensors: With compatible Shelly sensors, room temperature and humidity data can be displayed and used in automations. The X1i does not have built-in temperature or humidity sensors.
• Bluetooth speakers: Supports connection to Bluetooth speakers.
• Sonos support: Can also be used with Sonos speakers for audio playback.

Electrical Functions

• Mains power supply: 100–240 V AC, 50/60 Hz.
• USB-C power supply: The display can also operate from a 5 V DC, 1 A USB-C power supply.
• Power Base: The included 1-Output Power Base has one switchable output.
• Maximum switching voltage: 240 V AC.
• Maximum switching current: 5 A.
• Switch input: Includes one SW input for an external switch or push button.
• Supported loads: Resistive loads such as incandescent and halogen lamps; capacitive loads such as LED lamps, LED drivers, and compact fluorescent lamps; as well as inductive LED transformers.
• 2-Output Power Base: With the separately available dual-output Power Base, two independent load circuits can be switched.
• Power consumption: Less than 5 W.

Technical Specifications

• Product name: Shelly Wall Display X1i
• Model: SAWD-6A1XX10EU0
• Colour: Black

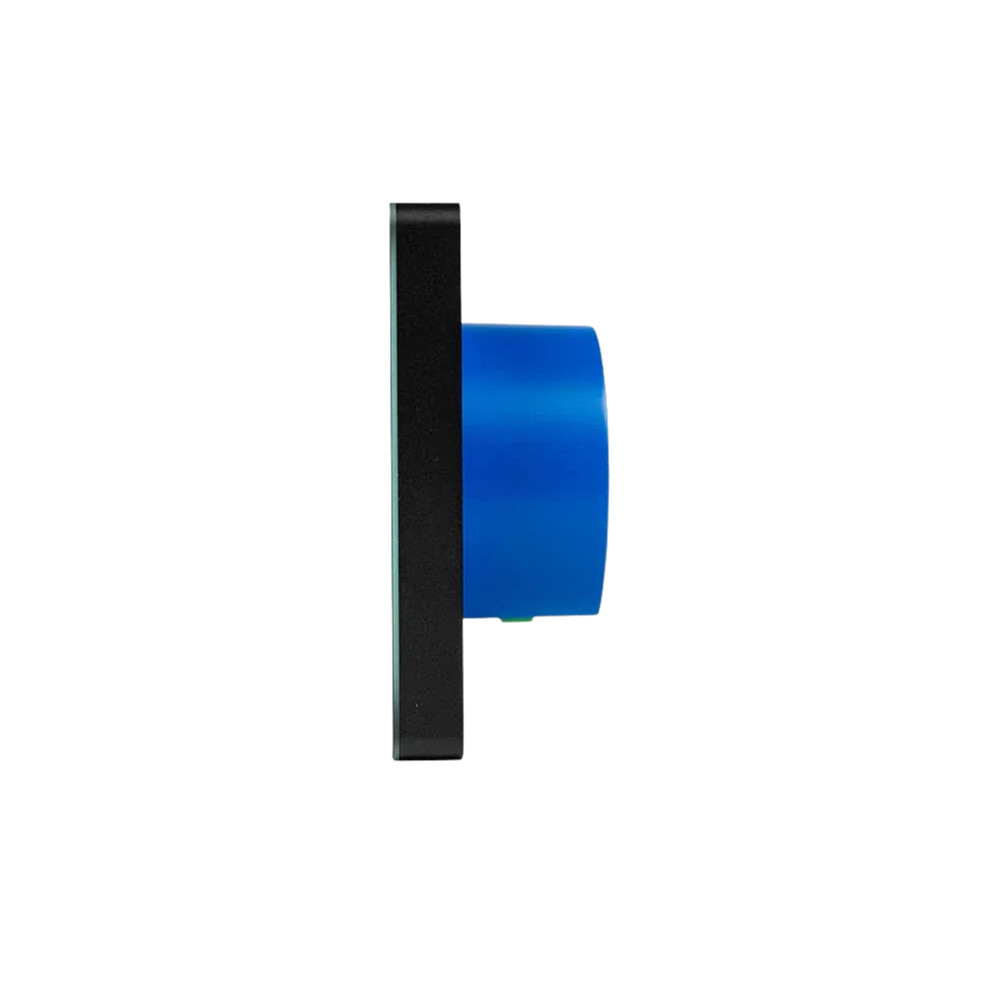

• Dimensions with Power Base: 86.5 × 86.5 × 35.7 mm
• Dimensions without Power Base: 86.5 × 86.5 × 11 mm
• Touchscreen: 5-point capacitive
• Display resolution: 720 × 720 pixels
• Maximum screw terminal tightening torque: 0.4 Nm
• Wire cross-section: 0.75–2.5 mm², solid, stranded, or ferruled wire
• Wire stripping length: 6–7 mm
• Installation: In-wall electrical box
• Enclosure material: Plastic, aluminium, and glass
• Speaker: 1 W
• Operating temperature: -20 °C to +40 °C
• Operating humidity: 30–70% relative humidity
• Maximum operating altitude: 2000 m
• Mains power supply: 100–240 V AC, 50/60 Hz
• Power consumption: <5 W
• USB-C power supply: 5 V DC, 1 A
• Maximum switching voltage: 240 V AC
• Maximum switching current: 5 A
• USB-C voltage: 5 V DC
• USB-C current: 0.5 A
• Light sensor: Yes
• Microphone: Yes
• Proximity sensor: Yes
• Wi-Fi: Wi-Fi 6 Dual Band
• Wi-Fi frequency range: 2412–2472 MHz and 5150–5850 MHz
• Maximum Wi-Fi RF power: <20 dBm
• Wi-Fi range: Up to 30 m indoors and 50 m outdoors, depending on environmental conditions
• Bluetooth: Bluetooth 5.0
• Bluetooth frequency range: 2402–2480 MHz
• Maximum Bluetooth RF power: <4 dBm
• Bluetooth range: Up to 10 m indoors and 30 m outdoors, depending on environmental conditions
• Processor: Rockchip RK3326-S, quad-core Cortex-A35, 1.5 GHz
• RAM: 1 GB
• Storage: 8 GB
• Operating system: Android 11
• Number of schedules: 20
• Webhooks: 20, with 2 URLs per webhook
• MQTT: Yes

Additional Features

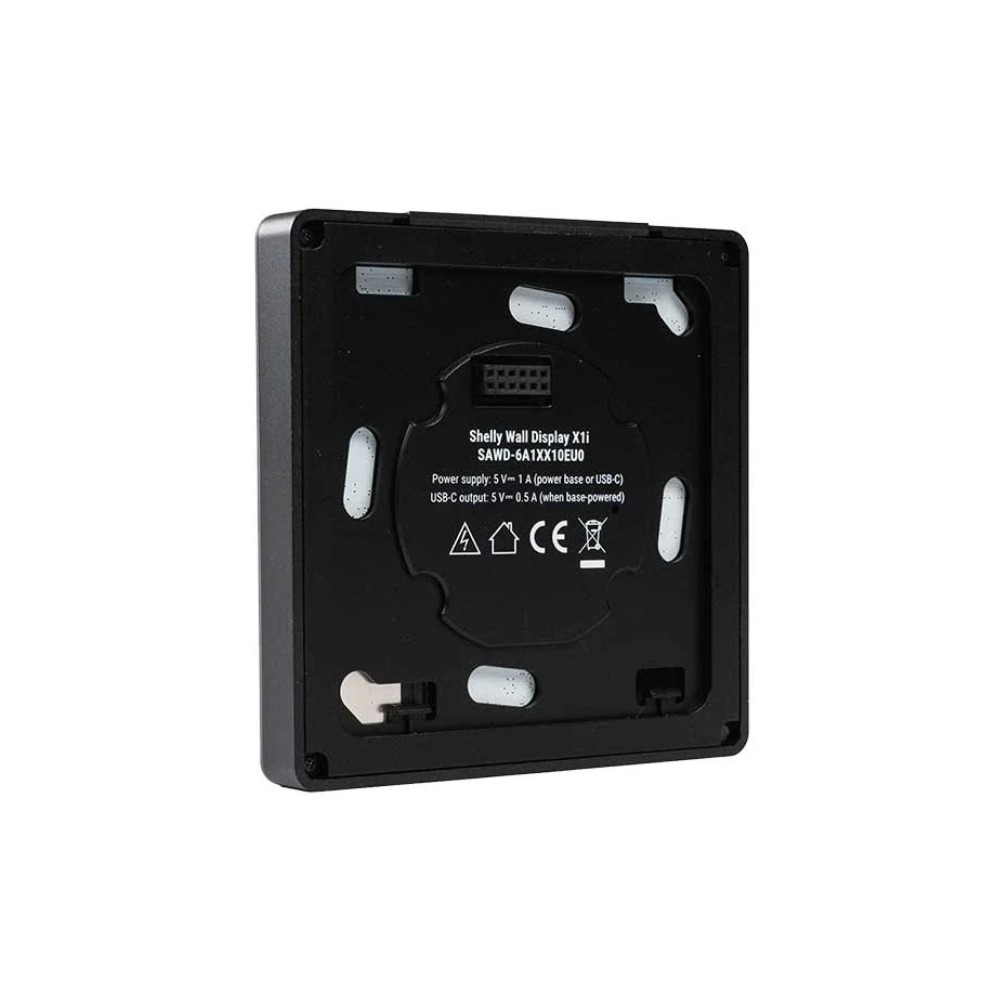

• Replaceable Power Base system: The display can be detached from the single-output Power Base module and used with a compatible i-series Power Base unit.

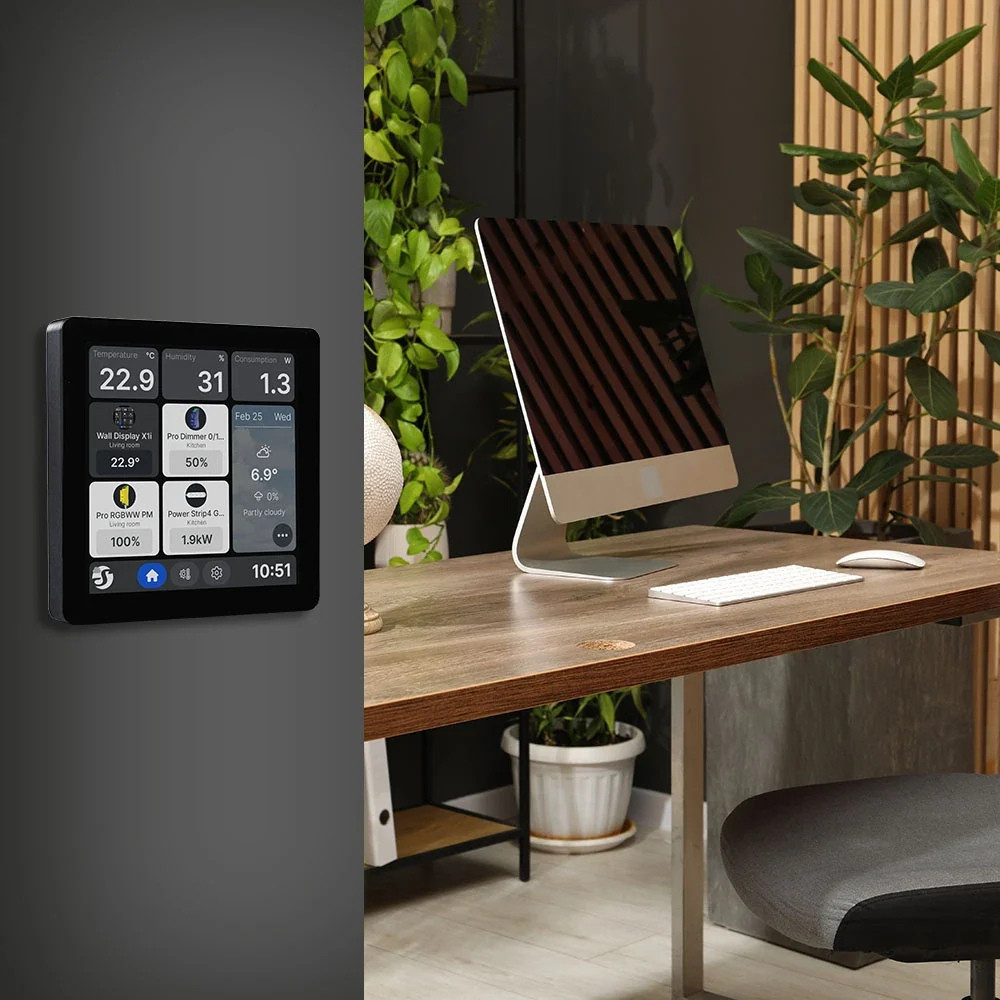

• Standard wall box installation: The device can be installed in a suitable electrical box in place of a conventional wall switch.
• Standalone display power supply: The display unit can also be used without the Power Base when powered via USB-C.
• More powerful hardware than the previous generation: The X1i uses a quad-core 1.5 GHz processor, 1 GB of RAM, and 8 GB of storage.
• Dual-band Wi-Fi: In addition to 2.4 GHz networks, the X1i can also connect to 5 GHz Wi-Fi networks.
• Temperature and humidity measurement with external sensors: The device does not include its own temperature or humidity sensor; compatible external Shelly sensors are required for these measurements.
• Local integration: Thanks to HTTP, RPC, and MQTT support, it can be integrated into local systems without using the Shelly cloud.
• Scripting: According to the manufacturer's specification, the X1i does not support running Shelly Script.
