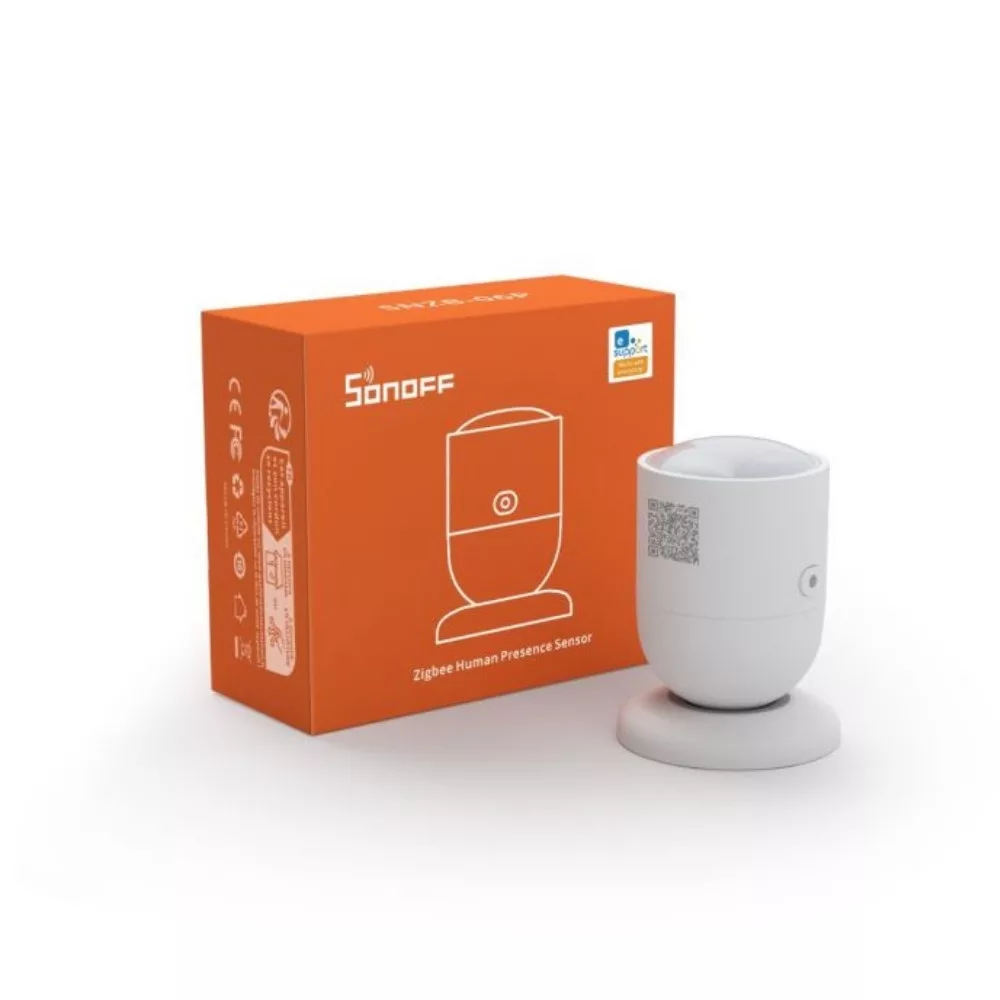

Sonoff SNZB-06P smart microwave presence sensor with Zigbee 3.0 support
Brand:
Sonoff
The SNZB-06P is a presence detector using microwave technology. Unlike motion sensors, it does not only detect when you are moving, but also when you are standing or sitting still. For example, it can help to avoid turning off lights inadvertently, even though someone is in the monitored zone.
FOR SAME DAY DISPATCH
Don’t miss today’s dispatch – order now!
Related products
The SNZB-06P is a presence detector based on 5.8 GHz microwave technology. Unlike motion sensors, it does not only detect when you are moving, but also when you are standing or sitting still. For example, it can help to avoid turning off the lights early on, even though someone is in the zone being monitored.
It is compatible with all eWeLink Zigbee gateways and hubs, and also with a number of third party Zigbee 3.0 gateways. Note: the functions provided by the sensor may differ for different gateways. It requires USB Type-C power supply via an adapter (5V DC), which is NOT included in the product package.
Installation:
installation at a minimum height of 2 m is a prerequisite for correct operation.
The radar has a radial detection range of approximately 4 m.
Overview:
1., Presence sensor
2., Wall-mountable magnetic base
3., Function button (pairing and reset process)
4., LED Feedback (operating status feedback)
5., USB Tipe-C connector
Package contents:
- Presence detector
- Magnetic base
- Charging cable (USB Type-C)
Compatible with the following gateways:
SONOFF ZBBridge, Sonoff ZBBridge-P (Zigbee Bridge Pro), SmartWise Zigbee Bridge Pro, Sonoff NSPanel PRO, Sonoff iHost, Sonoff ZBDongle-P, Sonoff ZBDongle-E.
Third party compatible gateway models are also supported.
Specification:
Type: SNZB-06P
MCU: EFR32MG22
Power supply: USB Type-C 5V (1A)
Communication range:Indoor environment 30m
Protocol:Zigbee 3.0（IEEE802.15.4）
Phisical size: 2.2mm × 44.2mm x 59mm
Color: White
Housing material: ABS+PC
Rating: IP20 (indoor)
Operating temperature:-10°C ~ 60°C
Operating humidity:0~90% RH, (no condensation)
Certification:CE/FCC/ISED/RoHS
Implementation standard:EN IEC 62368-1
This content is only available to logged in users.
Weight:
109 g/pcs
