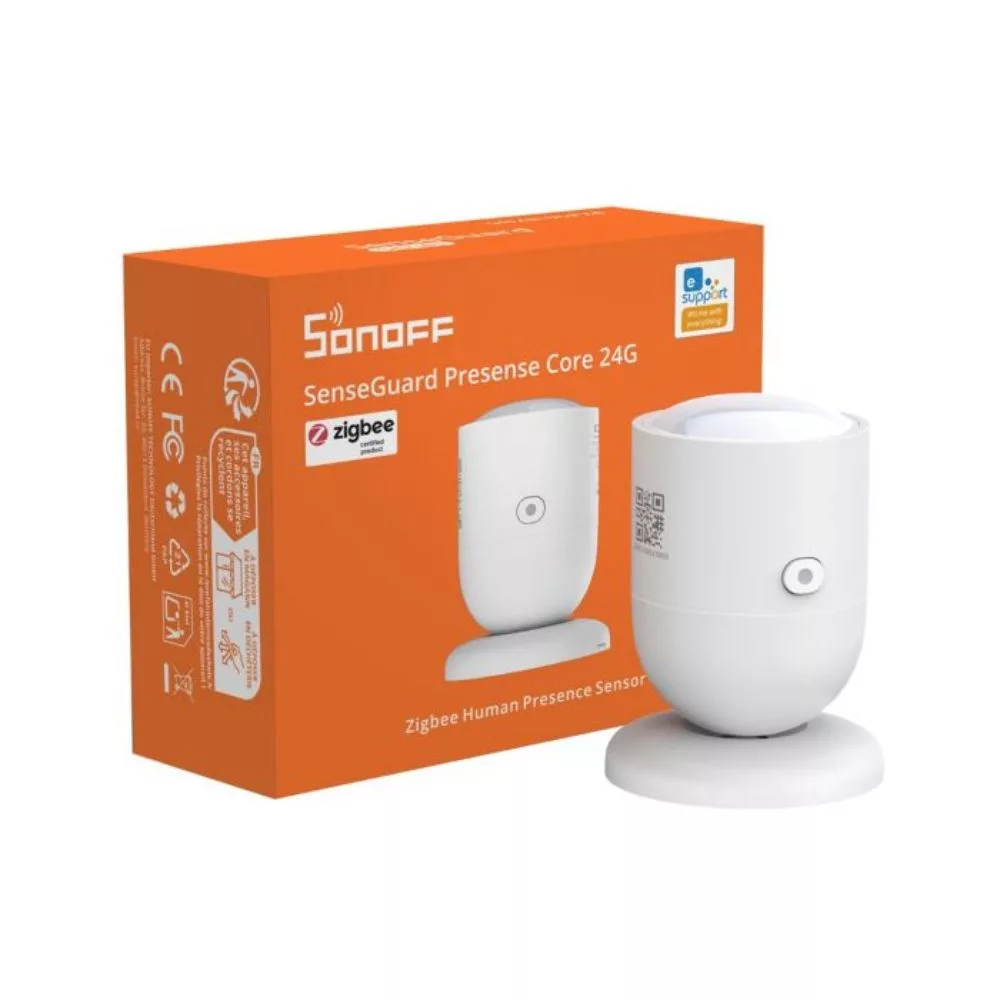

Sonoff SenseGuard Presence Core 24G – presense sensor (24GHz) with light sensor, Zigbee, Bluetooth, white (SNZB-06P24)
Brand:
Sonoff
The SONOFF SenseGuard Presence Core 24G (SNZB-06P24) is a Zigbee presence sensor based on 24 GHz mmWave radar technology, designed to accurately detect whether people are present in a room.
FOR SAME DAY DISPATCH
Don’t miss today’s dispatch – order now!
Related products
The SONOFF SenseGuard Presence Core 24G (SNZB-06P24) is a Zigbee presence sensor based on 24 GHz mmWave radar technology, designed to accurately detect whether people are present in a room. Unlike traditional PIR motion sensors, it can detect not only normal movement but also the smallest human micro-movements, such as breathing or posture changes, allowing it to detect presence even when someone is sitting or working motionless for a long time.
The 24 GHz radar technology provides a detection distance of up to 4 meters and a 110° detection angle. The detection area can be divided into seven separately configurable zones, each of which can be enabled or disabled. This allows the sensor to monitor only the relevant areas of a room while excluding zones where presence detection is not needed.
One of the device’s key innovations is calibratable interference filtering, called Detection Calibration. The sensor can learn and filter out fixed or repetitive environmental interference sources, such as fans, air conditioners, pipes, or other equipment. This significantly reduces false detections and increases system reliability.
Thanks to the built-in light sensor, ambient brightness can also be measured. This enables intelligent automations, such as turning on lights automatically only when someone is present and the room brightness drops below a preset level, for example near dusk.
The sensor uses Zigbee 3.0 communication, making it compatible with Home Assistant, SmartThings, Alexa, eWeLink, and other Zigbee-compatible systems. When using third-party Zigbee platforms, advanced settings can be configured via Bluetooth through the eWeLink app, as all settings are stored locally on the device.

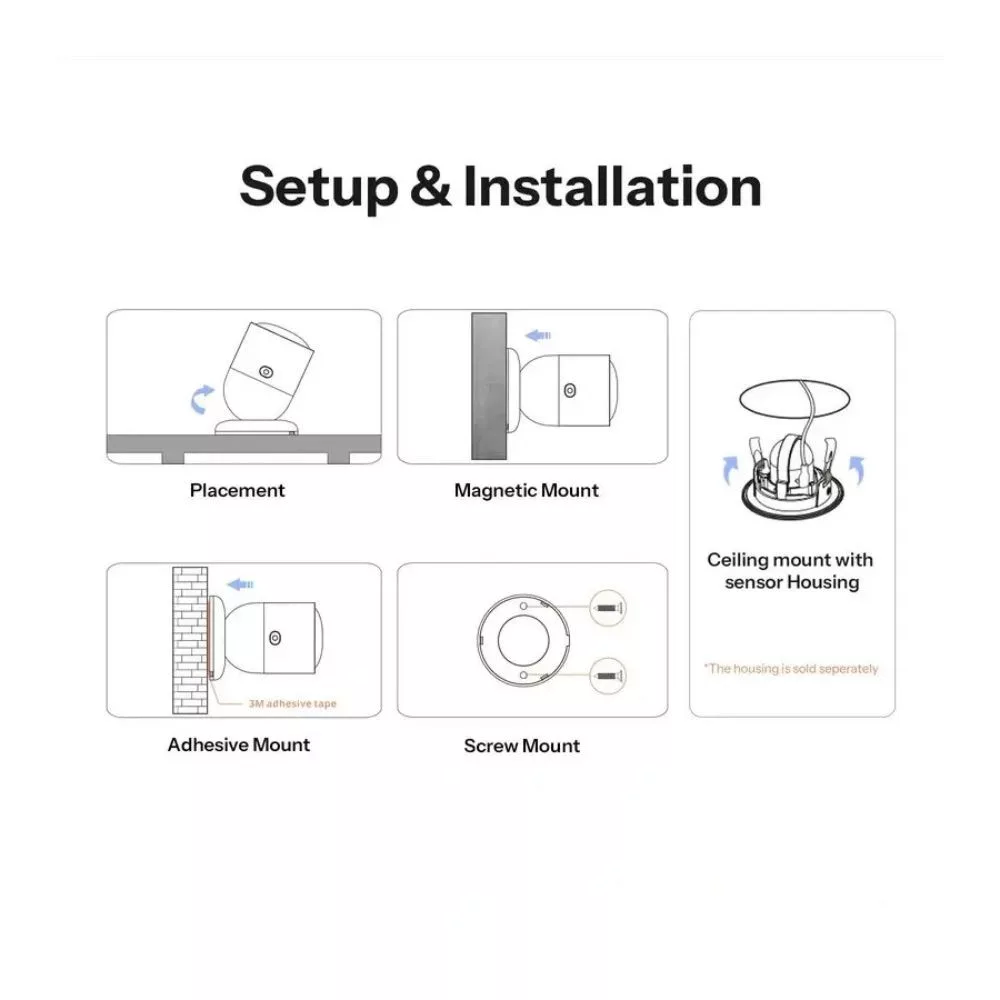

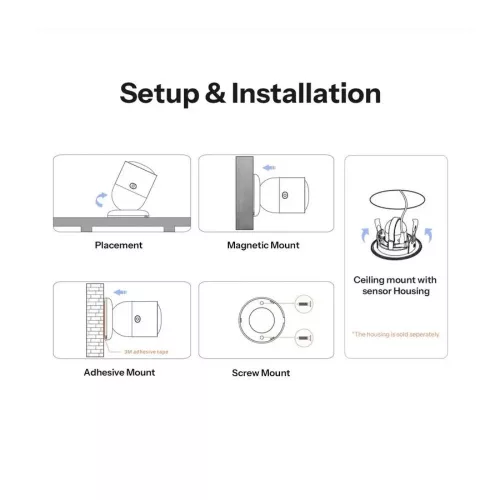

The compact sensor supports multiple installation methods. It can be placed on a desk or shelf, mounted magnetically, or installed on a wall or ceiling using adhesive mounting. The adjustable sensor head allows the optimal detection angle to be set with the base, while an optional recessed ceiling frame enables discreet ceiling installation.
About SONOFF
SONOFF is a globally recognized smart home brand developed by ITEAD, offering affordable yet advanced Wi-Fi, Zigbee, and Matter-compatible devices. Its products are widely used in both residential and business automation systems.
The SONOFF range includes smart relays, switches, sensors, energy meters, control panels, and Zigbee gateways. Most devices can be integrated with Home Assistant, Alexa, Google Home, SmartThings, IFTTT, and other popular platforms.
The SenseGuard series is SONOFF’s next-generation presence detection solution, going beyond the limitations of traditional motion sensors by detecting real human presence with advanced mmWave radar technology.
Key Features
- 24 GHz mmWave radar: Highly sensitive presence detection capable of detecting even the smallest human movements
- 7-zone detection area: The 4-meter detection range can be divided into seven separately configurable zones
- Automatic interference filtering: Filters out false detections caused by fans, air conditioners, and other interference sources
- Built-in light sensor: Continuous lux measurement and support for lighting automations
- Bluetooth configuration: Access to advanced settings even when using third-party Zigbee platforms
- Flexible installation: Magnetic, adhesive, freestanding, or recessed ceiling installation
- Adjustable sensor head: Optimal detection angle adjustment for different rooms
- Real presence detection: Detects not only motion but also sustained presence
Smart Home Protocols and Platform Compatibility
- Zigbee 3.0: IEEE 802.15.4 communication
- Bluetooth: Local configuration and settings adjustment
- eWeLink: Full functionality and configuration support
- Supported Zigbee gateways and controllers: SONOFF ZBBridge-P, ZBBridge-U, SONOFF NSPanel Pro, ZBDongle-P, ZBDongle-E, Dongle-M, Dongle-PMG24, and Dongle-LMG21
- Home Assistant: ZHA and Zigbee2MQTT support
- SmartThings: Presence and light sensor data support
- Amazon Alexa: Presence status query
- Google Home: Presence status query
- IFTTT: Automation events based on presence
Smart Functions
- Real-time presence detection with timestamp
- Real-time brightness measurement in lux
- Illuminance history storage
- Illuminance data export
- Presence detection event log
- Automations based on presence
- Automations based on brightness
- Combined presence and brightness conditions
- Object distance-based events
- Configurable detection delay
- Detection sensitivity fine-tuning
- Lux calibration within a ±1000 lux range
- Push notifications on presence changes
- Sharing with multiple eWeLink users
- Can be assigned to rooms and areas
- Local Bluetooth configuration for third-party systems
- OTA firmware update support when used with a compatible Zigbee gateway
Technical Specifications
- Product name: SONOFF SenseGuard Presence Core 24G
- Model: SNZB-06P24
- Product series: SenseGuard Series
- MCU: TLSR8656
- Detection technology: 24 GHz mmWave radar
- Wireless protocol: Zigbee 3.0 IEEE 802.15.4
- Bluetooth: For configuration purposes
- Power supply: 5V DC / 0.5A

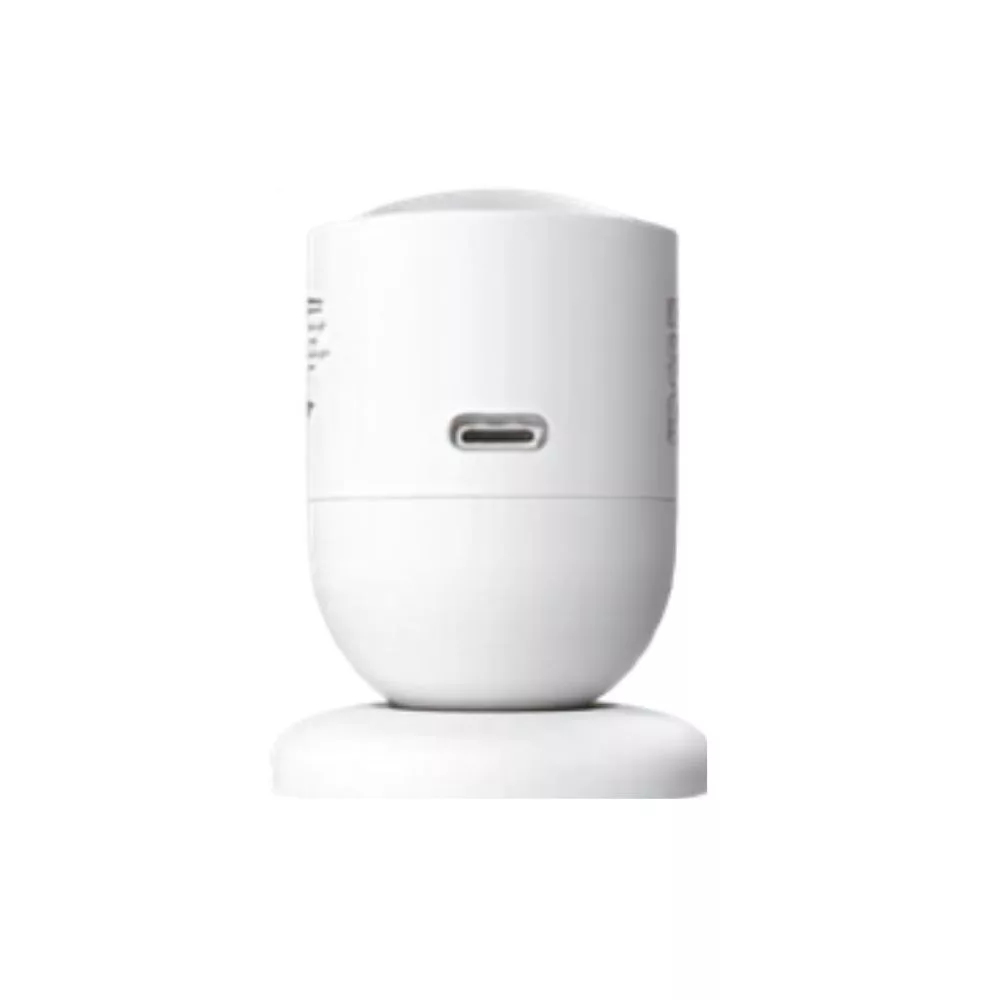

- Connector: USB Type-C
- Dimensions: 44.2 × 44.2 × 59 mm
- Weight: 34.5 g
- Housing material: PC + ABS
- Color: White
- Installation location: Indoor use
- Communication range: Up to 100 m in open areas
- Operating temperature: -10°C to +60°C
- Operating humidity: 0–90% RH, non-condensing
- Installation altitude: Below 2000 m
- Detection distance: Up to 4 meters
- Detection angle: 110°
- Number of detection zones: 7
- Certifications: CE, FCC, RoHS
