SONOFF POW Ring Smart Power Meter (POWCT)

Related products

• Details
• Data

Details

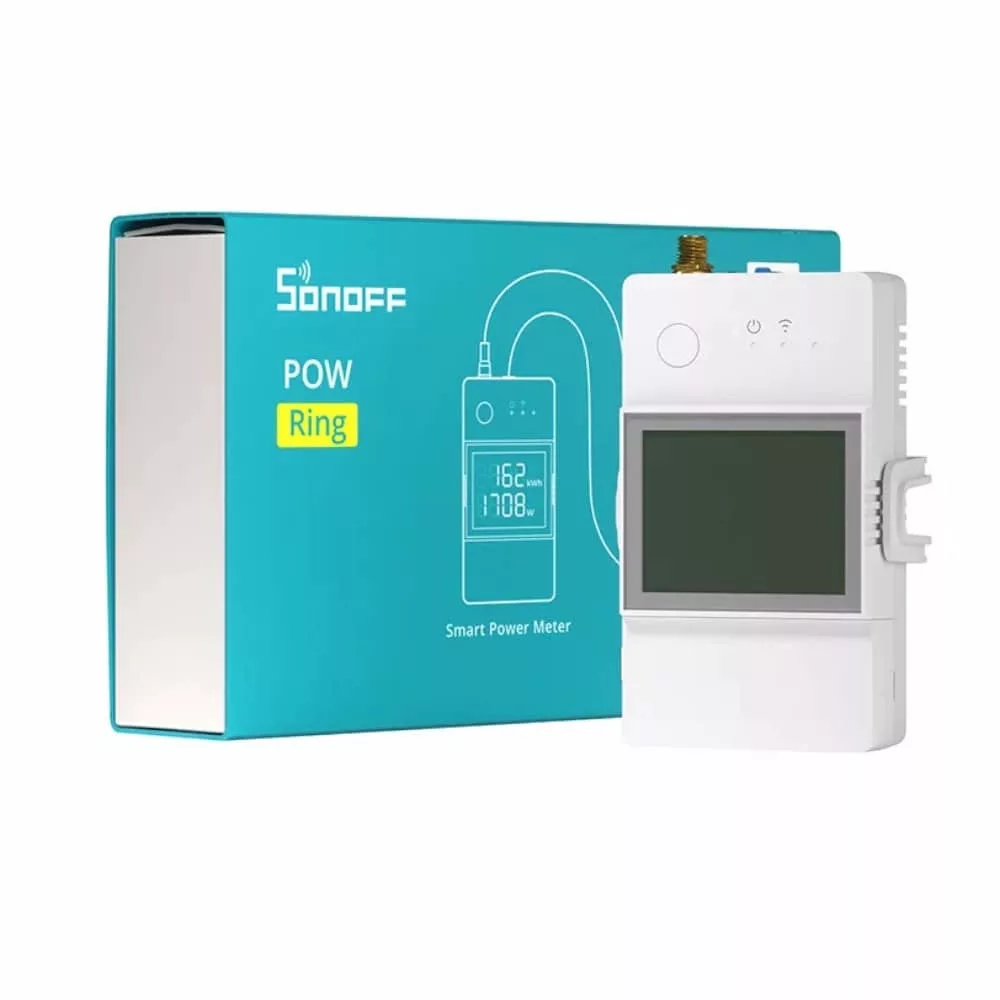

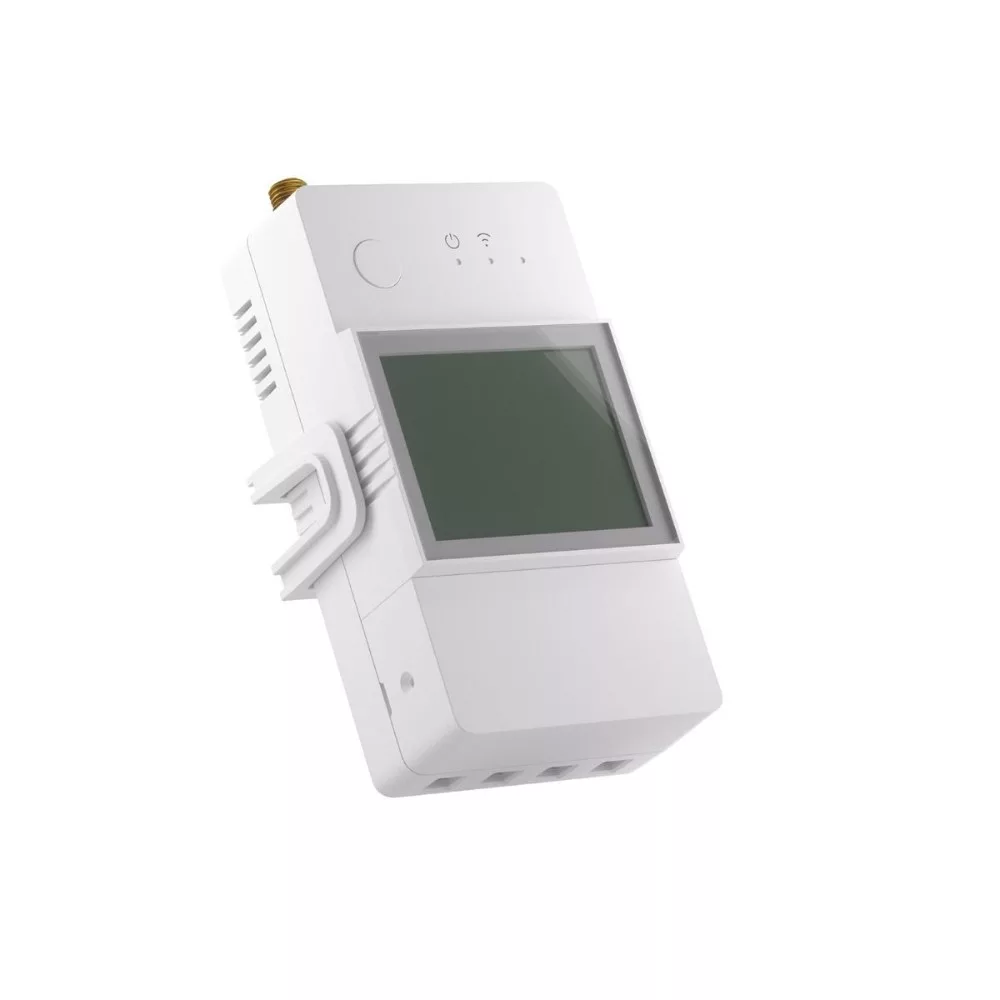

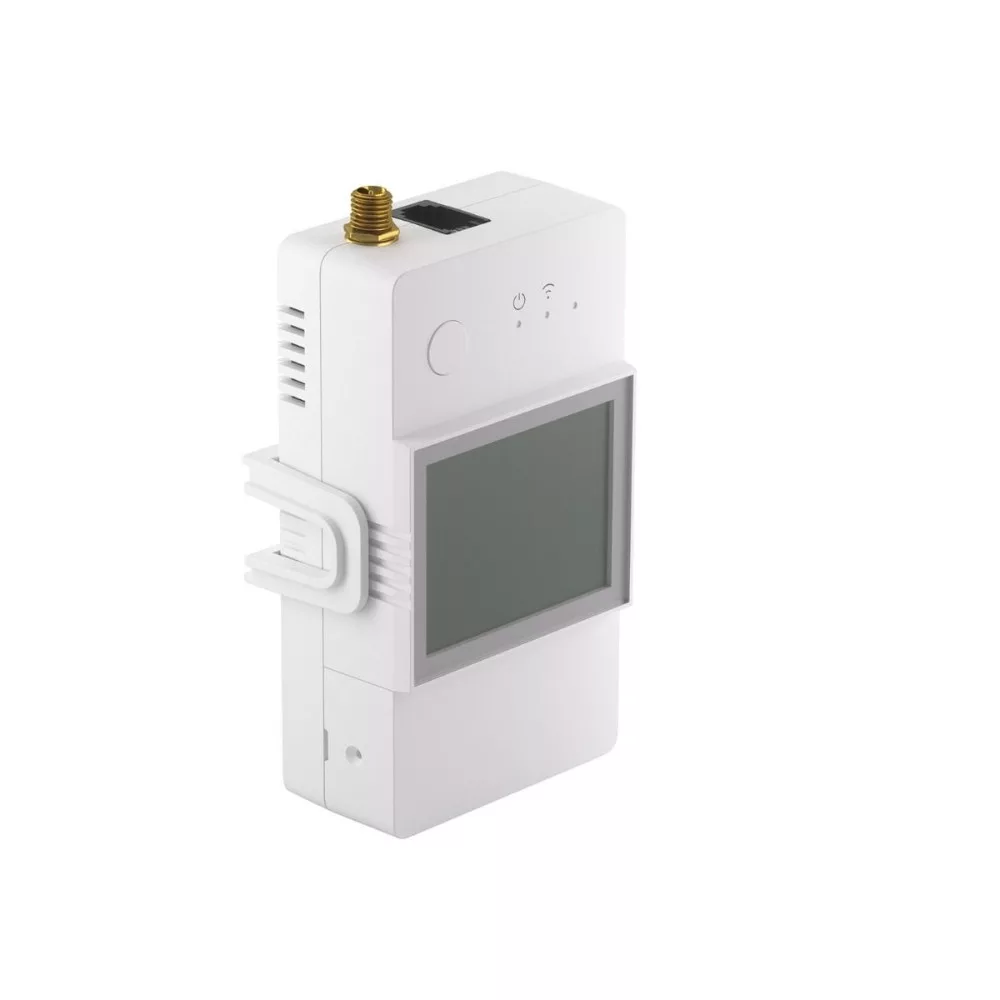

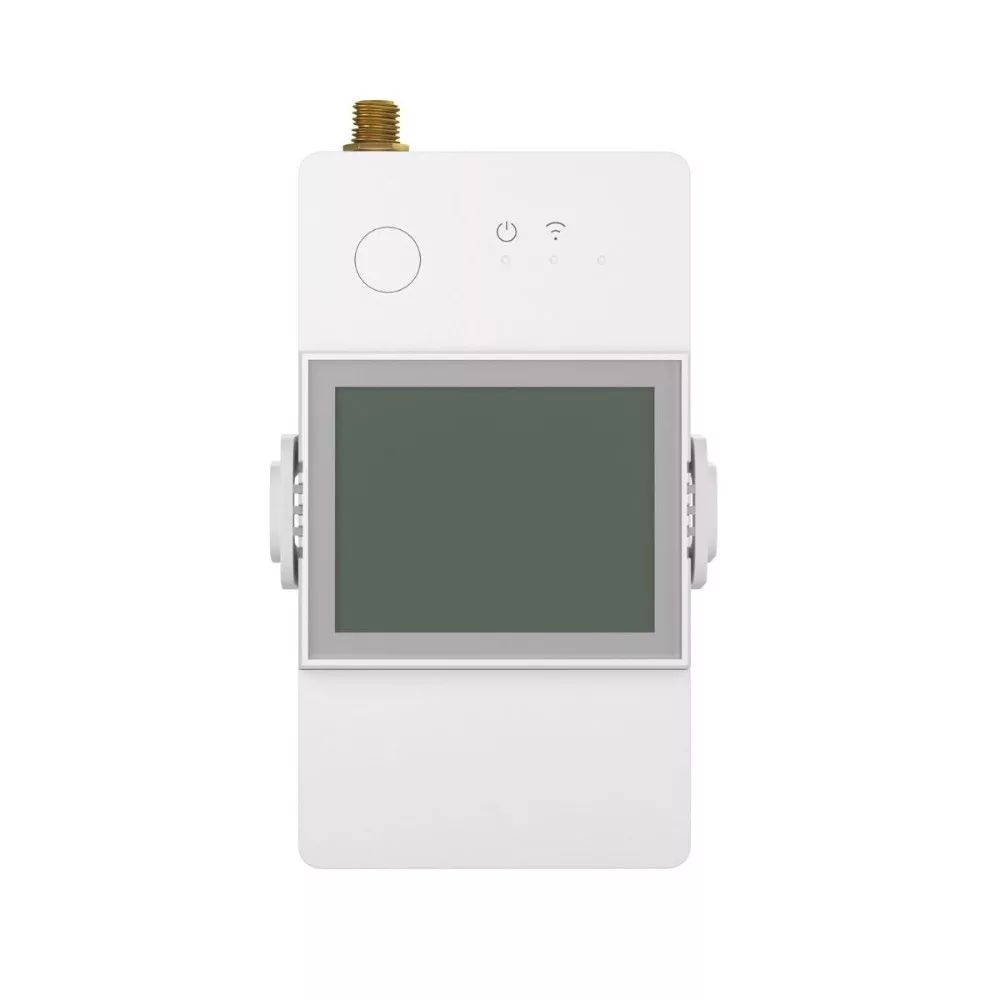

The Sonoff POW POW Ring smart power meter, also called as Sonoff POW CT is a smart power meter equipped with a current transformer and a built-in relay for small current switching (max. 2A).

Thanks to this feature, it can control the pull-in coil of a high-current contactor installed in a power strip. The measurement range of the POWCT is between 0-100A, making it suitable for measuring the main line of apartments or houses.

The module, true to the Sonoff POW series, can be mounted on a DIN rail and comes with a display and a micro switch for pairing and relay switching. Thanks to its external WiFi antenna, it can be installed even in a metal cabinet, with the antenna placed outside the metal cabinet, enabling communication with the WiFi router. The device features a micro switch for pairing with the eWeLink app, and this micro switch can also change the state at the relay output.

Product Features:

• Chip: ESP32
• Power Supply: 100-240V AC
• Communication Protocol: WiFi 2.4GHz IEEE 802.11 b/g/n
• External WiFi antenna included (SMA)
• Current transformer included with RJ9 connector, 0-100A
• Product size: 98 x 54 x 31 mm
• Operating Temperature: -40℃ - 50℃
• Operating Humidity: 5% - 95% (non-condensing)
• Includes description, current transformer, external antenna, DIN adapter in the box
• Model: POWCT

At the link below, you can access our sales support materials for individual products.
Available documents are organized by manufacturer in folders on Google Drive.

PRODUCT IMAGES

USER MANUALS

CERTIFICATES

BULB ENERGY CLASSES

COPYRIGHT

The content of this website (texts, images, animations, videos) is the property of the website operator and is protected by copyright law.
No content from the website may be used without the owner’s prior consent.

This content is only available to logged in users.

Data

Weight:

335 g/pcs
