SONOFF Orb-DIM Matter over Wi-Fi Dimmer Wall Switch – dimmer switch with power monitoring, Matter, Wi-Fi, white (MINI-DIM-E)
Brand:
Sonoff
The SONOFF Orb-DIM (MINI-DIM-E) is an ultra-compact, in-wall smart dimmer relay with an integrated wall switch, designed to add smart control to your existing lighting circuits via Matter over Wi-Fi.
FOR SAME DAY DISPATCH
Don’t miss today’s dispatch – order now!
Related products
The SONOFF Orb-DIM (MINI-DIM-E) is an ultra-compact, in-wall smart dimmer relay with an integrated wall switch, designed to add smart control to your existing lighting circuits via Matter over Wi-Fi. The dimmer provides smooth, flicker-free dimming for most 230 V dimmable light sources (including LED, incandescent, halogen bulbs, and dimmable electronic transformers), making it easy to integrate traditional lighting into a unified smart home system.
Measuring just a few centimeters, the module fits neatly behind your wall switch and retains manual control with both momentary push-buttons and rocker switches supported. Its built-in auto and manual calibration enables accurate percentage-based brightness control, while overheat protection and power detection improve safety and compatibility.
Thanks to the Matter standard, the SONOFF Orb-DIM (MINI-DIM-E) is compatible with major ecosystems like Apple Home, Google Home, Amazon Alexa, SmartThings, and Home Assistant (Matter). You can configure schedules, scenes, and automations, and the fast plug-and-play pairing guides you through setup. The module requires a neutral wire and is intended for use only on single-phase (220–240 V~) networks.
About the SONOFF Brand
SONOFF (ITEAD) is a key player in the DIY smart home community. Their portfolio includes Wi-Fi and Zigbee relays, dimmers, sensors, and wall switches offering excellent value for money along with open, multi-platform integration — including eWeLink, Apple Home, Google Home, Amazon Alexa, SmartThings, and Home Assistant.
Key Product Features
- Matter over Wi-Fi: platform-independent integration with Apple Home, Google Home, Alexa, SmartThings, and Home Assistant.
- Ultra-compact in-wall design: Mini Extreme size — fits comfortably behind standard wall switches.
- Broad light source compatibility: supports dimmable LEDs, incandescent, halogen bulbs, and dimmable electronic transformers.
- Smooth dimming control: automatic and manual calibration for precise, percentage-based brightness adjustment.
- Built-in safety features: overheat protection and load detection.
- Flexible switch support: compatible with both momentary push-buttons and toggle (rocker) switches.
Smart Home Protocols and Platform Compatibility
- Protocol: Matter over Wi-Fi (IEEE 802.11 b/g/n, 2.4 GHz)
- Ecosystems: Apple Home, Google Home, Amazon Alexa, Samsung SmartThings, Home Assistant (Matter)
- eWeLink Mode: can also be paired and configured via the eWeLink app
- Local control: works without internet via external wall switch; optimized for local Matter-based operation
Smart Features
- Remote ON/OFF and dimming: control via app, voice, or automation
- Schedules and delays: schedule-based ON/OFF, delayed OFF timing
- Auto/manual calibration: enables accurate, percentage-based brightness range setting
- Scenes: coordinate multiple devices for routines like movie mode or evening relaxation
Technical Specifications
- Product / Series: Orb-DIM
- Model: MINI-DIM-E
- Type: Matter over Wi-Fi smart dimmer (in-wall installation)
- MCU: ESP32-C3
- Power / Network: 220–240 V~ 50 Hz (single-phase); neutral wire required
- Rated load: 400 W (resistive); LED: 200 VA
- Supported light sources: dimmable LED, incandescent, halogen, dimmable electronic transformer
- Wireless connectivity: Wi-Fi 2.4 GHz (IEEE 802.11 b/g/n); Matter support

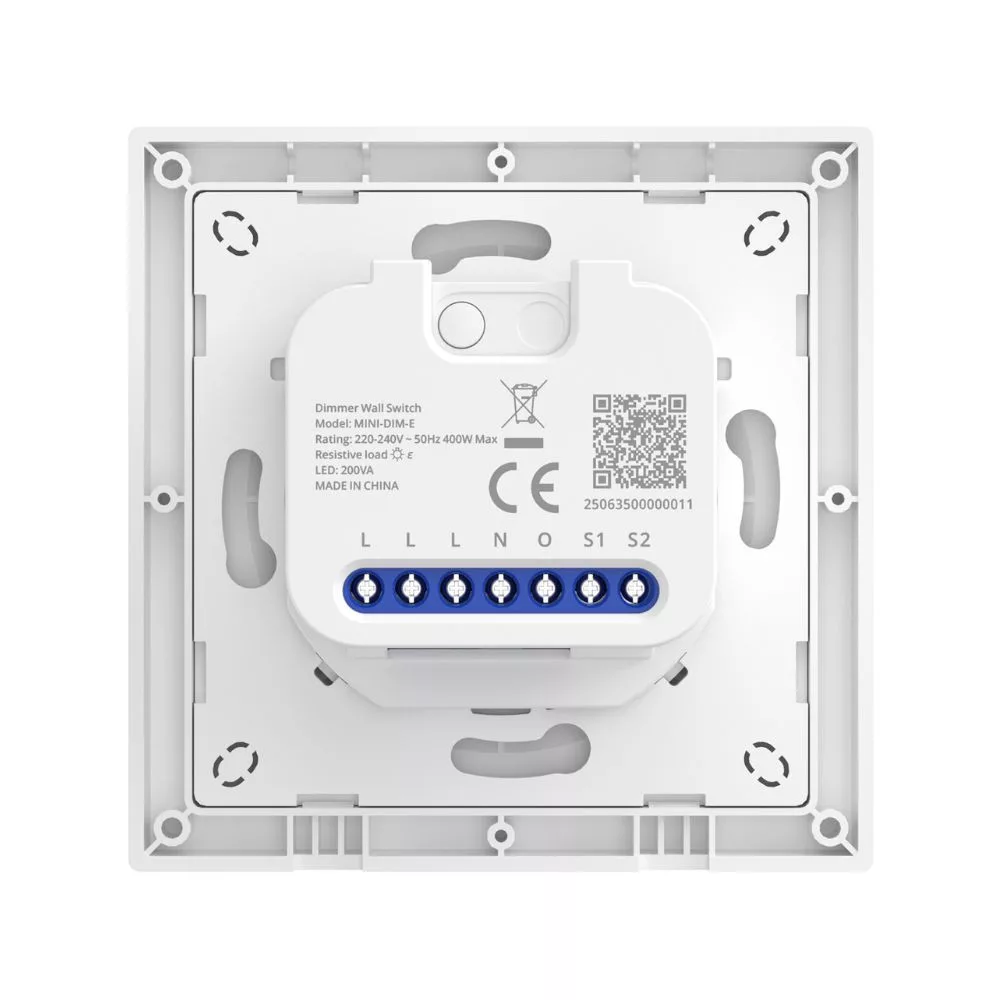

- External switch inputs: S1 / S2 — supports momentary push-buttons and toggle switches
- Protections: overheat protection; load detection
- Calibration: automatic / manual (via device button or app)
- Recommended wiring: 18–16 AWG solid/stranded copper
- Housing / color: PC; white
- Dimensions / weight: 45 × 39.4 × 16.8 mm; 24.5 g
- Operating environment: indoor use; −10 to +40 °C; 5–95% RH (non-condensing)
- Certifications: CE / RoHS
- Note: for single-phase 220–240 V~ networks only; installation must be carried out by a qualified electrician
