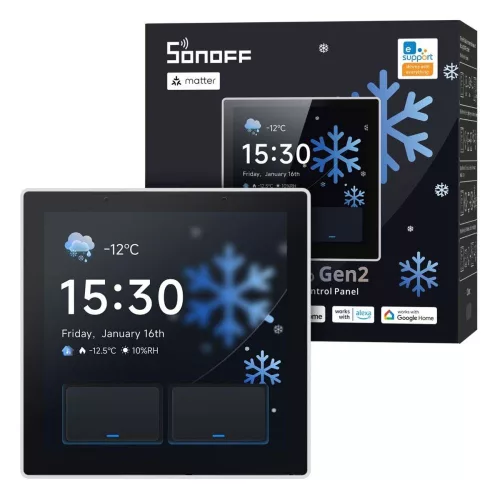

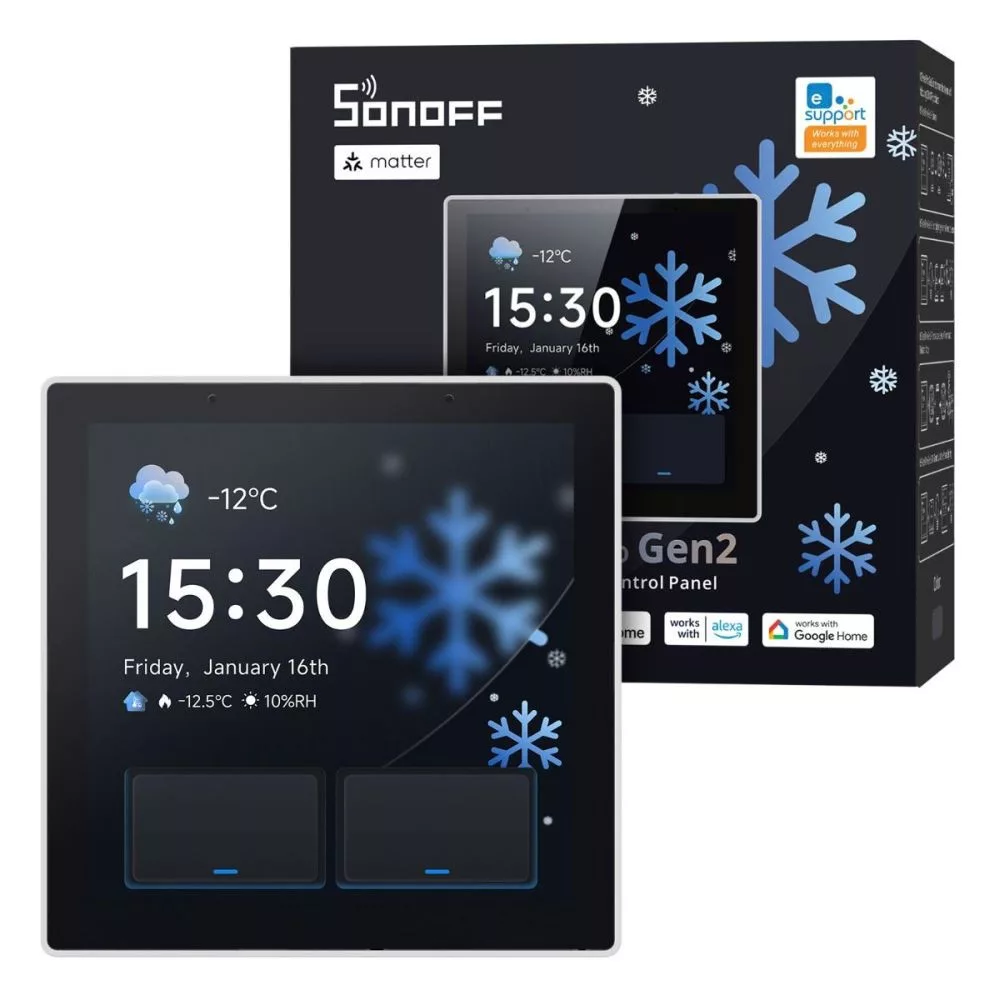

SONOFF NSPanel Pro Gen2 Smart Home Control Panel – Central control panel with two-channel relay, Wi-Fi, Zigbee, Matter, Bluetooth, white (NSPanel86PW-Relay)

The SONOFF NSPanel Pro Gen2 is a premium wall-mounted smart home control panel that combines central touchscreen control, a Zigbee gateway, Matter Bridge functionality, Home Assistant dashboard support, and a dual-channel relay switch in one device. It can replace a traditional 2-gang wall switch while also functioning as a full-featured smart home hub.

One of the most important upgrades of the Gen2 version is the built-in dual-channel relay, which allows direct switching of two lighting circuits or other electrical circuits. This means no separate relay module is required for lighting control. The device can also be easily retrofitted into existing wiring, making it an excellent choice for renovation and retrofit smart home projects.

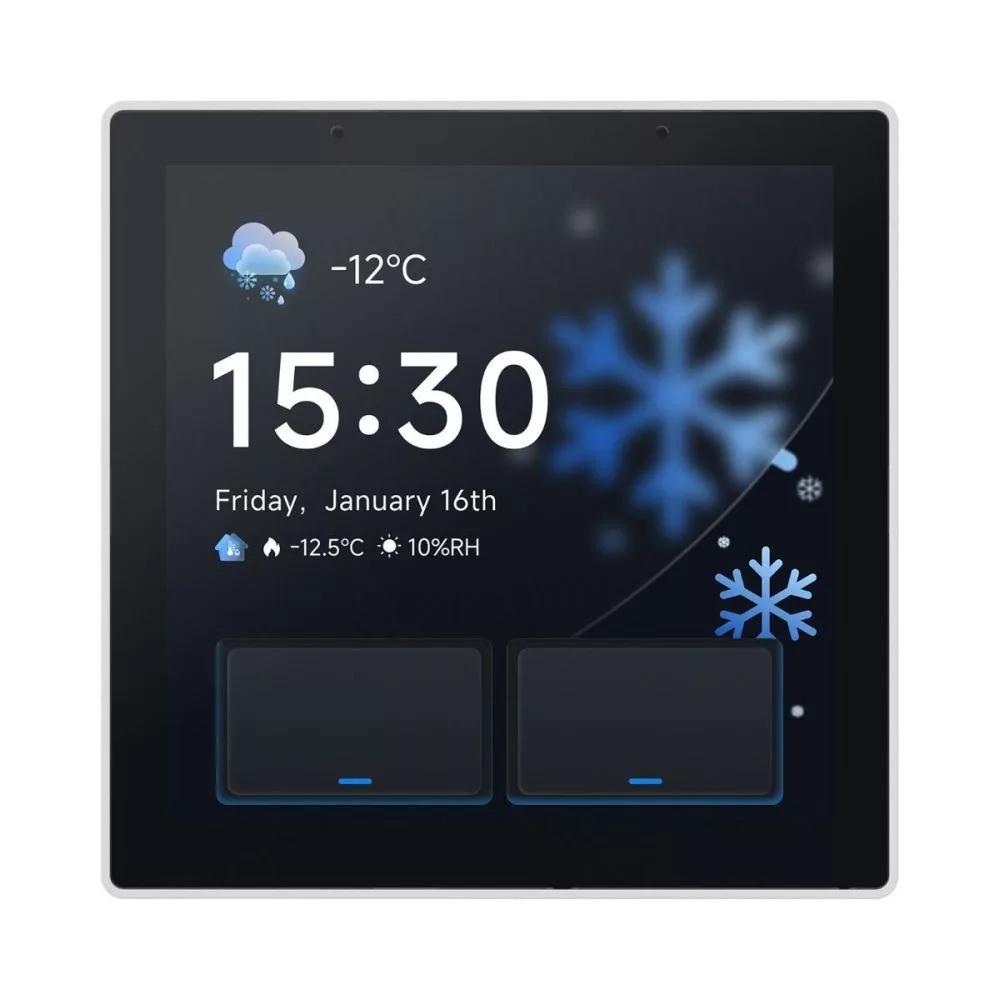

The 3.95-inch touchscreen provides convenient control of lights, shutters, switches, thermostats, cameras, sensors, and automations. The panel can operate as a Zigbee hub, Matter Bridge, Home Assistant dashboard, intelligent thermostat, camera monitor, and security center at the same time.

The device runs an Android-based system powered by a quad-core ARM Cortex-A35 processor, 2 GB RAM, and 32 GB storage. Thanks to F-Droid app store support, various open-source applications can be installed, significantly expanding the panel’s capabilities. The Home Assistant app can be installed directly, allowing the NSPanel Pro Gen2 to be used as a full Home Assistant dashboard without rooting.

With Matter Bridge functionality, devices previously available only in Zigbee or eWeLink environments can also be exposed to Apple Home, Amazon Alexa, Google Home, Samsung SmartThings, and other Matter-compatible platforms. The device acts as an ecosystem bridge, connecting different smart home systems.

The NSPanel Pro Gen2 also offers advanced heating control options. Up to 10 separate thermostat screens can be created to monitor the temperature of different rooms and automatically control heating or cooling systems. The panel can also display room temperature, humidity, and central heating system status.

The device can also be used as a security center, with three configurable alarm modes: Home, Away, and Sleep. Connected sensors can trigger an alarm on the display while an instant notification is sent to the user’s phone. The system also provides security logs, alarm code protection, and detailed event management.

The NSPanel Pro Gen2 is not just a touchscreen switch, but a complete wall-mounted smart home center. It is an ideal choice for users who want to monitor and control their entire home from a single device while keeping local control, open integration, and future expandability.

About SONOFF

SONOFF is the best-known smart home brand of ITEAD, recognized worldwide for its Wi-Fi, Zigbee, and Matter-compatible automation solutions. The manufacturer’s product range includes smart relays, switches, sensors, energy meters, control panels, and professional automation solutions.

One of the key advantages of SONOFF products is broad compatibility and open integration. Most devices support Amazon Alexa, Google Home, Samsung SmartThings, Home Assistant, IFTTT, and eWeLink platforms. The manufacturer places strong emphasis on Matter support, local control, and user-friendly automations.

The NSPanel product family is SONOFF’s central control solution, combining the functionality of traditional wall switches with full monitoring and control of modern smart home systems.

Key Features

• All-in-one control center: Central control of lights, cameras, sensors, switches, thermostats, and automations
• Built-in Zigbee 3.0 gateway: Direct Zigbee device management and network building
• Matter Bridge: Export Zigbee, Wi-Fi, and Home Assistant devices to Matter platforms
• Dual-channel relay: Direct switching of two lighting circuits or other electrical circuits
• Android-based system: F-Droid app store support and external app installation
• Home Assistant panel: Can be used as a Home Assistant dashboard without rooting
• Zigbee device synchronization to Home Assistant: With MQTT Discovery support
• Intelligent thermostat function: Create up to 10 separate thermostat screens
• Camera display: Live view from RTSP and compatible IP cameras
• Voice call function: Communication with compatible devices and other NSPanel Pro Gen2 panels
• Energy consumption display: Visualization of data from compatible energy metering devices
• Proximity wake-up: Display activates automatically when someone approaches

Smart Home Protocols and Platform Compatibility

• Wi-Fi: IEEE 802.11 b/g/n/ac/ax, 2.4 GHz and 5 GHz support
• Zigbee 3.0: Built-in Zigbee coordinator and gateway function
• Zigbee Router mode: Extends and strengthens the Zigbee network
• Matter Bridge: Exports non-Matter devices to Matter platforms
• Matter: Support for Apple Home, Amazon Alexa, Google Home, SmartThings, and other Matter systems
• Home Assistant: Native integration and MQTT Discovery support
• MQTT: Export Zigbee and Home Assistant devices
• Amazon Alexa: Voice control and security system integration
• Google Home: Voice control and automations
• Samsung SmartThings: Via Matter compatibility
• IFTTT: Automation integration
• eWeLink: Full device management and configuration
• eWeLink Remote: Support for SONOFF R5 and compatible wireless controllers
• Siri: Supported via Matter Bridge

Smart Functions

• Central smart home control via touchscreen
• Start scenes and automations
• Multi-page split screen interface
• Manage up to 10 separate thermostats
• Room-by-room temperature monitoring
• Automatic control of heating and cooling systems
• Three separate security modes: Home, Away, Sleep
• Alarm notifications sent to mobile phone
• Real-time camera live view
• Display websites and dashboards
• Send reminders to the display
• Make and receive voice calls
• Automatic screen wake-up with proximity sensor
• Bulk pairing of Zigbee devices directly from the display
• Energy consumption screens for compatible energy metering devices
• Upload custom wallpapers, screensavers, and ringtones
• Do Not Disturb mode
• LAN control without cloud connection
• Interlock function between the two relay channels
• Inching mode
• Voice calls with compatible phones, tablets, and other NSPanel Pro Gen2 devices
• Display reminders and messages directly on the screen
• Upload custom wallpapers, ringtones, and screensavers via the local network
• F-Droid app store for installing additional Android apps
• Any installed app can be set as the default Home App
• Security code for disabling alarms and protecting the device
• Security Log storage
• Call Records logging
• Scheduled Do Not Disturb mode
• Direct display of RTSP and DIY IP cameras
• Open API-based integration support
• Zigbee Turbo Mode for improved network range and stability
• Switching between Zigbee Hub and Zigbee Router modes
• Wireless integration of eWeLink Remote devices, such as SONOFF R5
• Automatic display wake-up activated by proximity sensor
• Automatic brightness adjustment with built-in light sensor
• Guest Mode to prevent system setting changes

Electrical Functions

• Power supply: 100–240V AC, 50/60Hz
• Built-in relays: 2 channels
• Maximum switching current: 5A per channel
• Maximum total load: 10A
• Load type: Resistive load

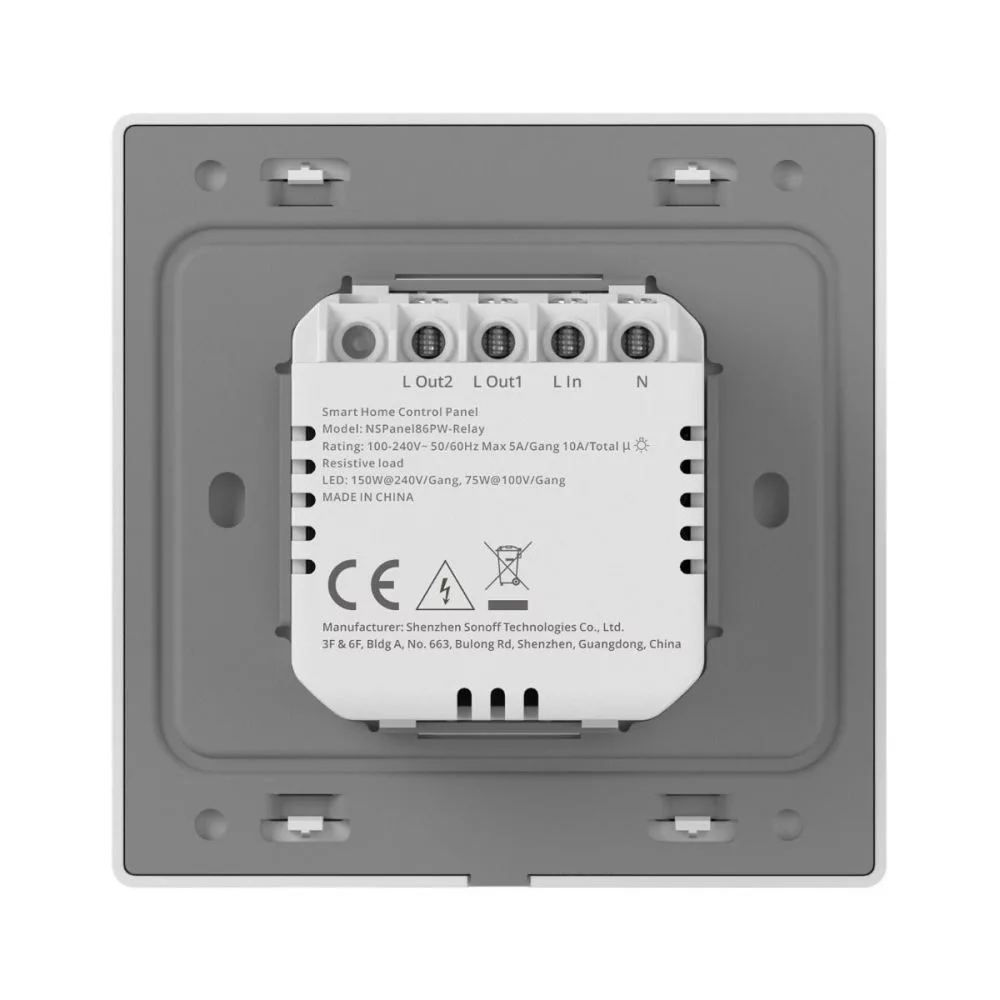

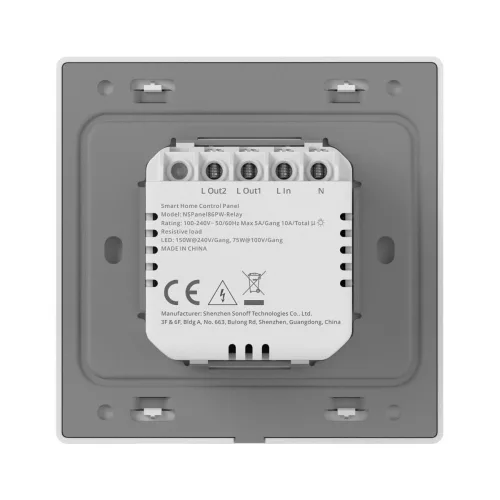

• Outputs: L Out1 and L Out2 switched live outputs
• Relay type: Dual-channel switching relay
• Interlock mode: Yes
• Inching mode: Yes
• Power-on state after outage: Configurable per channel
• Central heating control: Supported

Technical Specifications

• Product name: SONOFF NSPanel Pro Gen2 Smart Home Control Panel
• Model: NSPanel86PB-Relay / NSPanel86PW-Relay
• Processor: Quad-Core ARM Cortex-A35
• SoC: RK3326-S
• GPU: Mali G31-2EE
• Memory: 2 GB RAM
• Storage: 32 GB ROM
• Display: 3.95" capacitive touchscreen
• Resolution: 480 × 480 pixels
• Multi-touch: Yes
• Wi-Fi: IEEE 802.11 b/g/n/ac/ax, 2.4 GHz and 5 GHz
• Zigbee: Zigbee 3.0
• Speaker: 8Ω, 1.5W
• Microphone: Two digital microphones
• Light sensor: Yes, automatic brightness adjustment
• Proximity sensor: Yes
• Power supply: 100–240V AC, 50/60Hz
• Relay load capacity: 5A per channel, 10A total
• Dimensions: 86 × 86 × 39.5 mm
• Weight: 190 g
• Color: White or Dark Gray
• Housing material: PC + CRS
• Installation: 86 mm standard wall box
• Operating temperature: -10°C to +40°C
• Operating humidity: 10% to 80% RH, non-condensing
• Application area: Indoor use
• Certifications: CE, RoHS
