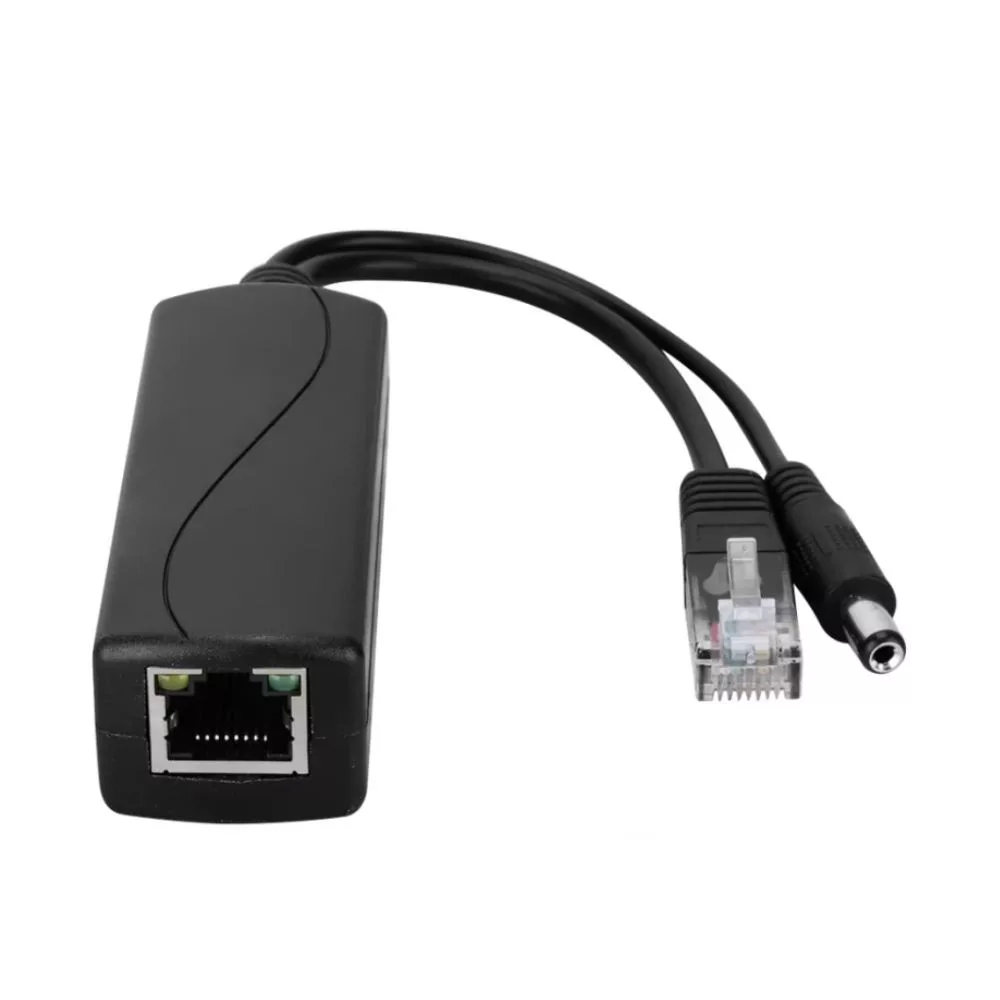

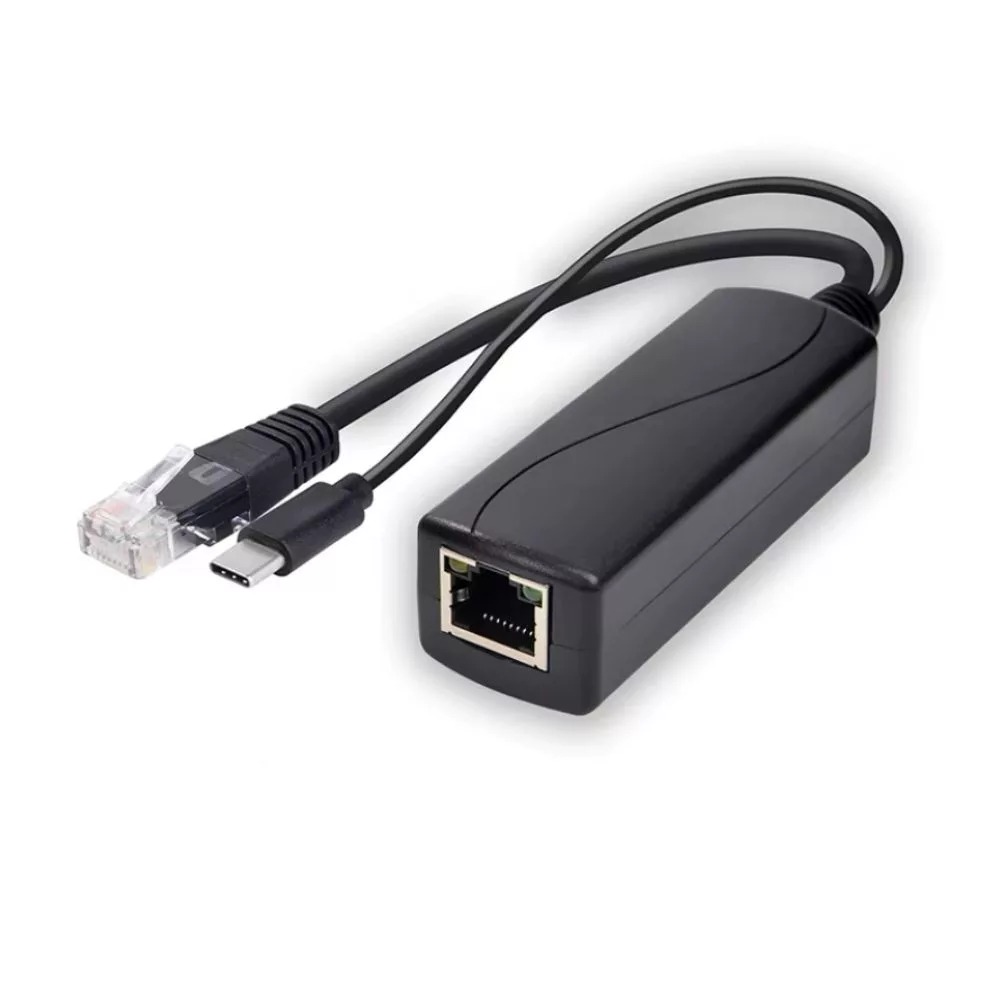

SMLIGHT PoE splitter 100Mb – Ethernet + USB-C/DC

The SMLIGHT PoE Splitter 100Mb USB-C is a practical networking accessory designed to power devices over Ethernet that do not natively support PoE (Power over Ethernet), but feature both USB-C power input and Ethernet connectivity. The device converts IEEE 802.3af and IEEE 802.3at PoE power into a stable 5V USB-C output while simultaneously maintaining a 10/100 Mbps Ethernet network connection. This allows both power and data to be delivered through a single Ethernet cable.

The splitter is especially recommended for IoT environments where providing a separate power outlet would be difficult or costly. It is an ideal solution for powering Home Assistant servers, Raspberry Pi systems, Zigbee coordinators, network gateways, SMLIGHT adapters, and other USB-C powered devices.

Automatic PoE detection ensures safe operation by activating power delivery only when a compatible PoE source is detected. The integrated 2.5 kV galvanic isolation increases operational reliability and provides protection against electrical interference.

Thanks to its compact design, the splitter can easily be installed in junction boxes, rack cabinets, multimedia cabinets, or other confined spaces. It helps create a cleaner, more reliable, and easier-to-manage smart home and network infrastructure.

About the SMLIGHT Brand

SMLIGHT specializes in developing networking devices and Zigbee coordinators for smart home and IoT infrastructures. The company's products are particularly popular among users of Home Assistant, Zigbee2MQTT, and other open-source automation platforms.

The SMLIGHT product portfolio includes Ethernet and PoE-based Zigbee coordinators, Thread adapters, PoE accessories, network distribution devices, and other professional infrastructure products. One of the company's key strengths is the development of reliable hardware designed for continuous operation and seamless integration into modern smart home systems.

Main Product Features

• PoE power conversion: Converts IEEE 802.3af/at PoE input into low-voltage power delivered through a USB-C connector.
• USB-C output: Compatible with a wide range of modern IoT, smart home devices, and cameras.
• Automatic PoE detection: Safe operation and compatibility with PoE switches and PoE injectors.
• Galvanic isolation: 2.5 kV isolation for enhanced reliability and protection.
• Compact design: Ideal for concealed installations and confined spaces.
• Plug & Play operation: No configuration or additional setup required.

Electrical Features

• PoE input: 44-57 V DC.
• PoE standards: IEEE 802.3af / IEEE 802.3at.
• Output voltage: 5 V DC.
• Output connector: USB-C.
• Galvanic isolation: 2.5 kV.
• Power source: PoE switch or PoE injector.
• Passive and active PoE pinout support: Yes.

Technical Specifications

• Product type: PoE Splitter
• Model: SMLIGHT PoE Splitter 100Mb USB-C
• PoE input: IEEE 802.3af / IEEE 802.3at
• Input voltage: 44-57 V DC
• Output voltage: 5 V DC
• Output connector: USB-C
• Network connection: RJ45 Ethernet
• Ethernet speed: 10/100 Mbps
• PoE detection: Automatic
• Galvanic isolation: 2.5 kV
• Supported PoE pinouts: 1/2 (+) and 3/6 (-), as well as 4/5 (+) and 7/8 (-)
• Application: IoT networking devices, cameras
