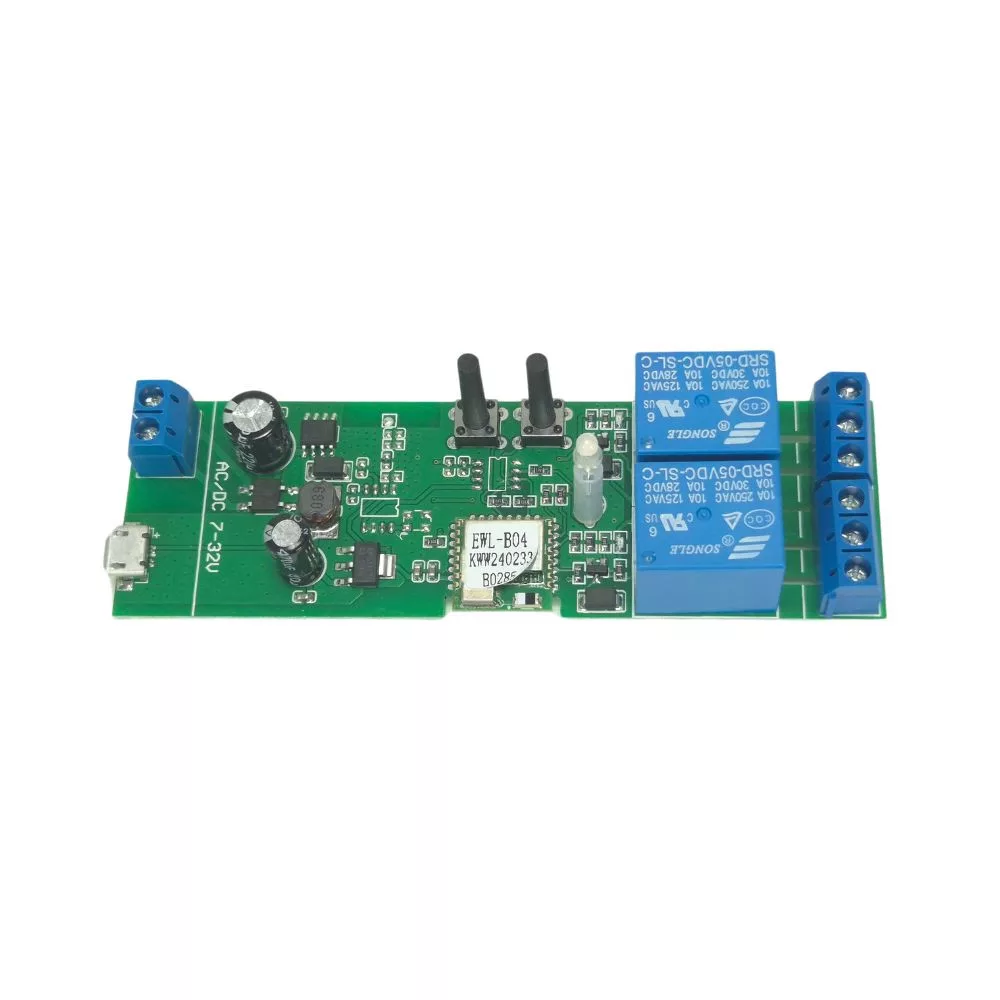

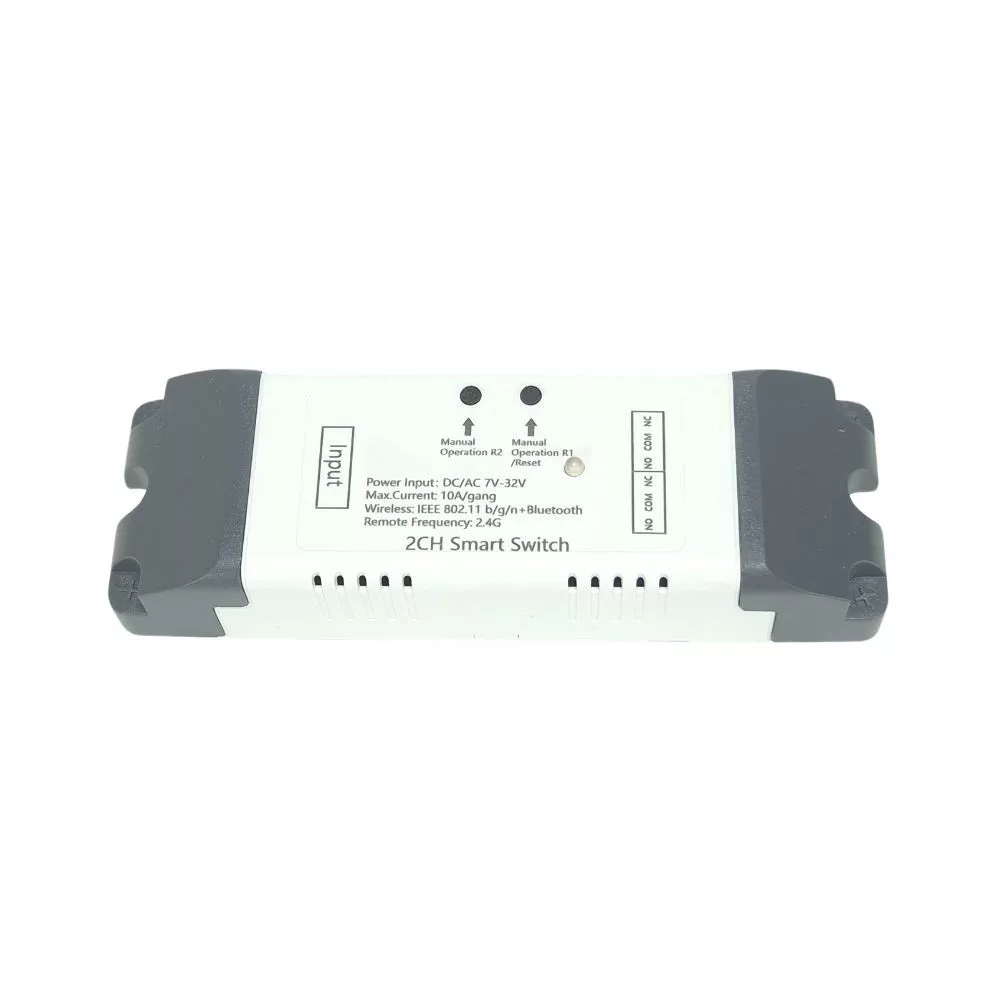

SmartWise 5V-32V Wi-Fi + Bluetooth 2-gang smart relay switch, NO/NC, dry contact, momentary, interlock, eWeLink compatible

This is a 2-gang smart relay-switch from Sonoff-compatible SmartWise brand, ideal solution for remote control of motorized gates, garage doors, irrigation systems, or other electric devices/circuits. This smart device is compatible with the eWeLink smartphone app managing other Sonoff products. You can use  the WiFi-equipped smart relay to close or break any circuits, and turn ON / OFF any devices connected to the relay.

This new version has not just Wi-Fi but also Bluetooth chipset on-board, so the smart relay can also be controlled by SmartWise eWeLink-Remote (Bluetooth) remote controllers and wall switches.
Note: not compatible with Sonoff R5 switches and S-Mate2 eWeLink-Remote products.

The Wi-Fi smart relay needs a 5V USB or 7V-32V AC or 7V-32V DC power supply. All circuits operate independently from the relay’s power supply, so the relay supports 90-250V/10A AC connected to COM input or 0-30V/10A DC, both in NO or NC mode. The smart device supports voltage-free dry-contact switching and wet contact switching, too.

The smart relay is remotely controllable via Internet with the eWeLink smartphone App, available for iOS and Android, and you can set scheduled ON / OFF, group control, smart scenes (automations) with it. Also you mays share remote control in the App with your family or others.

Supports momentary switch (inching) mode, to close or open after e.g. 1 sec.

It is also ideal for motor-control, because the relay supports interlock mode, where switching one of the circuits turns the other circuits automatically off, so you may also use it for roller shutters and other motors.

It's an ideal solution for remote control of electric gates, garage doors, a PC power adapters, irrigational valves, motors or other AC or DC electric devices.

Product features:

• Remote ON / OFF – Anytime, anywhere, from now on you can turn all your appliances on and off remotely.
• Relay power supply: 5V DC USB or 7V-32V AC or 7V-32V DC
• No of gangs controlled: 2 independent circuits
• Switched gangs: voltage-free dry contact or wet contact: 90-250V/10A AC or 0-30V/10A DC
• Mobile App – free iOS and Android mobile App: eWeLink
• Local remote control with eWeLink-Remote remotes - compatible with SmartWise eWeLink-Remote (Bluetooth) remote controllers and wireless wall switches
• Interlock mode - you may also use it to control 2-way motors
• Sync status – Check actual relay status (turned ON or OFF) with the mobile App
• Timer – Various timer functions: single time, scheduled turn on/off, countdown/timer, loop.
• Share control – Control the device together with your family
• Scene – Turn ON / OFF a gang of devices with one tap
• Smart scene – Triggered ON/OFF by temp, hum or other environmental sensors
• Compatibility – Works perfectly with Amazon Alexa, Google Assistant, IFTTT and Google Nest

The relay supports three modes: normal (self-toggle) switch mode, momentary switch mode and interlock mode. Choose between any with the button on the main panel.

Supports two types of connection: with COM+NO type the relay closes the circuit when switched, with COM+NC type the relay breaks the circuit when switched.
