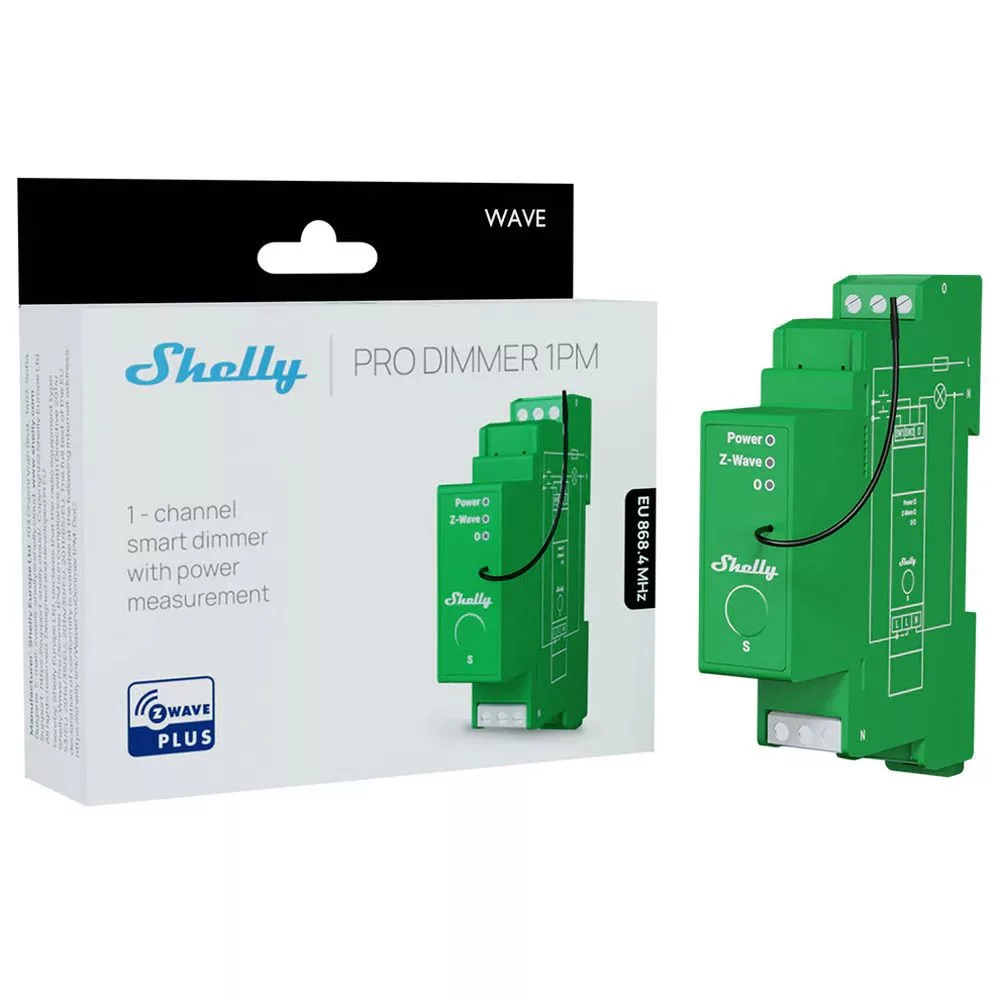

Shelly Wave Pro Dimmer 1PM
Brand:
Shelly
The Shelly Wave Pro Dimmer 1PM is a DIN rail-mounted, single-channel smart dimmer that uses Z-Wave communication, enabling precise control over lighting brightness. It can operate independently with a switch or push button or be integrated into Z-Wave-based smart home systems, allowing remote access and control via an internet connection.
FOR SAME DAY DISPATCH
Don’t miss today’s dispatch – order now!
About Z-Wave:
Z-Wave is a smart home protocol specifically designed for communication between smart devices. Thanks to its sub-gigahertz frequency, Z-Wave ensures reliable signal propagation, and its MESH network topology allows devices located farther from the central unit to communicate effectively (devices with continuous power supply function as repeaters).Z-Wave devices require a Z-Wave Hub or USB coordinator (such as one connected to a mini PC) to operate. The Z-Wave protocol uses standardized communication command classes (Command Class), ensuring compatibility between hundreds of brands and thousands of devices. Devices within a Z-Wave network can operate as a unified system. A Z-Wave network can include up to 232 devices.Another advantage of the Z-Wave protocol is its support for association groups, which enable direct assignments between devices within the network. Additionally, Z-Wave devices offer extensive parameter settings at the protocol level, allowing customized configurations to meet even the most sophisticated requirements.

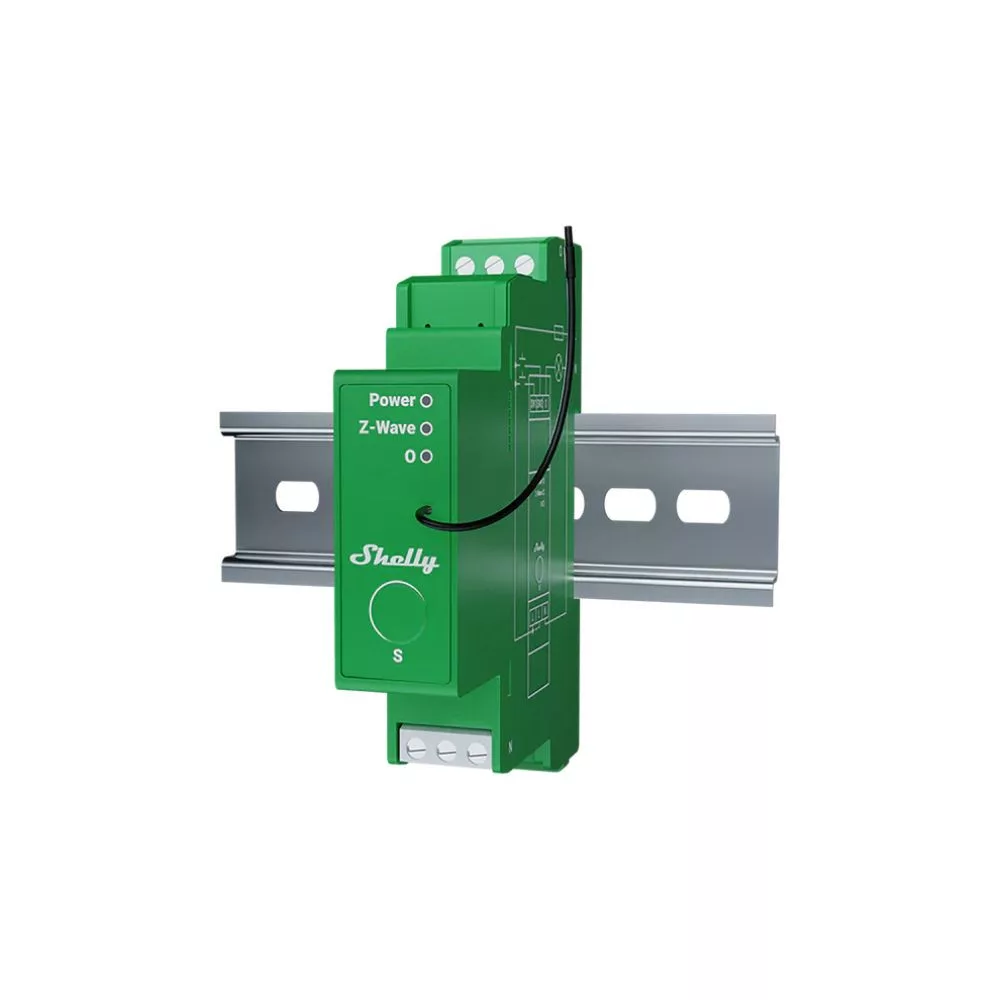

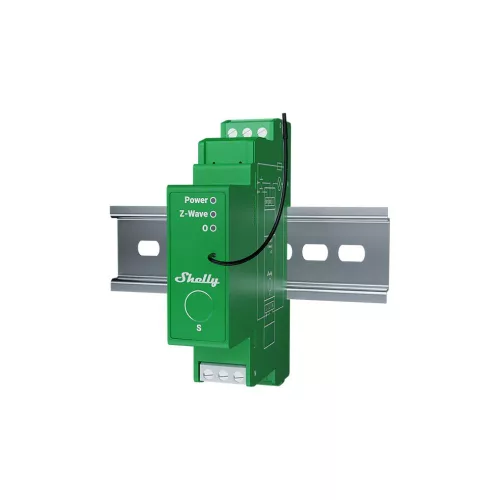

The Shelly Wave Pro Dimmer 1PM is a DIN rail-mounted, single-channel smart dimmer designed for precise lighting brightness control. As a DIN rail-mounted device, it requires a star wiring structure. It can operate independently with a switch or push button or be integrated into Z-Wave-based smart home systems, enabling remote access and control via a smart home hub and an internet connection.
Key Features
- Single-channel dimming control: Enables brightness adjustment for one lighting circuit with a single device.
- Compatibility with switches and push buttons: Can be used with standard wall switches or push buttons.
- Remote access and control: Connects to a Z-Wave hub for monitoring and control from anywhere via an internet connection.
- Safety features: Includes built-in overheating, overcurrent, and overvoltage protection to ensure safe operation.
Inputs
- 2 switch/push button inputs via terminal blocks
- Power supply terminal blocks: N, L
Outputs
- 1 output channel
Connectivity
- Z-Wave (Unsecure, S0 Security, S2 Unauthenticated Security, S2 Authenticated Security)
Technical Specifications
- Supported light sources:
LED lights: Up to 200 W
Incandescent bulbs: Up to 200 W
Halogen bulbs: Up to 200 W
Iron core transformers with low-voltage incandescent bulbs: Up to 200 VA
Dimmable electronic transformers: Up to 200 W - Power supply: 110 - 240 V AC, 50/60 Hz
- Power consumption: < 0.3 W
- Dimming type: Trailing edge
- Power measurement [W]: Yes
- Maximum output power: 200 W
- Overheating protection: Yes
- Overcurrent protection: Yes
- Overvoltage protection: Yes
- Range: Up to 40 m indoors (depending on local conditions)
- Z-Wave repeater: Yes
- CPU: Z-Wave S800
- Dimensions (H x W x D): 94 x 19 x 69 mm
- Mounting: DIN rail
- Enclosure material: Plastic
- Color: Lime
- Ambient temperature: -20°C to 40°C / -5°F to 105°F
- Humidity: 30% - 70% RH
Integration and Compatibility
Shelly Wave devices are built on Z-Wave communication technology, one of the leading smart home protocols. This ensures compatibility with any gateway that supports the Z-Wave communication protocol. Shelly regularly conducts compatibility tests with various Z-Wave gateways to ensure seamless operation.The Shelly Wave Pro Dimmer 1PM is an ideal choice for smart control and automation of home, office, or industrial lighting systems.
This content is only available to logged in users.
Weight:
90 g/pcs
