Shelly Wave Outdoor Plug S LR – Power consumption monitoring socket, Z-Wave
Brand:
Shelly

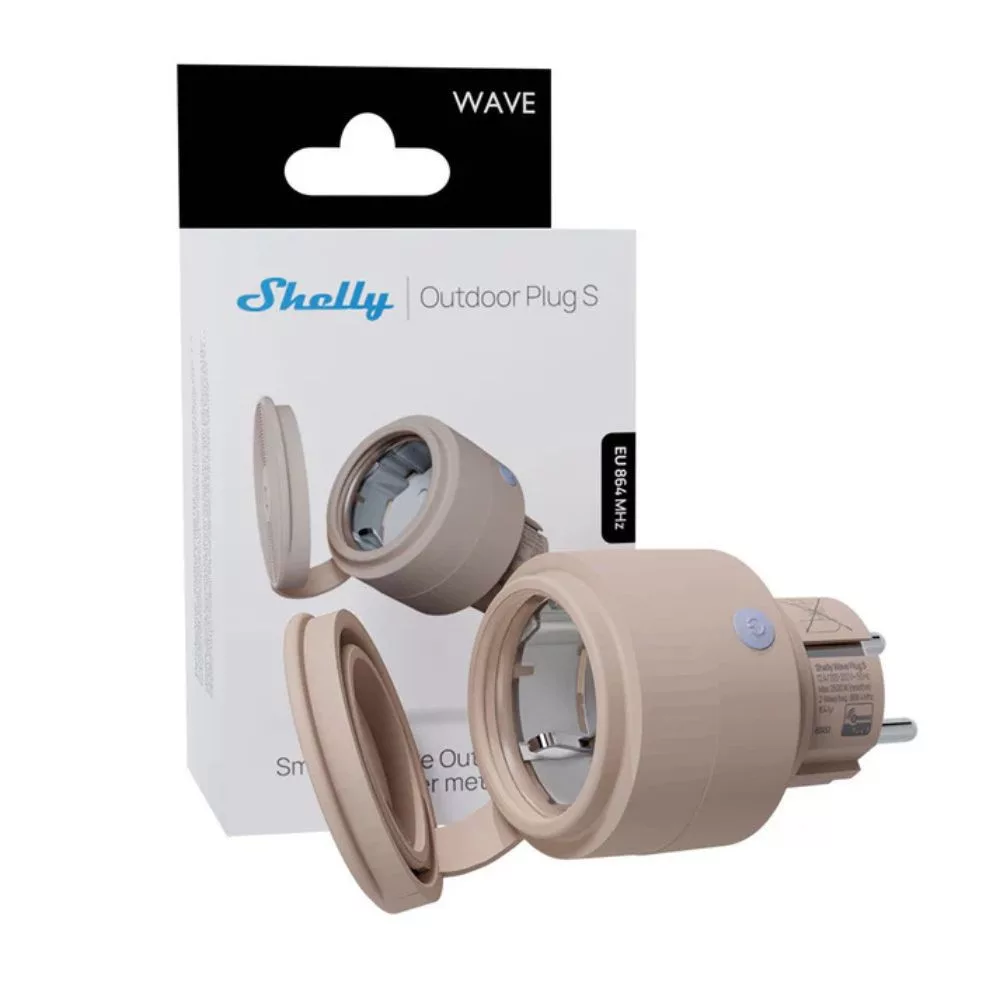

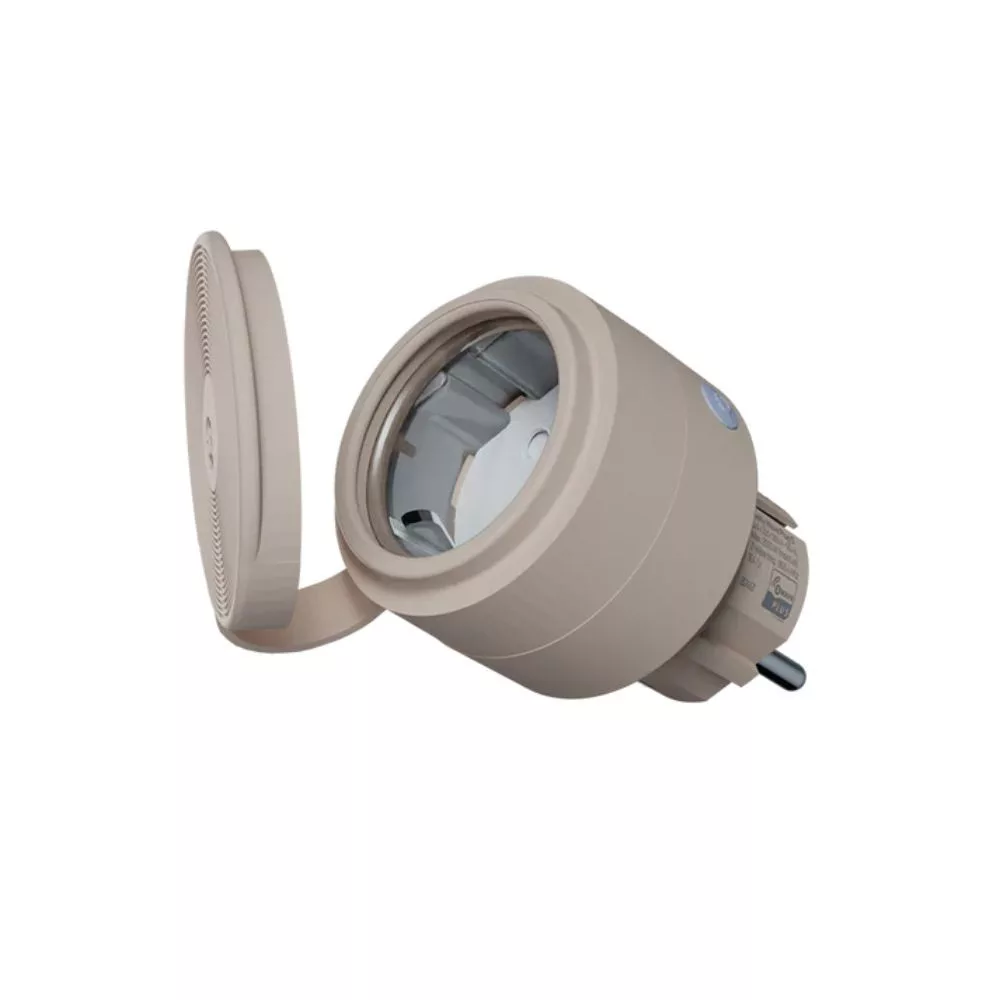

The Shelly Wave Outdoor Plug S EU LR is a smart plug designed for outdoor use, enabling remote control and real-time energy monitoring of electrical appliances.
FOR SAME DAY DISPATCH
Don’t miss today’s dispatch – order now!

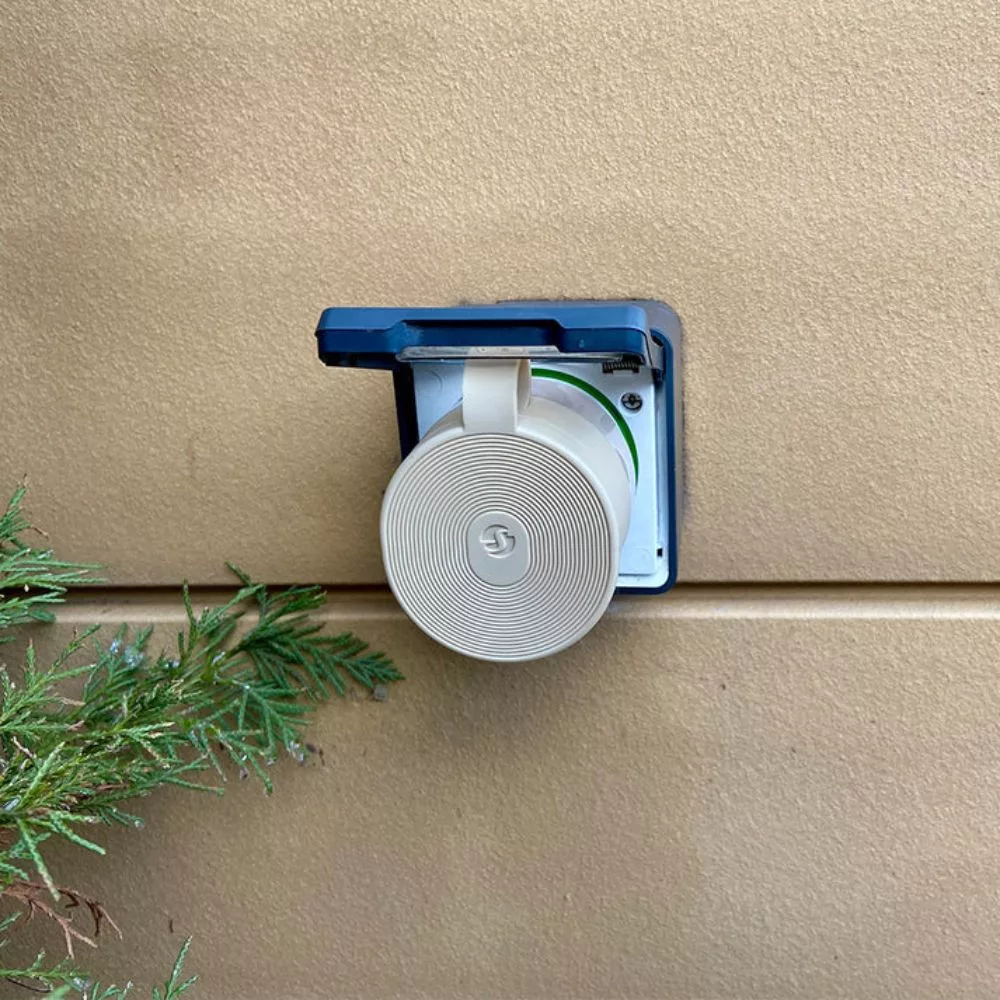

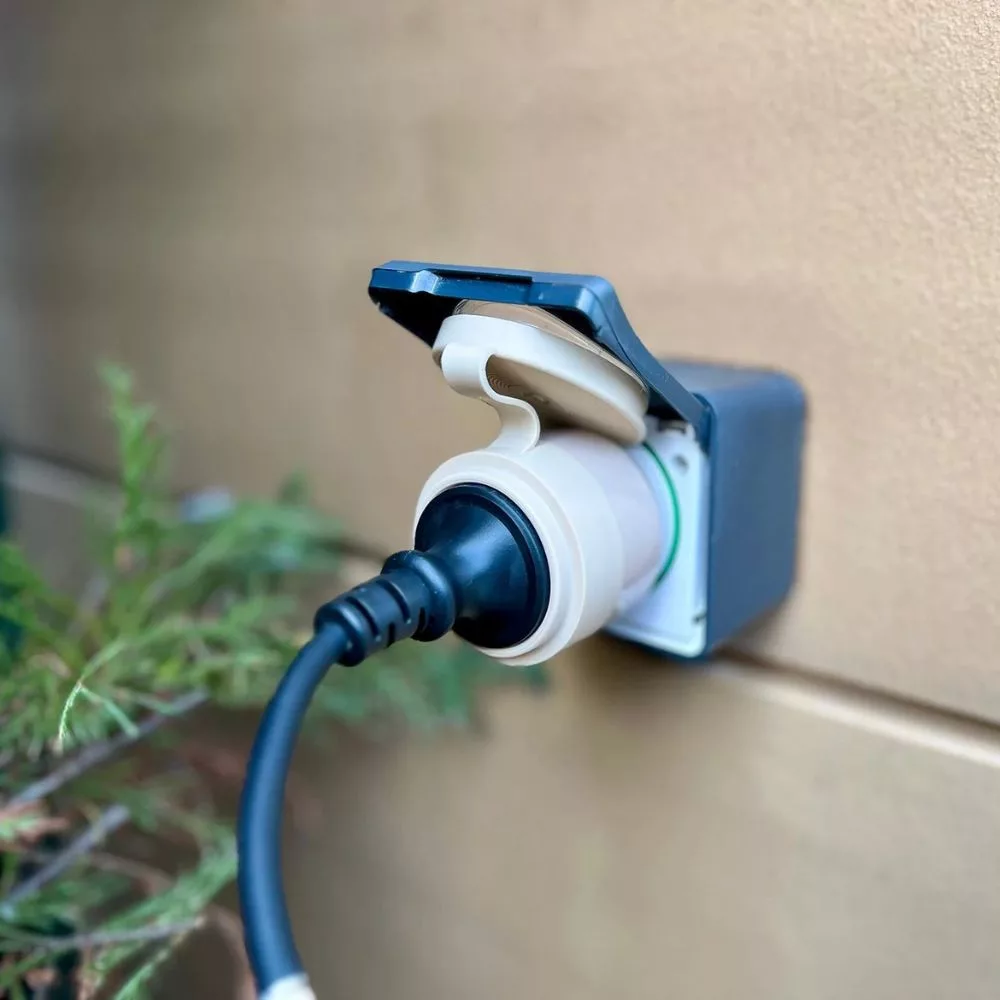

The Shelly Wave Outdoor Plug S EU LR is a smart plug designed for outdoor use, enabling remote control and real-time energy monitoring of electrical appliances. It’s ideal for automating garden lighting, heaters, electric grills, pumps, and other outdoor devices – even from long distances.
This device features an IP44 rating, making it resistant to splashing water and dust. It supports loads of up to 12 A (≈ 2500 W), which is sufficient for most household or outdoor equipment. Its standout feature is the support for Z‑Wave Long Range (LR) technology, offering up to 1 km of range (line of sight) when paired with a fixed-position hub – ensuring reliable communication even over larger areas.
Built-in protection against overvoltage, overcurrent, and overheating ensures safe operation. A multicolor LED indicator displays the device’s operating status. Thanks to SmartStart, initial setup is quick and easy, while OTA (Over-The-Air) firmware updates keep the device up to date effortlessly.
About the Shelly Brand
Shelly is a well-known smart home brand recognized for its relay modules, smart plugs, and sensors. Most of its products support technologies like Z‑Wave, Wi‑Fi, and other wireless protocols, offering compatibility with a wide range of smart home hubs and systems. This allows for flexible integration into various home automation setups.
Key Features
- IP44 outdoor protection – resistant to splashing water and dust, suitable for outdoor environments.
- High load capacity – supports up to 12 A and approximately 2500 W (resistive load).
- Real-time energy monitoring – continuously measures and reports power consumption of connected devices.
- Z‑Wave Long Range support – extended wireless communication up to 1 km (line of sight).
- SmartStart integration – easy and fast Z‑Wave network inclusion using QR code scanning.
- S2 Authenticated security – advanced encryption for secure Z‑Wave communication.
- Surge and overheating protection – built-in safeguards for safe operation.
- Multicolor LED – indicates operating status via color-coded feedback.
Smart Home Protocols & Platform Compatibility
- Smart home protocols – supports both Z‑Wave® and Z‑Wave® Long Range (standard and LR star-topology networks).
- Remote control – can be controlled remotely via a Z‑Wave hub.
- Hub compatibility – works with any Z‑Wave certified gateway that supports ZWLR or the Z‑Wave 800 series.
- Secure pairing – uses S2 Authenticated security for encrypted Z‑Wave communication.
Smart Features
- Remote ON/OFF control via smartphone or hub.
- Real-time and cumulative energy consumption monitoring.
- Energy usage history logging (depending on the hub).
- Scheduling and automation via hub settings.
- SmartStart for fast and easy network inclusion.
- Status indication with multicolor LED feedback.
Electrical Specifications
- Input voltage – 230 V AC, 50 Hz.
- Max. load – 12 A (≈ 2500 W resistive load).
- Power measurement – yes, supports power and energy (kWh) measurement.
- Built-in protections – surge, overcurrent, and overheating protection.
- Socket compatibility – supports CEE 7/1, CEE 7/3 (Type F / Schuko), and CEE 7/5 (Type E) sockets and matching plugs.
Other Features
- Multicolor LED status indicator.
- Durable plastic enclosure with silicone coating for outdoor resilience.
- OTA firmware update support.
- Equipped with Z‑Wave® S800 chip for advanced wireless performance.
- Operates in a wide temperature range (approx. -25 °C to +50 °C).
Technical Specifications
- Power supply – 230 V ~ 50 Hz
- Power consumption – less than 0.7 W
- Surge resistance – 2500 V
- Energy monitoring – yes
- Max switching voltage (AC) – 230 V
- Max switching current (AC) – 12 A
- Max output power – 2500 W (resistive load only)
- Switching cycles – 10,000
- Overheating protection – yes
- Overcurrent protection – yes
- Surge protection – yes
- Overvoltage category – II
- Ingress protection – IP44
- Z‑Wave LR range – up to 80 m indoors, up to 1000 m outdoors
- Z‑Wave LR repeater – no
- Z‑Wave LR frequency – 864 MHz
- Z‑Wave mesh range – up to 40 m indoors
- Z‑Wave mesh repeater – yes
- Z‑Wave mesh frequency – 868.4 MHz
- CPU – Z‑Wave S800
- Max RF output – less than 25 mW
- Dimensions (H x W x D) – 56 x 56 x 103 ±0.5 mm
- Weight – 85 ±1 g
- Compatible sockets – CEE 7/1, CEE 7/3 (Type F / Schuko), CEE 7/5 (Type E)
- Compatible plugs – CEE 7/2, 7/4 (Type F / Schuko), CEE 7/7, 7/16 (Type C), CEE 7/17
- Enclosure material – plastic with silicone rubber coating
- Color – brown (Mocha)
- Operating temperature – -25 °C to +51 °C
- Humidity – 15% to 85% RH
- Max installation altitude – 2000 m
This content is only available to logged in users.
Weight:
137 g/pcs
