Shelly Wall Display XL Black

Name: Shelly Wall Display XL Black
Brand: Shelly
SKU: ALL-KAP-WDXL-B
Availability: InStock

Brand:

Shelly

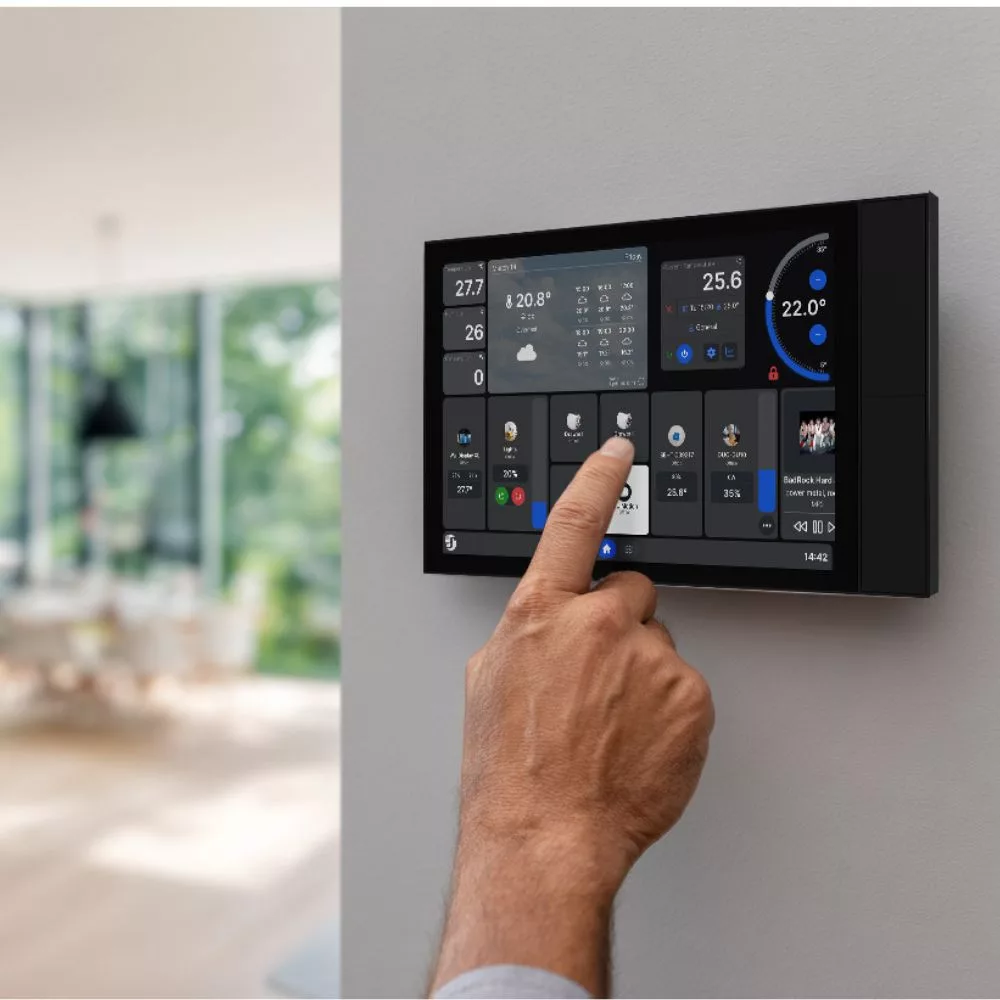

The Shelly Wall Display XL is a wall-mounted 10.1″ color touchscreen control panel that combines control and measurement functions in a single device. It can be recessed into a standard 230 V 68mm wall box, offering a fully space-saving solution.

FOR SAME DAY DISPATCH

Don’t miss today’s dispatch – order now!

Details
Data

Details

It offers three functions in one: a touchscreen interface, built-in relay and sensors (light, temperature and humidity with external BLU H&T sensor), and energy consumption monitoring within a single user account. Ideal for controlling lighting, fans, or other appliances, monitoring environmental data, and supporting energy-efficient decisions. It can also be used to create automation scenes and schedules, offering simple control for guests in vacation homes or rental accommodations.

Within the Shelly ecosystem, it offers premium features: real-time sensor data (light, temperature and humidity with external BLU H&T sensor), media playback (music, notifications), control via its own relay, and no need for a separate hub – Wi‑Fi and Bluetooth connectivity are sufficient for operation.

About the Shelly brand

Shelly is best known for its smart home solutions, including relays, dimmer modules, energy meters, and sensors. The products integrate seamlessly with Wi‑Fi and Bluetooth networks, support the Shelly Smart Control app and Home Assistant system, and often feature MQTT/REST API interfaces. Shelly devices are widely compatible with various smart home platforms, including Google Home and Alexa.

Key product features

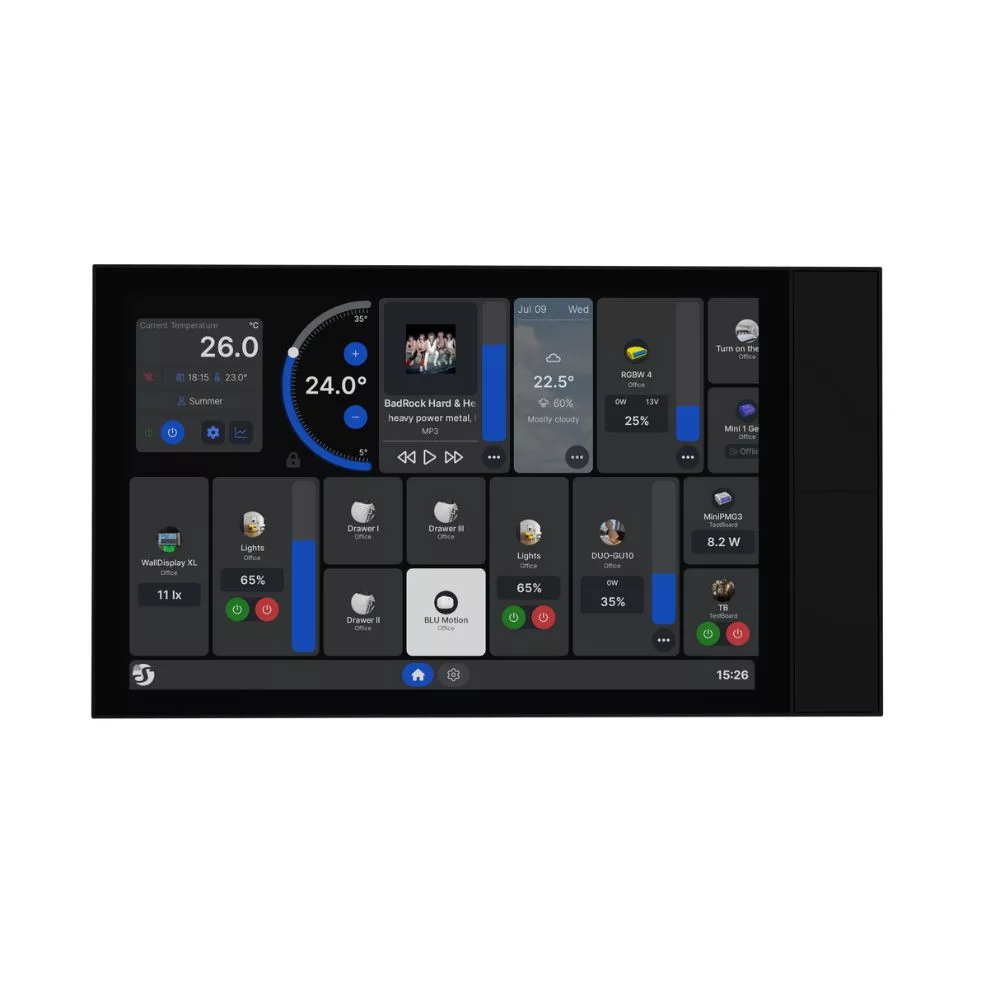

Large, color touchscreen display for easy navigation and customizable home screen.
Built-in relay for direct control of electric appliances.
Two 2 W speakers for media playback and notification sounds.
Built-in ON/OFF button integrated into the display interface.
Four customizable physical buttons.
Built-in light sensors for monitoring ambient lighting conditions.
Energy consumption monitoring accessible through the Shelly Smart Control account.

Smart home protocols and platform compatibility

Protocols: Wi‑Fi, Bluetooth (no external hub required).
Local remote control: Bluetooth for remote access to Shelly BLU devices, direct access via Wi‑Fi.
Native platform: Shelly Smart Control app.
Home Assistant integration: Fully supported; custom dashboards can be displayed directly on the screen.
Google Home and Alexa: Natively compatible.
MQTT and REST API: Supported integration options.
Matter support: Available via firmware update, enabling extended compatibility (e.g., Apple HomeKit).

Smart features

Remote control (ON/OFF) via Wi‑Fi connection.
Display of embedded sensor data (temperature, humidity, light).
Energy consumption monitoring and graphical display within the Shelly Smart Control account.
Scene and schedule creation (e.g., “Evening Mode” button to set multiple devices at once).
Media functions: music playback and notifications via built-in speakers.
Guest-friendly mode for short-term rentals – intuitive interface usable without app or account.

Electrical features

Power supply: Requires 230 VAC input.
Built-in relay: Rated for 5 A load.
Output independent from power input: the relay switches the output separately.
Number of circuits: supports 1 circuit at a time.
Power metering: monitors total energy usage in the room.

Built-in sensors:

Light sensor
Microphone
G-sensor
Proximity sensor

Other features

10.1″ display – larger than the standard Wall Display or X2 models.
Suitable for short-term rentals, hotels, and shared spaces (guest-friendly mode).
Premium design: sleek, modern appearance fits standard wall boxes.
Multimedia functionality – manage music and notifications, supports media services.

This content is only available to logged in users.

Data

Weight:

1.345 kg/pcs
