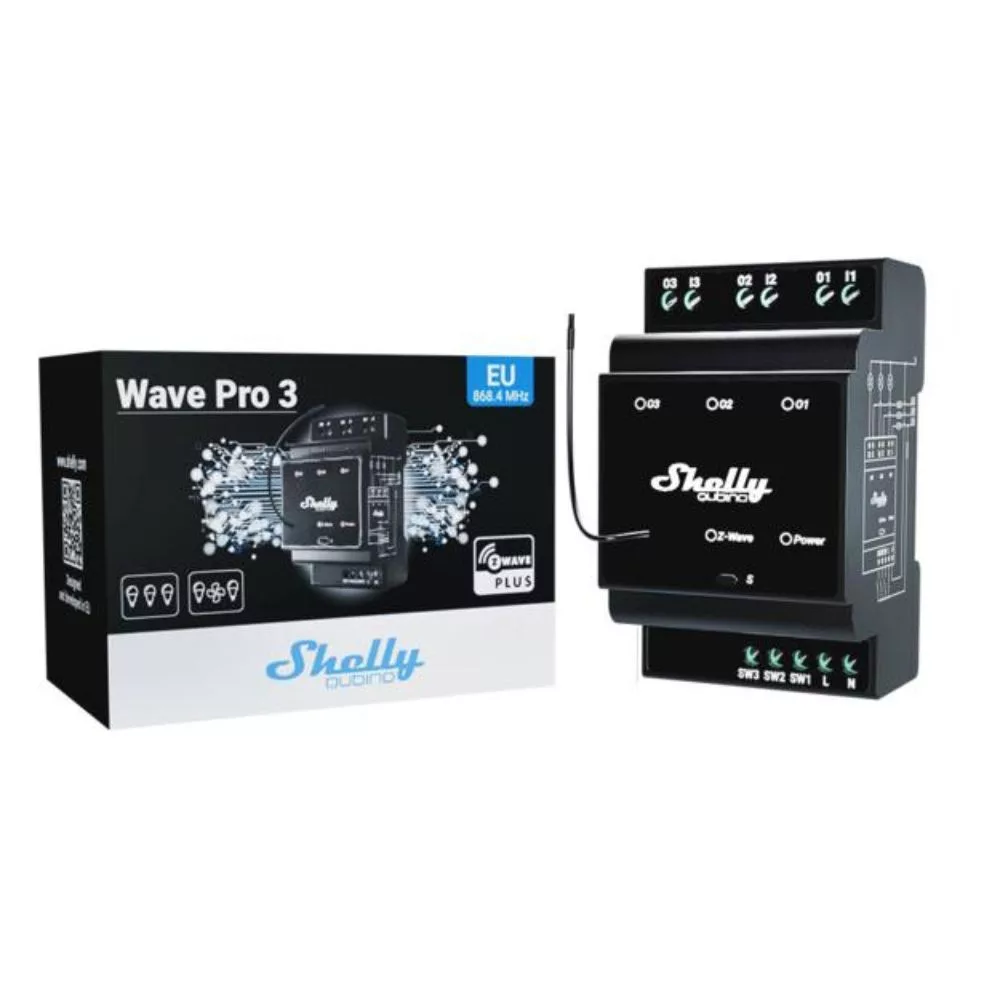

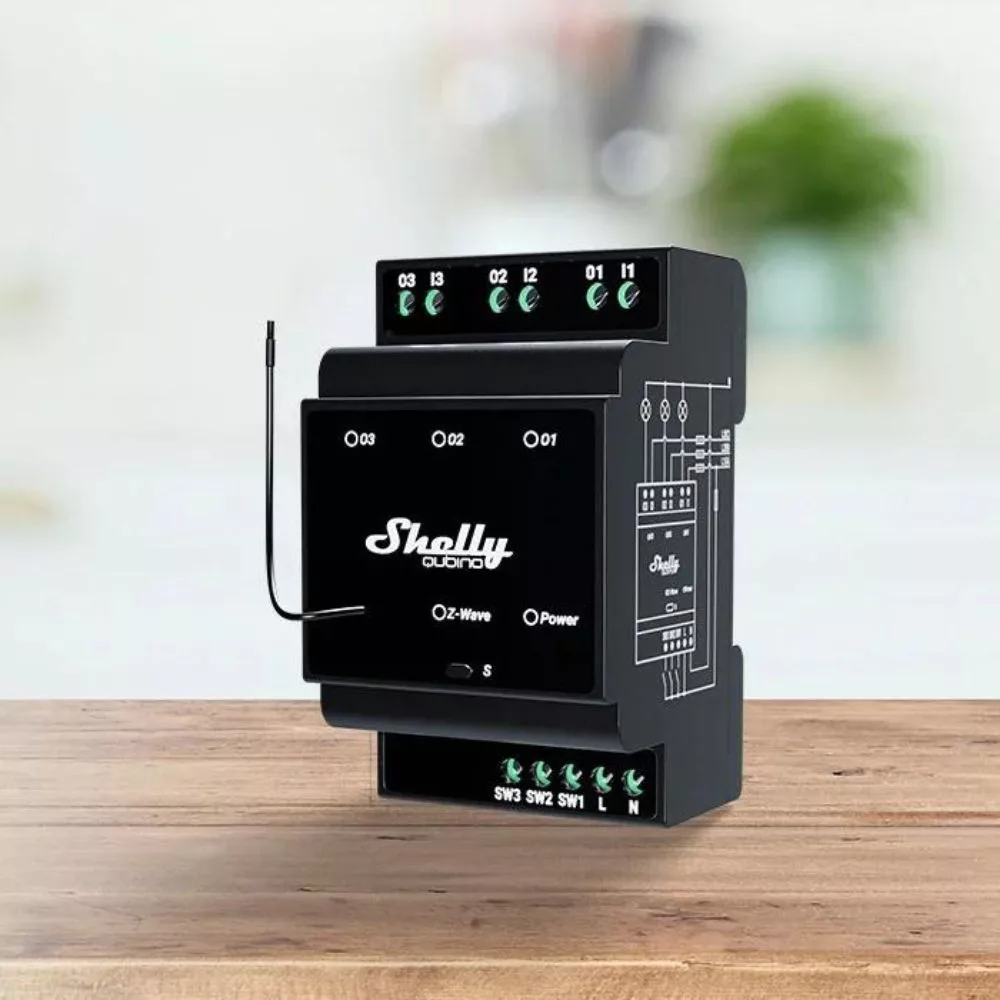

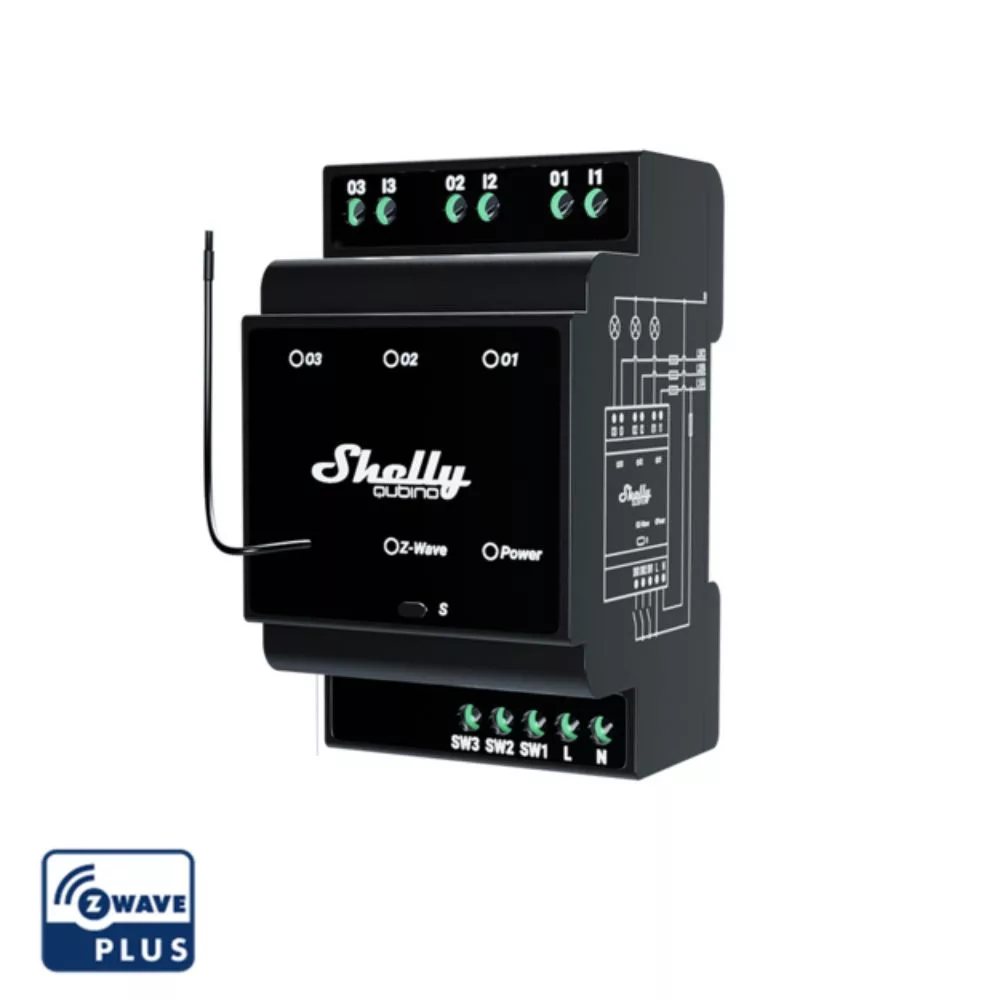

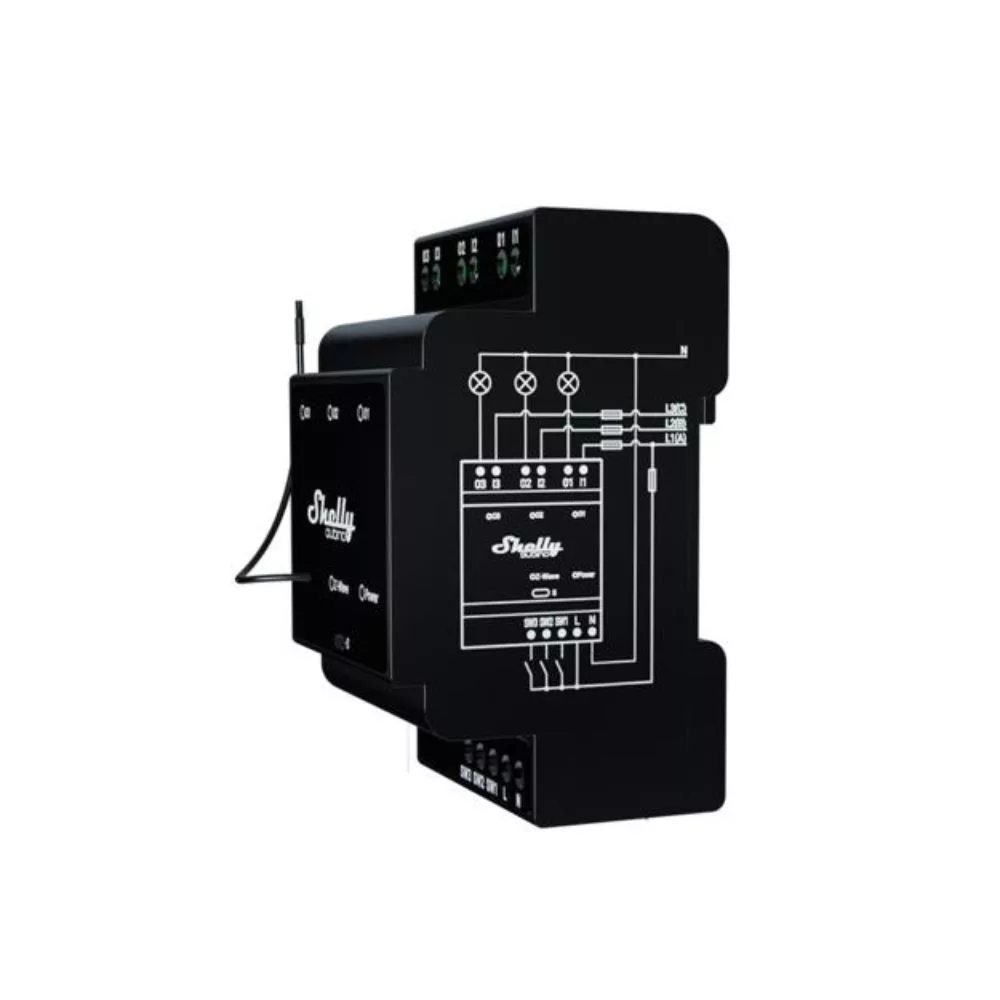

Shelly Qubino Wave PRO 3 smart DIN-rail relay with 3-gang, with Z-Wave protocol
Brand:
Shelly
The Shelly Qubino Wave Pro 3 is a smart DIN-rail mounted relay module with 3 independent gangs and dry contact support, using Z-Wave technology, that integrates well with a wide range of Z-Wave hubs and gateways. Its high compatibility makes it an ideal choice for both residential and corporate applications.
With its focus on energy efficiency, security and ease of use, this Z-Wave 800 Series product is a cutting edge solution for both smart homes and commercial building automation.
FOR SAME DAY DISPATCH
Don’t miss today’s dispatch – order now!
The Shelly Qubino Wave Pro 3 is a professional 3-channel DIN-rail mountable Z-Wave® smart switch with dry contacts. It is ideal for home and facility automation with remote control capabilities and advanced safety features.
Product features:
- 3 outputs, 16 A each, total 48 A
- DIN-rail mountable
- Dry contacts
- Low power consumption: < 0.3 W
- Z-Wave 800 series, 868.4 MHz
- Automatic setup with SmartStart
- High-level security: Security 2 Authenticated
- Remote control via smartphone or tablet
- Compatible with over 4000 Z-Wave devices and gateways
Why Choose Wave Pro 3?
Perfect for new residential and business buildings, Wave Pro 3 supports up to 48 A for professional automation. It offers high flexibility with potential-free outputs (dry contacts), and allows various actions, scenarios, and schedules tailored to daily activities or business needs.
Integration and Compatibility:
Shelly Qubino devices are compatible with any Z-Wave gateway and over 4000 Z-Wave certified devices. A gateway (smart hub) is required for configuration and is not included.
Specifications:
- Power Supply: 110 - 240 V AC, 50/60 Hz
- Consumption: < 0.3W
- Max Switching Voltage AC: 240 V
- Max Switching Current AC: 16 A per channel, total 48 A
- Max Switching Voltage DC: 30 V
- Max Switching Current DC: 16 A per channel, total 48 A
- Dimensions (H x W x D): 96x53x59 mm
- Weight: 150 g
- Mounting: DIN rail
Use Cases:
- Dynamic Lighting Control: Automate office lighting for improved efficiency and energy savings.
- Optimal Indoor Climate: Manage heating and cooling systems in hotels and commercial buildings.
- Socket Automation: Efficiently control power delivery to reduce energy consumption.
This content is only available to logged in users.
Weight:
178 g/pcs
