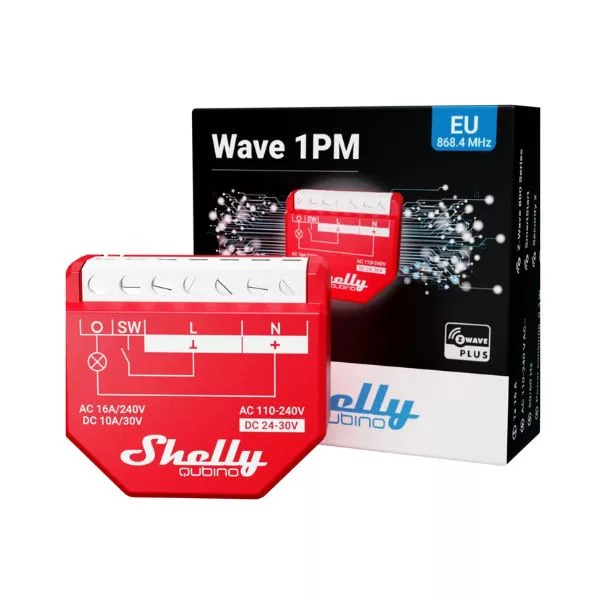

Shelly Qubino Wave 1PM smart relay with 1-gang, power meter, with Z-Wave protocol
Brand:
Shelly

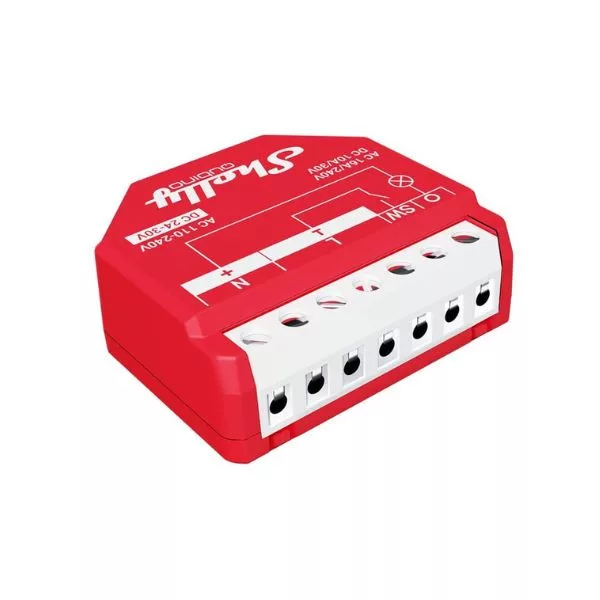

The Shelly Wave 1PM smart relay module is a flush-mounted device with a meter capable of controlling a 230 VAC circuit. The Shelly Wave range uses the Z-Wave protocol for communication, so you will definitely need a Z-Wave Hub or USB coordinator to use the relay module.
The module can be powered from both DC and AC voltages. It is also protected against overheating and overloading, ensuring safe operation even in small spaces with wall sockets.
FOR SAME DAY DISPATCH
Don’t miss today’s dispatch – order now!
The Shelly Wave 1PM is a 230V AC powered smart relay module with power meter, part of the Shelly Wave family of products that uses the Z-Wave protocol for communication (868.42 MHz in Europe). As Z-Wave is a smart home protocol, it is specifically designed for communication between smart devices. Thanks to the sub-gigahertz frequency, the signal propagation is good and thanks to the Z-Wave MESH network topology, devices far away from the central unit can communicate properly (devices under continuous power supply act as signal relays). Z-Wave devices need a Z-Wave Hub or USB coordinator (connected to a miniPC, for example) to work. The Z-Wave protocol uses a unified communication command class, so that thousands of products from hundreds of different brands are compatible with each other, and devices in a Z-Wave system can work together as a network. A Z-Wawe network can contain up to 232 devices. An additional advantage of the Z-Wave protocol is that it supports Association Groups, which allow direct associations to be created between individual devices in the network. An additional advantage of Z-Wave devices is that they can be configured with a number of parameters at the protocol level, so that they can be customised to meet the most specific needs.
Shelly Wave 1 is a smart relay module, which can be powered from DC 24-30V DC or 230V AC, and switches the output terminal to the voltage used for the power supply. The module is also protected against overheating and overloading, ensuring safe operation even in small spaces with wall sockets.
Pairing:
the module has an "S" button, which is a function button. This button is used to start the mating, unmating and factory reset processes. These functions are available for a limited period of time after power-up.
Pairing/Removal/Factory Reset:
Press and hold the "S" button to pair until the status LED turns blue. Then directly press the "S" button again (min 2 seconds) to initiate the pairing/unpairing status.
Recommended and tested gateways for Shelly Qubino Wave devices:
- Home Assistant
- Home Center 3
- Jeedom
- Homey
- Smart things
- Hubitat
Specifications:
- Output:110-230 VAC / 24-30 VDC
- Maximum Current: 230V AC 16A (with resistive load),
30V DC 10A (with resistive load)
- Low standby power consumption: 0.3 W.
- Communication protocol: Z-Wave 800
- Z-Wave frequency: 868.4 MHz (EU)
- Range: up to 40 m inside the building (walls may be reduced by slabs)
- Power consumption measurement: YES
- SmartStart: YES
- S2 encryption: YES
- Z-Wave repeater function: YES
- Wireless firmware update (OTA): YES
- Operating temperature: -20 - +40 °C

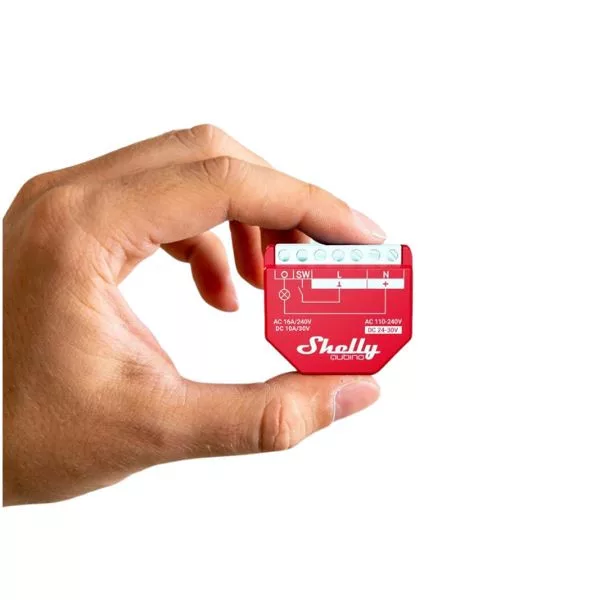

- Size: 37 x 42 x 16 mm
- Weight: 37g
Mounting options:

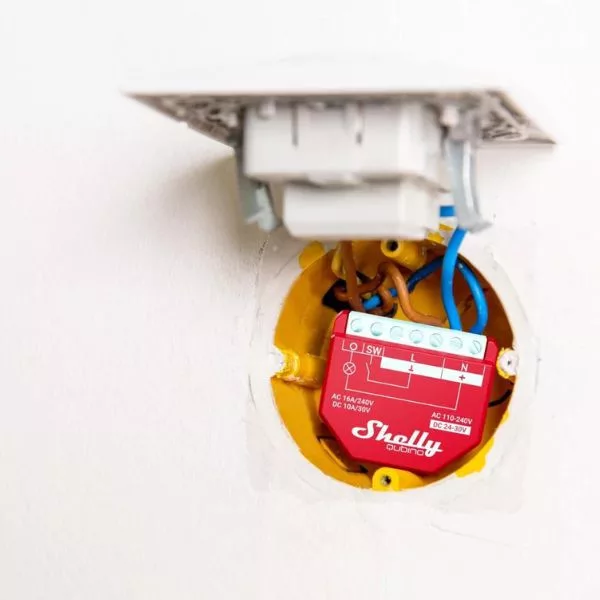

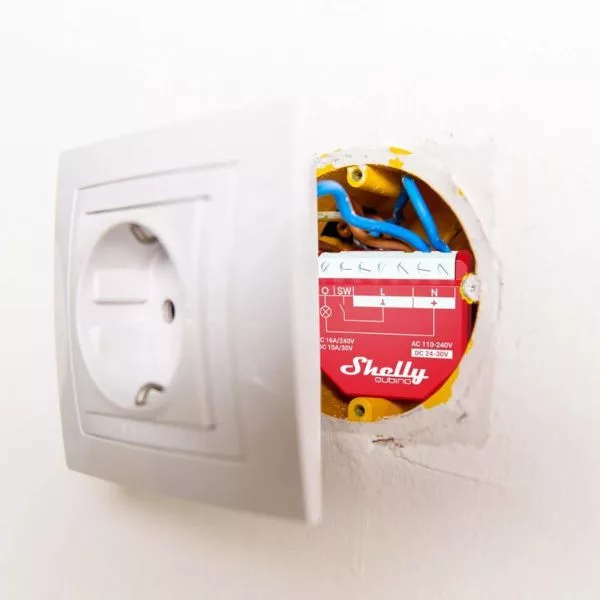

- Typically fits into a standard size mounting box, but a recessed mounting box is recommended to speed up module installation time
- DIN-rail adapter (separate product) can be used to mount on hat rails, in-line.
Like other smart relays, this one requires not only a phase wire but also a neutral wire.
