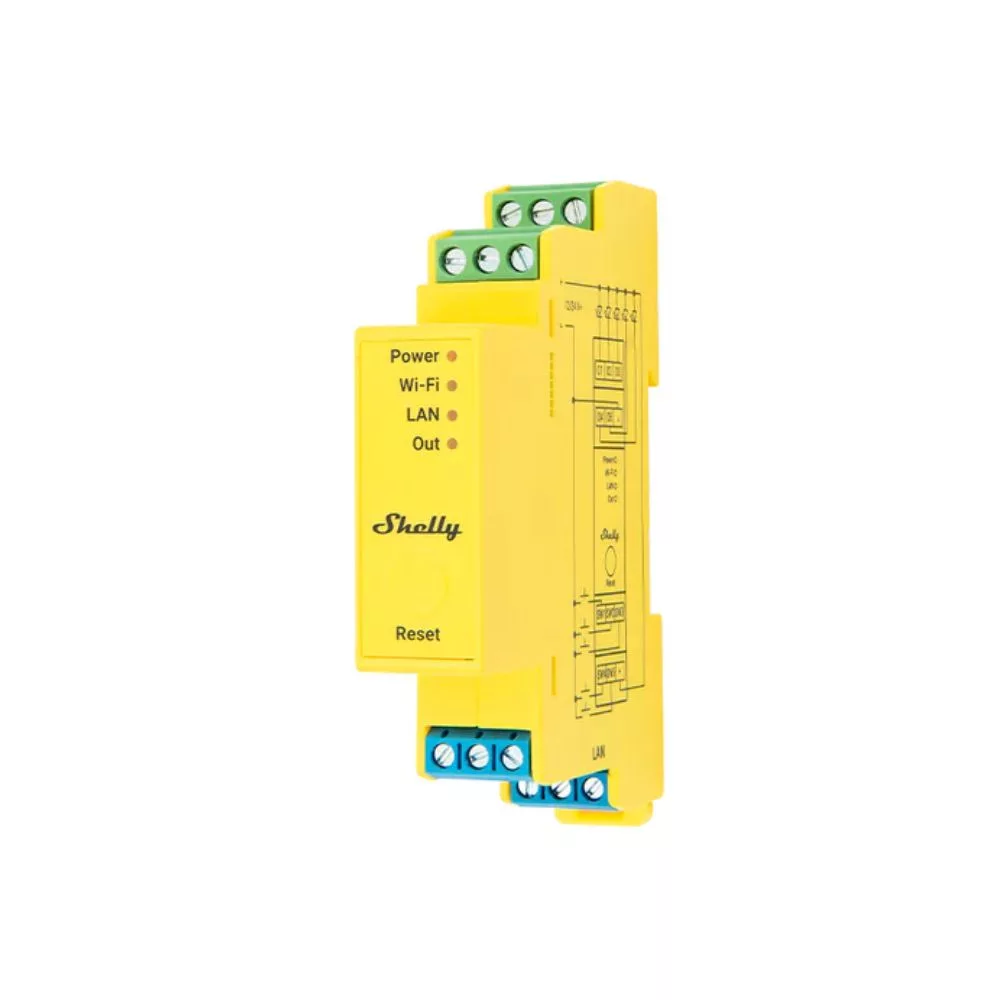

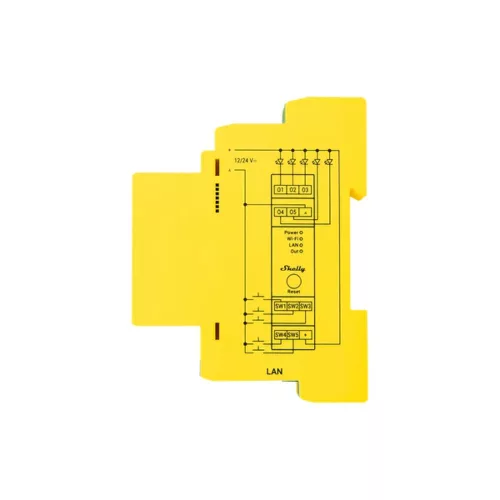

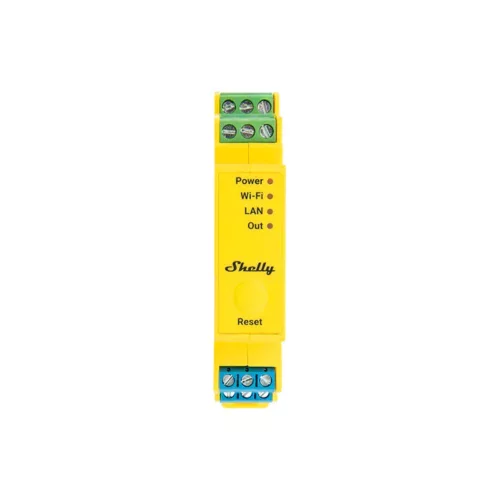

Shelly Pro RGBWW PM smart Wi-Fi + Ethernet RGBWW LED controller, DIN-rail compatible
Brand:
Shelly
The Shelly Pro RGBWW PM is a professional, DIN-rail mountable five-channel LED controller that offers an ideal solution for independently managing RGB, RGBW, CCT, or even five separate single-color LED strips or lighting circuits powered by 12V–24V DC. Like other Shelly devices, it is suitable for use with the cloud-based Shelly Cloud system or for local integration with commercial or open-source smart home hubs (e.g., Homey, Home Assistant, etc.). The built-in power metering function enables real-time power measurement, making it possible to create not only visually impressive but also energy-efficient lighting solutions.
FOR SAME DAY DISPATCH
Don’t miss today’s dispatch – order now!
Related products
The Shelly Pro RGBWW PM is a professional, DIN-rail mountable, five-channel LED controller that offers an ideal solution for independently controlling RGB, RGBW, CCT, or even five separate single-color LED strips or lighting circuits powered by 12V–24V DC. The built-in power metering function enables real-time voltage, current, and power monitoring, allowing for not only visually appealing but also energy-efficient lighting solutions.
The device can operate in four different profiles: RGB+CCT (default), CCT x2, RGB+2x Light, and Light x5. This makes it flexibly applicable to various lighting needs, whether for ambient lighting, functional illumination, or complex lighting system control. The Shelly Pro RGBWW PM supports control via Wi-Fi, LAN, and Bluetooth connections, and is compatible with many smart home platforms such as Home Assistant, Amazon Alexa, and Google Home. With the built-in web interface and the Shelly Smart Control app, it is easy to configure and control, even remotely.

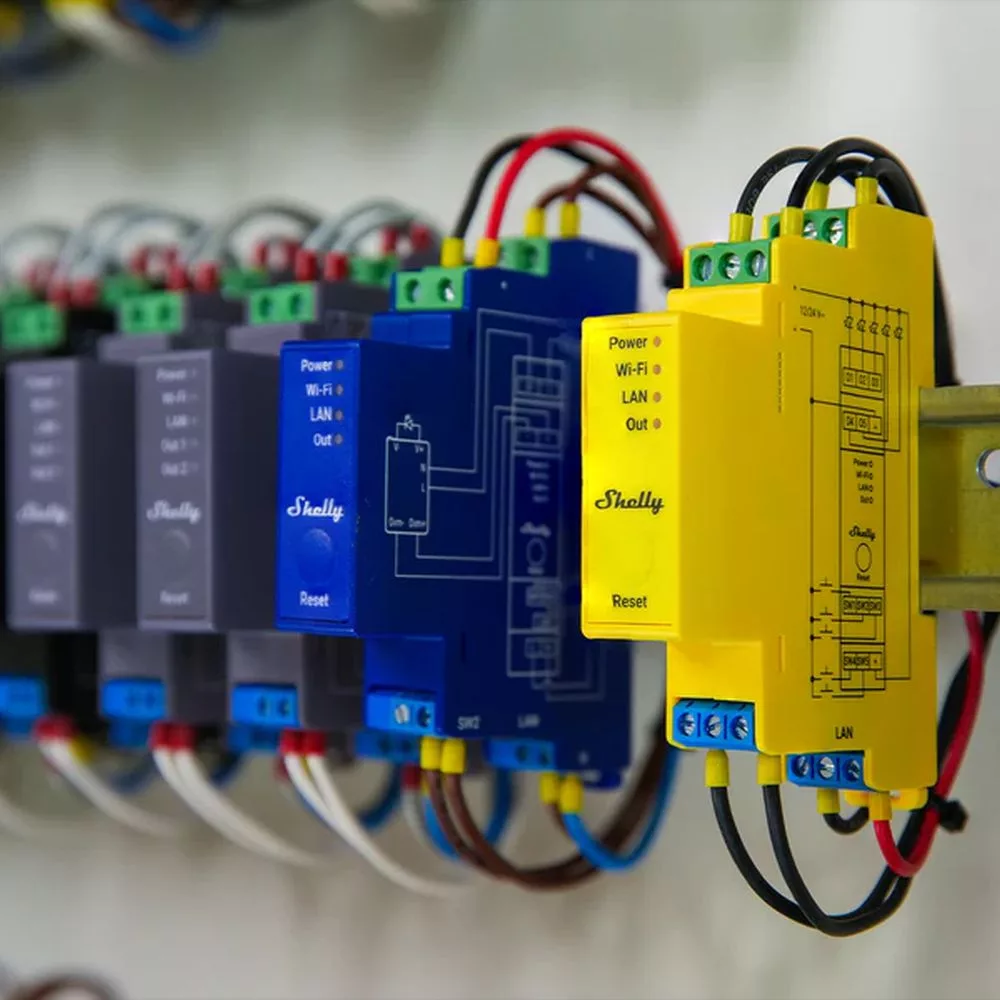

The Shelly PRO version is mountable on a DIN rail inside an electrical cabinet, making it ideal for star-wired or cabinet-installed LED control purposes. Shelly Pro devices support not only Wi-Fi connectivity but also feature an Ethernet port, enabling use as a wired building automation system.
About the Shelly brand
Shelly is a brand of the Bulgarian company Allterco Robotics, known worldwide for its innovative, reliable, and easily integrable smart home devices. Their product range includes relays, sensors, lighting controllers, and energy monitoring solutions that cater to both DIY users and professional installers. Shelly devices use open protocols, making them easy to integrate with various smart home systems.
Product Features:
- Installation: DIN-rail mountable – Easy installation in electrical cabinets
- Supported Modes:
- RGB and CCT (default profile)
- CCT x 2
- RGB and 2 lighting channels
- 5 separate single-color lighting channels
- Functions and Connectivity
- Power consumption measurement
- Bluetooth – Short-range remote control via Shelly Bluetooth devices
- BLE Gateway – Forwards data from connected BLE devices via Wi-Fi or Ethernet
- Wi-Fi range extender – Extends Wi-Fi signal range
- Automation and Control
- Scripting – Create automation scripts
- Basic schedules – Weekly routines
- Advanced schedules – Annual routines
- Automatic on/off with timer
- Local actions – Within Wi-Fi network
- Webhooks – Event-based communication
- No need for a central controller
- Additional Features
- Activity log
- KVS – Key-value storage
- Security – Overcurrent and overvoltage protection
- Dynamic components
- Independent control in 5-channel mode
- Additional Control Options
- Night mode – Defined brightness level
- Default values: 50% brightness, RGB (255,255,255), 4600K
- Input Modes
- Switch/Button/Analog input – 10kΩ potentiometer
- CCT x 2 profile:
- Input(0) and Input(1) control CCT(0)
- Input(2) and Input(3) control CCT(1)
- Input(4) is disconnected
- RGB and CCT profile:
- Input(0) and Input(1) control RGB
- Input(2) and Input(3) control CCT
- Input(4) is disconnected
- RGB and Light x 2 profile:
- Input(0) controls RGB
- Input(2) controls Light(0)
- Input(3) controls Light(1)
- Input(1) and Input(4) are disconnected
- Light x 5 profile:
- Each Input(x) controls the corresponding Light(x)
- Brightness and Transitions
- Single-button brightness control
- Dual-button control
- Transition time
- Minimum brightness at startup
- Min./Max. brightness
- Min./Max. color temperature
- Button fade speed
- Button presets
Smart Home Protocols and Platform Compatibility
- Supported protocols: Wi-Fi, Ethernet, Bluetooth 4.2
- Local control: via Bluetooth connection
- Built-in web server: local SSID broadcasting and admin interface
- Native platform: Shelly Smart Control app
- Integration options: MQTT, REST API, Webhook
- Compatible platforms: Home Assistant, NodeRED, Alexa, Google Home, SmartThings
- Scripting support: mJS scripts (local execution)
- Voice control: Amazon Alexa, Google Assistant
Smart Features
- Real-time status query
- Power and energy consumption measurement
- Timers and automations
- Night mode
- Webhooks and scripting
- Local and cloud-based operation
- Multiple profile support
- Configurable inputs

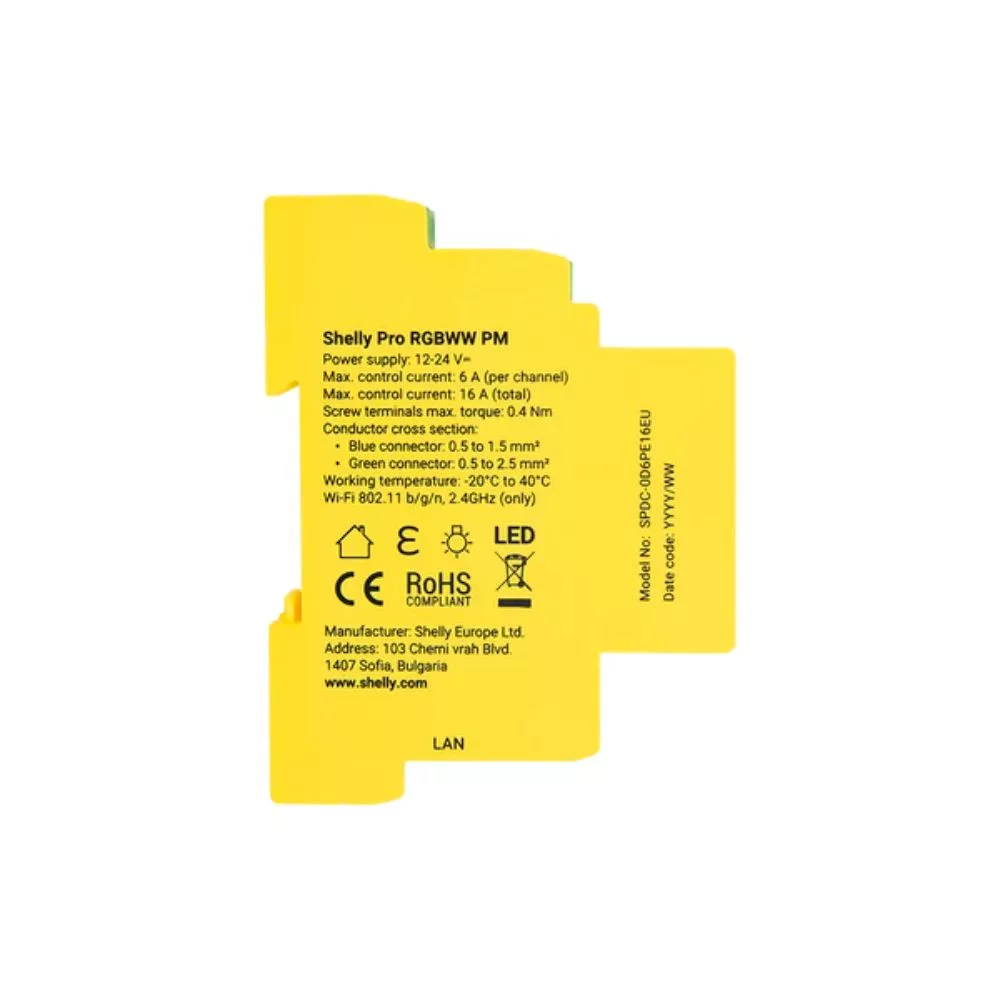

Electrical Specifications
- Operating voltage: 12V–24V DC
- Number of outputs: 5 independent channels
- Rated output voltage: 12V–24V DC
- Rated output current: 16A total, 6A per channel
- Consumption monitoring: Yes
- Number of inputs: 5 (configurable)
Other Specifications
- Dimensions: 94 x 19 x 69 mm
- Mounting: DIN rail
- Housing material: Plastic
- Color: Yellow
- Operating temperature: -20°C to +40°C
- Humidity: 30% – 70% RH
- Maximum installation altitude: 2000 m
This content is only available to logged in users.
Weight:
89 g/pcs
