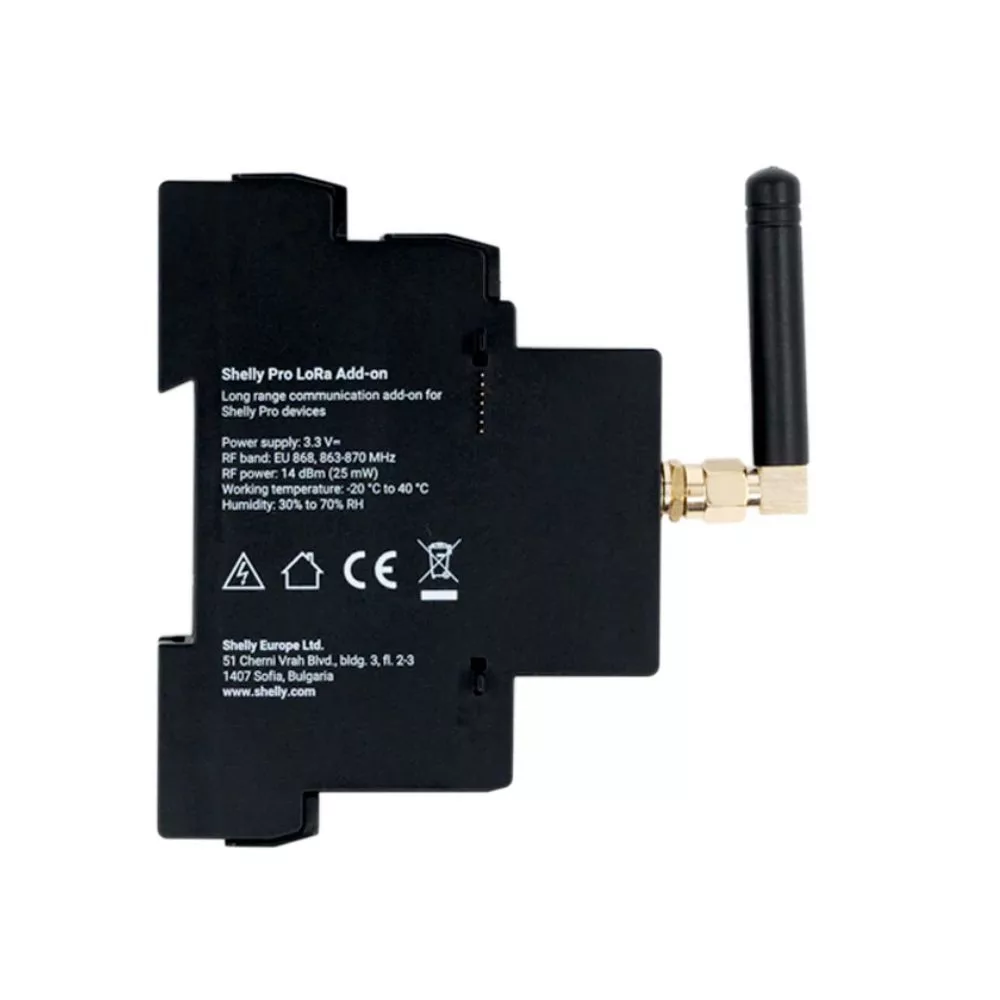

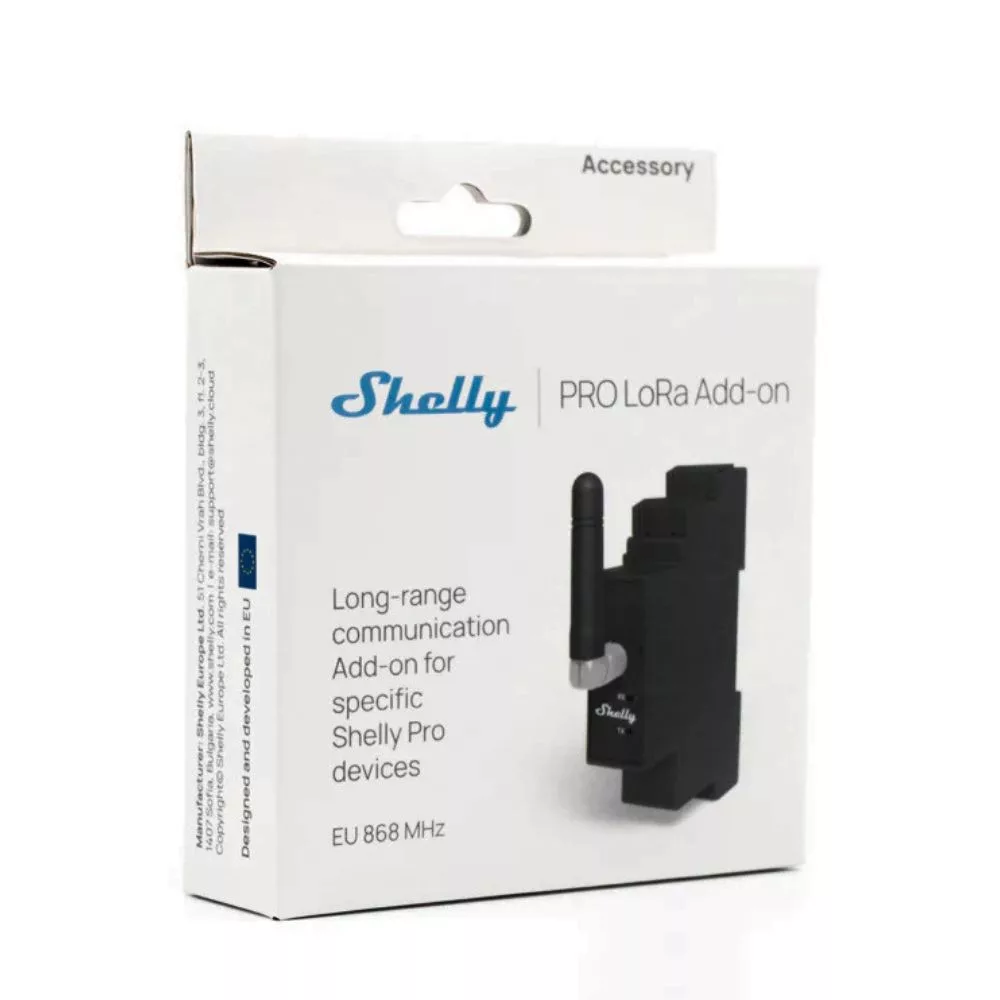

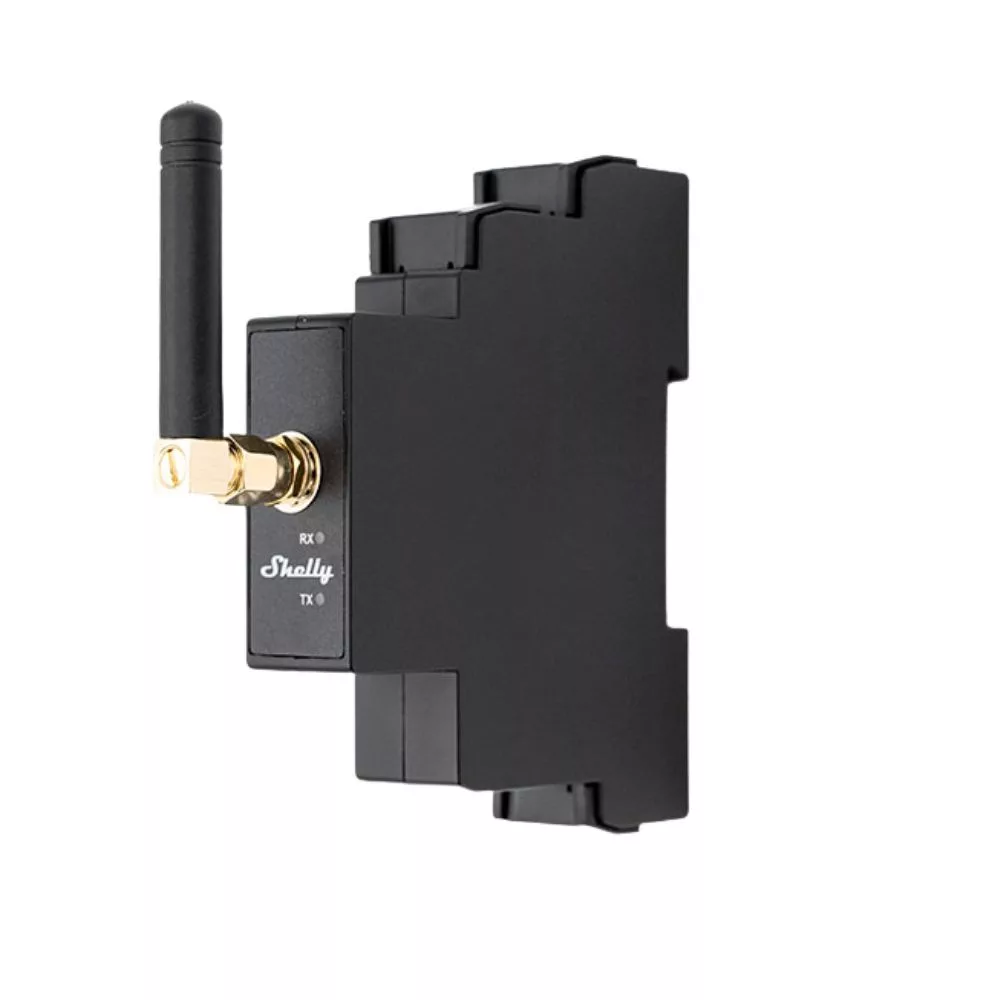

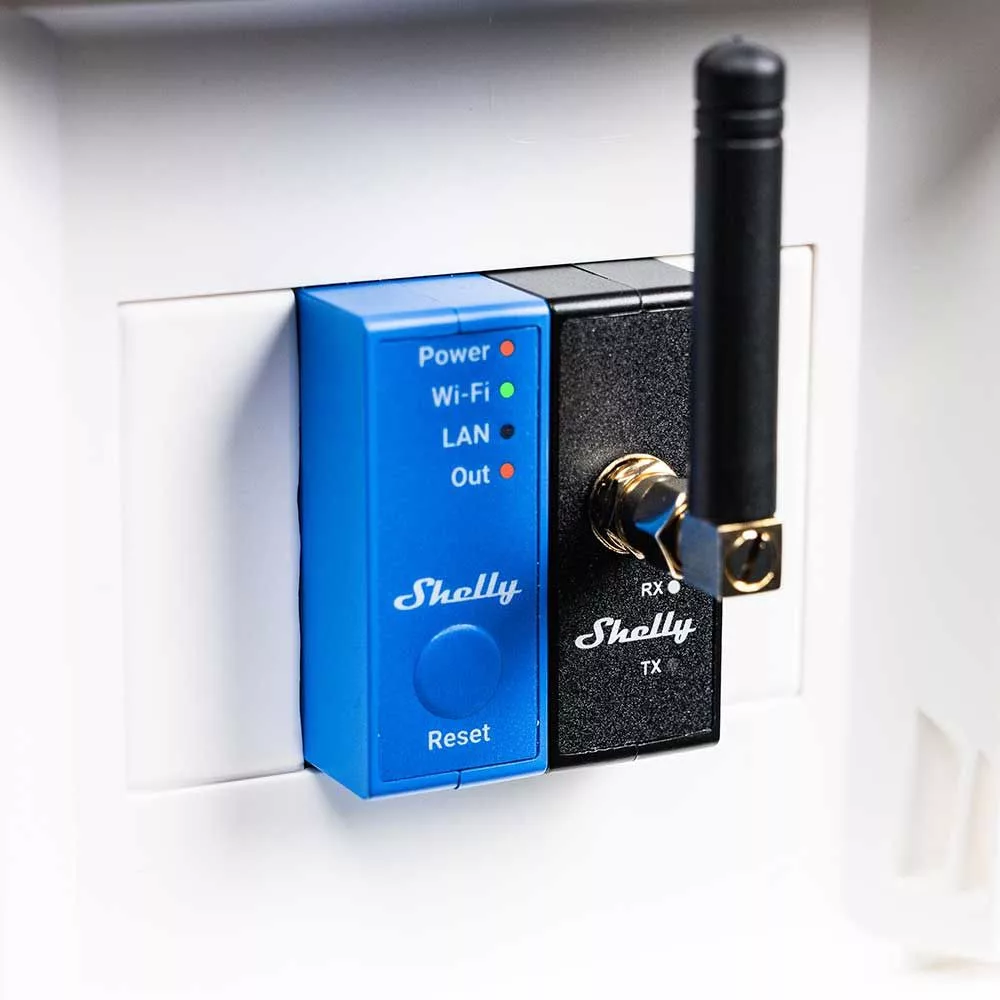

Shelly Pro LoRa Add-on – long-range communication expansion module for Shelly PRO devices

The Pro LoRa Add-on is Shelly’s professional DIN rail-mounted LoRa communication expansion module, specifically designed for Shelly Pro series devices. The add-on enables wireless communication over distances of up to 5 km in open areas, making it ideal for large-scale building automation, industrial, agricultural, or municipal systems.

LoRa technology provides stable and reliable communication with extremely low power consumption, even in locations where traditional Wi-Fi or Zigbee networks are no longer effective. The Shelly Pro LoRa Add-on is specifically engineered for long-range communication, making it perfect for monitoring and controlling remote pumps, public lighting systems, irrigation systems, or industrial equipment.

One of the module’s key advantages is galvanic isolation, which ensures safer and more stable operation in industrial or electrically noisy environments. Thanks to the SMA antenna connector, the included antenna can be mounted outside a metal cabinet or replaced with a higher-gain antenna for improved stability and range.

The Shelly Pro LoRa Add-on supports AES-CCM encrypted communication as well as unicast, multicast, and broadcast addressing using the Shelly Protocol. The system also supports one-to-one, one-to-many, many-to-one, and many-to-many network topologies, allowing larger automation systems to be deployed easily.

Thanks to Shelly’s advanced scripting capabilities, LoRa communication can be fully customized. Shelly Pro devices can simultaneously function as automation controllers and LoRa communication nodes, eliminating the need for separate gateways or dedicated communication infrastructure.

The module can also be used to forward data from Shelly BLU Bluetooth devices. For example, a Shelly BLU H&T sensor can transmit data via Bluetooth to a Shelly Pro device, which then forwards the data over the LoRa network to other Shelly Pro devices.

About the Shelly brand

Shelly is one of the most recognized and innovative smart home brands in Europe, developed by the Bulgarian company Allterco Robotics. The manufacturer is particularly strong in the market of Wi-Fi and Bluetooth-based smart devices, many of which operate without requiring a central hub, allowing quick and simple installation using only a Wi-Fi network.
Shelly’s extensive portfolio includes relays, sensors, smart plugs, lighting solutions, and professional DIN rail-mounted devices. The company places strong emphasis on local control, allowing devices to function even without internet access, improving reliability and data security.
Shelly devices support advanced integrations such as REST API, MQTT, and Webhooks, making them compatible with systems like Home Assistant, openHAB, Node-RED, and other DIY solutions. They are also compatible with popular cloud ecosystems including Google Home, Amazon Alexa, and Samsung SmartThings.
The latest Shelly generations include BLE gateway, Wi-Fi range extender, and additional networking features. Shelly products are especially popular among advanced users and professional installers, while their ease of use also makes them suitable for beginners.

Key product features

Up to 5 km LoRa communication: Stable long-range wireless communication in open areas
Galvanic isolation: Safe and stable operation in industrial environments
SMA antenna connector: Supports external or higher-gain antennas

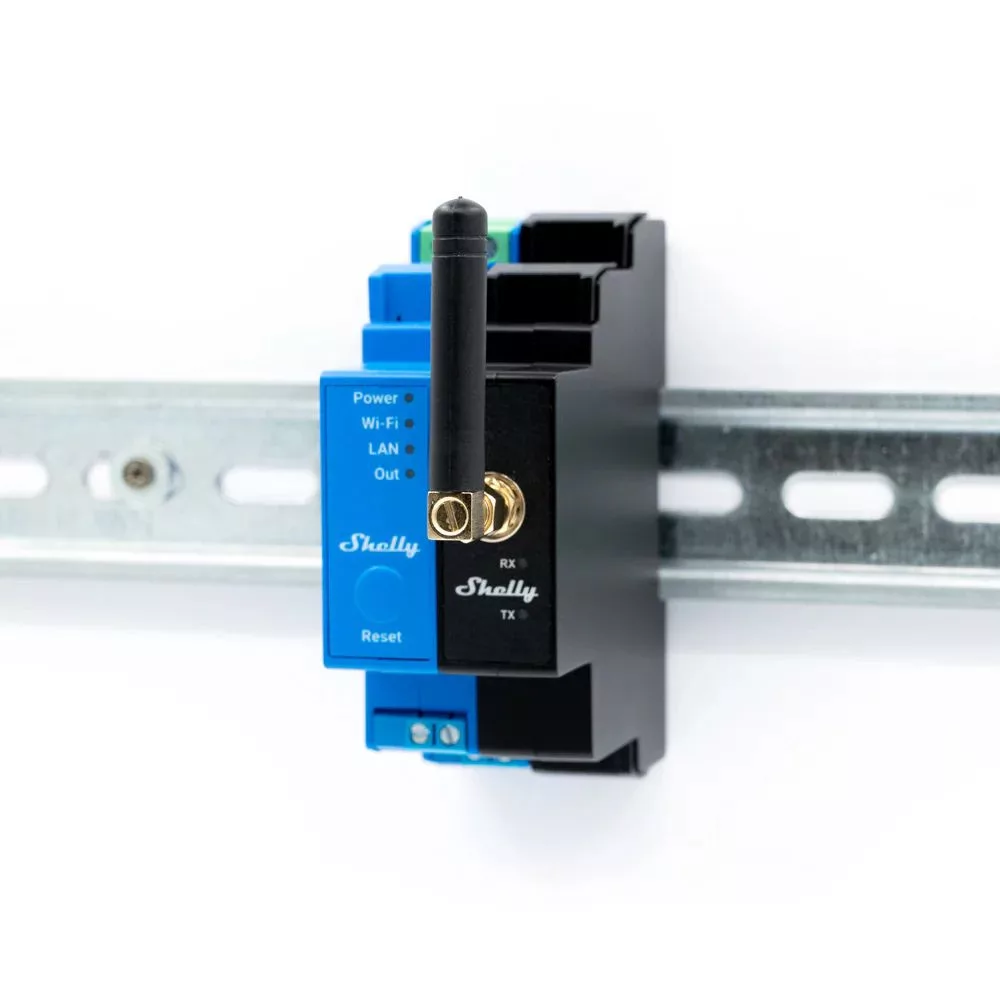

DIN rail-mounted design: Optimized for professional electrical cabinets
AES-CCM encryption: Secure communication over LoRa networks
Multiple network topologies: Supports one-to-one, one-to-many, and many-to-many communication
Scripting support: Custom LoRa automations and data handling
Low power consumption: Energy-efficient continuous operation
LED status indicators: Dedicated RX and TX LEDs for traffic indication

Smart home protocols and platform compatibility

Supported communication: LoRa
Supported frequency band: EU868
Shelly Protocol support: Yes
Scripting support: Yes
Bluetooth data forwarding: Supports forwarding Shelly BLU sensor data over LoRa
Compatibility: Shelly Pro series devices
Local operation: Yes
Integration: Via Shelly scripting and automation environment

Smart features

Remote infrastructure control: Automate pumps, lighting systems, and other equipment over long distances
Real-time LoRa communication: Reliable communication even in difficult locations
Bluetooth sensor data forwarding: Integration of Shelly BLU sensors
Large-area automation: Ideal for irrigation, public lighting, or industrial systems
Fault-tolerant communication: Stable operation over long distances
Custom scripting: Fully customizable operation
Duty-cycle optimization: Low-power EU868 mode support

Technical specifications

Product name: Shelly Pro LoRa Add-on
Communication technology: LoRa
Maximum communication range: Up to 5000 m
Frequency band: EU868
Max. RF power: < 14 dBm
Encryption: AES-CCM
Supported communication modes: Unicast, multicast, broadcast
Compatible antenna frequency: 863–870 MHz
Antenna impedance: 50 Ω
SWR: < 3.0
Antenna connector: SMA-M
Power supply: 3.3V from compatible Shelly Pro device
Power consumption: < 150 mW
Galvanic isolation: Yes
LED indicators: RX and TX status LEDs
Scripting support: Yes
Connection: Shelly proprietary serial add-on interface
Installation: DIN rail
Size without antenna: 94 × 19 × 78 mm
Size with antenna: 94 × 19 × 92 mm
Weight without antenna: 45 g
Weight with antenna: 52 g
Housing material: Plastic
Housing color: Black
Operating temperature: -20°C – +40°C
Humidity: 30–70% RH
Max. installation altitude: 2000 m
Compatible devices:   Shelly Pro 1, Shelly Pro 1PM, Shelly Pro 2, Shelly Pro 2PM, Shelly Pro 3EM, Shelly Pro Dimmer 0/1-10V PM, Shelly Pro Dimmer 1PM, Shelly Pro Dimmer 2PM, Shelly Pro EM-50, Shelly Pro RGBWW PM
