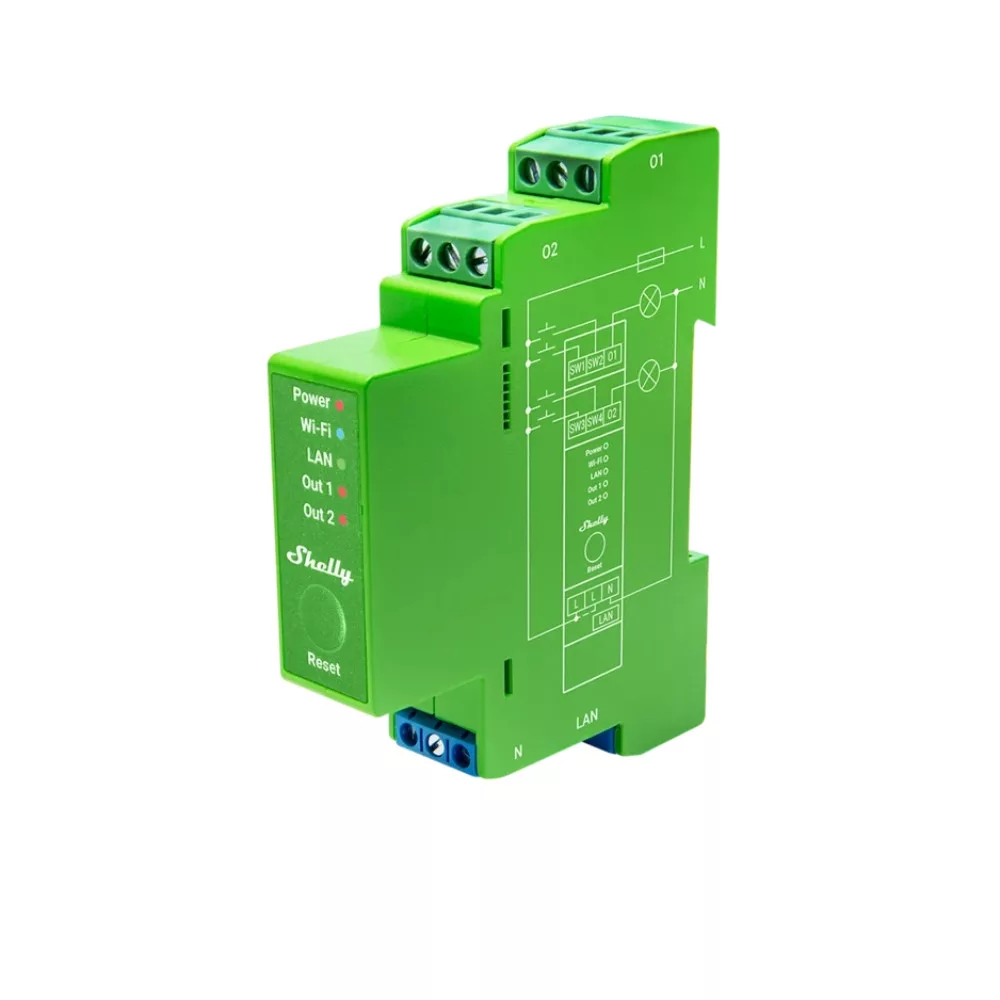

Shelly PRO Dimmer 2PM WiFi + Ethernet 1-gang smart relay switch with DIN-rail support
Brand:
Shelly
The Shelly PRO Dimmer 2PM is a 2-gang member of the PRO DIN-rail-mounted generation for electrical cabinets, which is also capable of WiFi + Bluetooth + Ethernet connectivity. It has two independent dimming outputs for 230V AC dimming control of light sources.
FOR SAME DAY DISPATCH
Don’t miss today’s dispatch – order now!
Related products
2-circuit DIN-rail mounted electrical cabinet with smart Dimmer, Wi-Fi, LAN and Bluetooth connectivity
Shelly's professional 2-circuit dimmer with Wi-Fi, wired network (LAN), and Bluetooth connectivity is a professional automation solution for both home automation in apartments and for larger public buildings (stores, condominiums, shops, etc.). The PRO product line is intended by Shelly primarily for the automation of newly constructed buildings, where building automation can be easily and professionally achieved with Shelly Pro devices by means of smart devices placed in the electrical cabinet next to the circuit breakers, without the need for extra wiring.
Product features:
LAN, Wi-Fi, and Bluetooth support
LAN and Wi-Fi supported simultaneously
Easy pairing with the Shelly Cloud app via Bluetooth
Includes two switch inputs
2 outputs with max. 200W/output (COSφ=1).
230V AC adjustable to control light sources or transformers
DIN rail compatible
The product is part of the Shelly PRO range,
which are fitted:
an internal thermometer which switches the device off in case of overheating,
Overvoltage protection, which switches off the controlled circuit in case of overvoltage detection to protect the electrical consumers,
maximum power protection, which shuts down the controlled circuit in the event of excessive power being detected,
and all made of fire and heat resistant materials (V-O).
All PRO products:
Support HTTP/HTTPS webhooks, so enhanced Shelly Pro products can easily connect, notify or control compatible products or other automation systems
Support sunrise/sunset timed on/off,
can handle up to 50 timers (stored on the device, which can operate offline),
fully supports mjS scripts, allowing customers to create their own functions and features! The Shelly Pro line devices allow multiple scripts to be executed simultaneously, depending on different triggers such as input/output status, sensor data or WLAN requests
Product features:
LAN, Wi-Fi and Bluetooth: it can connect to Wi-Fi and LAN at the same time, and pairing with the phone is easier than ever before via Bluetooth connection
Ideal for cost-effective automation of new build residential and commercial properties with point-to-point wiring
2 outputs: with 2 controlled outputs, it can regulate up to 200 watts/channel.
Can be operated from 110-240 V AC
Wire cross-sections: switched circuit ("I" and "O"): 2.5mm2, other inputs (operational power supply, switching inputs): 1.5mm2
Super fast ESP32 processor: fast operation, fast notifications and 8MB memory.
Application area: lighting control.
Enhanced safety: made of fire resistant (V-0) material and the device is equipped with overheat protection.
Enhanced IT security: supports MQTT and WSS, TLS and custom certificates.
No hub/central unit required: directly connected to the WiFi router, it accesses the internet and the factory cloud for the easiest possible control from the Shelly Cloud App.
Integrates with almost everything: not only can it be controlled by cloud voice assistants (Alexa, Google Home), but it can also be connected to a wide range of commercial and open source home automation systems.
This content is only available to logged in users.
Weight:
95 g/pcs
