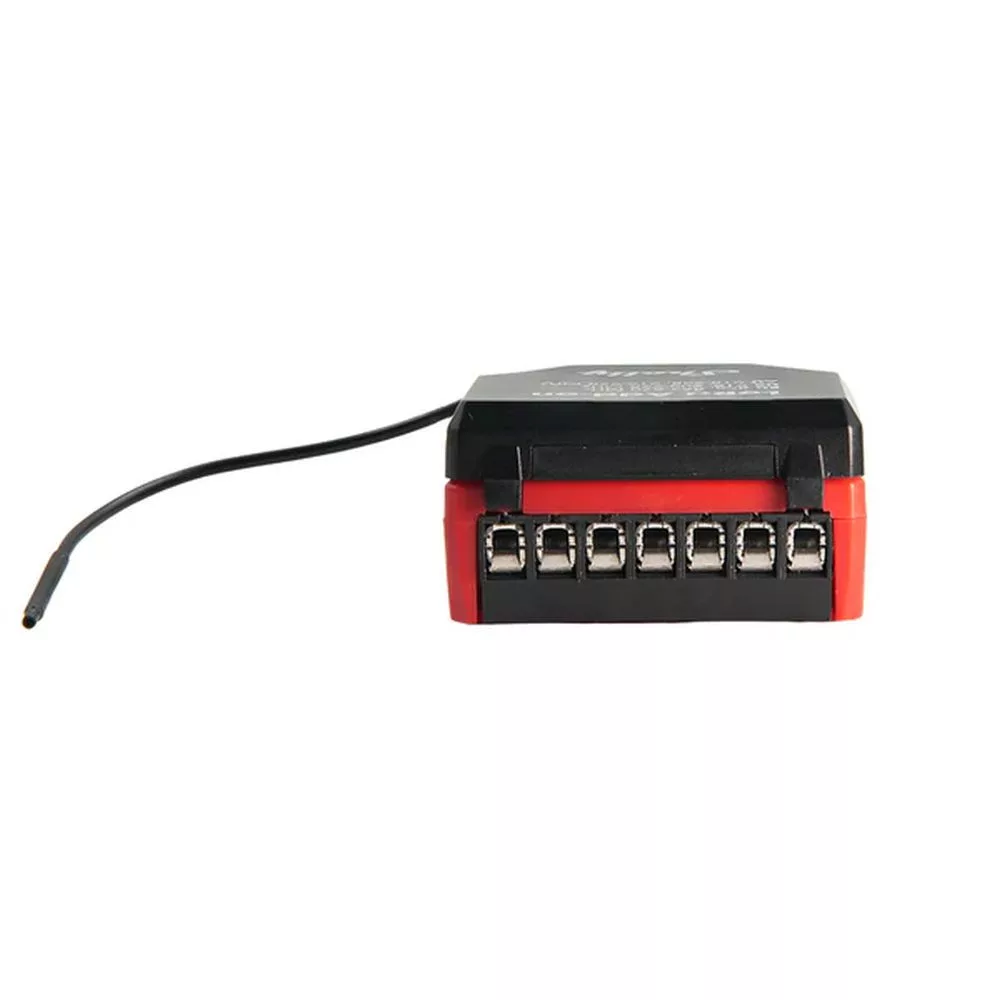

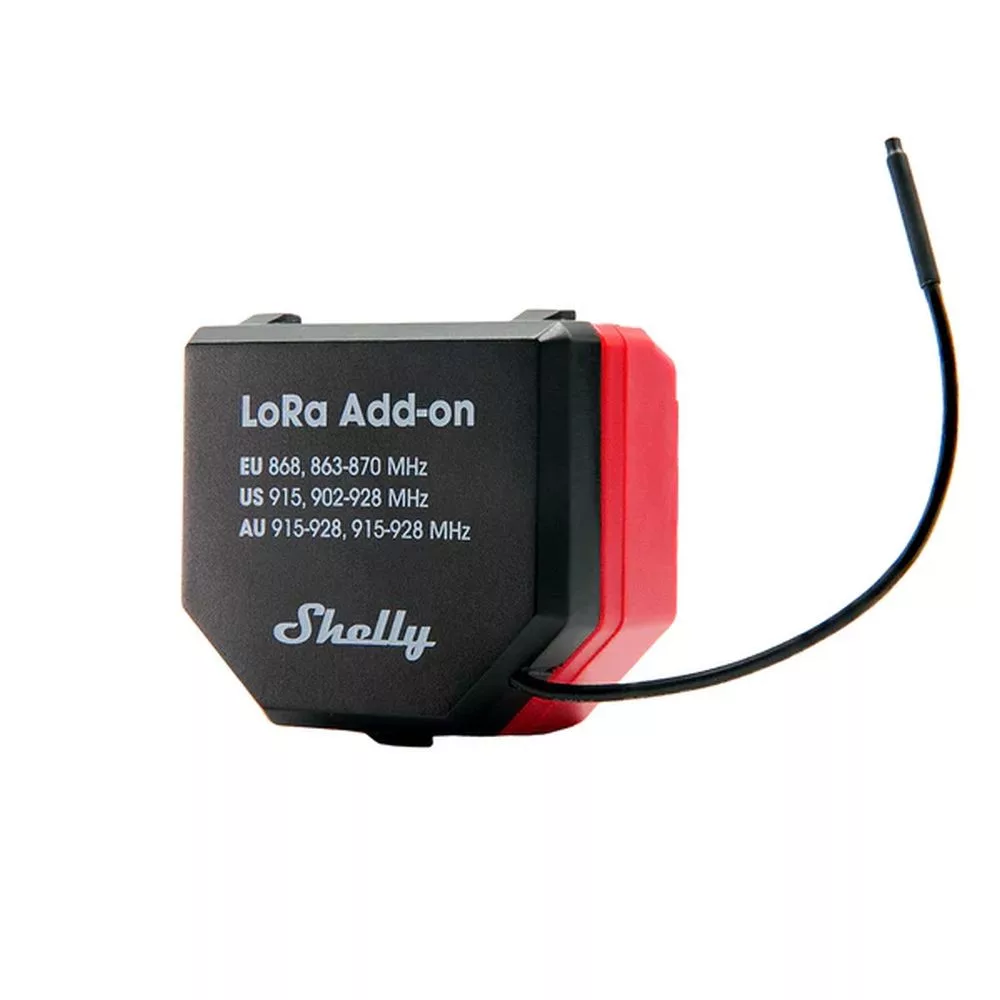

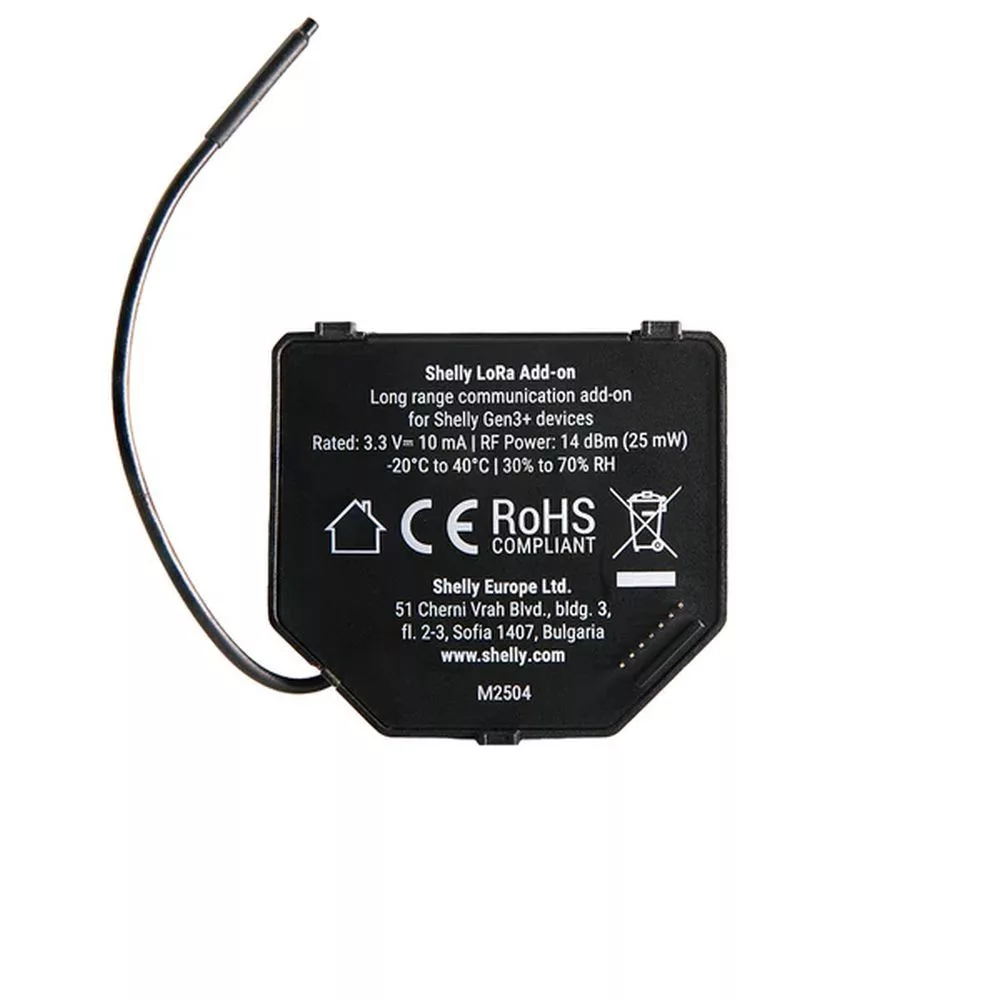

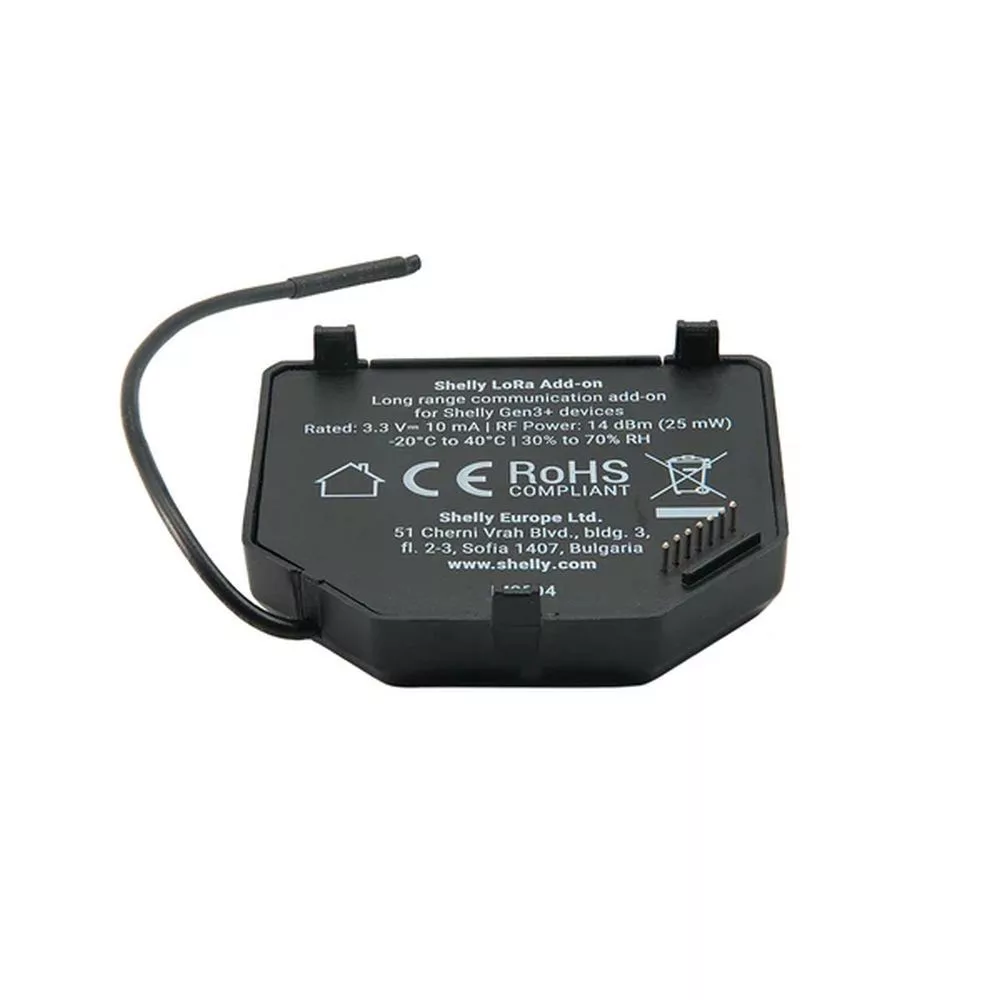

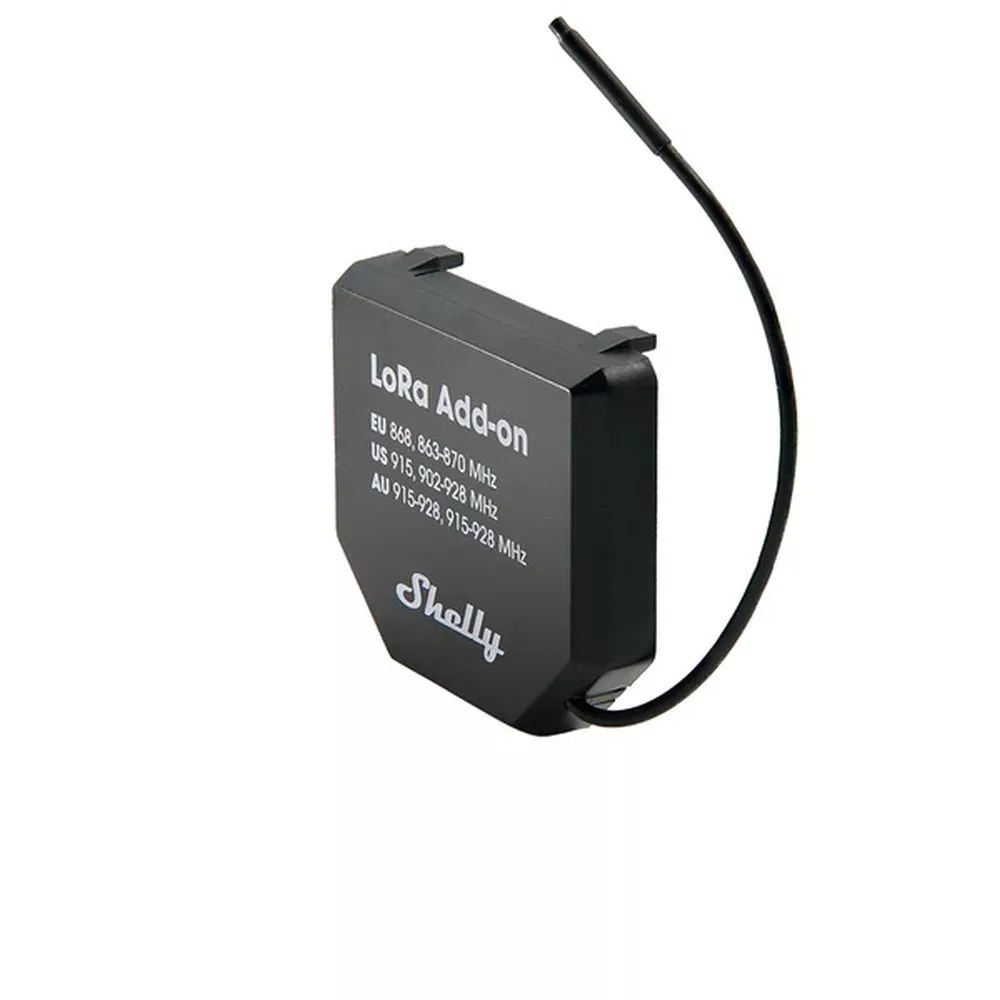

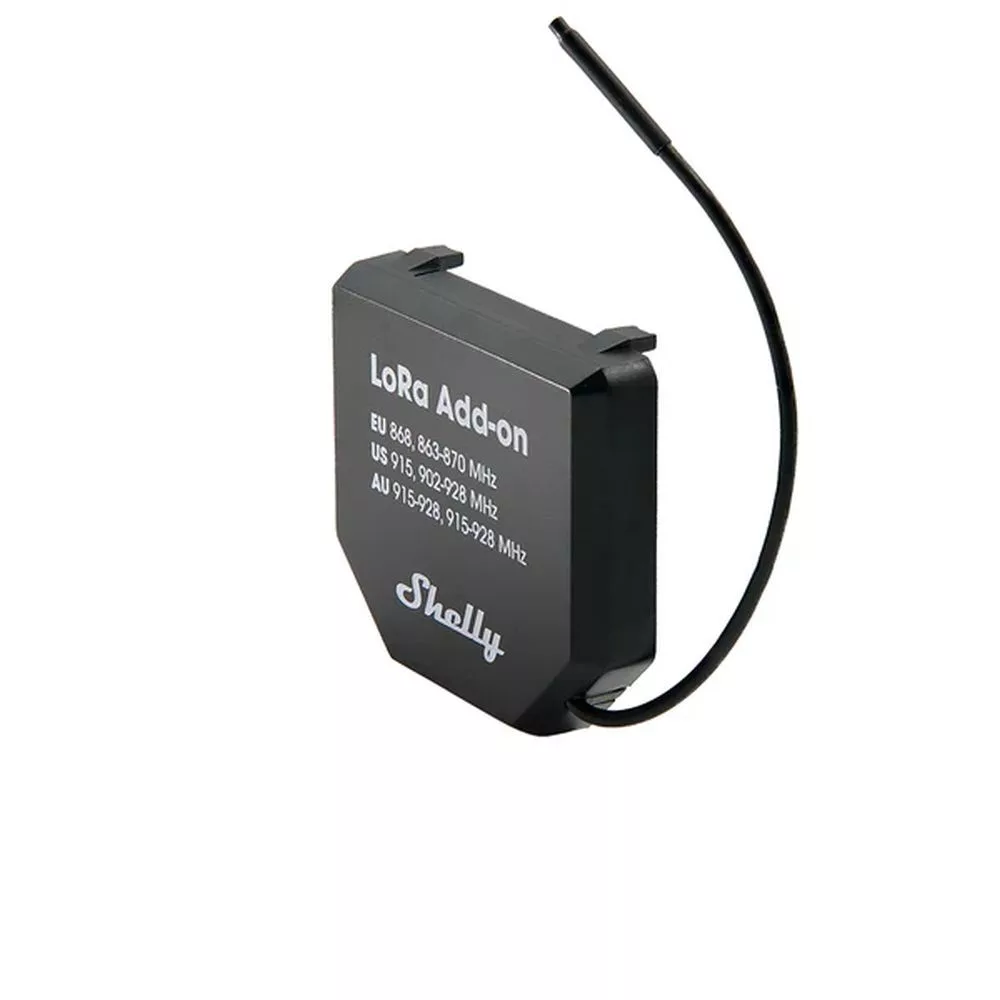

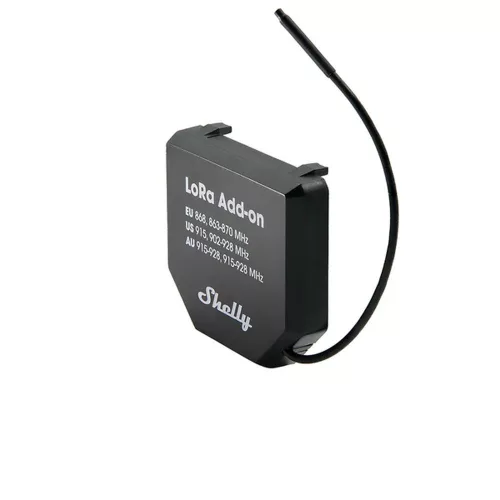

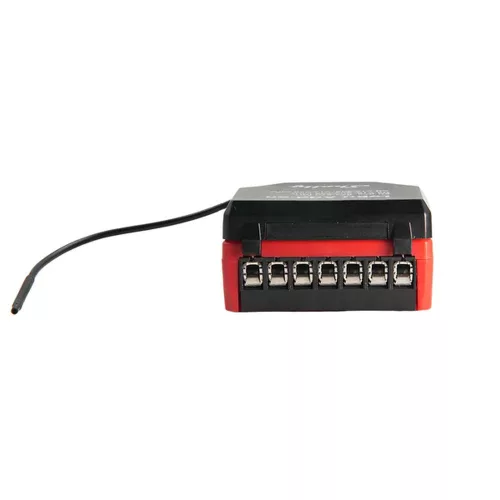

Shelly LoRa Add-on - long range communication add-on module
Brand:
Shelly
The Shelly LoRa Add-on is a long-range communication add-on module specifically designed for Shelly Gen3 and Gen4 retrofit devices. This module enables reliable wireless communication of up to 5 kilometers in open areas, making it an ideal solution in locations where Wi-Fi or other short-range technologies are insufficient. This package contains only one module, so it is primarily recommended as an addition to the 2-pack set in case LoRa connection is needed between more than two points.
FOR SAME DAY DISPATCH
Don’t miss today’s dispatch – order now!
Related products
The Shelly LoRa Add-on is a long-range communication expansion module specifically designed for Shelly Gen3 and Gen4 retrofit devices. This module enables reliable wireless communication of up to 5 km in open areas, making it an ideal solution for locations where Wi-Fi or other short-range technologies are insufficient.
This package contains only 1 piece of LoRa module, so it is primarily recommended as an addition to the 2-piece set if a LoRa connection needs to be established between more than 2 points, and one more module is required.
The module designed for Shelly Gen3 and Gen4 devices takes long-distance connectivity to a new level: it provides secure performance in open areas and ensures reliable operation even in challenging environments. Thanks to the module, Shelly Gen3 and Gen4 retrofit devices can be used even in places where other technologies no longer work.
This compact little expansion module is an ideal choice for automating urban infrastructures, managing remote devices, or optimizing precision agriculture. It supports custom scripts, making it fully customizable according to specific usage needs.
Main Features
- Up to 5 km range: Thanks to Shelly’s proprietary LoRa technology, the module can cover long distances, which is especially useful in agricultural areas, industrial facilities, or urban infrastructures.
- LoRa technology: The LoRa technology combined with Shelly’s own protocol ensures strong and efficient performance.
- Compact design: The small-sized device can be easily integrated into existing Shelly systems without taking up significant space.
- External antenna: The module features an external antenna that ensures a stable and strong signal even under difficult conditions.
- Easy installation: The Shelly LoRa Add-on X2 can be easily connected to compatible Shelly Gen3 and Gen4 retrofit devices and quickly put into operation.
- Script support: Supports custom scripts for specialized use cases.
Use Cases
- Gate monitoring and remote control: supervising gate motors in larger yards or parking areas without Wi-Fi coverage.
- Agriculture: Controlling remote sensors and irrigation systems, monitoring soil moisture and temperature.
- Industrial facilities: Remote monitoring of machines and equipment, optimizing energy consumption. Coverage of distant points in large halls without Wi-Fi coverage.
- Urban infrastructure: Automating street lighting, controlling traffic systems.
- Residential buildings: Integrating and monitoring central systems of multi-unit buildings.
Technical Specifications
- Compatibility: Shelly Gen3 and Gen4 devices, not standalone operable, it is a LoRa communication add-on module only.
- Protocol: Shelly LoRa, EU 868 (863 - 870 MHz)
- Max. range: 5000 meters (in open areas with line of sight)
- Operating temperature: from -20 °C to +40 °C
- Humidity: 30% - 70% RH
- Dimensions: 37 x 42 x 15 mm (±0.5 mm)
Compatible Devices:
- Shelly Gen3 retrofit devices:
- Shelly 1 Gen3
- Shelly 1PM Gen3
- Shelly 2PM Gen3
- Shelly EM Gen3
- Shelly Dimmer 0/1-10V PM Gen3
- Shelly DALI Dimmer Gen3
- Shelly Gen4 retrofit devices:
- Shelly 1 Gen4
- Shelly 1PM Gen4
- Shelly 2PM Gen4
Advantages
- Cost-effective solution: Thanks to the low power consumption and long range of LoRa technology, operational costs are reduced.
- Flexible integration: The module can be easily integrated into existing Shelly systems, enabling the expansion of current infrastructure.
- Reliable communication: The external antenna and LoRa technology ensure a stable connection even under challenging conditions.
- Scalability: The module allows for easy system expansion with additional devices without the need for major infrastructure changes.
The Shelly LoRa Add-on is an ideal choice for anyone looking for a reliable and long-range communication solution for their Shelly systems. Whether it’s for agricultural applications, industrial facilities, or urban infrastructures, this module provides the necessary connection and control.
This content is only available to logged in users.
Weight:
21 g/pcs
