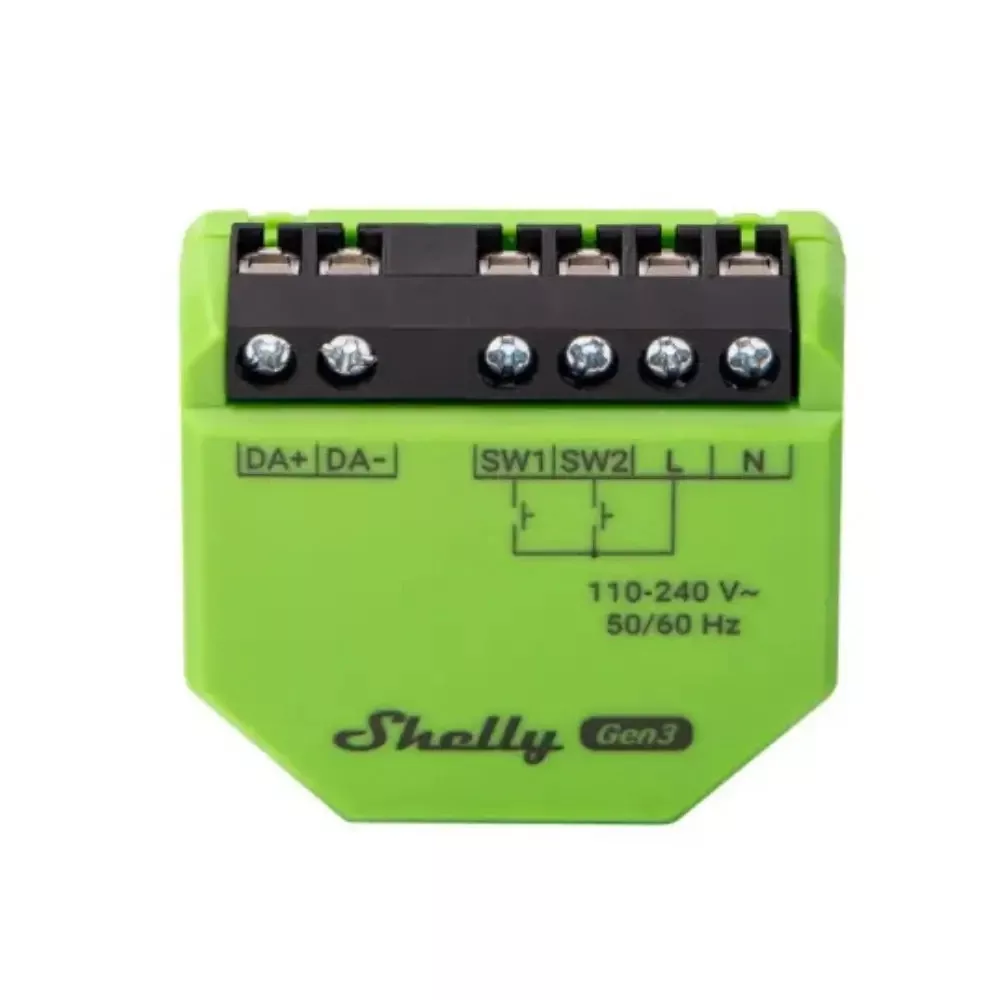

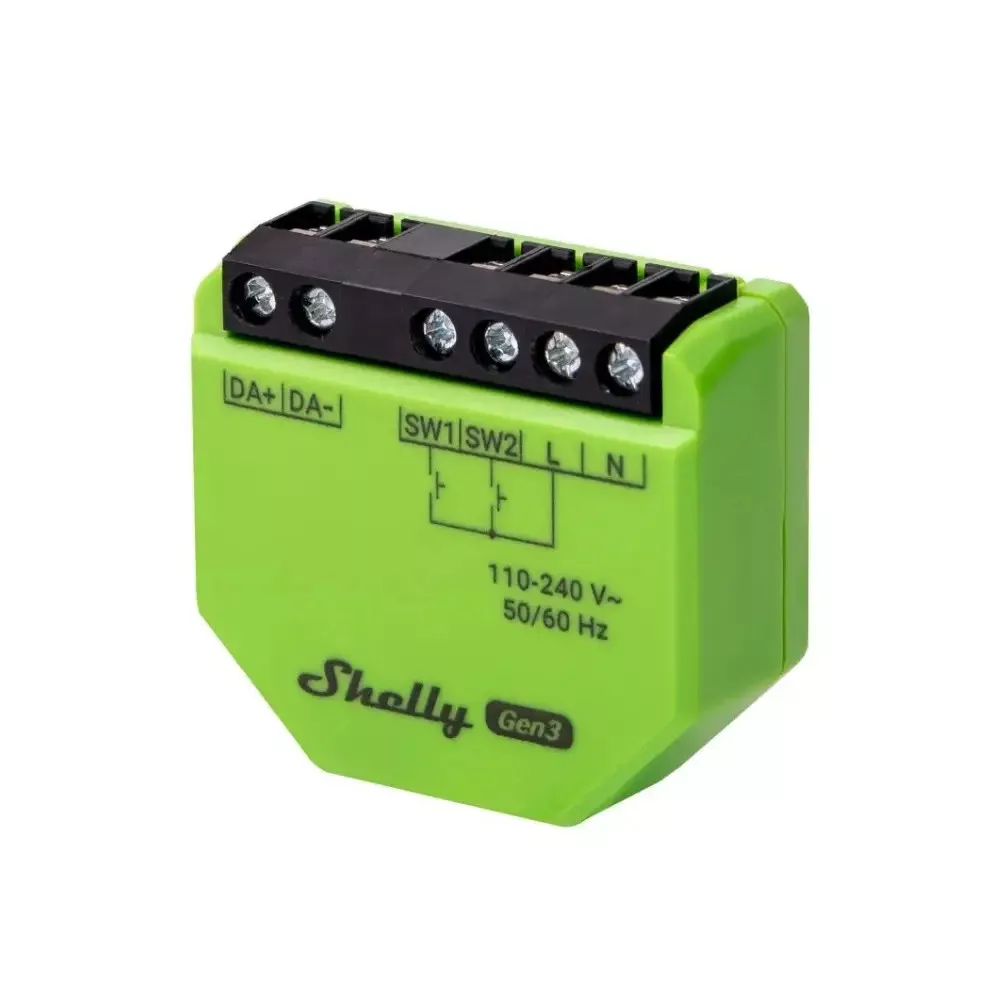

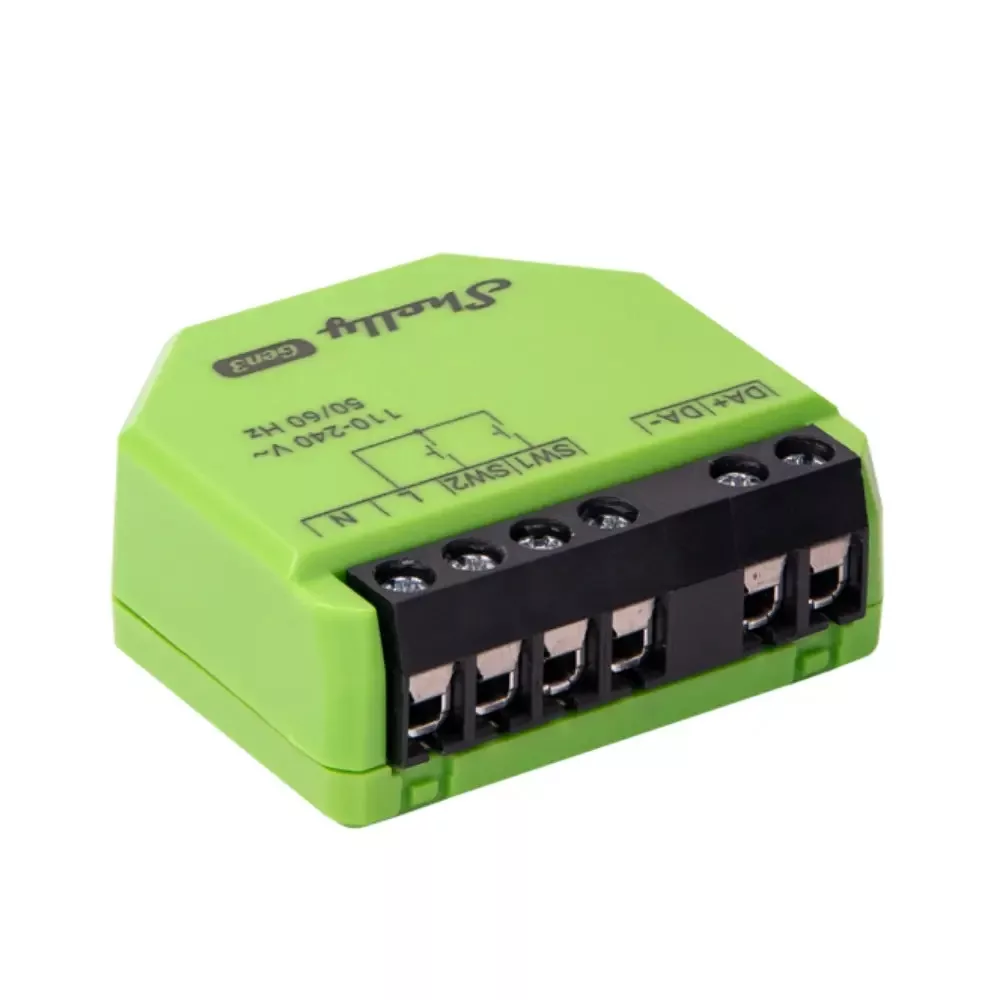

Shelly DALI Dimmer Gen3

The Shelly DALI Dimmer Gen3 is a sophisticated lighting control device designed to seamlessly integrate with DALI lighting networks. This dimmer enables precise management of DALI-compatible luminaires, providing smooth brightness control and advanced automation capabilities. It acts as a single-master controller, supporting up to 5 DALI units without requiring external power sources for those devices, making it highly efficient for smart home and commercial use.

Key Features:

1. DALI Network Compatibility:
   The device integrates with DALI networks, managing up to 5 DALI lights. This allows for synchronized control of multiple lights, perfect for sophisticated lighting setups where consistent lighting performance is crucial. The built-in bus power supply provides up to 10mA for the DALI network, with a short-circuit protection system.

2. Smart Connectivity:
   Shelly DALI Dimmer Gen3 is equipped with both Wi-Fi and Bluetooth. The dual connectivity allows for easy installation and management through the Shelly app or via Bluetooth for quick setup. It can act as a Wi-Fi range extender and BLE gateway, providing enhanced network coverage in larger spaces. No hub is required for the system to function, as it can connect directly to a wireless network.

3. Advanced Lighting Control:
   This dimmer allows for highly customizable lighting experiences, including smart scheduling where users can automate their lights based on time of day or specific events. Night mode lets users reduce the maximum brightness for a more comfortable nighttime environment. The min/max brightness settings allow precise control of the dimming range, providing better customization based on user preferences. Additionally, users can control the fade rate of the lights to ensure smooth transitions between different brightness levels.

4. Enhanced Safety:
   The device features overheating protection, ensuring the system remains safe during prolonged use. It also has built-in diagnostic tests that allow users to troubleshoot any issues within the DALI network, helping maintain optimal performance and extending the life of the lighting systems.

5. Automation and Integration:
   With support for popular smart home platforms like Amazon Alexa, Google Home, and Samsung SmartThings, the Shelly DALI Dimmer Gen3 integrates easily into existing smart home ecosystems. Users can create local actions, and automate their lighting through scripting and webhooks to link with other devices and systems. This opens up extensive possibilities for creating unique, user-driven automation scenarios.

6. KNX and Scripting:
   The dimmer supports KNXnet/IP, making it suitable for integration into complex building automation systems. This feature is especially useful in commercial environments where multiple devices and control points need to be synchronized. Additionally, the scripting capabilities allow for advanced automation beyond the typical routines, enabling detailed customization for users with more technical knowledge.

Technical Specifications:

• Power Supply: 110-240V AC, 50/60 Hz
• Power Consumption: Less than 2 W
• Operating Temperature: -20°C to 40°C
• Connectivity: Wi-Fi (2.4 GHz) and Bluetooth 4.2
• Control Capacity: Supports up to 5 DALI control gear units

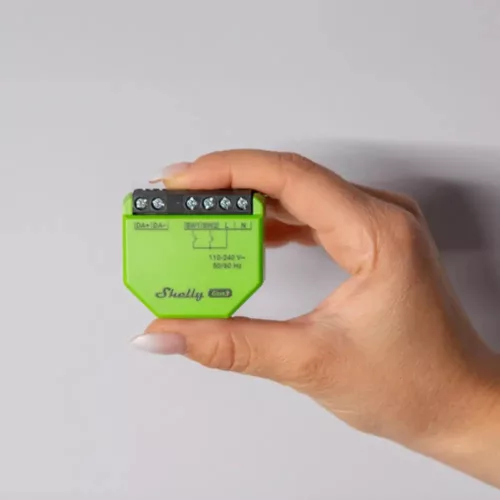

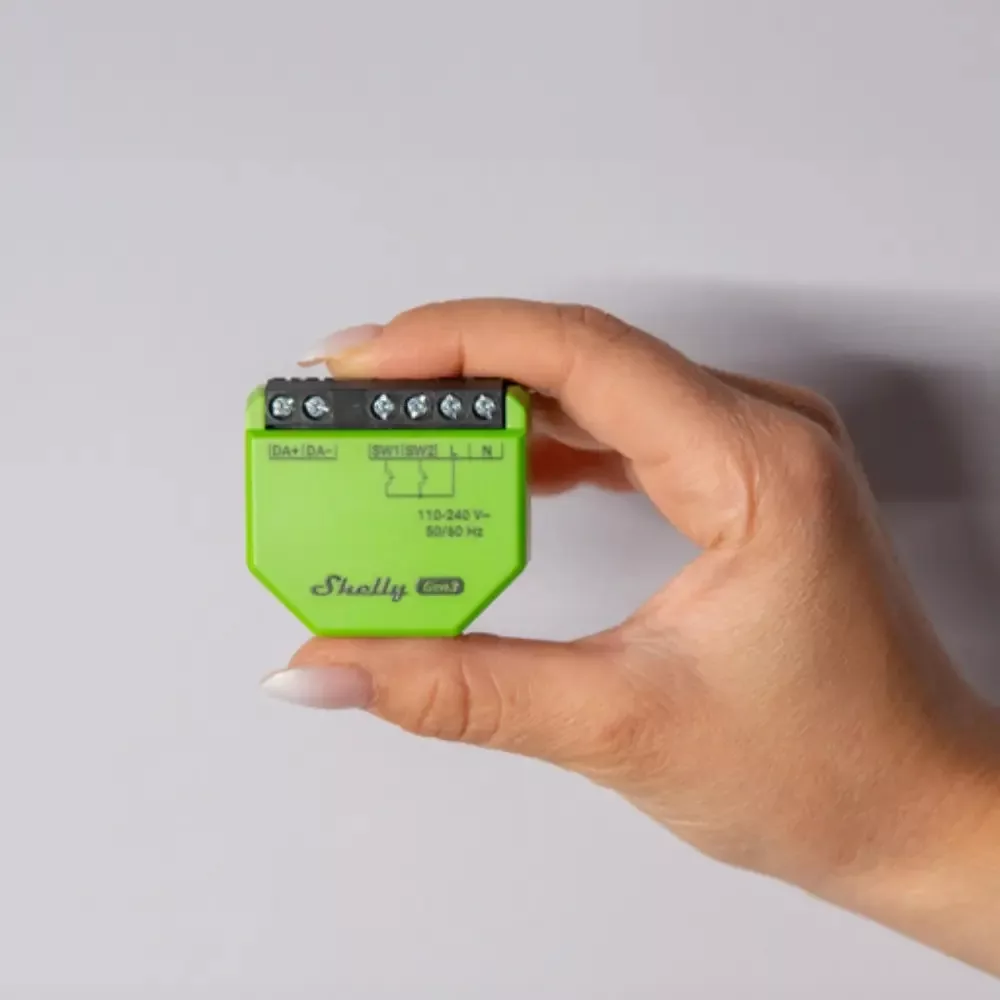

• Dimensions: 42x37x17 mm, compact for in-wall or ceiling installation
• Safety: Overheating protection and short-circuit protection

Use Cases:

The Shelly DALI Dimmer Gen3 is ideal for both residential and commercial environments, providing flexible lighting control for homes, offices, retail stores, and hospitality settings. It can be used in multi-dwelling units such as hotels or apartment complexes, where centralized and synchronized lighting is essential. In smart homes, it enables advanced lighting automation to enhance comfort, security, and energy efficiency.

In conclusion, the Shelly DALI Dimmer Gen3 is a versatile and powerful solution for managing high-end lighting systems. With its broad compatibility, advanced features, and reliable performance, it is suitable for both everyday smart home use and more complex commercial or multi-dwelling applications.
