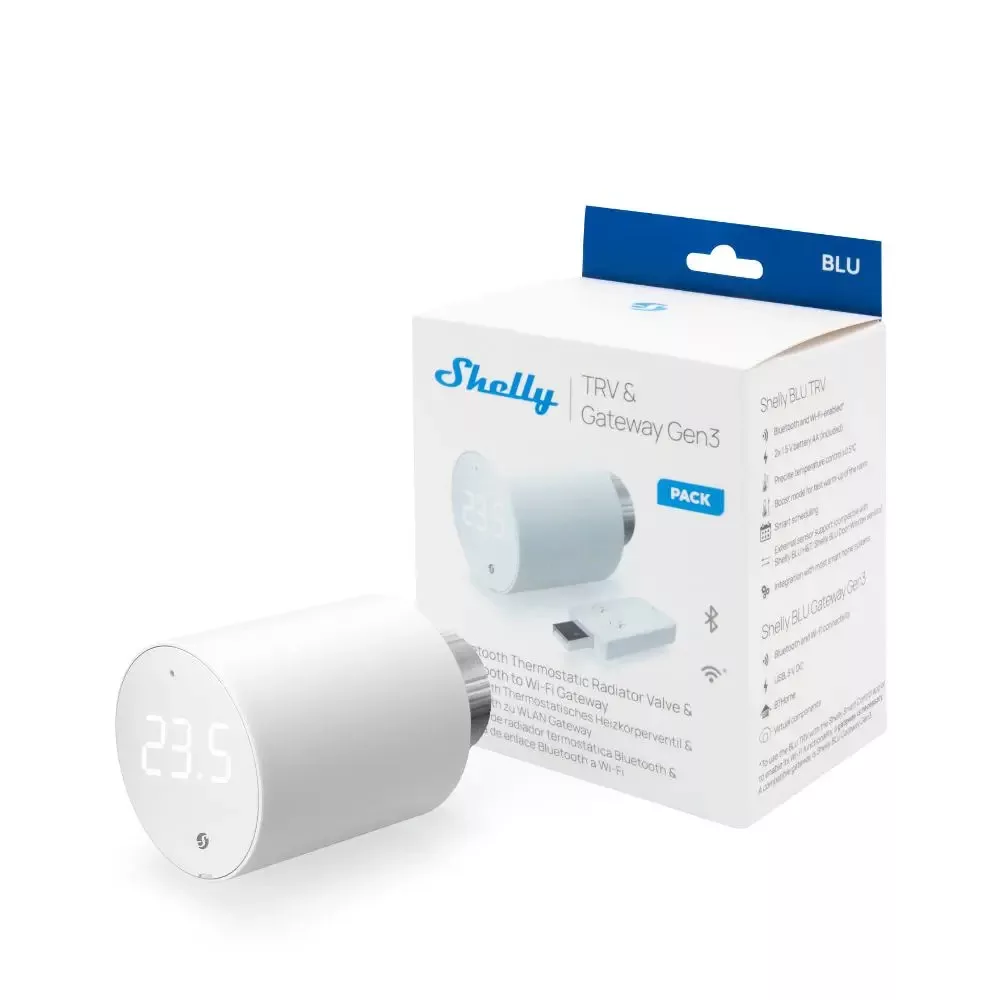

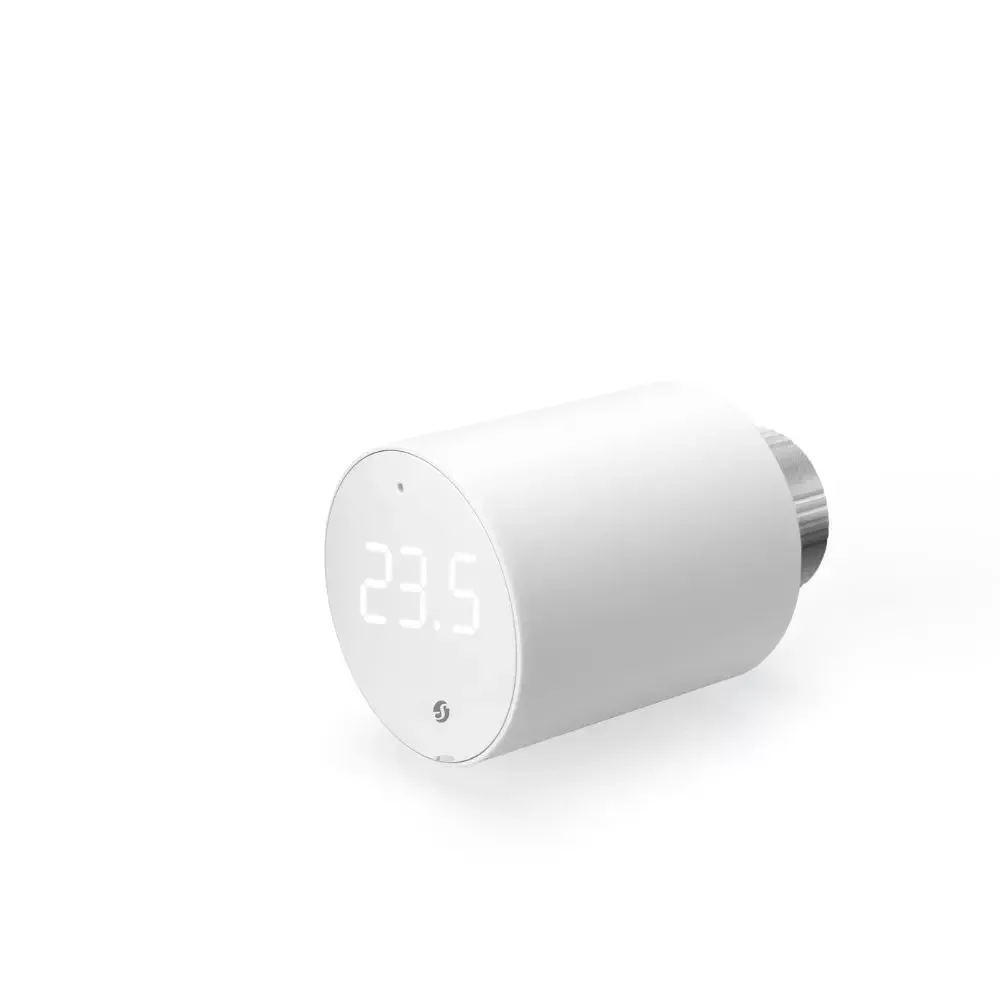

Shelly BLU TRV smart thermostatic radiator valve + Bluetooth-Wi-Fi gateway Gen3, Bluetooth, Zigbee

The Shelly BLU TRV is a smart radiator valve that communicates via Bluetooth, allowing smart control of radiator heating. This not only saves energy, but also makes your home more comfortable. The Shelly BLU TRV is easy to install, battery operated and has a long running time. It is compatible with many smart home systems, including the Shelly Cloud app, so you can control your heating system remotely. This bundle includes 1 radiator valve and 1 Bluetooth Gen3 gateway.

Key features and benefits

• Remote Control via Bluetooth
  The Shelly BLU TRV connects via Bluetooth, allowing you to control your radiator from anywhere through the Shelly Cloud app. You can adjust the heating even while away, ensuring a comfortable temperature when you return home.
• Long Battery Life
  Powered by 2 AA batteries, the device can operate for up to two years without replacement. The energy-saving mode automatically reduces power consumption, conserving resources.
• Automatic Heating Schedules
  The Shelly BLU TRV enables scheduling, allowing you to set times for your radiator to turn on and off. Perfect for maintaining a consistent daily routine, such as warming up your home just before you arrive.
• Precise Temperature Control
  Equipped with an accurate temperature sensor, the Shelly BLU TRV maintains the desired room temperature automatically, preventing overheating and minimizing energy loss.
• Easy Installation and Broad Compatibility
  The Shelly BLU TRV fits most standard radiator valves and is compatible with multiple smart home systems (BTHome standard), including the Shelly platform. Setup is simple, even for those with no technical expertise. The device is compatible with third-party adapters, making it easy to install.

Local control with the rotary knob of the Shelly BLU TRV:

• To turn on the LEDs, rotate at least 1 step clockwise (CW) or counterclockwise (CCW).
• To access the TRV menu, turn the knob CCW > CW > CW > CCW > CCW > CW (you can start in either direction).
• To increase the temperature, rotate 1 step clockwise (CW).
• To decrease the temperature by 0.1°C, turn the knob 1 step counterclockwise (CCW).
• To activate Boost mode, turn the knob clockwise more than 10 steps.
• To deactivate Boost mode, turn the knob counterclockwise (CCW) by more than 10 steps.


Compatible radiator valves:

With adapters provided by Shelly:

• Danfos
• RA
• RAV

• RAVL
• Caleffi
• Giacomini
• M28 x 1.5
• Sam
• Slovarm
• Comap
• Markardys
• TA
• Heart
• MMA
• Remagg
• Point to Mousson



With adapters provided by a third party, sold separately:

• Gampper (27 mm thread and inner thread M22)
• Glacomini
• Ista
• Meges (M38 x 1.5)
• Ondal (M38 x 1.5)
• Oventrop (M30 x 1.0 with 4 prongs)
• Rossweiner (M33 x 2.0)
• Vallant (30.5 mm)



The full compatibility list can be found here on the manufacturer's website.

Integration and compatibility

The Shelly BLU TRV can be seamlessly integrated with various smart home systems using the BTHome standard, so you can fully automate heating as part of your existing network. And when you control your BLU TRVs with the Shelly Cloud app, setting up and monitoring your heating can be easy and convenient from the user-friendly interface of the Shelly app.

Product Features

• Size: 5.4 x 5.4 x 7.8 cm
• Fitting size: M30 / 15

• Communication: Bluetooth 4.2 (BTHome); Wi-Fi; Zigbee
• Battery: 2 AA batteries (included)
• Battery life: up to 2 years
• Control: remote control via Shelly Cloud app
• Compatibility: even integrates with other smart home platforms thanks to the BTHome standard
• Yes, timing can be set in the APP.
• Temperature control: the thermostatic radiator valve has a built-in precise temperature sensor.
• External sensor support: yes, compatible with Shelly BLU H&T, Shelly BLU Door/Window sensors when paired with Blu Gateway Gen3 for TRV
• Operating humidity: 25% - 80% RH
• Operating temperature: -20°C to +60°C
