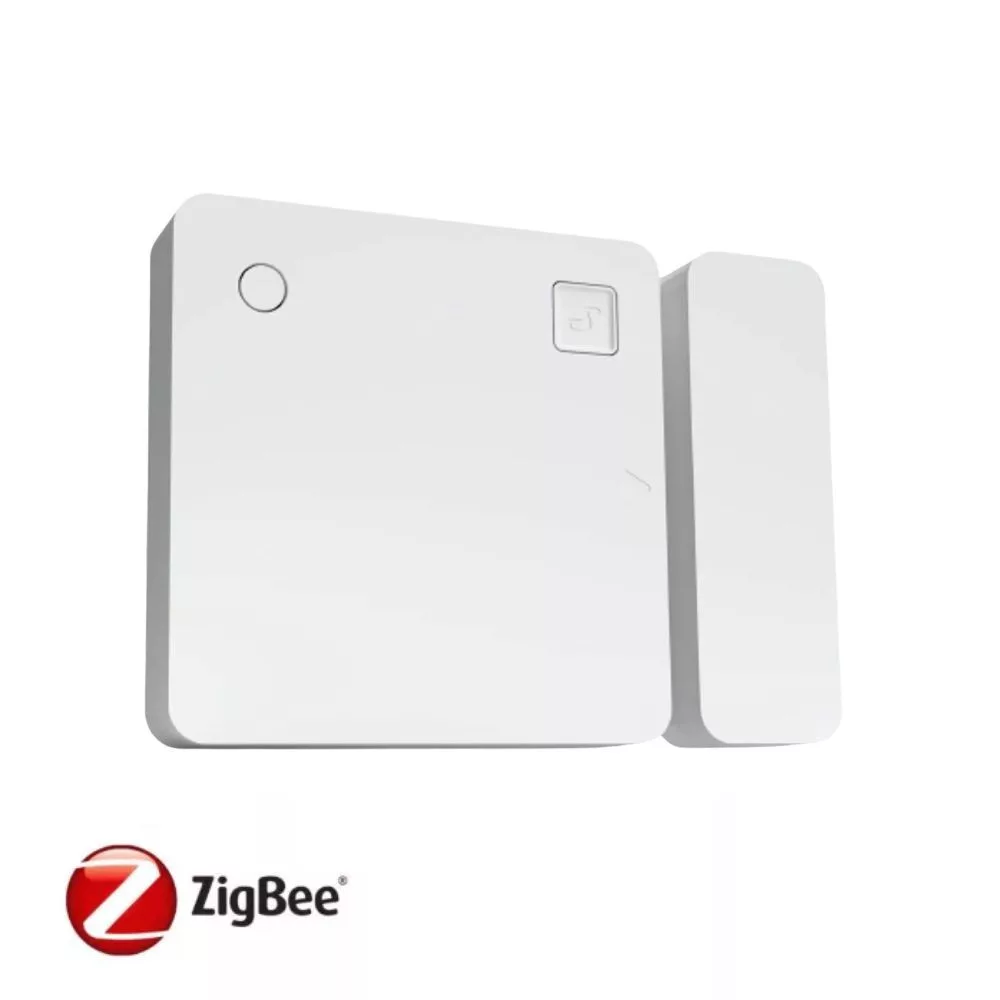

Shelly BLU Door/Window ZB – opening and tilt sensor with light sensor, Bluetooth, Zigbee, white

The Shelly BLU Door/Window (ZB) is a compact opening sensor equipped with both Bluetooth and Zigbee connectivity, designed to monitor the status of doors, windows, and other openable surfaces. It provides real-time notifications when a door or window is opened or closed, enhancing both home security and automation possibilities - such as triggering lights or starting an air conditioning system. The device also includes a built-in light sensor, making it ideal for creating and executing automation scenarios based on ambient light conditions.
The sensor uses low-power Bluetooth Low Energy (BLE) and Zigbee communication (which can even operate simultaneously), ensuring long battery life. It can be easily integrated into Wi-Fi-based smart home systems via Shelly BLU devices or Shelly devices with BLE gateway functionality, while Zigbee enables straightforward integration with systems like Home Assistant.

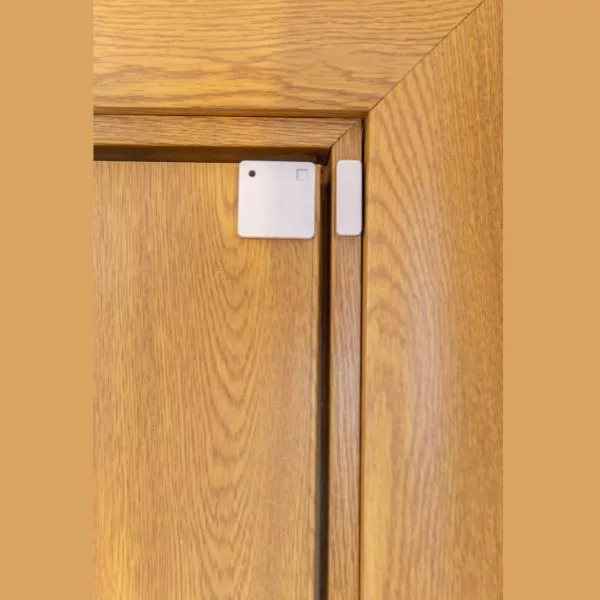

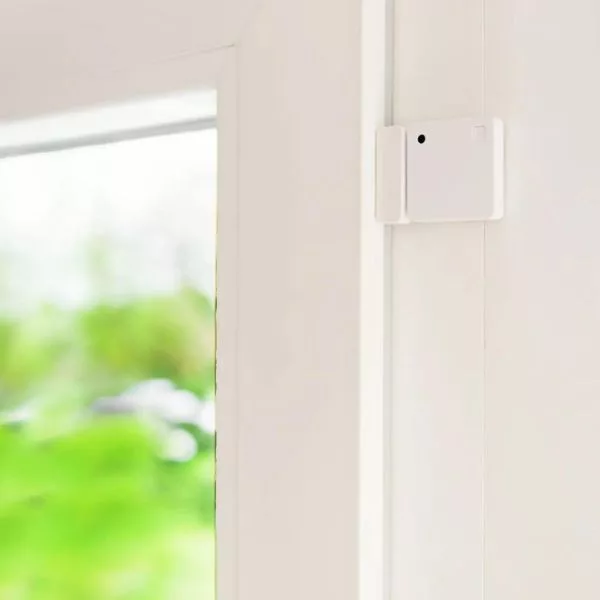

Its compact and discreet design allows it to blend almost invisibly into any door or window. Thanks to its Plug & Play installation, it can be quickly and easily mounted, making it suitable for both residential and small office environments.

The device offers two operating modes, providing different data transmission logic depending on user needs:
In Normal mode, the device transmits the current state, ambient light level, and battery status with every opening or closing event. For tilt-and-turn windows, it sends event data immediately upon opening, followed a few seconds later by tilt angle information. It then periodically checks for angle changes and updates the data if needed, ensuring accurate status tracking.
In Beacon mode, the device sends data not only on events but also at regular intervals (every 30 seconds). It continuously reports open/closed status, light conditions, and battery level to the cloud, enabling constant monitoring. This mode can be activated in the Shelly app.

About the Shelly brand

Shelly is one of the most well-known and innovative smart home brands in Europe, developed by the Bulgarian company Allterco Robotics. The brand is especially strong in Wi-Fi and Bluetooth-based smart devices, many of which operate without a central hub, requiring only a working Wi-Fi network. The product range includes relays, sensors, smart plugs, lighting solutions, and professional DIN-rail devices. Shelly places strong emphasis on local control, allowing devices to operate without internet access, improving reliability and data security. The devices support advanced integrations such as REST API, MQTT, and Webhooks, making them compatible with platforms like Home Assistant, openHAB, and Node-RED. They also integrate with cloud platforms such as Google Home, Amazon Alexa, and Samsung SmartThings. Newer generations include features like BLE gateway and Wi-Fi range extender functionality.

Key product features

Open/close detection: Monitors doors and windows
Bluetooth Low Energy and Zigbee: Low consumption and long battery life

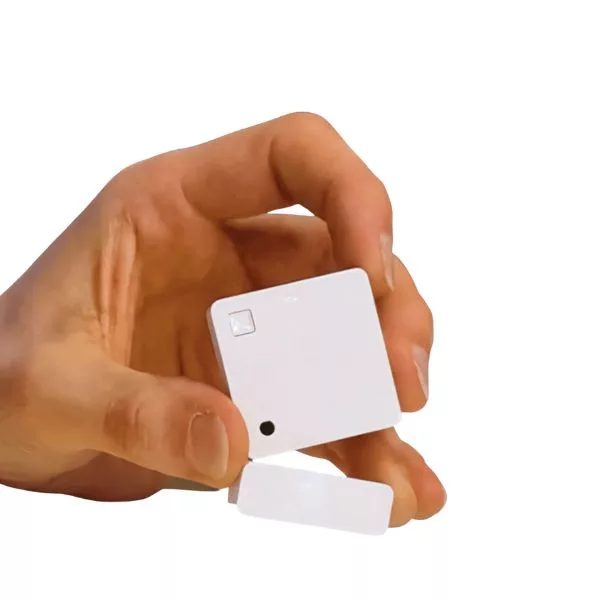

Compact design: Discreet appearance
Easy installation: Adhesive mounting, quick setup
BLE gateway support: Integration via Shelly devices
Zigbee support: Easy Home Assistant integration

Smart home protocols and platform compatibility

Protocols: Bluetooth (LE), Zigbee
Local communication: Via BLE gateway
Native platform: Shelly Smart Control
Integration: Shelly Cloud, Home Assistant

Smart features

Status monitoring: Open/closed state, light level, battery status
Notifications: Instant alerts on opening/closing
Automations: e.g., turn on lights when a door opens, close blinds in strong sunlight
Event log: Records opening/closing events
Energy-efficient operation: Long battery life

Technical specifications

Product name: Shelly BLU Door/Window (ZB)
Communication: Bluetooth Low Energy (LE), Zigbee
Power supply: 1× CR2032 battery (3V)
Battery life: up to 5 years
Size (sensor): 35 × 35 × 7 mm
Size (magnet): 35 × 12 × 7 mm
Weight: 10 g (sensor), 8 g (magnet)
Housing: Plastic
Color: White
Operating temperature: -20°C – +40°C
Humidity: 30–70% RH
Sensors: Reed switch, accelerometer (G-sensor), light sensor
Bluetooth: 5 (LE)
Bluetooth frequency: 2402–2480 MHz
Bluetooth output power: < 8 dBm
Bluetooth range: max. 10 m indoor / 30 m outdoor
Zigbee: 802.15.4
Zigbee frequency: 2405–2480 MHz
Zigbee output power: < 8 dBm
Zigbee range: max. 10 m indoor / 30 m outdoor
CPU: EFR32MG27
Flash memory: 768 kB
Encryption: Yes
Compatibility: Shelly Plus / Gen3 / Gen4, Shelly Pro series
