Shelly 1 Gen4 multiprotocol (Wi-Fi + Bluetooth + Zigbee 3.0) retrofit relay module, Matter compatible
Brand:
Shelly

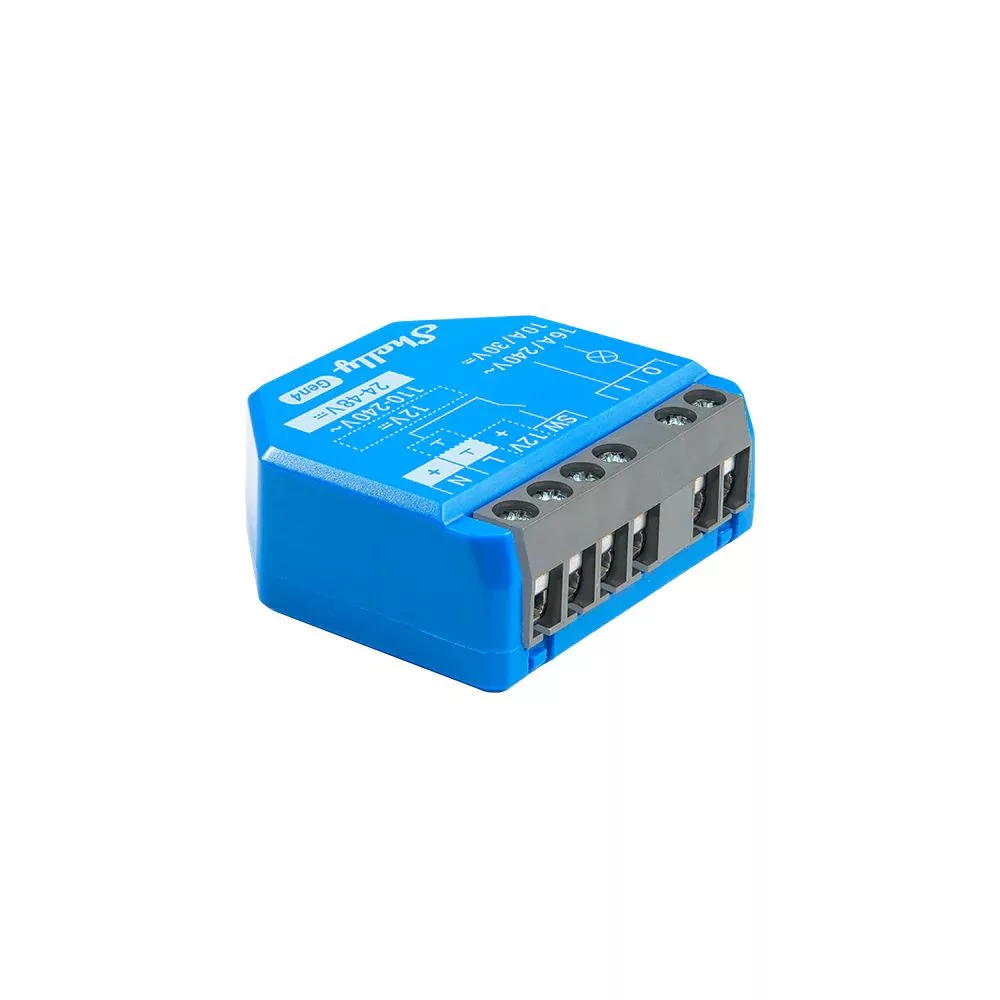

Shelly 1 Gen4 is the first Matter-compatible, multi-protocol retrofit MINI relay module from Shelly. It supports Wi-Fi + Bluetooth protocols (with Shelly's cloud or as locally working smart home solution), as well as Zigbee 3.0, so it can be paired with a range of Zigbee 3.0-compatible hubs. The Shelly 1 Gen4 features both dry contact and wet contact switching, so you may use it to control a garage door/garden gate motor or install behind a wall switch or socket.
FOR SAME DAY DISPATCH
Don’t miss today’s dispatch – order now!
Related products
The Shelly 1 GEN4 is the newest, fourth-generation version of Shelly’s 1-gang smart relay, following in the footsteps of the GEN3 model. Just like its predecessor, it supports switching up to 16A and also enables dry contact switching, since the controlled circuit remains electrically isolated from the power supply required to operate the relay. This model does not include energy monitoring functionality.
As with all Shelly devices, the Shelly 1 GEN4 connects directly to your Wi-Fi router, without the need for any hub, local controller, or bridge. It is also natively compatible with Matter. Additionally, all GEN4 devices include a new operating mode that must be selected before pairing: Zigbee mode, which allows the device to connect to Zigbee gateways or coordinators. Whichever mode you choose, it’s perfect for automating lights or other electrical appliances and fits seamlessly into larger smart home ecosystems—ideal for property renovations or full smart home integrations.

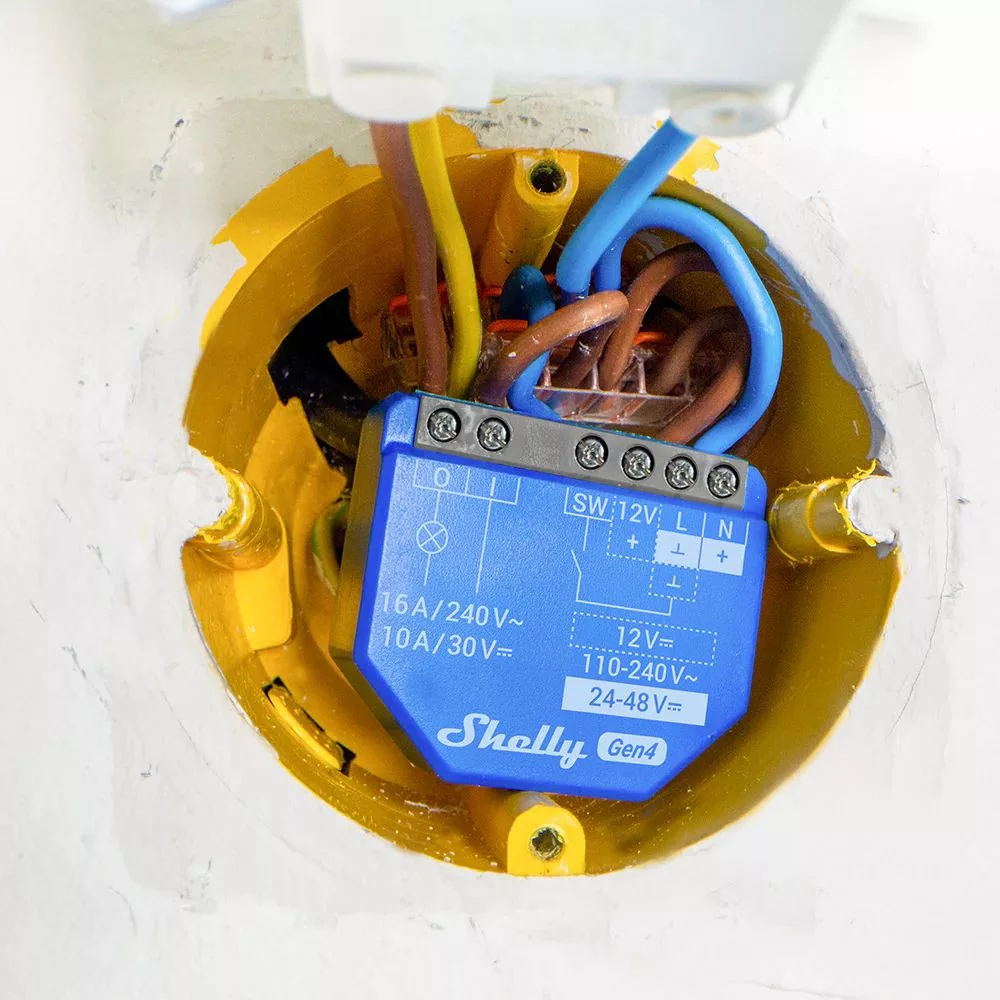

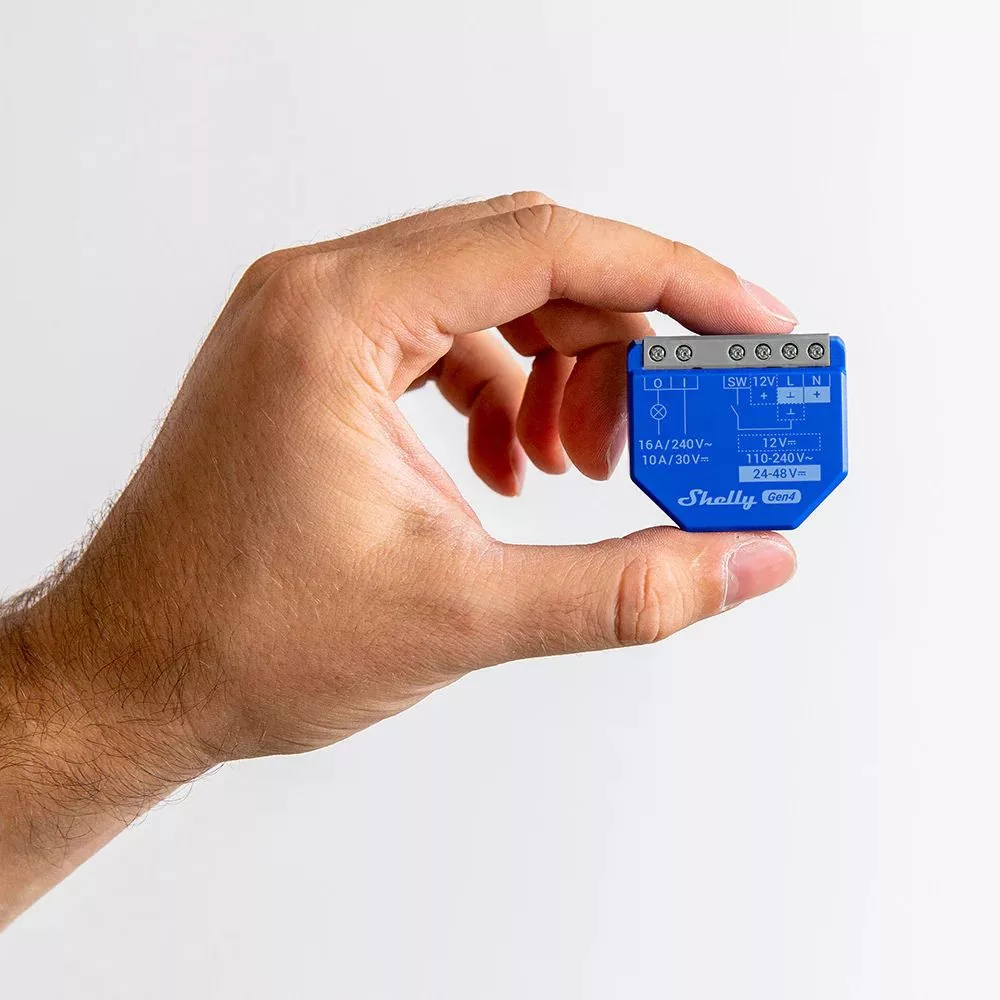

This is one of the most compact Wi-Fi/Zigbee devices available for smart control of electrical circuits. Its small size makes it easy to install behind standard wall switches or inside junction boxes—even as a retrofit.

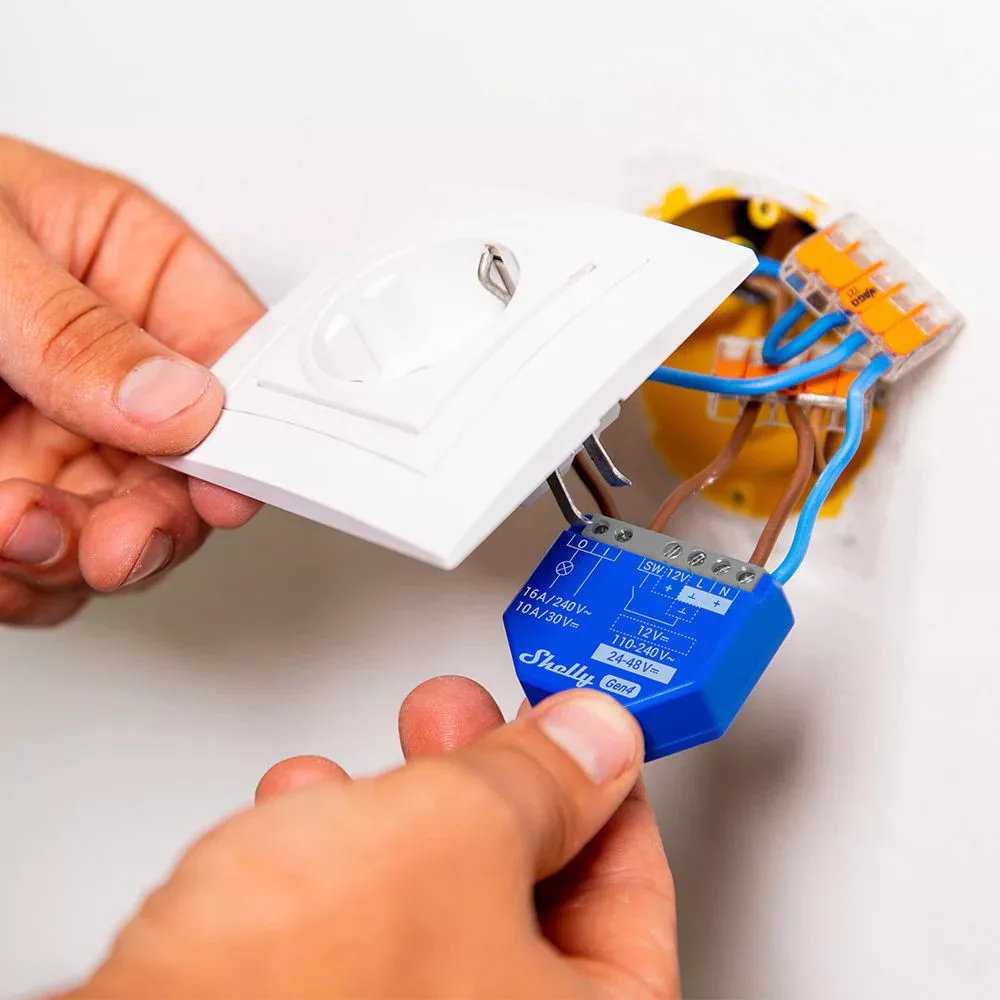

When installed behind existing wall switches, the Shelly 1 GEN4 enables remote control of lighting or other devices, while the physical switches remain fully functional. This makes it a great option for adding smart features to existing systems. It works perfectly with single-button wall switches and, thanks to its 16A current limit, is also suitable for controlling power outlets.
The relay features a switch input, so you can continue using your wall switches while also controlling the circuit via Wi-Fi. You can set up automatic on/off schedules, and even disable the physical switch entirely if needed—useful in child-safe scenarios.
The Shelly 1 GEN4 supports both toggle and momentary (push-button) switches, and it’s suitable for two-way or cross-switching circuits. The built-in auto-off function allows it to work in impulse switching mode as well.
Dry Contact Switching
Like its predecessor, the Shelly 1 GEN4 supports dry contact switching. It can handle loads up to 16A (240V AC) or 10A (30V DC), making it suitable for potential-free switching in applications like garage doors, gate openers, or irrigation systems. It can also switch 12V or 24V DC/AC circuits.
Important: The Shelly 1 GEN4 requires a neutral and live wire for operation. The switched live and the incoming live must have the same phase angle. This device is not suitable for multi-phase wiring.
Main Features
- 1-gang (single-circuit) relay
- Supports loads up to 16A (3500W)
- Works with Wi-Fi, Bluetooth, and Matter or Zigbee mode
- Dry contact switching supported
- Built-in overheat protection
- Includes Bluetooth gateway and Wi-Fi repeater functionality
Automation Options
- Remote control via Shelly Cloud app
- Scheduled on/off with up to 20 programmable timers
- Sunrise/sunset-based automation with ±23 hours offset
- HTTP/HTTPS webhook support for external system integration
- Custom script execution (mjS) based on inputs, outputs, or network events
Operating Modes
- Cloud mode – full functionality with internet connection
- LAN mode – works on local network without internet
- Wi-Fi Access Point mode – device creates its own network
- Zigbee mode – integration with Zigbee gateways
Integration and Compatibility
- Voice control: Google Home, Amazon Alexa, Yandex Alice
- SmartThings support via Shelly Cloud
- Apple HomeKit compatible (thanks to Matter standard compatibility)
- Compatible platforms: Homey, Home Assistant, openHAB, Domoticz, ioBroker, HomeSeer, nymea, Hubitat, Hoobs, SYMCAN, and more
- Supports MQTT and REST API
- Shelly Cloud and MQTT can be used simultaneously
Technical Specifications
- Power supply: 110–240V AC / 24–48V DC / 12V DC
- Max switching current: 16A (3500W)
- Dry contact switching: supported
- Communication: Wi-Fi (802.11 b/g/n), Bluetooth, Zigbee
- Processor: ESP-Shelly-C38F
- Memory: 8MB flash
- Operating temperature: -20 °C to +40 °C
- Operating humidity: 30% – 70% relative humidity
- Safety: integrated overheat protection
- Switch input: yes
- Repeater and Bluetooth gateway: yes
This content is only available to logged in users.
Weight:
63 g/pcs
