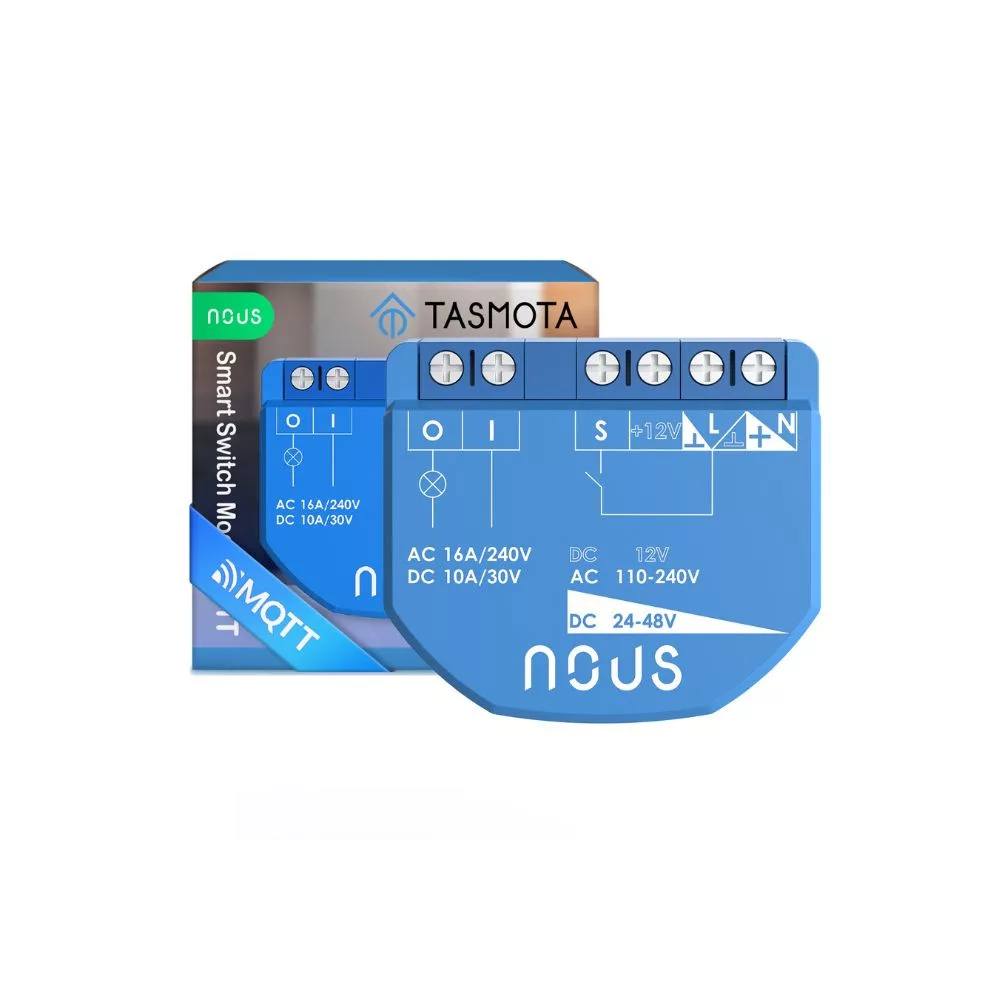

Nous B1T Smart Wi-Fi 1-gang mini relay module (Tasmota Firmware, Matter Compatible)

One of the new products from the European Nous brand is the Nous B1T 1-gang Wi-Fi smart relay without power consumption measurement functionality, which can be installed behind outlets or light switches to control them or any other device up to 16A. It is capable of dry contact switching, making it suitable for controlling garage doors and gate opener motors. Matter compatible product.

The Nous B1T relay module comes pre-installed with Tasmota firmware, making it ideal for users and integrators of open-source smart home systems, as well as those looking for solutions compatible with Matter hubs.

So what makes it special is that Nous ships the smart module with Tasmota firmware, so it is also recommended for users and integrators of open source smart home systems.

Note: Tasmota firmware is not a commercial product and only community support is available.

What is Tasmota firmware?

TASMOTA is an open-source firmware increasingly used - even pre-installed - as the base software for smart home devices. It enables cloud-independent local control, supporting manufacturer-independent, local, secure data storage. Since Tasmota is open-source, the community continuously develops and reviews it, enhancing security and reliability.

It supports various communication protocols such as MQTT, HTTP, and WebSocket, providing broad compatibility with different devices. TASMOTA devices can be easily integrated with various smart home hubs like Home Assistant, OpenHAB, Domoticz, and Node-RED.

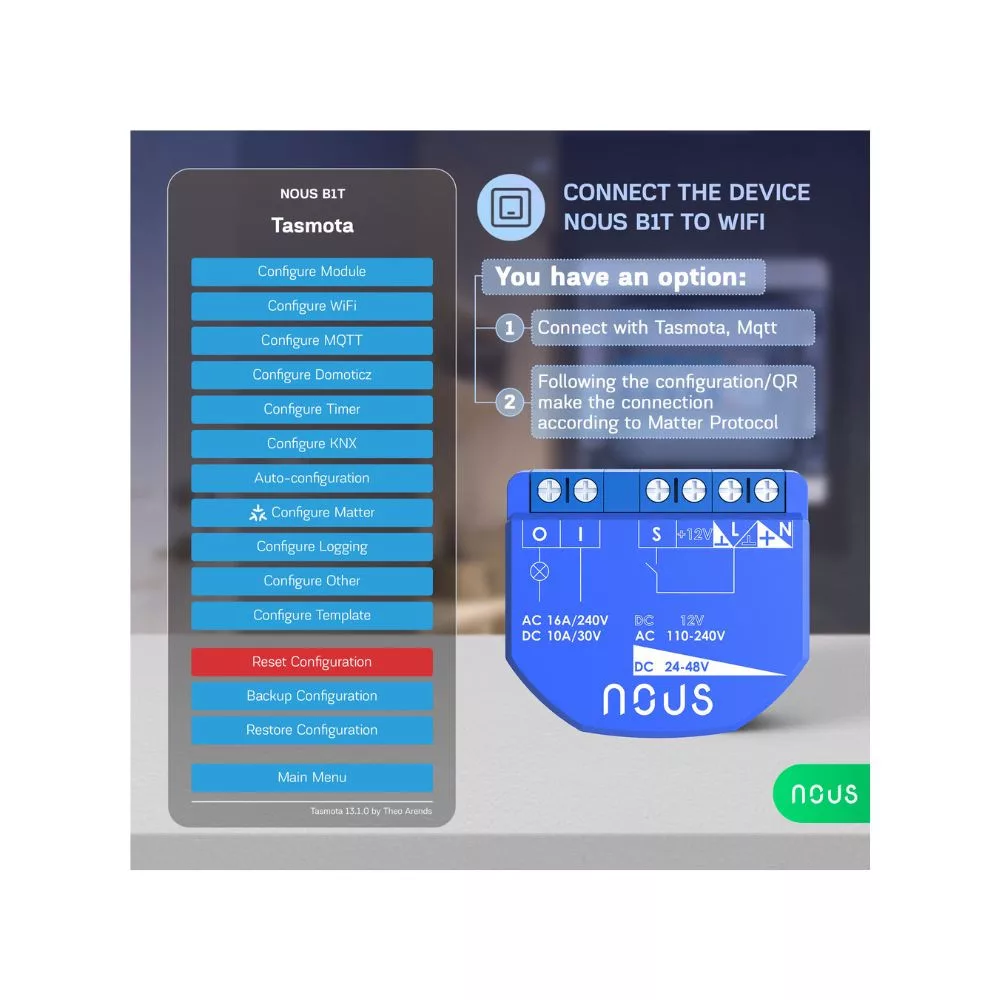

Tasmota firmware offers a local web administration interface on the devices for configuring different settings, but it does not provide a "factory" app. However, several third-party applications help in controlling and managing the devices. Home Assistant, OpenHAB, and other smart home platforms also have mobile apps to integrate and control TASMOTA devices.

The Nous B1T WiFi smart switch module can be used as a single-channel relay switch. The device features a built-in ESP32 MINI-1 module with 4MB flash memory and comes pre-installed with Tasmota firmware, allowing easy integration with various smart home systems, such as Home Assistant.

The B1T module supports 100-240V AC or 24-48V DC or 12V DC power supply and connects to the Wi-Fi network using built-in 2.4 GHz Wi-Fi.

Since the B1T operates with Tasmota firmware, it is not compatible with Nous's own application but rather with open-source solutions like Home Assistant or other systems supporting the MQTT protocol.

Thanks to its small size, it fits into standard-depth wall sockets, behind traditional light switches. It has an input for the light switch, allowing the smart-enhanced wall switches to remain usable as before.

It can operate in local mode without an internet connection or factory cloud, and it is schedulable.

Matter compatible solution, compatible with Apple HomeKit and SmartThings when connected to a Matter hub.

When connected to a Matter hub or Home Assistant, it supports voice control with Amazon Alexa and Google Assistant.

Main Features:

• Wi-Fi connection: Connects directly to the Wi-Fi router via 2.4 GHz Wi-Fi.
• ESP32 Chip: The powerful ESP32 processor ensures stable operation and fast data processing.
• Tasmota firmware: Open-source software that allows flexible customization and cloud-free control.
• Single-channel control: Suitable for controlling one circuit up to 16A.
• Dry contact switching: Capable of dry contact switching, making it suitable for controlling garage doors, motorized gate openers, or boilers.
• Compatibility: Compatible with various open-source smart home systems, such as Home Assistant, OpenHAB, Domoticz, and others.
• Matter standard compatible: Pairable with the most common Matter hubs, making it compatible with various smart home platforms such as SmartThings, Apple HomeKit, eWeLink, etc.
• Wall socket installation: The module can be installed behind switches, discreetly making the chosen traditional switch family smart.
• Voice control: Compatible with Google Assistant and Amazon Alexa systems, allowing voice control (with Matter hub or Home Assistant).
• Secure and reliable: The open-source Tasmota firmware offers local operation and a secure solution with local (cloud-free) data storage.

Examples of integration possibilities:

• Matter standard - Compatible with the new smart home standard, Matter, and pairable with these hubs:
  • Apple HomePod
  • Apple TV
  • Amazon Alexa Echo
  • Amazon Alexa Echo Dot 2nd gen
  • Google Home
  • Nest Mini
• Compatible with Matter hub:
  • SmartThings platform
  • Apple HomeKit system
  • Amazon Alexa voice control
  • Google Home voice control
• MQTT - A messaging protocol that allows easy integration of Tasmota firmware-based devices with various smart home systems, such as
  • Home Assistant - One of the most popular open-source smart home platforms, enabling the integration and automation of various smart devices.
  • OpenHAB - Another open-source home automation system supporting extensive device integration and automation possibilities.
  • Domoticz - An easy-to-use home automation system allowing the control and monitoring of various smart devices.
  • Node-RED - A visual programming tool that simplifies the integration and automation of smart home devices through flowcharts.
  • KNX system
  • ioBroker system
  • homematic IP system
