GLEDOPTO GL-C-310P ZigBee 3.0 + 2.4GHz RF relay switch module (AC, DC, dry contact)
Brand:
Gledopto
The Gledopto GL-C-310P is a control module that communicates via the Zigbee 3.0 protocol, designed to be installed behind switches in flush-mounted boxes. The module offers a wide range of applications thanks to its dry contact output and versatile power supply options (230V AC or 12-48V DC). In addition to Zigbee 3.0 smart control, it can be operated from wired rocker and push button switches, and from wireless Gledopto RF2.4GHz remotes and wall panels.
FOR SAME DAY DISPATCH
Don’t miss today’s dispatch – order now!
Related products
The Gledopto GL-C-310P is a Zigbee 3.0 protocol compatible flush-mounted control module with an on/off dry contact relay output. It is a versatile and flexible solution for a wide range of circuit control tasks. Integration into ZigBee-compatible smart home systems is quick and straightforward. Thanks to ZigBee 3.0 technology, it supports smart control while also being operable manually through conventional switches or push buttons.
Like other products of the Gledopto Pro series, GL-C-P310P is equipped with a 2.4GHz RF receiver, so this relay can be remote controlled from Gledopto 2.4GHz remote controllers and wireless wall panels.
The Gledopto GL-C-310P module provides reliable and energy-efficient lighting control and can be powered from either 12V DC, 24V-48V DC or 230V AC, making it suitable for a range of other applications such as garage door control (requiring voltage-free / dry contact) switching.
The device is an ideal choice for users who want to modernise their lighting while retaining manual control options. Thanks to its compact design, it can be easily installed in standard recessed fitting boxes. The GL-C-310P is ideal for smart lighting control in residential, office or commercial environments. It works with conventional lamps, LEDs and other lighting systems, offering smart control and manual control for maximum flexibility.
Compatibility
The Gledopto GL-C-310P integrates effortlessly with the following Zigbee platforms:
- Philips Hue
- Amazon Alexa
- Google Home
- Samsung SmartThings
- Tuya / SmartLife
- Homey
Additionally, it supports direct local remote control with Gledopto 2.4GHz remote controllers and wall panels, a local remote control even without a Zigbee gateway.
Key Features
- Zigbee 3.0 Control: Seamless integration with popular smart home systems (Philips Hue, Amazon Alexa, Google Home, Samsung SmartThings, Tuya/SmartLife, Homey, etc.).
- Flexible Power Options: Compatible with 12V DC, 24V-48VDC or 230VAC voltages.
- Manual Control: Wired swicth input supported for conventional rocker switches or push button switches.
- Remote Control: Supports direct remote control from Gledopto RF2.4GHz remote controls , even without a Zigbee gateway.
- Compact Design: Easily fits into standard flush-mounted boxes.
- Control: On/off relay module with wet or dry contact output (I / O terminals).
- High Load Capacity: Up to 16A at AC voltage and 10A at DC voltage.
- Smart Compatibility: Works seamlessly with Zigbee hubs
- Voice control: voice control assistants such as Amazon Alexa and Google Assistant are supported by compatible Zigbee gateways.
Technical Specifications

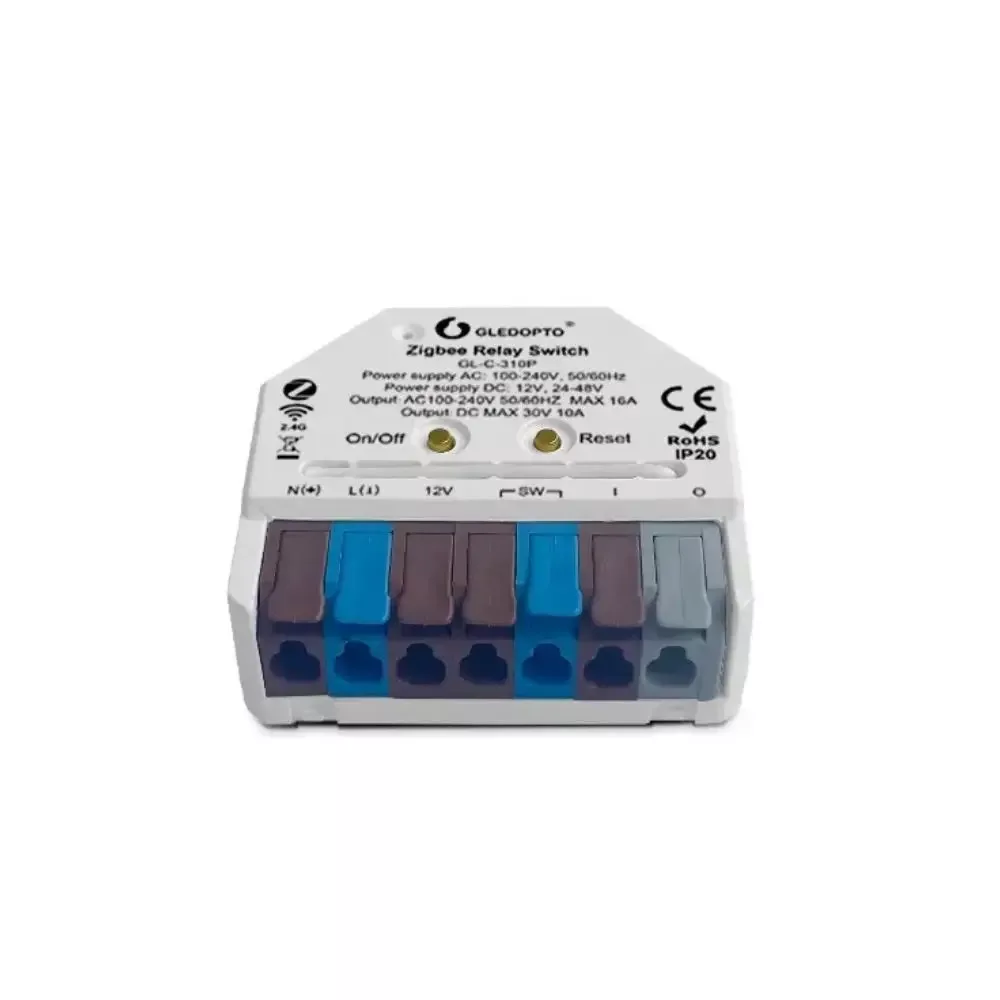

- Model: GL-C-310P ZigBee Flush-Mount Control Module
- Power Supply Voltage: 12V DC / 24V-48V DC / 230V AC
- Maximum Output Power: 16A (max. 240V AC), 10A (max. 30V DC)
- Smart Network Protocol: Zigbee 3.0
- Local Direct Remote Control: RF 2.4GHz
- Installation: Flush-mounted (for standard electrical boxes)
- Wired Control: Rocker switch or push button switch may be connected to switch input port

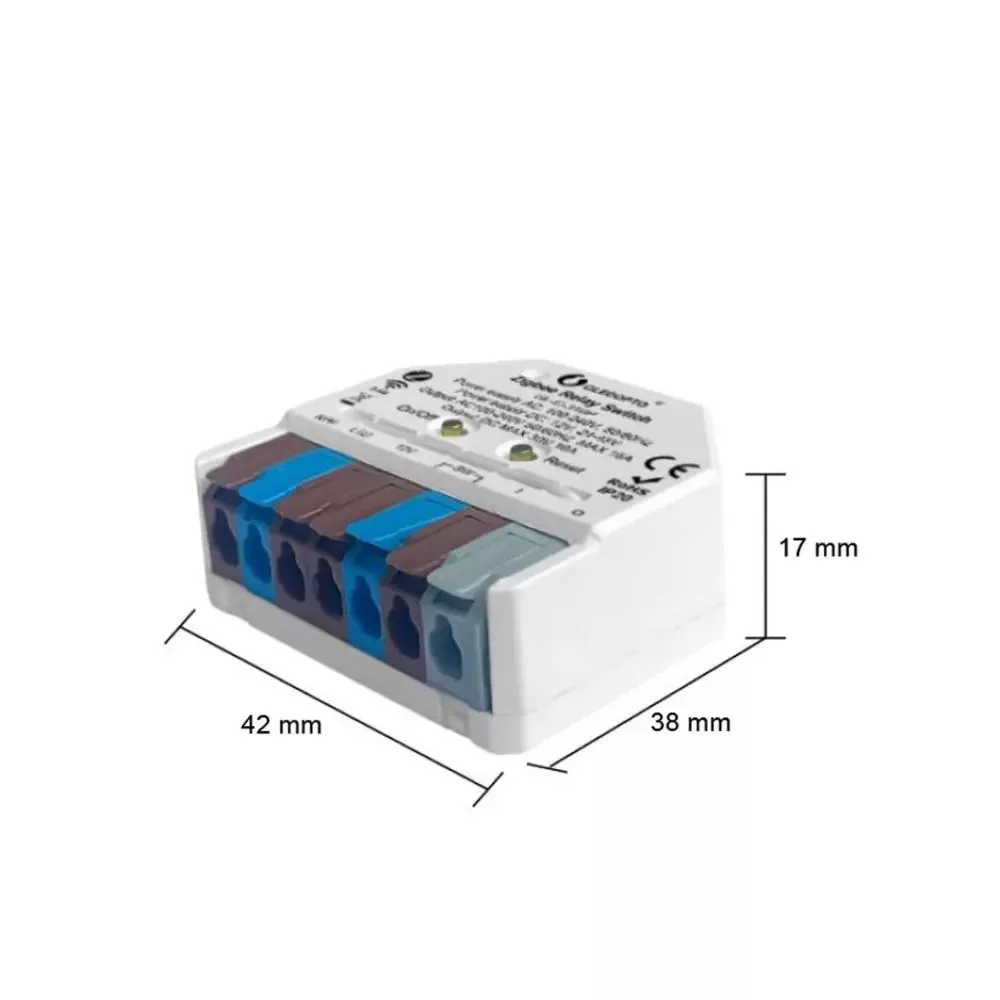

- Dimensions: 42 x 38 x 17 mm
- Protection Class: IP20
The Gledopto GL-C-310P is the perfect choice for users looking for a smart control module that enables dry contact or variable voltage control while maintaining compatibility with traditional switches. Whether you are expanding an existing ZigBee-based smart home system or seeking a flexible lighting control solution, this device offers the ideal combination of modern technology and traditional control methods.
Take control of your lighting with the Gledopto GL-C-310P and enjoy the benefits of smart home integration!
This content is only available to logged in users.
Weight:
32 g/pcs
