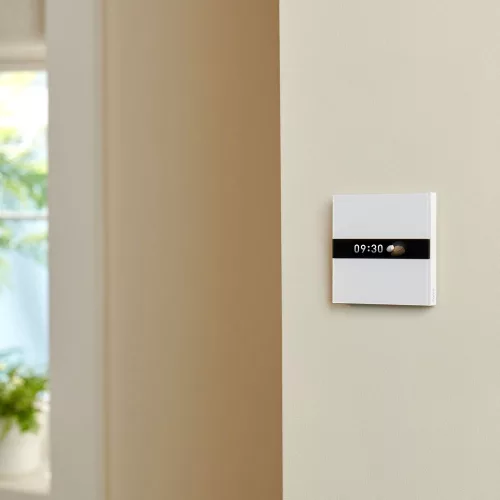

Aqara V1 Display Switch - a 2-channel smart Zigbee wall switch with LCD screen

The Display Switch V1 EU represents the next generation of smart wall switches, combining innovative features with a sleek design to elevate smart home control. The combination of the LCD screen and four buttons allows users to assign texts and icons to each button, ensuring clear and intuitive identification of their functions. The energy monitoring feature provides daily, weekly, and monthly reports, enabling a more energy-conscious lifestyle.

With support for Zigbee and Bluetooth protocols, as well as Matter over Bridge, the switch is compatible with a wide range of third-party systems. Its built-in proximity sensor automatically activates the display when someone approaches, enhancing user convenience.

Key Features

• LCD Screen
  The 2.08-inch LCD screen allows users to customize button functions through the Aqara Home app. Texts and icons can be assigned to buttons, with adjustable text size, color, and style to fit individual preferences.

• Flexible Control
  The two buttons on the left act as wired switches, while the two buttons on the right function as wireless switches. Wired switches can also be reconfigured to operate in wireless mode. Devices and automations can be easily set up via the Aqara Home app.

• Zigbee and Matter over Bridge Support
  With Matter over Bridge, the switch integrates seamlessly into third-party ecosystems such as Apple Home, Google Home, Amazon Alexa, Samsung SmartThings, Home Assistant, and Homey. Zigbee compatibility also enables the switch to function as a repeater, ensuring stable communication within the network.

• Proximity Sensor Functionality
  The built-in proximity sensor activates the display automatically when someone approaches. The detection range can be adjusted (0.2–2 meters), allowing the switch to be tailored to individual needs.

• Energy Monitoring
  The switch tracks the energy consumption of connected devices in real-time, providing daily, weekly, and monthly reports. These insights help users reduce energy consumption and promote sustainability.

• Premium Design and Fingerprint-Resistant Surface
  The AG glass panel offers a refined appearance and a pleasant tactile experience. The fingerprint-resistant coating protects the switch from smudges and stains, keeping the surface clean and elegant.

Product Specifications

Product Name: Display Switch V1 EU

Model: WS-K02D

Dimensions: 86 × 86 × 42.2 mm

Operating Temperature: -10°C – 40°C

Operating Humidity: 0 – 95% relative humidity (no condensation)

Wireless Protocols: Zigbee, Bluetooth

Electrical Parameters: 200–240 VAC, 50/60 Hz, max. 8 A (resistive load)

Color: Moon White

What’s in the Box

• Display Switch V1 EU × 1
• User Manual × 1
• Compliance Statement × 1
• Screw Kit × 1
