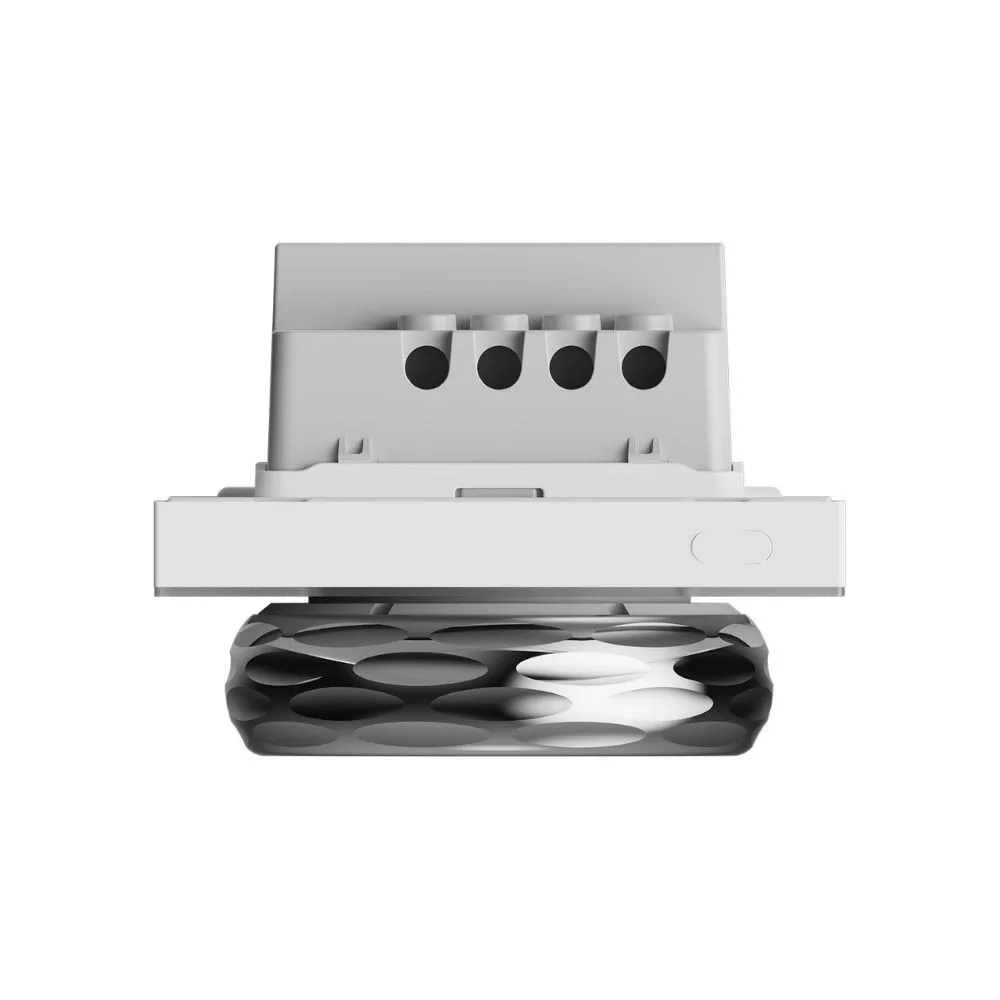

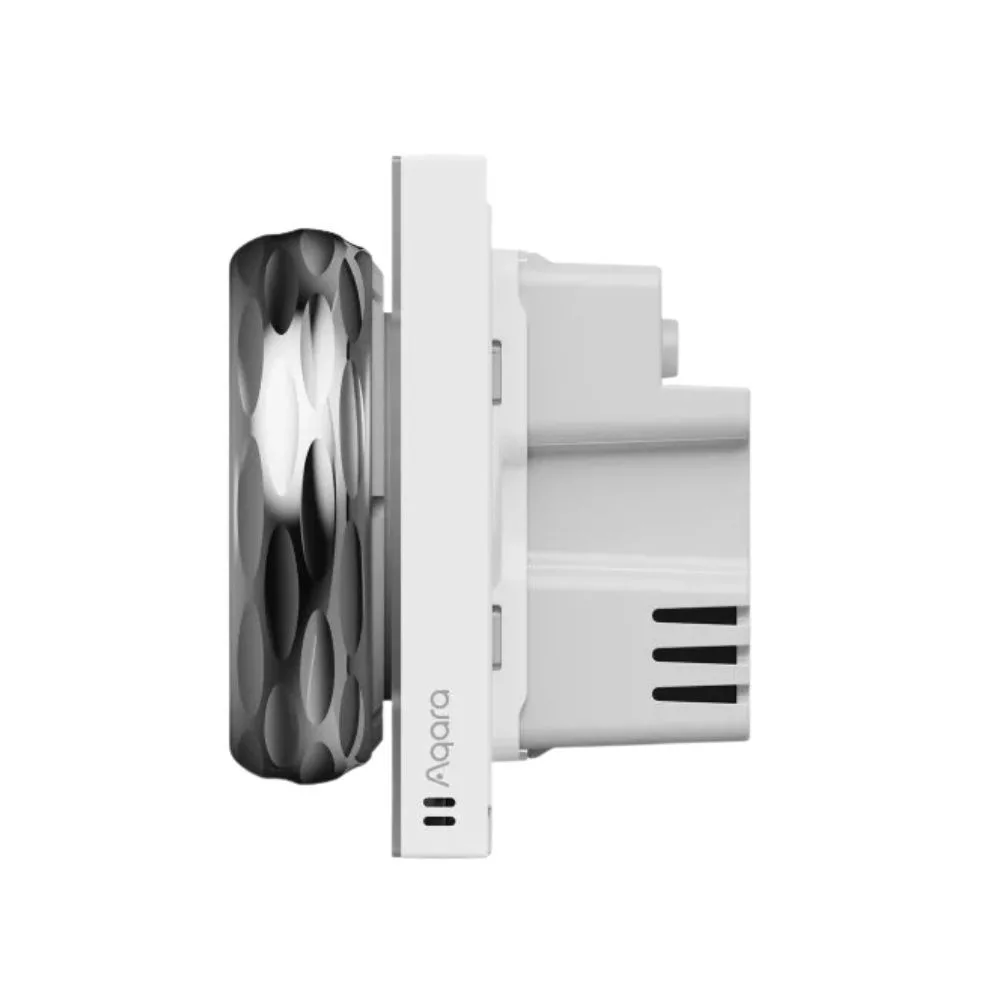

Aqara Touchscreen Dial V1 EU smart wall switch with touch screen and rotary control

The Touchscreen Dial V1 redefines the possibilities of smart devices by introducing intuitive controls to brighten everyday life. The device features a 1.32-inch round touchscreen paired with a rotary dial that provides haptic feedback for smoother and more precise use. Its built-in temperature and humidity sensors, as well as a proximity sensor, make it ideal for controlling Aqara thermostats or other smart home devices, as well as for creating custom automations.

Supporting Wi-Fi, Zigbee, and Bluetooth protocols, the Touchscreen Dial V1 seamlessly connects to third-party smart home ecosystems such as HomeKit, Google Home, Alexa, and the Matter platform.

Key Features

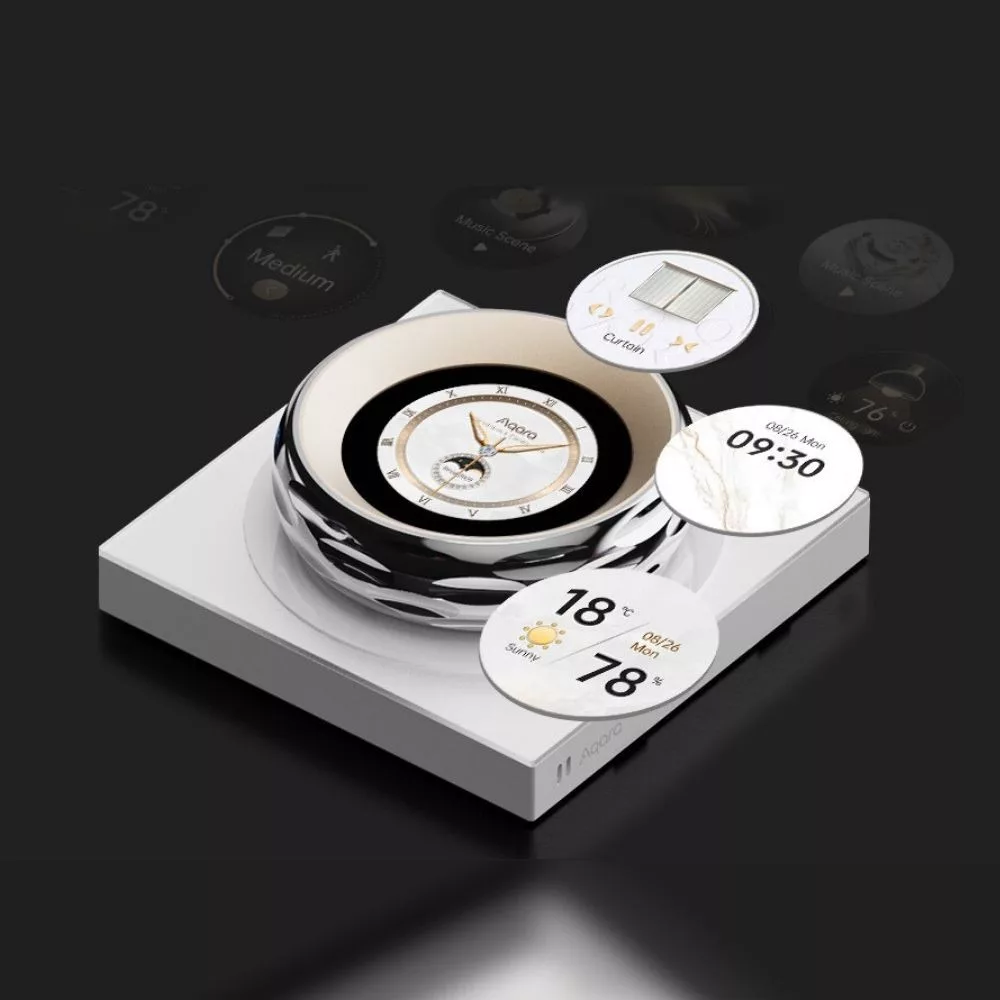

• Customizable Display Themes
  Choose a screen theme that best fits your environment to give the smart device a personalized look.

• Centralized Smart Device Control
  The device includes two built-in and six wireless switches by default, enabling centralized control of devices and the creation of custom automation scenes.

• Haptic Feedback Rotary Dial
  The rotary dial offers smooth, precise, and detailed adjustments with haptic feedback, making navigation within menus intuitive and engaging.

• Temperature and Humidity Sensing
  The integrated sensors provide real-time data, which can sync with the Aqara system to enable advanced automations.

• Automatic Activation with Proximity Sensing
  Using a millimeter-wave radar and optical sensor, the display automatically activates when you approach, providing a seamless and convenient user experience.

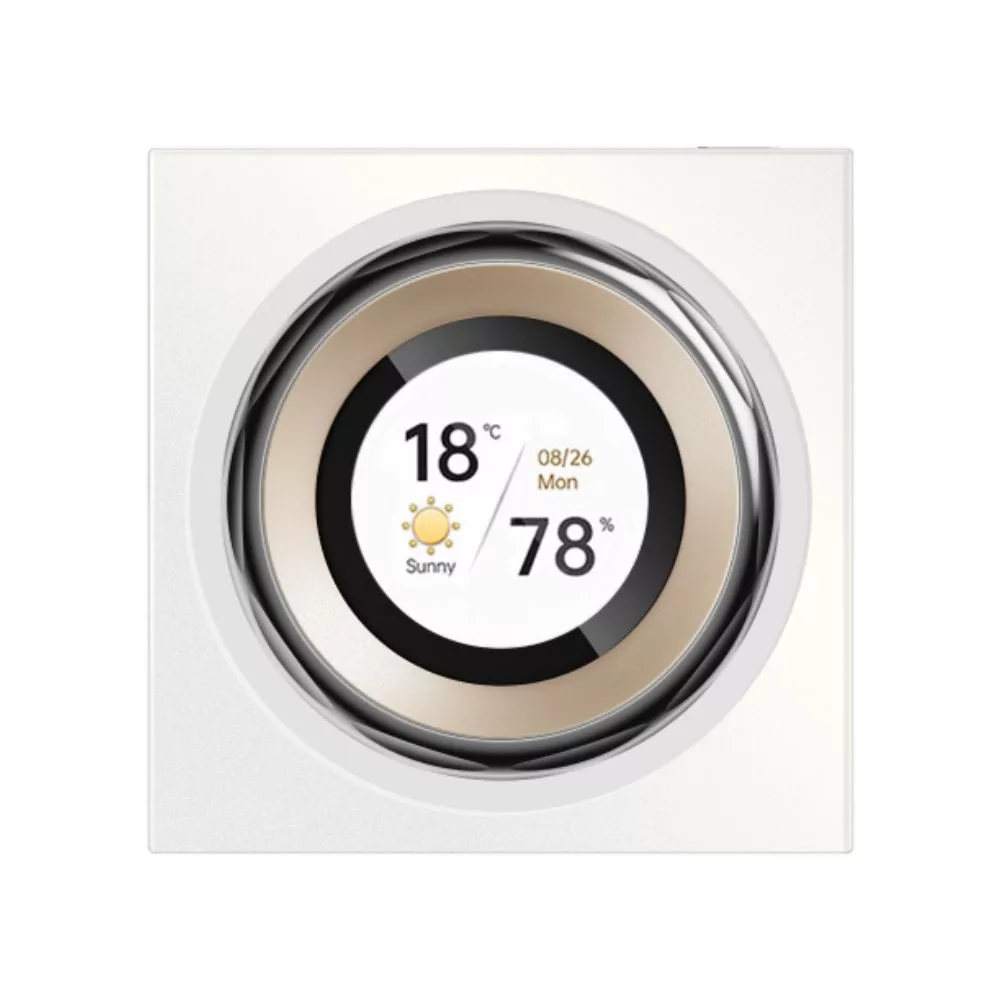

• Customizable Screen
  The LCD touchscreen allows for personalized screensavers, such as weather information, date, or indoor conditions, in a style that suits your preferences.

Product Specifications

Dimensions:
86 × 86 × 62.1 mm (3.39 × 3.39 × 2.45 inches)

Material:
AG glass, metal rotary dial

Color:
Moon White

Control Options:
2-gang light switch

Relay Specification:
HF182

Screen:

• Type: LCD, multi-point touchscreen
• Resolution: 360 × 360
• Size: 1.32 inches

Communication Protocols:

• Wi-Fi: IEEE 802.11 a/b/g/n/ac (2.4GHz and 5GHz)
• Zigbee: IEEE 802.15.4
• Bluetooth

Sensors:

• Temperature and humidity sensor
• Millimeter-wave radar
• Optical proximity sensor

Electrical Specifications:
200-240V AC, 50/60 Hz, max. 8 A (resistive load)

Integration and Compatibility

The Touchscreen Dial V1 is compatible with the following platforms:

• Apple HomeKit
• Google Home
• Amazon Alexa
• Matter standard

It communicates effortlessly with third-party devices via Wi-Fi or Zigbee, ensuring smooth integration into your smart home system.

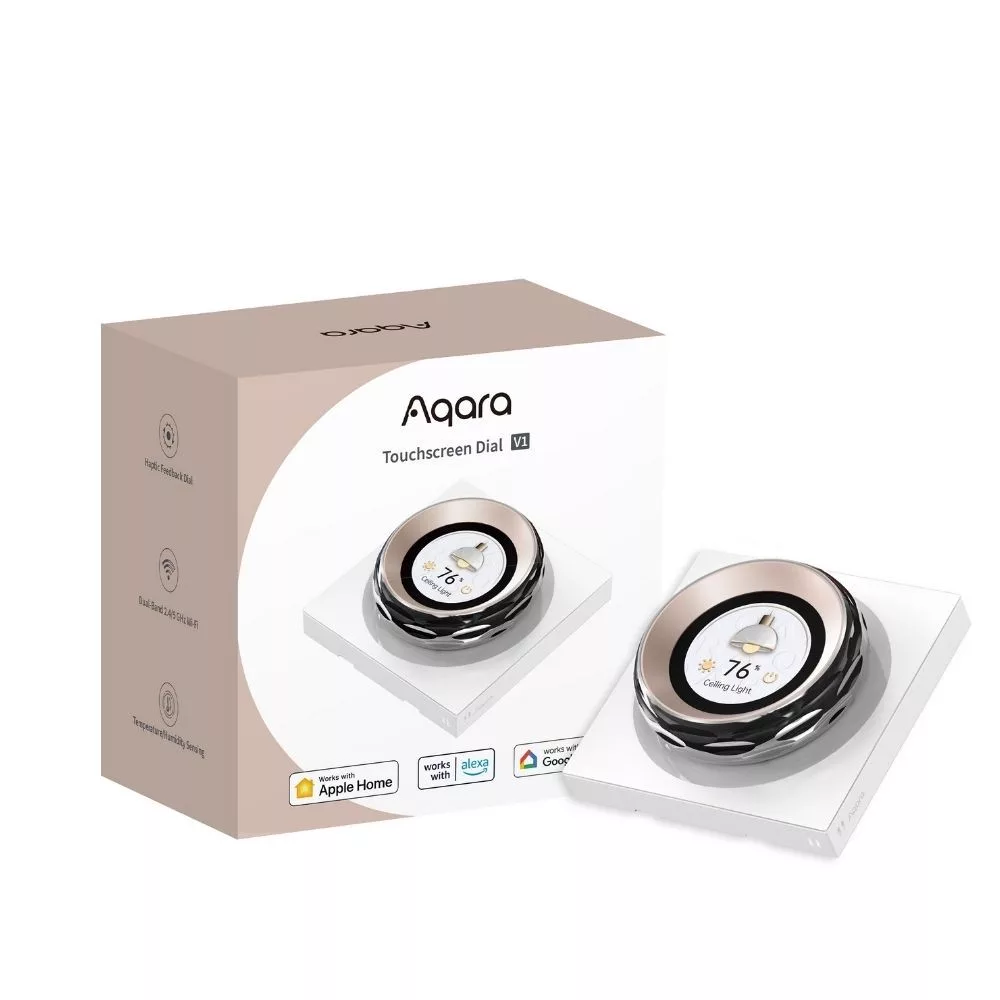

Package Contents

• Touchscreen Dial V1 × 1
• User Manual × 1
• Declaration of Conformity × 1
• Screw Kit × 2
