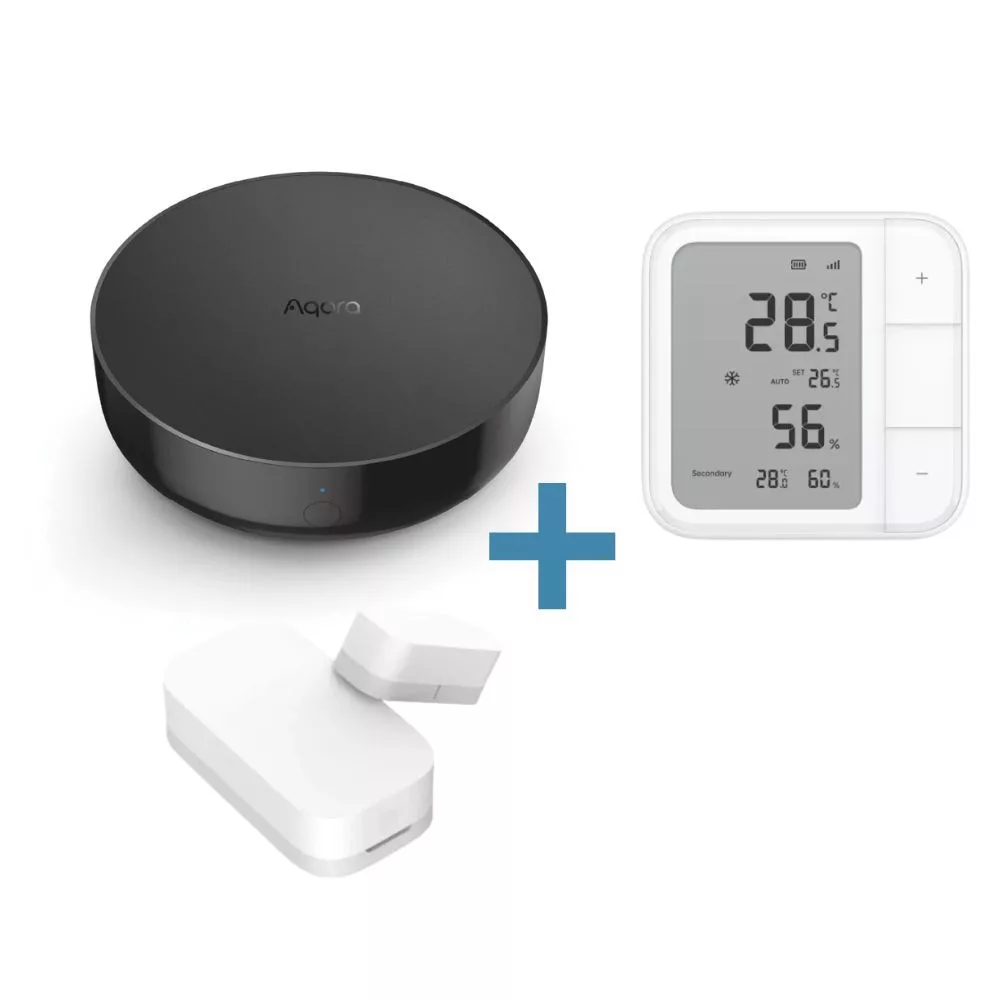

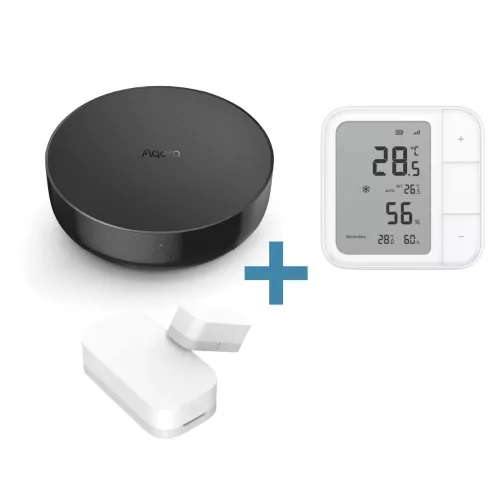

Aqara smart Air Conditioner controller set (soft bundle: Aqara M200 hub + W100 wireless climate sensor + T1 door/window sensor )

We offer a promotional bundle for retrofitting traditional air conditioners with smart control: an Aqara Hub M200 smart home hub compatible with the Matter standard and Apple Home, capable of controlling conventional infrared air conditioners via IR control.

The bundle also includes a wireless Aqara W100 wall-mounted climate sensor to measure the room temperature and use it + / – buttons for local remote control.  The package also contains an Aqara T1 door/window sensor, which can be installed on a window to automate switching off the air conditioner if the window is open.

The bundle includes:

1 × Aqara M200 Hub, Zigbee, Thread, Matter, IR (HM-G03D)
1 × Aqara T1 Door and Window Sensor, Zigbee 3.0 (DW-S03D)
1 × Aqara W100 Smart Wireless Climate Sensor, Zigbee + Thread (TH-S04D)

If required, additional Aqara T1 window opening sensors can also be ordered separately for rooms with multiple windows.

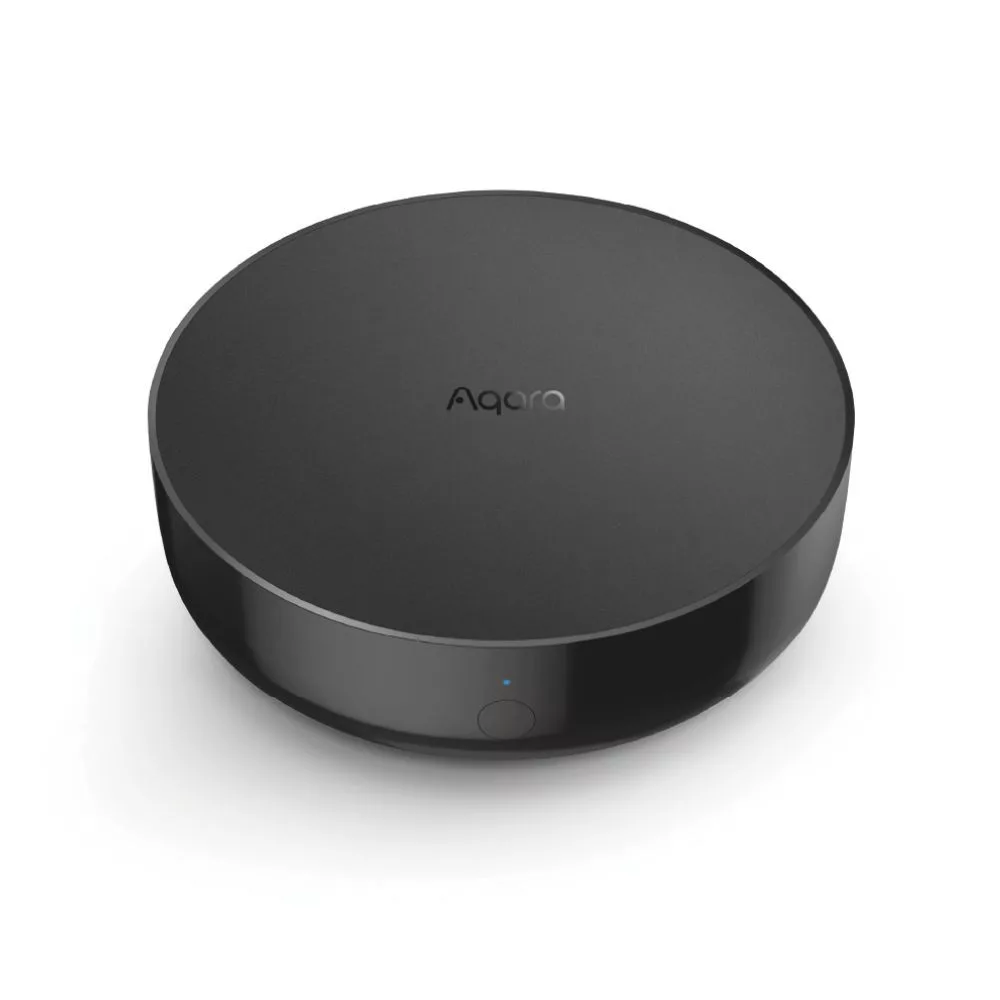

Aqara M200 Hub

The Aqara Hub M200 is a multi-protocol smart home hub that combines the roles of Matter Controller, Thread Border Router and Matter Bridge, connecting Aqara Zigbee devices and the latest Matter/Thread devices into a single system. It features a built-in 360° infrared (IR) controller, allowing remote-controlled IR devices — such as air conditioners, TVs and amplifiers — to be included in automations, with status feedback and IR learning support.

The Hub M200 offers dual-band Wi-Fi, Ethernet connectivity with PoE support and USB-C power supply, along with local, cloud-independent automations and Matter integration for ecosystems such as Apple Home, Google Home, Amazon Alexa and SmartThings. Installation is flexible: it can be placed on a flat surface or mounted on a wall or ceiling using a 1/4” threaded mount.

It is an ideal choice if you want to bring together Aqara Zigbee devices, Matter/Thread accessories and older IR remote-controlled appliances under one modern hub, with reliable and stable control.

About the Aqara brand

Aqara is a globally recognised smart home brand offering a broad portfolio of sensors, switches, blind controllers, cameras and hubs. Its products are based on Zigbee and Thread technologies and can be integrated into leading platforms such as Apple Home, Google Home, Amazon Alexa and SmartThings with Matter support, offering stable operation and a user-friendly app.

Key product features

Matter three-in-one: Matter Controller + Thread Border Router + Matter Bridge for Aqara Zigbee devices.
Built-in 360° IR blaster: control of infrared devices, with support for IR learning and status feedback.
Multiple network connections: dual-band Wi-Fi, Ethernet with PoE, USB-C power supply.
Local automation: reliable, fast, cloud-independent operation.
Flexible installation: desktop, wall or ceiling placement with a 1/4” threaded mount.

Smart home protocols and platform compatibility

Supported protocols and hub roles: Zigbee for Aqara devices, Thread Border Router, Matter Controller and Bridge.
Network connections: dual-band Wi-Fi, Ethernet with PoE support, USB-C power.
Ecosystems: Apple Home, Google Home, Amazon Alexa, SmartThings via Matter; available functions may vary by platform.
IR integration: adding, learning and automating IR devices when there is an unobstructed line of sight.

Smart functions

Device bridge to Matter: forwarding Aqara Zigbee devices to supported platforms via Matter.
Thread network sharing: stable Thread coverage thanks to the Border Router function.
IR scenes: scheduled or sensor-based control of air conditioners and TVs, for example based on temperature or presence.
Local automations: fast logic running on the hub, independent of internet outages.
Easy pairing: Matter QR code with the Aqara Home and Apple Home apps.

Technical specifications

Product: Aqara Hub M200
Main functions: Matter Controller, Thread Border Router, Matter Bridge for Aqara Zigbee, 360° IR control
Zigbee compatibility: support for Aqara Zigbee sub-devices via Aqara Home
Network: dual-band Wi-Fi, Ethernet with PoE support
Power supply: USB-C from an external power adapter or PoE via Ethernet
Platform integration: Apple Home / Google Home / Amazon Alexa / SmartThings via Matter
Installation: desktop placement, wall and ceiling mounting with a 1/4” threaded mount, available separately

Zigbee/Thread operating frequency: 2405–2480 MHz
Zigbee/Thread maximum output power: ≤13 dBm
Bluetooth operating frequency: 2402–2480 MHz
Bluetooth maximum output power: ≤13 dBm

Model: HM-G03E / HM-G03D
Dimensions: Φ100.5 × 30.75 mm
Power input: 5V 2A
PoE input: 48V 0.25A
Wireless protocols: Wi-Fi IEEE 802.11 a/b/g/n/ac/ax 2.4 GHz / 5 GHz, Zigbee/Thread IEEE 802.15.4, Bluetooth 5.1
Operating temperature: −10 °C to 50 °C
Operating humidity: 0–95% RH, non-condensing

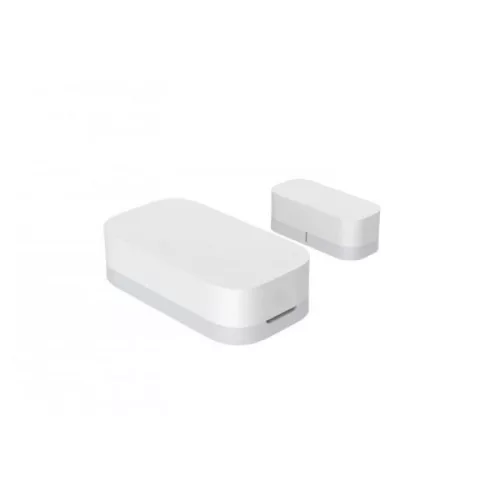

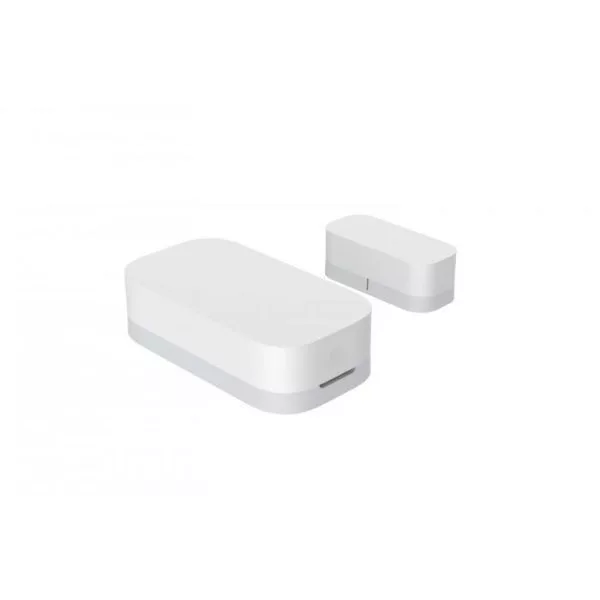

Aqara T1 Door and Window Sensor, Zigbee 3.0 (DW-S03D)

AQARA Zigbee 3.0 door/window opening sensor instantly detects and reports when a window or door is open, and can trigger various home automation rules based on this status.

An AQARA hub, or Zigbee gateway, is required for the device to operate.

Dimensions: 41 × 22 × 11 mm
Power supply: CR1632, up to 2 years of battery life
Wireless smart home protocol: Zigbee 3.0
Compatibility: HomeKit, Google, Alexa and IFTTT
Manufacturer part number: DW-S03D

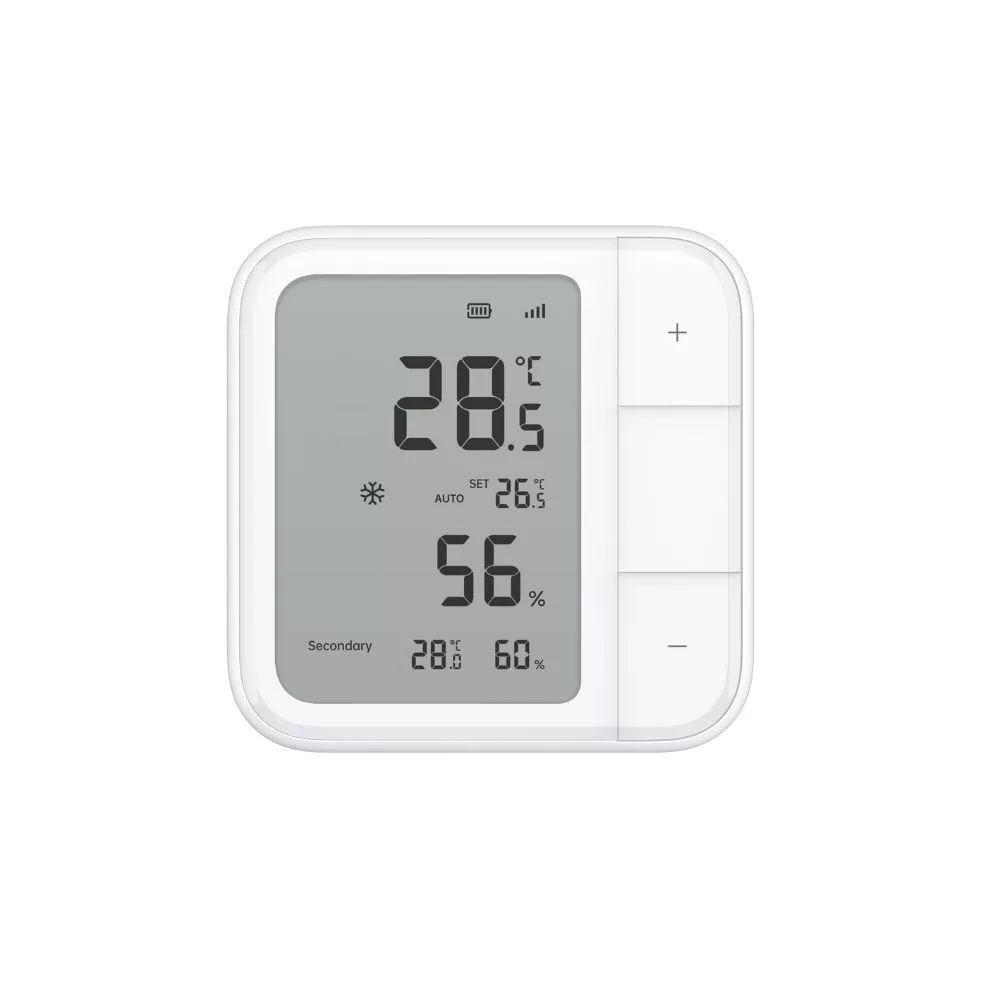

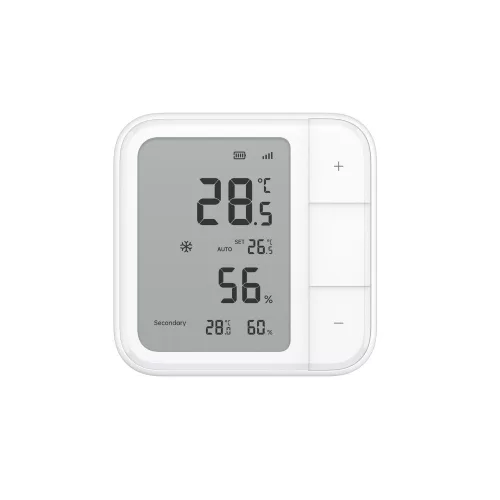

Aqara W100 Smart Wireless Climate Sensor, Zigbee + Thread (TH-S04D)

Multi-protocol, future-proof technology

The Aqara Climate Sensor W100 is an innovative indoor temperature and humidity sensor that supports both Zigbee and Thread protocols and is also compatible with the Matter standard. This means it can be easily integrated into any modern smart home system, such as Apple HomeKit, Google Home or Amazon Alexa ecosystems, while the Zigbee connection also enables access to Aqara Home’s exclusive features.

When integrated via Thread

With Matter over Thread, users can enjoy the automation and convenience provided by seamless connection with third-party ecosystems such as Apple Home, SmartThings, Alexa or Google Home.

When integrated via Zigbee

Zigbee, via an Aqara hub, provides unique app features such as connection to an Aqara thermostat through the Aqara Hub or connection to an IR air conditioner via the Aqara Hub M3, enabling wireless remote control of the HVAC system. You can switch between protocols at any time to optimise your setup.

Real-time, accurate environmental monitoring

The device is equipped with a precise temperature and humidity sensor with ±0.2 °C temperature accuracy and ±2% RH humidity accuracy. The easy-to-read 3.4-inch LCD display shows measured data in real time, whether in the living room, bedroom, children’s room or even a cooled pantry.

Multifunctional, customisable control

The Aqara W100 includes three physical buttons, each of which can be programmed for up to three types of actions: single press, double press and long press. This allows up to nine different automations or scenes to be assigned. Whether you want to launch a “Movie Night” scene with a single button press or control your home lighting or heating, the possibilities are almost endless.

External sensor integration

In Zigbee mode, additional Aqara temperature and humidity sensors can be connected, and their data can be displayed in the secondary field of the screen. This allows you to monitor the conditions of multiple rooms at the same time from a single device.

HVAC control – smart temperature regulation

The device can be paired with an Aqara thermostat or a third-party infrared air conditioner using the Aqara Hub M3. This makes it possible to control the air conditioner, humidifier or heating system remotely and automatically, without needing physical access to the equipment.

Energy-efficient, long-lasting operation

With two CR2450 coin-cell batteries, the device can operate for up to 2.4 years in Zigbee mode or 2.3 years in Thread mode. The frequency of sensing and data transmission can be adjusted in the Aqara Home app, allowing a balance between performance and battery life.

Flexible placement and easy installation

The package includes a wall bracket, screw mounting kit and an elegant desktop stand. Installation is simple: just download the Aqara Home app and follow the pairing instructions. The device can also be placed on a magnetic surface or hung from a hook.

Examples of automation possibilities:

If the temperature rises above 29.5 °C, the air conditioner switches on automatically.
Above 70% humidity, it sends a notification and turns on the dehumidifier.
Double press to activate the “Movie Night” scene.

Key technical specifications:

Model: TH-S04D
Dimensions: 86 × 86 × 13.65 mm
Operating temperature: −20 °C to 60 °C
Operating humidity: 0–98% RH
Wireless protocols: Zigbee, Thread, Bluetooth
Accessories: sensor, wall mount, desktop stand, screw kit, user manual
