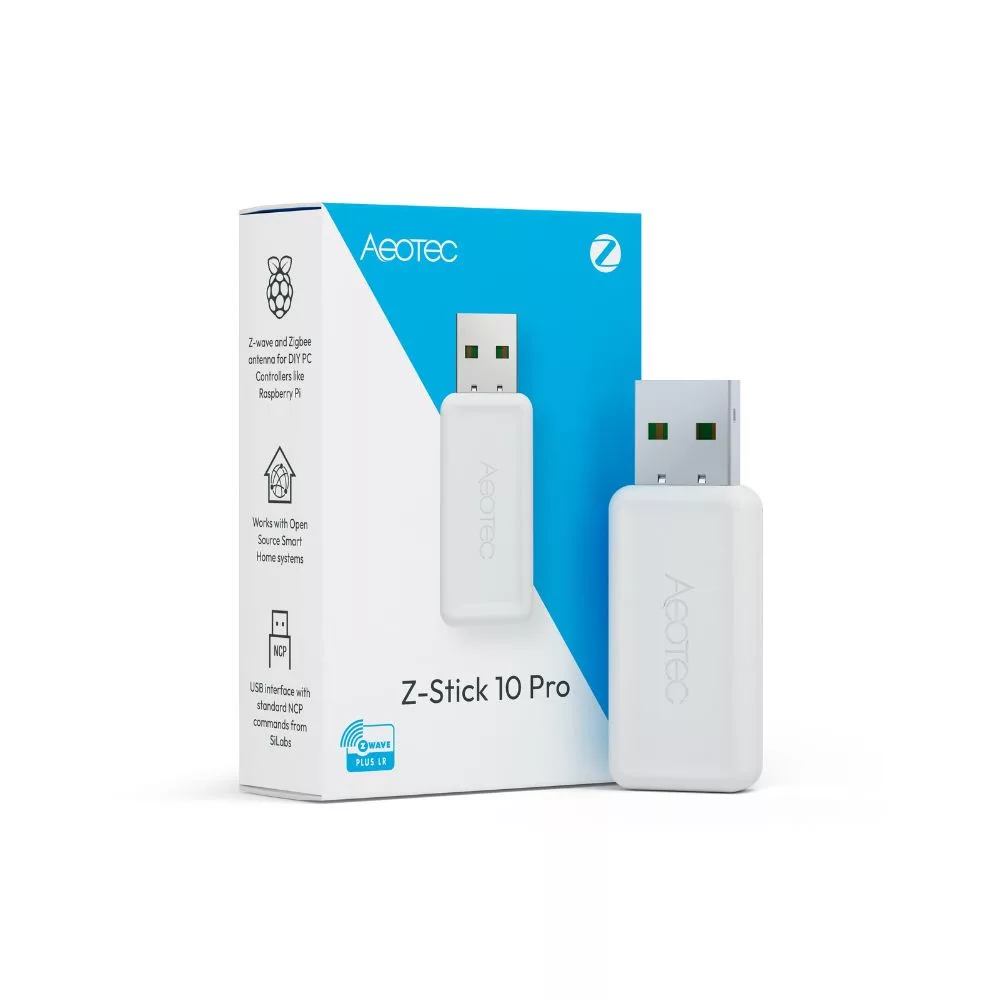

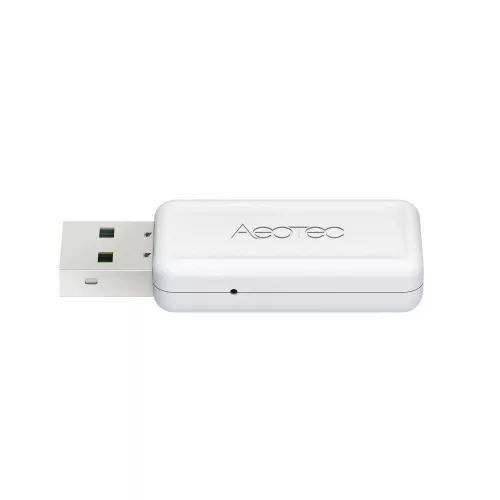

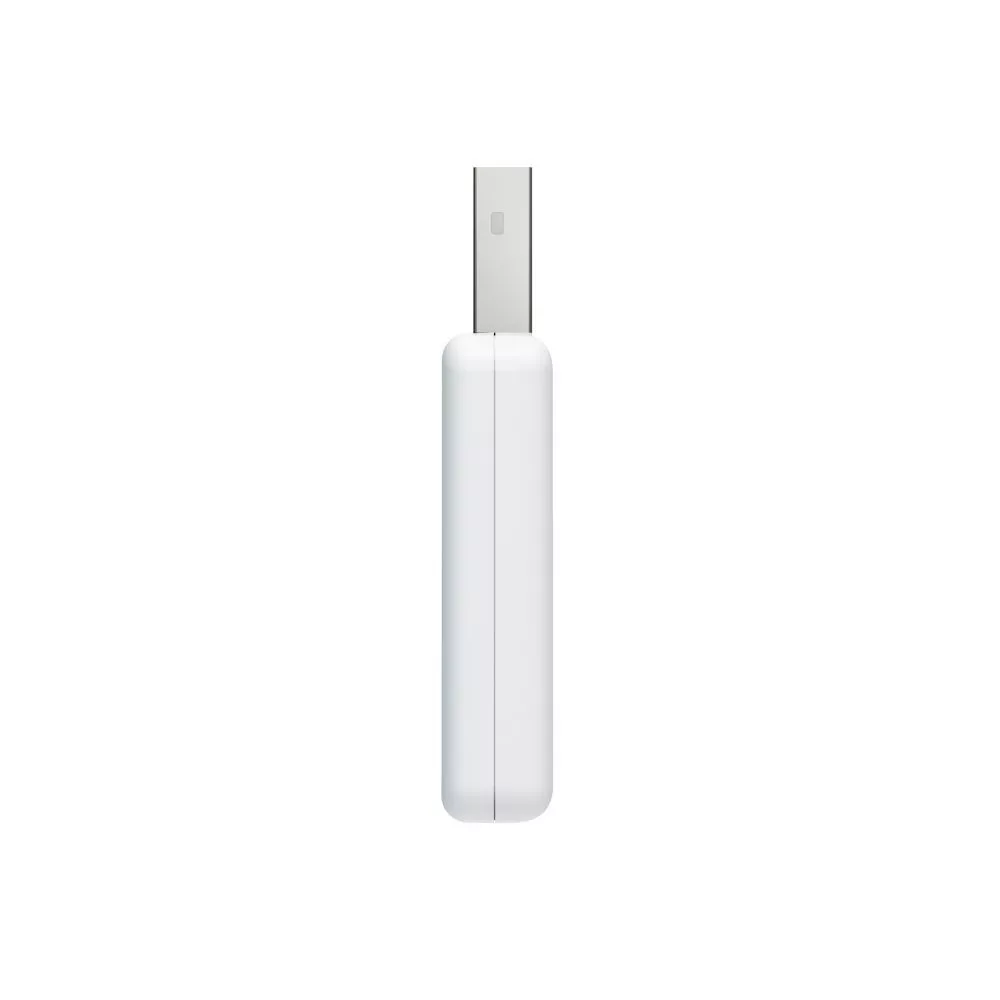

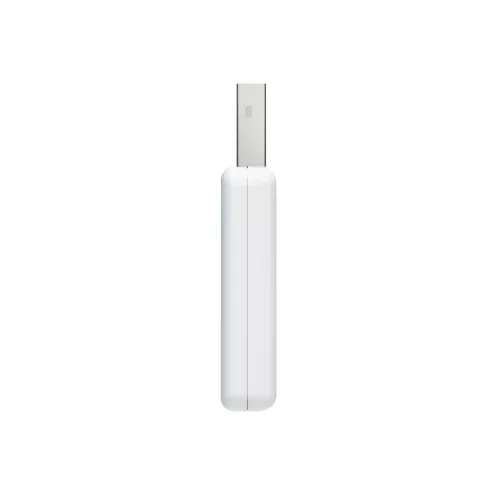

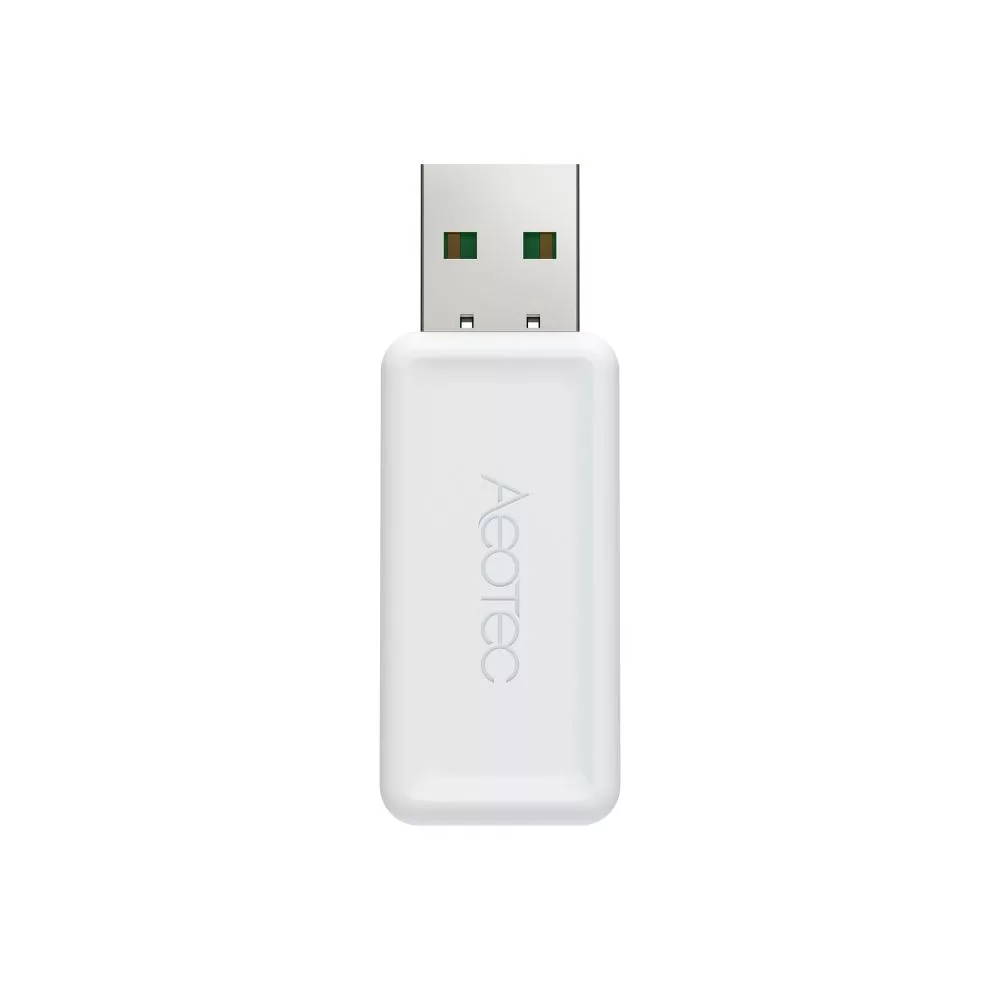

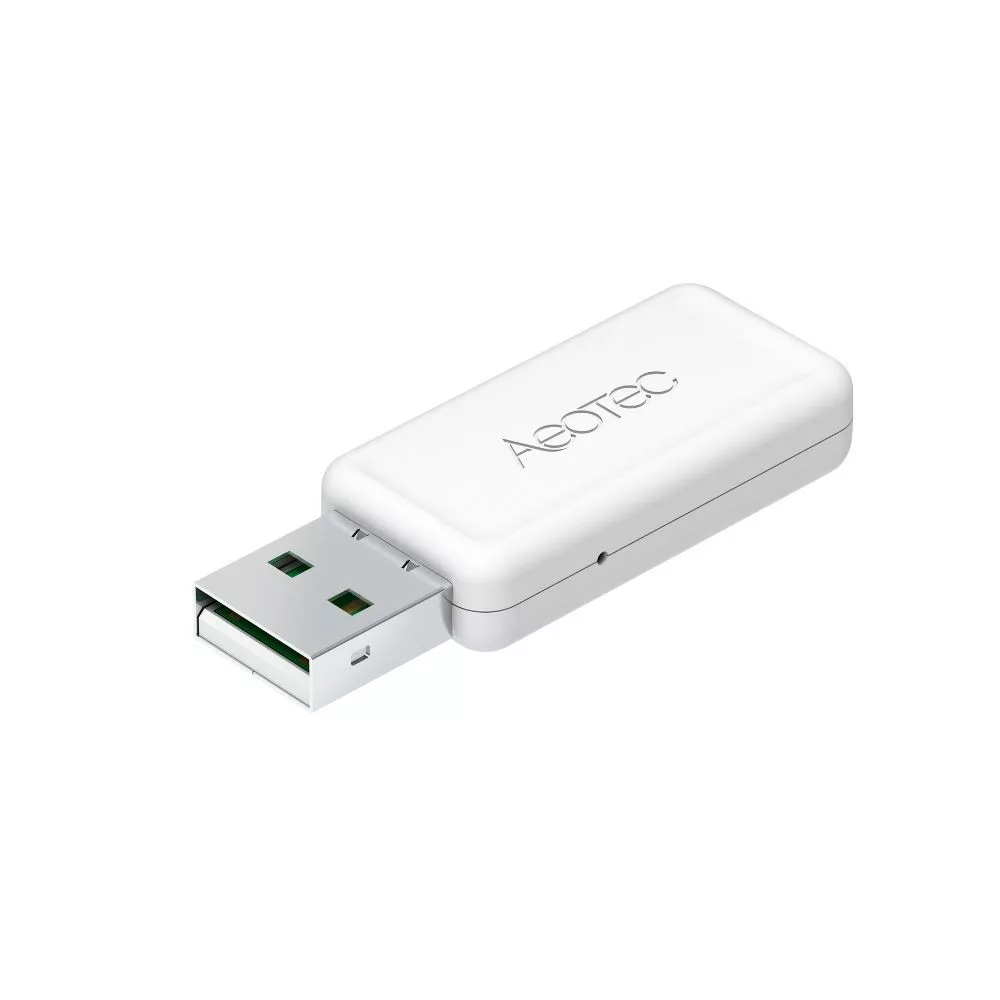

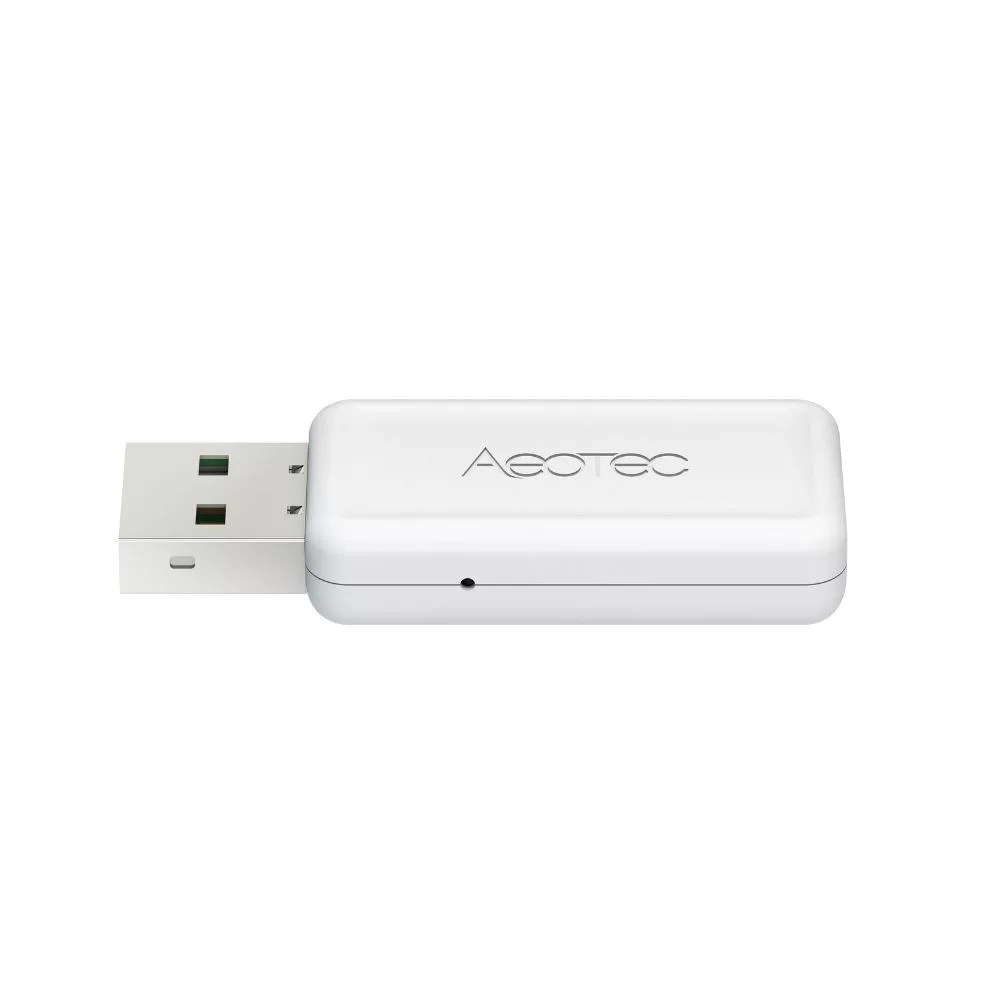

Aeotec Z-Stick 10 Pro - Z-Wave és Zigbee USB adapter (ZWA060)
Brand:
Aeotec
The Aeotec Z-Stick 10 Pro is an advanced USB smart home adapter that combines both Z-Wave 800 and Zigbee 3.0 protocols in a single device.It enables you to build your own smart home hub using open-source platforms such as Home Assistant, for example with a Raspberry Pi.
FOR SAME DAY DISPATCH
Don’t miss today’s dispatch – order now!
The Aeotec Z-Stick 10 Pro is an advanced USB smart home adapter that combines both Z-Wave 800 and Zigbee 3.0 protocols in a single device. It enables you to build your own smart home hub using open-source platforms such as Home Assistant.
About the Aeotec Brand
Aeotec is a Germany-based smart home development company offering a wide range of high-quality products using Z-Wave and Zigbee protocols. Their products are compatible with numerous open-source platforms such as Home Assistant, OpenHAB, and also the Samsung SmartThings platform.
Main Product Features
- 2-in-1 Smart Home Adapter: Supports both Z-Wave 800 and Zigbee 3.0 protocols, allowing easy integration and control of various smart devices with a single adapter.
- Local control, cloud-free operation: Device control works without internet connection – faster response time, greater reliability, and enhanced data security.
- Compact design: The slim adapter takes up minimal space and fits easily alongside other USB devices.
- Wide compatibility: Compatible with Home Assistant, Zigbee2MQTT, OpenHAB, and other open-source platforms.
- Compatible with Raspberry Pi, Windows, and Linux
- Advanced technology: Equipped with the latest Silicon Labs technology, ensuring excellent performance and reliable connectivity.
Smart Home Protocols and Platform Compatibility
- Z-Wave chip: EFR32ZG23
- Zigbee chip: EFR32MG21
- Supported protocols: Z-Wave 800 (Z-Wave Plus, Z-Wave Long Range), Zigbee 3.0
- Z-Wave 800: The new generation in smart home automation! The new Z-Wave 800 chip (EFR32ZG23) offers extended range, energy efficiency, and enhanced security – ideal for modern home automation solutions.
- Up to 100 meters indoor wireless range and improved network stability provide reliable communication between your smart home devices.
- High-efficiency communication via the EFR32ZG23 SoC (Silicon Labs) chip
- Frequency band: 868.4 MHz (Europe)
- Data transfer rate: up to 100 kbit/s
- Advanced AES-128 encryption for maximum security
- Optimized power consumption for extended battery life in sensors
- Enhanced network capacity: supports up to 4,000 devices in LR networks
- Backward compatibility with existing Z-Wave devices (Z-Wave Plus and newer)
- Z-Wave Long Range (LR):
- Greater range and more flexibility! With Z-Wave Long Range (LR) technology, the wireless range increases significantly: Up to 1.5 km wireless range – ideal for large buildings or outdoor areas
- No mesh network required – direct point-to-point communication with the central unit
- Supports up to 4,000 devices per network (compared to the classic Z-Wave limit of 232)
- Lower power consumption – perfect for battery-powered sensors
- Z-Wave 800: The new generation in smart home automation! The new Z-Wave 800 chip (EFR32ZG23) offers extended range, energy efficiency, and enhanced security – ideal for modern home automation solutions.
- Local remote control: Direct control via USB connection
- Factory platform: No specific factory platform; compatible with open-source systems
- Cloud platform integrations: Not required; local control is supported
- Third-party platform compatibility: Home Assistant, Zigbee2MQTT, OpenHAB
- Integration options: Z-Wave Serial API, EZSP (Zigbee)
- Compatibility with other systems: Compatible with Windows, Linux, and macOS, as well as Raspberry Pi 3 and newer versions
Smart Features
- Device integration: Allows the addition and management of Z-Wave and Zigbee devices
- Automation: Supports creation of automation rules via compatible platforms
- Local control: Works without internet, ensuring fast and reliable operation
- Secure operation: Supports Z-Wave S2 security protocol
Other Specifications
- Dimensions: 49 x 17 x 7 mm
- Operating temperature: 0°C – 40°C
- Operating humidity: 8% – 80%
- Range: Z-Wave: up to 150 m outdoors, Zigbee: up to 200 m in open space
This content is only available to logged in users.
Weight:
23 g/pcs
