Shelly LOQED Touch Smart Lock 2s – Touchscreen smart lock, Wi-Fi, Bluetooth, black
Brand:
Shelly
The Shelly LOQED Touch Smart Lock 2S is a motorised smart lock for Euro-profile door locks, offering smartphone, PIN-code and touch-based unlocking.
FOR SAME DAY DISPATCH
Don’t miss today’s dispatch – order now!
The Shelly LOQED Touch Smart Lock 2S is a motorised smart lock for Euro-profile door locks, offering smartphone, PIN-code and touch-based unlocking. The lock communicates with the phone via Bluetooth, while remote access is provided through the included LOQED Bridge connected to the Wi-Fi network. According to the manufacturer, the motor in the 2S version locks or unlocks the door in approximately 2 seconds.
The external Touch Display supports PIN-code unlocking and the Touch to Open function. Touch to Open uses the phone's location data, Bluetooth connection, and the lock's internal and external Bluetooth antennas to determine whether an authorised user is located on the outside of the door. Digital keys, time-limited access permissions, guest links and automatic locking functions can be managed in the LOQED app.
The LOQED Touch Smart Lock 2S can also be integrated into the Shelly Smart Control system. The connection is established through the LOQED account; from the Shelly app, the lock can be opened, switched to day or night lock mode, its status can be used as a condition in automations, and it can also be controlled as part of Shelly scenes. Detailed management of keys, PIN codes and access permissions continues to be handled in the LOQED app.
About Shelly / LOQED
LOQED develops smart door locks and related access management solutions. LOQED products can also be integrated into the Shelly ecosystem, allowing lock status and control to be used in shared automations with Shelly devices.
Shelly manufactures smart home devices, relay modules, energy meters, sensors, wall controllers and other building automation products. In addition to the Shelly Smart Control system, many products can also be integrated with Home Assistant and other third-party platforms.
Key product features
- Keyless operation: A traditional mechanical key is not required for everyday use of the LOQED Touch Smart Lock 2S.
- PIN-code unlocking: The external Touch Display can be used as a dedicated code keypad.
- Touch to Open: With an authorised phone and a suitable Bluetooth connection, the door can be opened by touching the external display.
- Automatic unlocking: As the phone approaches, the lock can automatically switch to day lock mode, after which the door can be opened by touching the external display.
- Remote control: Thanks to the Wi-Fi connection provided by the LOQED Bridge, the lock can be opened, locked and its status checked remotely.
- Digital keys: Individual digital access permissions can be shared with family members or other users.
- Guest access: A temporary access link can be created for guests who do not install the LOQED app.
- Time-limited access: Time windows can be assigned to digital keys and guest access permissions.
- Real-time status: The app shows whether the lock is open, in day lock mode or in night lock mode.
- Notifications: Notifications can be used for lock status changes and door-opening events.
- 2-second operation: According to the manufacturer, the 2S version completes a locking or unlocking operation in approximately 2 seconds.
- Security certifications: The manufacturer specifies EN 1303, EN 15684 and SKG three-star certification for a properly installed system.
Smart home protocols and platform compatibility
- Bluetooth: Used for local communication between the lock and the smartphone.
- Wi-Fi: The included LOQED Bridge provides remote access and cloud-based integrations through the Wi-Fi network.
- LOQED app: Full access management for the lock, including digital keys, PIN codes, guest access and settings, is handled here.
- Shelly Smart Control: After linking the LOQED account, the lock can be controlled from the Shelly app and used in Shelly scenes.
- Home Assistant: Supported through a community LOQED integration. The lock can be opened and locked, status changes can be used as automation conditions, and the identifier of the last locally used key is also available.
- Google Home: Supported. Locking, unlocking and status checking are available; unlocking requires a security PIN code.
- Amazon Alexa: The manufacturer also lists Alexa integration among the supported smart home systems.
- LOQED Local Bridge API: Can be used for local network integration, for example with a custom automation system.
- LOQED Web API: A token-based REST API is available for listing locks, changing their status and managing certain settings.
- Webhooks: Outgoing webhooks can forward status changes to external systems, while incoming webhooks can trigger lock operations.
- Loxone: The manufacturer documents a Loxone integration based on the Local Bridge API.
- Fibaro / Yubii: Can be integrated using the Local Bridge API.
Smart features
- Open: The door can be fully opened from the app, the external display or a supported integration.
- Day lock mode: The deadbolt can be retracted without pulling back the latch bolt.
- Night lock mode: The lock can be fully secured.
- Touch to Open: The function can be enabled for a user's key and operates based on the approaching authorised phone.
- Touch to Connect: Touching the display can initiate the unlocking process even if the user has not left the configured geofence area.
- Auto Unlock: When an authorised user approaches, the lock can automatically switch to day lock mode.
- Automatic locking: Automatic locking can be configured for a specified time or triggered by an event.
- PIN codes: Individual codes can be created for different users.
- Digital keys: Individual access permissions can be granted and revoked.
- Guest link: A temporary browser-based unlocking link can be shared with guests.
- Time-limited access: Access for guests or service providers can be restricted to specific days and time periods.
- Activity log: Locking and unlocking events can be tracked.
- Notifications: Notifications can be sent for door-opening events and lock status changes.
- Shelly automations: The lock status can be used as a condition in Shelly scenes, while locking or opening can also be used as a scene action.
Power supply and operation
- Power supply: 8 AA alkaline batteries.
- Batteries: 8 AA alkaline batteries are included in the package.
- Expected battery life: Approximately 9–12 months under normal use.
- Rechargeable operation: Supported Ni-MH rechargeable batteries can be used with the optional LOQED PowerKit.
- Emergency power supply: If the internal batteries are depleted, a 9 V battery can be held against the two metal contacts on the external Touch Display to provide temporary power to the lock.
- Motorised lock operation: The internal motorised unit mechanically rotates the lock cylinder.
- Manual operation from inside: The lock can also be operated mechanically from the inside of the door.
Technical specifications
- Product name: LOQED Touch Smart Lock 2S
- Colour: Black or silver
- Lock profile: For Euro-profile lock cylinders
- External unit dimensions: 51 × 33 × 8 mm
- Internal unit dimensions without handle and thumbturn: 284 × 60 × 29 mm
- Internal unit dimensions with handle and thumbturn: 284 × 60 × 69 mm
- Maximum door thickness: Up to 110 mm for a symmetrical door, or up to 55 mm measured from the cylinder fixing screw
- Supported PC/PZ dimensions: 55, 72, 92 and 110 mm
- Minimum backset: 30 mm
- Communication: Bluetooth, Wi-Fi via the LOQED Bridge
- Power supply: 8 × AA alkaline batteries
- Expected battery life: Approximately 9–12 months under normal use
- Emergency power supply: 9 V battery via the contacts on the external Touch Display
- Security certifications: EN 1303, EN 15684, SKG three-star certification
Additional features
- Euro-profile lock required: The LOQED Touch Smart Lock 2S is compatible only with doors using Euro-profile lock cylinders. It cannot be used directly with UK oval, Scandinavian or Swiss round lock profiles.
- Multipoint locks: Can also be used with three-, five- and seven-point locking mechanisms, provided they otherwise meet the compatibility requirements.
- Doors requiring handle lifting: Can be used with doors where the handle must be lifted before locking; the handle still needs to be lifted manually.
- External module: The external Touch Display has a weather-resistant design.
- Indoor electronics: The internal unit is not designed for outdoor use and therefore cannot be used on gates or doors where both sides are permanently exposed to the weather.
- Unsupported lock types: Rim locks and mechanisms that require turning the key, lifting the handle and then turning the key again to lock are not supported.

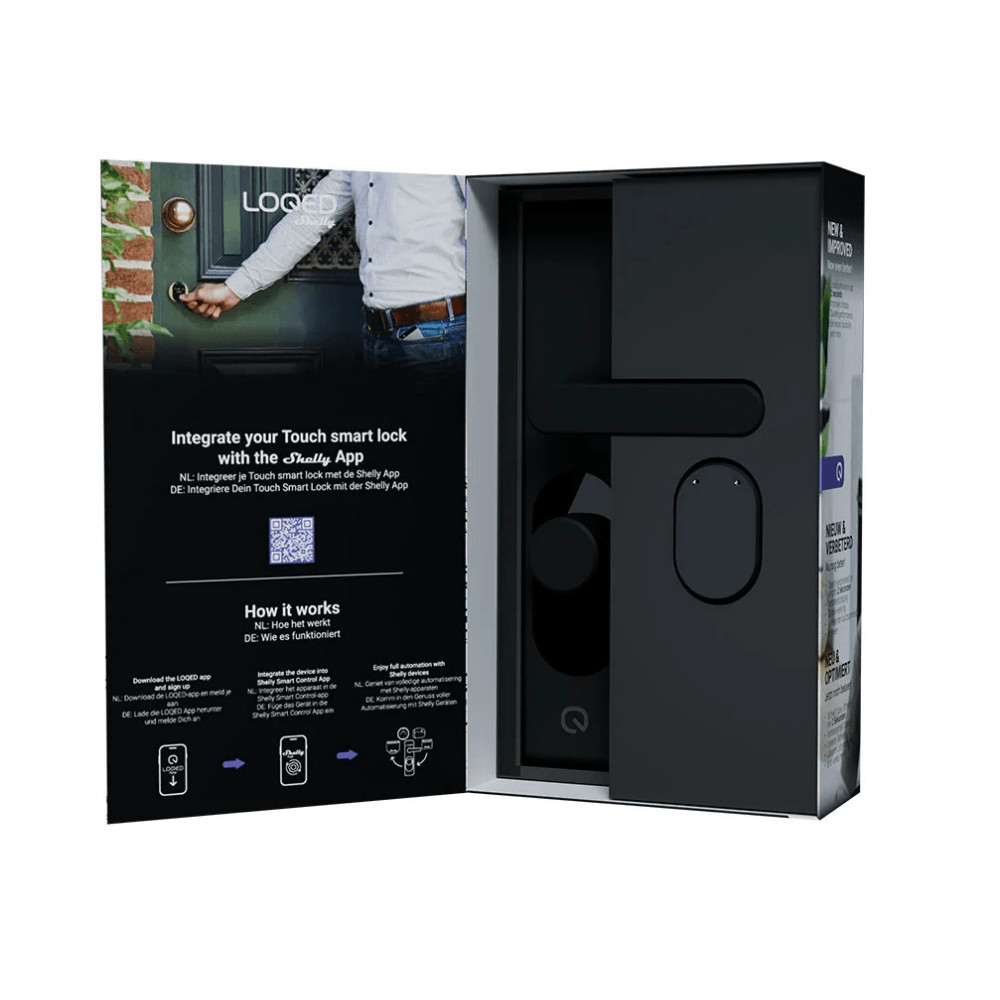

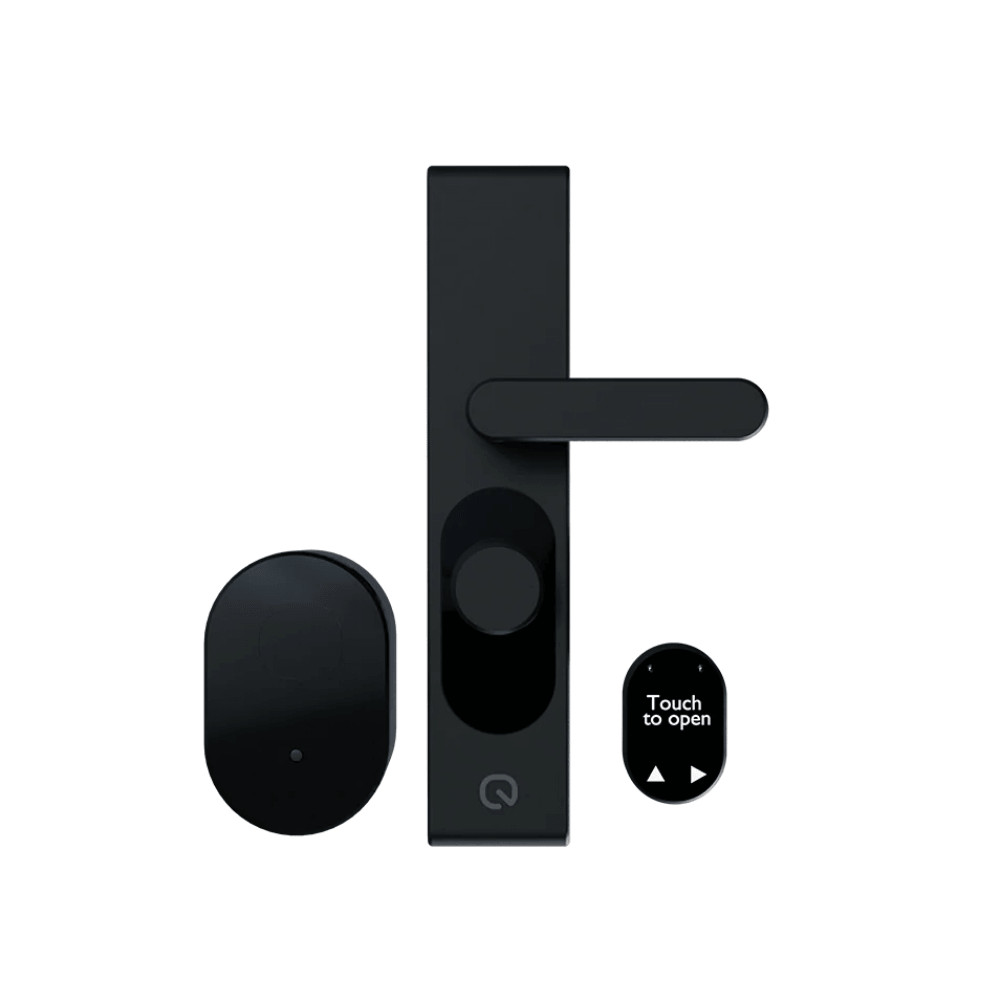

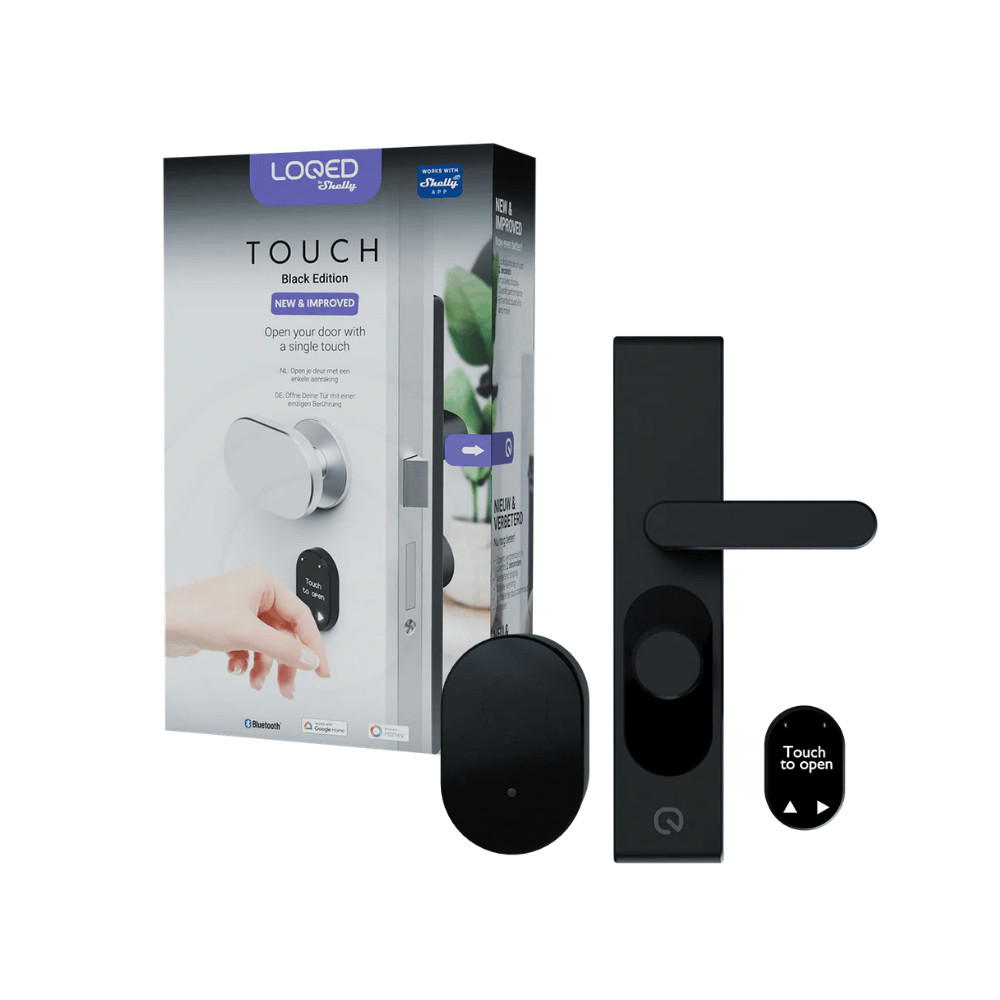

- Package contents: External Touch Display, internal unit with handle, LOQED Bridge, 8 AA batteries, certified Euro-profile lock cylinder and user manual.
- Black version: The visible external and internal components of the product are available in black and silver finishes.
This content is only available to logged-in users.
Weight:
1.922 kg/pcs
