The Shelly EM Gen4 is a compact, multi-protocol smart energy meter designed for monitoring energy consumption in single-phase electrical systems.

FOR SAME DAY DISPATCH

Don’t miss today’s dispatch – order now!

Details
Data

Details

The Shelly EM Gen4 is a compact, multi-protocol smart energy meter designed for monitoring energy consumption in single-phase electrical systems. It can operate with up to two current transformers, allowing non-invasive measurement of two separate circuits or consumer branches. It is an ideal solution for homes, offices, apartment buildings, and small commercial energy monitoring applications.

The device measures voltage, current, active power, apparent power, energy consumption, and power factor in real time. Measurement data can be viewed on smartphones, through a web browser, in the Shelly Smart Control application, Home Assistant, or other automation platforms. Its built-in storage can locally retain up to 30 days of measurement data with 1-minute resolution.

One of the major advantages of the Gen4 version is its multi-protocol operation. It supports Wi-Fi 6, Bluetooth 5, Zigbee, and Matter, making it easy to integrate into modern smart home systems while maintaining Shelly’s well-known local control capabilities, web interface, MQTT support, webhooks, scripting, and advanced API-based integrations.

The device also features a dry contact relay output, which can be used to control an external contactor or other automation tasks. This allows not only monitoring but also automated actions based on excessive consumption, specific load thresholds, schedules, or custom automation logic. Thanks to its compact size, it can be installed inside wall boxes, electrical cabinets, or close to monitored loads.

The Shelly EM Gen4 integrates seamlessly into both cloud-based and locally controlled smart home systems. Support for Matter, Zigbee, MQTT, REST API, WebSocket, and RPC protocols makes it suitable for advanced automation environments, while Shelly Smart Control provides an easy-to-use interface for everyday monitoring and energy management.

About Shelly

Shelly is one of Europe's most innovative and recognized smart home brands, developed by the Bulgarian company Allterco Robotics. The manufacturer is particularly strong in the Wi-Fi and Bluetooth smart device market, where many devices operate without requiring a dedicated hub, making installation quick and straightforward.

The Shelly product range includes relays, sensors, smart plugs, lighting products, and professional DIN rail-mounted devices. The company places strong emphasis on local control, allowing devices to function without internet access while improving privacy and reliability.

Shelly devices provide advanced integration options including REST API, MQTT, Webhooks, Home Assistant, openHAB, Node-RED, and many other DIY and professional automation systems. Compatibility with Amazon Alexa, Google Home, and Samsung SmartThings is also supported.

Key Features

Dual-channel single-phase monitoring: Measure up to two separate circuits or loads

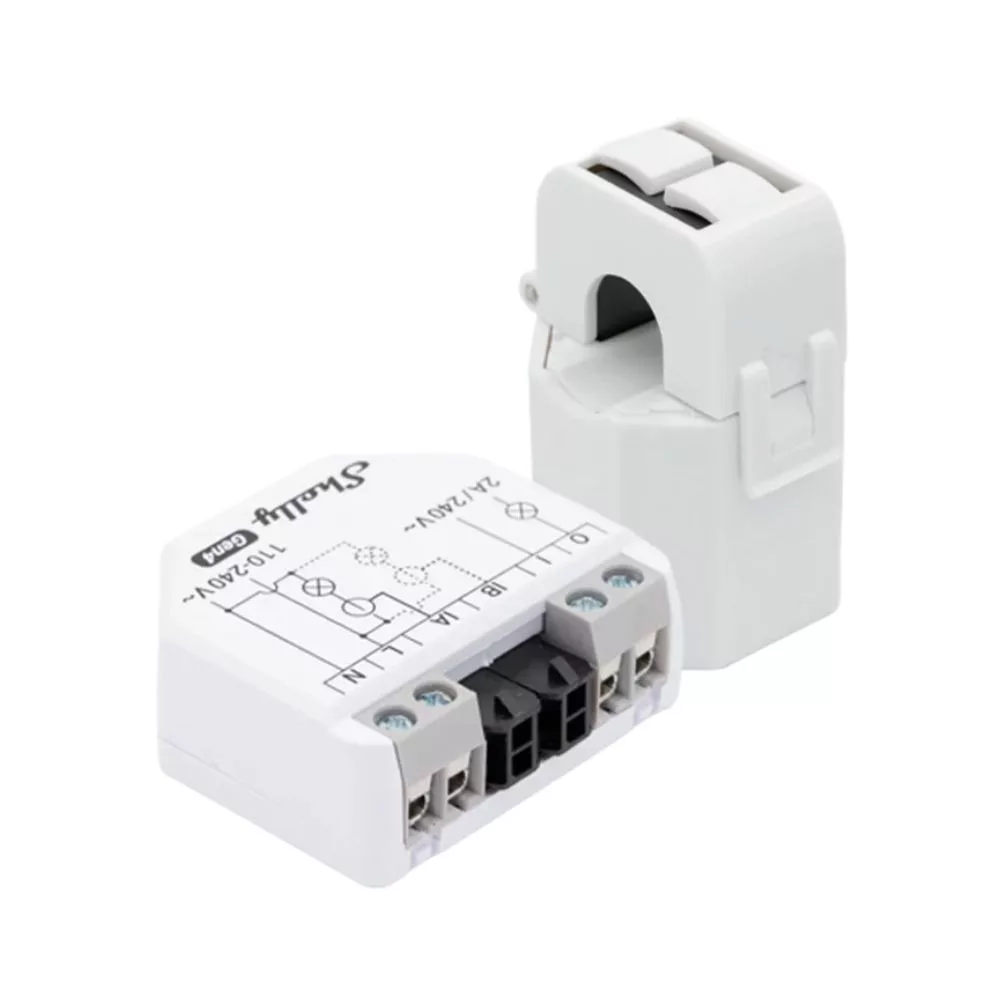

Current transformer measurement: Non-invasive energy monitoring using CT clamps
Compatible CT clamps: Supports 50A, 80A, and 120A current transformers
Included CT clamp: One 50A current transformer included in the package
Local data storage: Stores 30 days of measurement data with 1-minute resolution
Matter support: Compatible with Matter-enabled smart home ecosystems
Multi-protocol connectivity: Wi-Fi 6, Bluetooth 5, and Zigbee support
Zigbee repeater functionality: Extends Zigbee network coverage
Dry contact relay output: Suitable for controlling external contactors or automation tasks
Advanced integrations: MQTT, HTTP, HTTPS, WebSocket, RPC, webhooks, and scripting support
Built-in protection: Overheating, overvoltage, overcurrent, and overload protection

Smart Home Protocols and Platform Compatibility

Wi-Fi: IEEE 802.11 b/g/n/ax support with direct network connectivity
Bluetooth: Bluetooth 5 LE support for pairing and local communication
Zigbee: IEEE 802.15.4 support with Zigbee repeater functionality
Matter: Compatible with Matter-enabled ecosystems
Shelly Smart Control: Full native app support
Home Assistant: Integration via Shelly integration, MQTT, or local APIs
MQTT: Supported for local and server-based automation
Webhooks: HTTP/HTTPS event-based integrations
RPC and WebSocket: Advanced local integrations and automation servers
Local web interface: Browser-based configuration, control, and monitoring
HomeSeer compatibility
ioBroker compatibility
openHAB compatibility
Domoticz compatibility
nymea compatibility
Hubitat compatibility
HOOBS compatibility (Homebridge out of the box)
REST API support

Smart Functions

Real-time energy consumption monitoring
Dual measurement channels for single-phase systems
Active and apparent power measurement
Active and apparent energy measurement
Power factor monitoring
Voltage and current measurement
30-day local data storage with 1-minute resolution
CSV export of recorded values
JSON export through RPC
Automations based on instantaneous power or energy consumption
Schedules and timers
Webhook-based event triggering
JavaScript scripting support
Local and cloud operation
Remote monitoring via internet connection
Internal temperature monitoring
External contactor control using the dry contact relay

Electrical Specifications

Power supply: 110–240V AC, 50/60Hz
Power consumption: < 1W
Measurement type: Non-invasive CT clamp measurement
Measurement channels: 2
Voltage measurement range: 110–240V AC
Current measurement range: 0–120A
Compatible CT clamps: 50A, 80A, and 120A
Included CT clamp: 50A
Output: 1 dry contact relay for contactor control
Maximum switching voltage: 240V AC
Maximum switching current: 2A
Dry contact switching: Supported
External protection: 2A circuit breaker, B or C characteristic, 6kA breaking capacity, energy limitation class 3
Supported loads: Resistive, capacitive, and inductive loads through a contactor with RC snubber

Technical Specifications

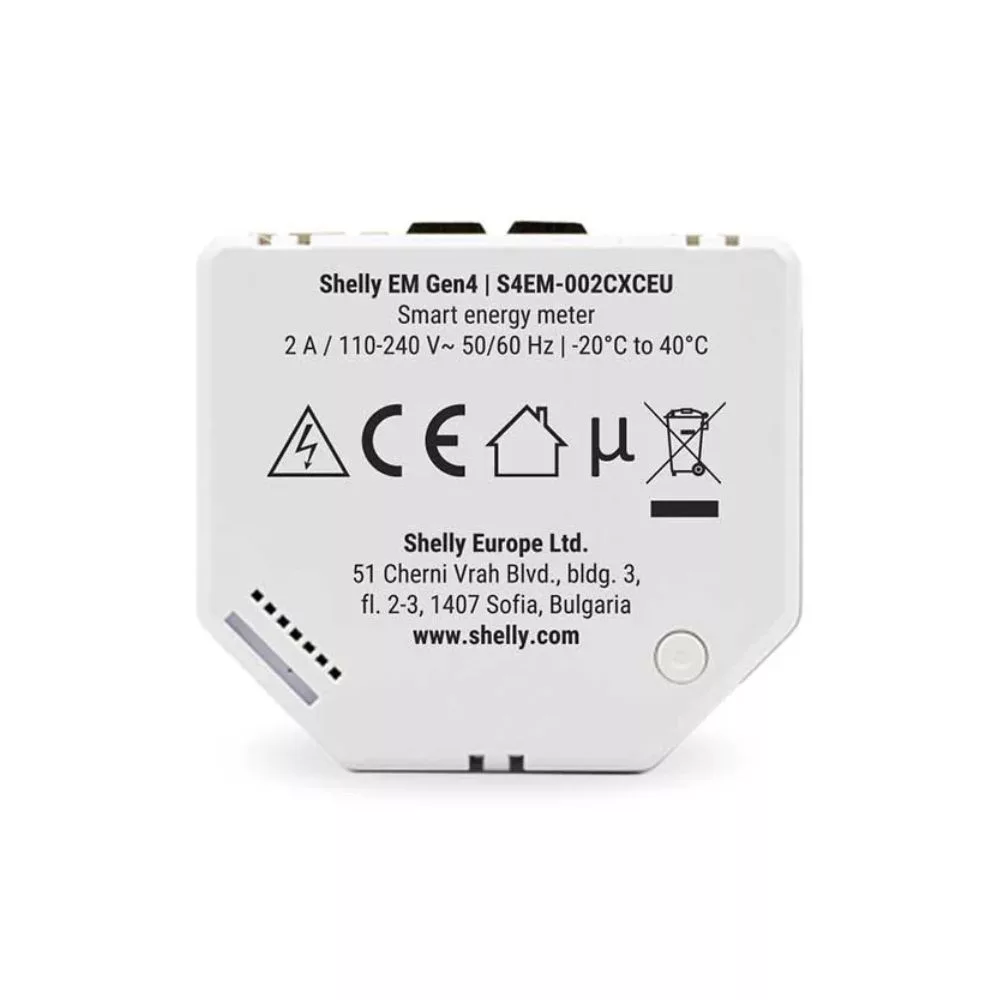

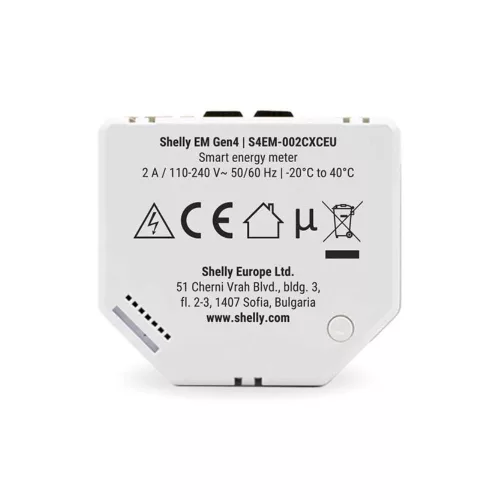

Product name: Shelly EM Gen4
Model: S4EM-002CXCEU
Device SSID: ShellyEMG4-XXXXXXXX
BLE Model ID: 0x1036
Dimensions: 37 × 42 × 16 mm
Weight: 26 g

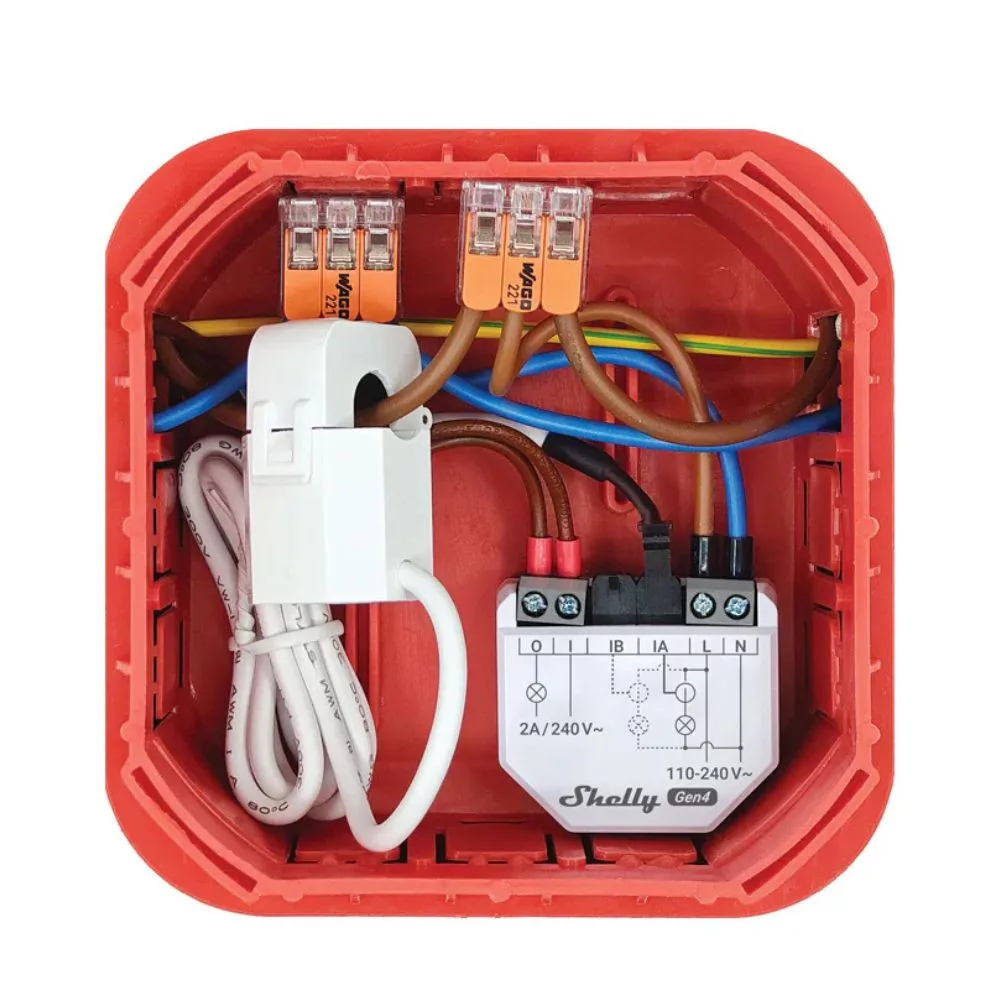

Installation: Wall box or compact electrical installation
Terminal screw torque: 0.4 Nm
Wire cross-section: 0.5–4 mm²
Wire stripping length: 6–7 mm
Housing material: Plastic
Housing color: White
Terminal color: Gray
Operating temperature: -20°C to +40°C
Humidity: 30–70% RH
Maximum installation altitude: 2000 m
Power supply: 110–240V AC, 50/60Hz
DC power supply: Not supported
Power consumption: < 1W
Maximum switching voltage: 240V AC
Maximum switching current: 2A
Voltage measurement accuracy: ±2%
Current measurement accuracy: ±2% between 1–50A, ±5% between 0–1A
Measured values: Active power, apparent power, active energy, apparent energy, and power factor
No-load threshold: 30 VA per phase
Measurement data retention: 30 days with 1-minute resolution
Data export: CSV and JSON via RPC
Wi-Fi protocol: IEEE 802.11 b/g/n/ax
Wi-Fi frequency: 2412–2484 MHz
Wi-Fi maximum RF power: < 20 dBm
Wi-Fi range: Up to 30 m indoors, up to 50 m outdoors
Bluetooth protocol: Bluetooth 5 LE
Bluetooth frequency: 2402–2480 MHz
Bluetooth maximum RF power: < 20 dBm
Bluetooth range: Up to 10 m indoors, up to 30 m outdoors
Zigbee protocol: IEEE 802.15.4
Zigbee repeater: Yes
Zigbee frequency: 2405–2480 MHz
Zigbee maximum RF power: < 20 dBm
Zigbee range: Up to 100 m indoors, up to 300 m outdoors
Processor: ESP32-C6
Flash memory: 16 MB
Schedules: 20
Webhooks: 20 webhooks, up to 5 URLs per webhook
Scripting support: Yes
MQTT support: Yes
Supported protocols: Zigbee, MQTT, HTTP, HTTPS, WebSocket, RPC
Protection features: Overheating, overvoltage, overcurrent, and overload protection

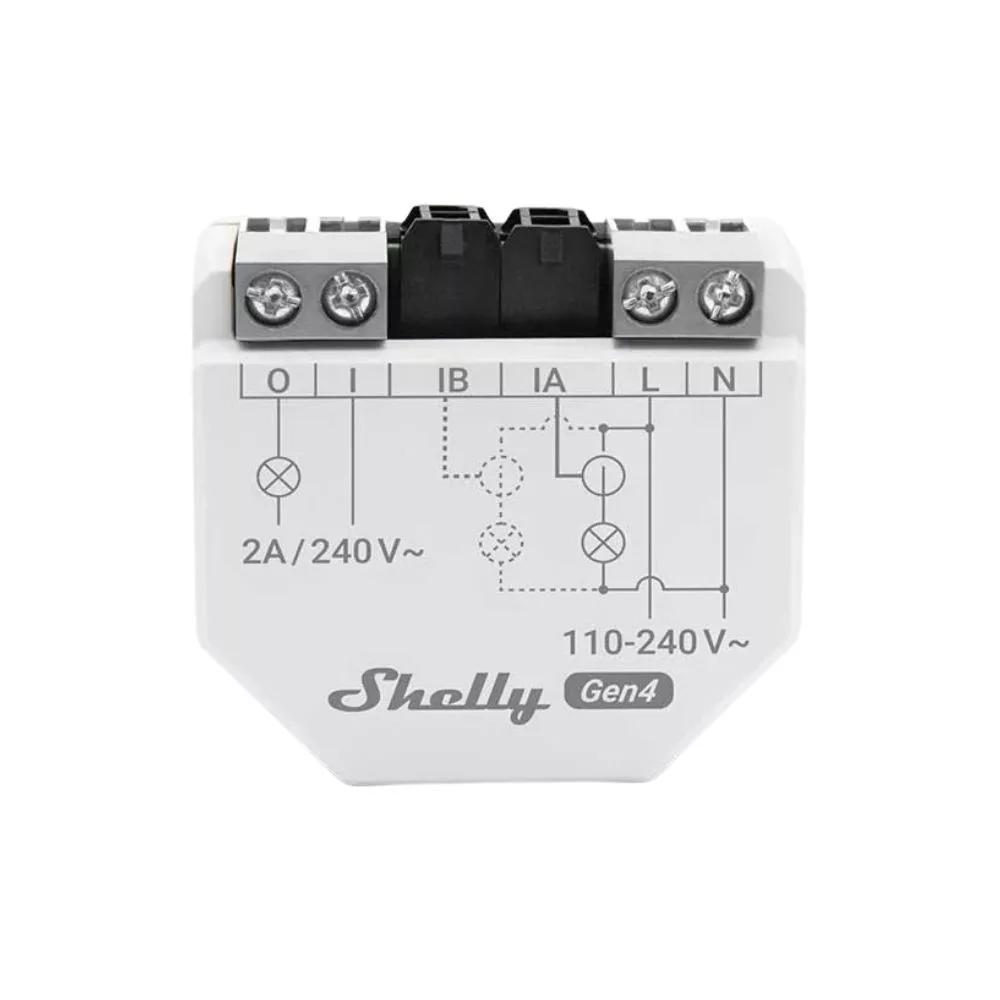

Terminals: O, L, I, N, IA, IB
Current transformer inputs: IA and IB
Relay output: O output, I input
