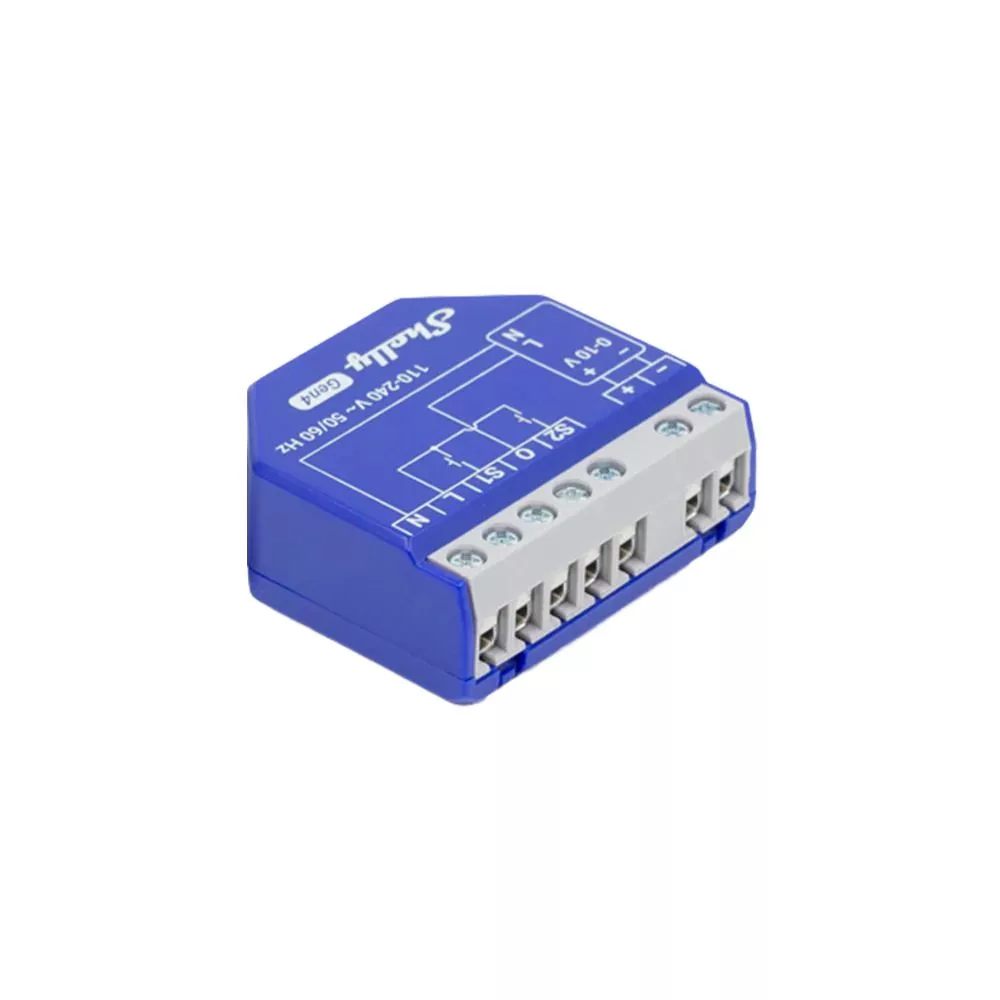

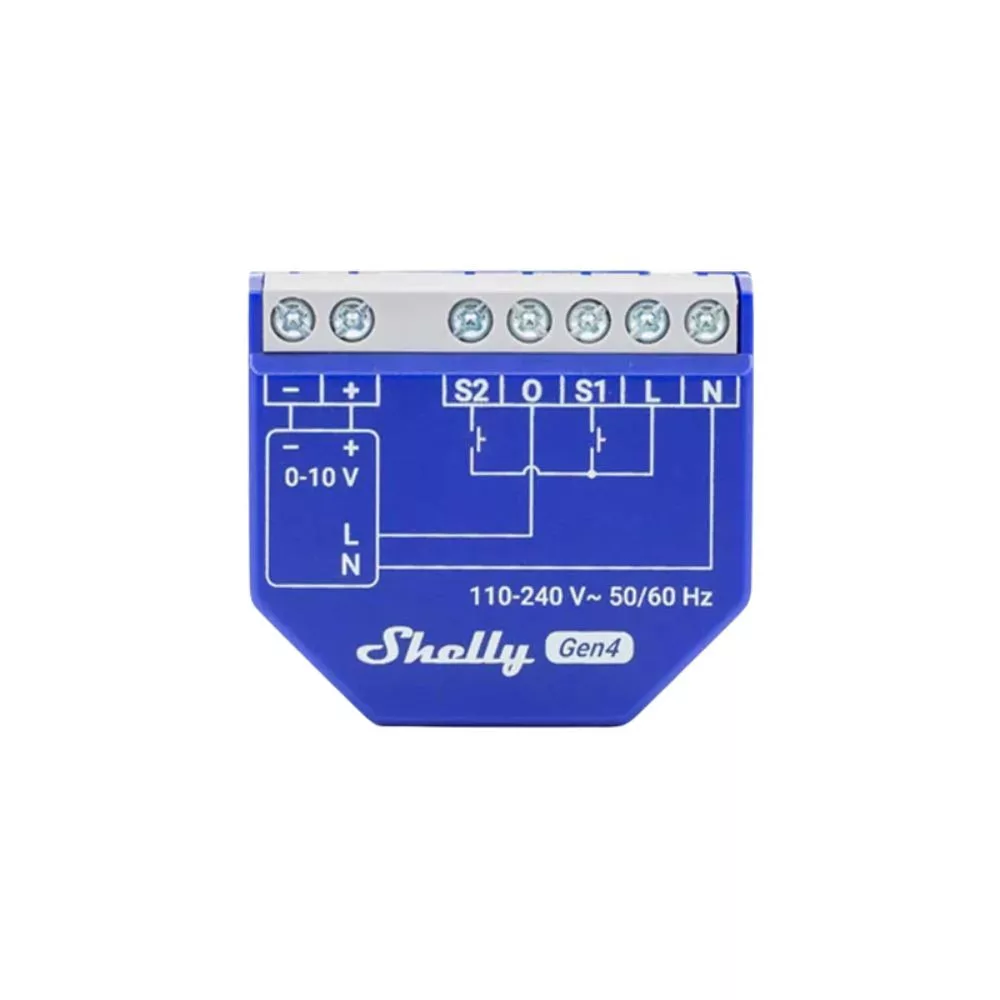

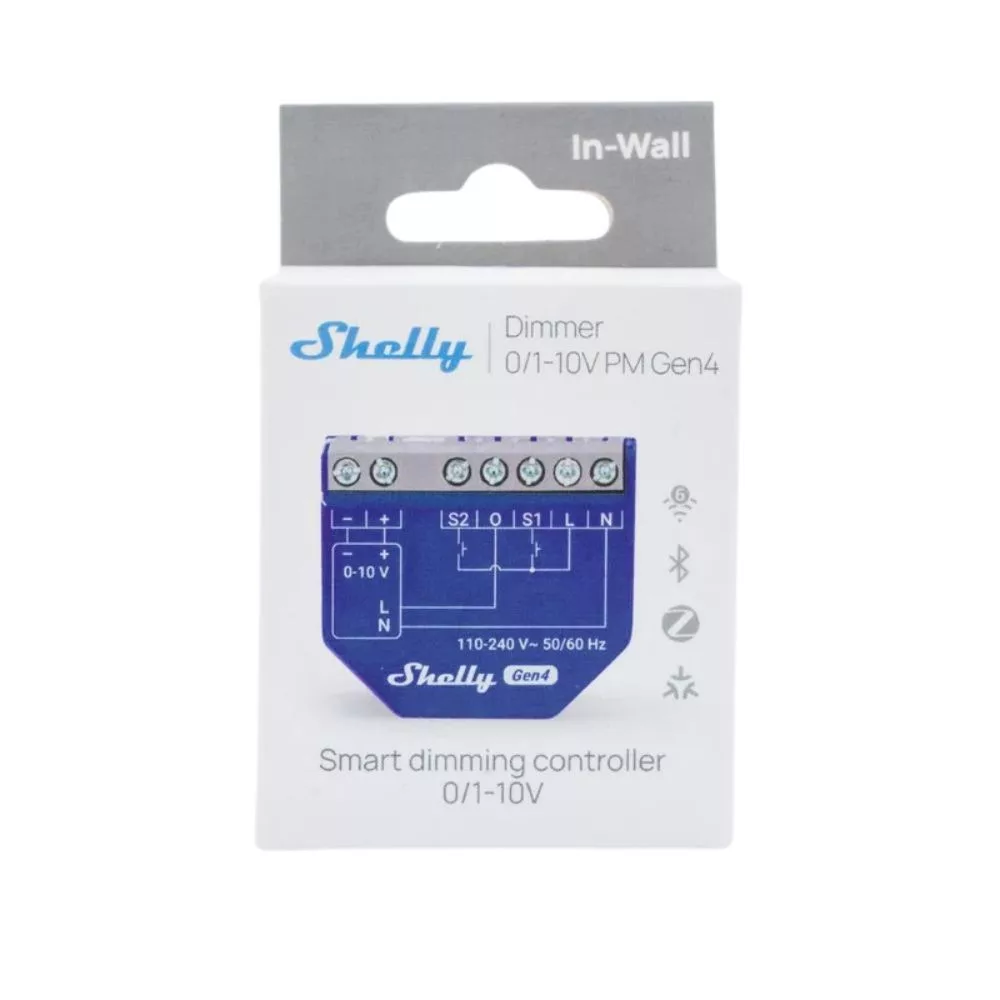

Shelly Dimmer 0/1-10V PM Gen4 – Dimmer relay module with energy monitoring, Wi-Fi, Zigbee (S4DM-0010WW)

The Shelly Dimmer 0/1-10V PM Gen4 is a professional smart dimmer controller designed for controlling 0–10V and 1–10V dimmable power supplies and other compatible devices. It is an ideal solution for modern LED lighting systems, dimmable drivers, or valve control in both residential and commercial environments.

One of the biggest advantages of the Gen4 series is its multiprotocol operation, supporting Wi-Fi, Bluetooth, Zigbee, and Matter, ensuring exceptionally broad compatibility with various smart home systems. The device can operate independently on a local network while also integrating seamlessly into cloud platforms and open-source systems such as Home Assistant.

The Shelly Dimmer 0/1-10V PM Gen4 is especially suitable for applications where precise brightness control and ambient lighting are essential. It provides a professional-grade solution for restaurants, bars, offices, cinemas, and premium residential lighting systems. Smooth transitions, configurable minimum and maximum brightness levels, and intelligent scheduling allow the creation of the perfect lighting atmosphere.

The device includes built-in power monitoring, enabling real-time tracking of connected lighting energy consumption. Advanced Shelly automation features such as scripting, MQTT, Webhooks, and KNXnet/IP support make it suitable for integration into complex building automation systems.

Existing lighting installations can be modernized easily, as the device supports traditional wall switches and push buttons. In addition to single-button and dual-button dimming control, it supports smooth dimming transitions, night mode, and sunrise/sunset-based automations.

About the Shelly brand

Shelly is one of the most recognized and innovative smart home brands in Europe, developed by the Bulgarian company Allterco Robotics. The manufacturer is particularly strong in the market of Wi-Fi and Bluetooth-based smart devices, which typically operate without requiring a central hub, enabling quick and easy installation with only a Wi-Fi network.

Shelly offers a broad portfolio including relays, sensors, smart plugs, lighting solutions, and professional DIN rail-mounted devices. A strong focus is placed on local control, allowing devices to operate even without internet access, improving reliability and data security.

Shelly devices support advanced integration methods such as REST API, MQTT, and Webhooks, making them compatible with platforms like Home Assistant, openHAB, Node-RED, and other DIY systems. They also work with cloud ecosystems such as Google Home, Amazon Alexa, and Samsung SmartThings.

The latest Shelly generations include BLE gateway, Wi-Fi range extender, and additional networking features. Shelly products are highly popular among advanced users and installers, while their ease of use also makes them suitable for beginners.

Key product features

0–10V and 1–10V support: Wide compatibility with dimmable drivers

Multiprotocol operation: Wi-Fi, Bluetooth, Zigbee, and Matter support

Power monitoring: Real-time power and energy measurement

KNX support: KNXnet/IP integration for building automation

Scripting support: Advanced automations and local logic

Wi-Fi range extender: Extends wireless coverage

BLE gateway: Integration of Shelly BLU devices

Smart home protocols and platform compatibility

Supported protocols and standards: Wi-Fi, Bluetooth, Zigbee, Matter

Zigbee router functionality: Yes

Matter support: Yes, for simplified smart home integration

Platform compatibility: Home Assistant, Alexa, Google Home, SmartThings

Local API: HTTP API, MQTT, Webhooks, UDP

KNX integration: KNXnet/IP support

BLE gateway: Supports Shelly BLU devices

Smart features

Remote brightness control: Via app or automation

Scheduling: Weekly and advanced annual schedules

Sunrise/sunset automation: Automatic brightness adjustment

Night mode: Reduced brightness for nighttime use

Min./max. brightness settings: Precise dimming control

Transition timing control: Smooth dimming transitions

Event logs: Detailed activity tracking

Virtual components: Dynamically created controls

Electrical features

Power supply: 110–240V AC

Dimming standard: 0–10V / 1–10V

Outputs: 0–10V dimming output (+/-)

Relay output: 1 relay with power monitoring

Switch inputs: S1 and S2

Power monitoring: Voltage, current, and power measurement

Protection: Overvoltage, overcurrent, and overpower protection

Technical specifications

Product name: Shelly Dimmer 0/1-10V PM Gen4

Model: S4DM-0010WW

BLE Model ID: 0x1074

Supported protocols: Wi-Fi, Bluetooth 5.0, Zigbee 3.0, Matter over Wi-Fi

Zigbee repeater function: Yes

BLE gateway function: Yes

Wi-Fi range extender: Yes

Power supply: 110–240V AC, 50/60 Hz

Power consumption: < 1.5W

Dimming standards: 0–10V and 1–10V

Dimming control type: Supports current sourcing and current sinking

Switch inputs: Switch/push-button inputs (S1 and S2)

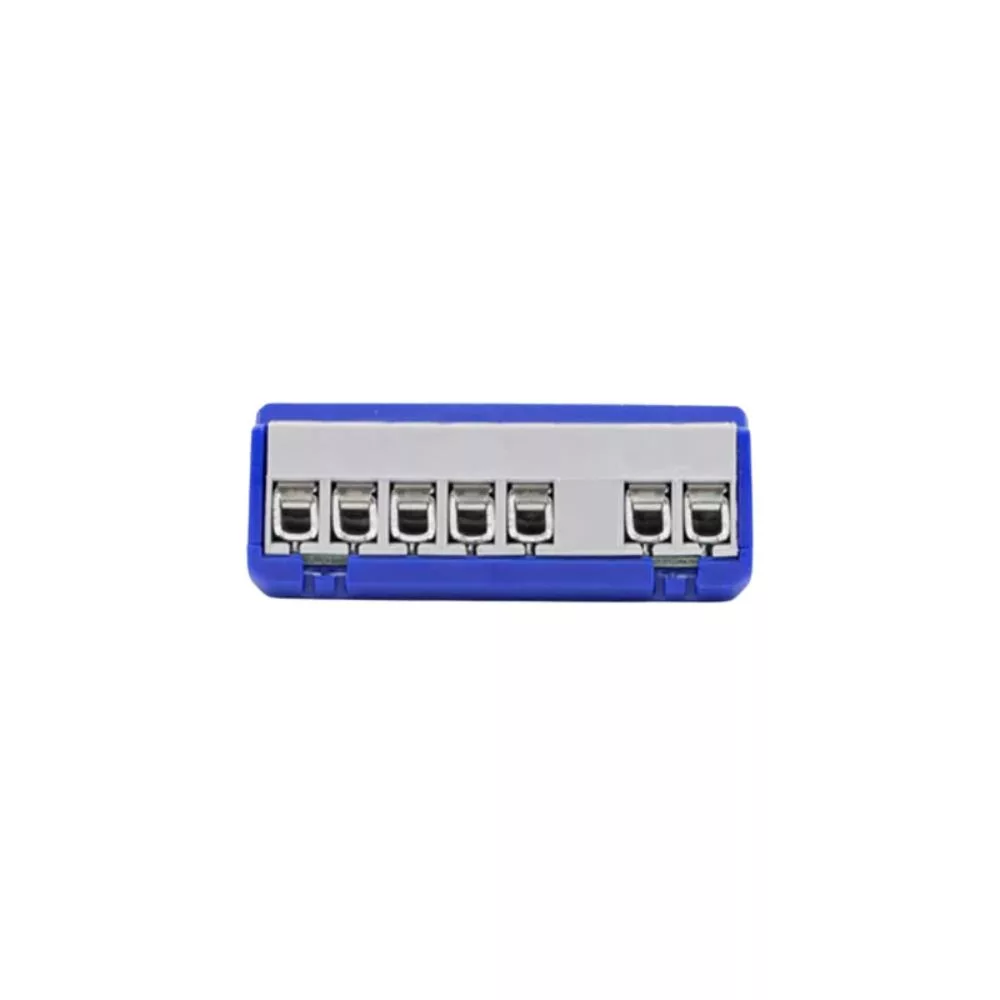

Power terminals: L and N screw terminals

Dimming outputs: 2 × 0–10V outputs (+ and -)

Relay output: 1 relay output with power monitoring

Max. switching voltage: 240V AC

Max. switching current: 13A

Max. control current: 35mA

Supported loads: 0–10V and 1–10V dimmable LED drivers, lighting systems, motors, valves, and other control circuits

Power monitoring: Yes

Voltage measurement: 110–240V AC

Voltage measurement accuracy: ±10%

Current measurement: 50mA – 16A

Current measurement accuracy: ±10%

Internal temperature sensor: Yes

Safety protections: Overheating, overvoltage, overcurrent, and overload protection

Recommended external protection: 16A B or C curve circuit breaker, 6kA breaking capacity

Add-on interface: Shelly proprietary serial interface

Compatibility: Shelly Plus Add-On sensor interface

Warning: High voltage may be present on the add-on interface during operation

Wi-Fi standard: 802.11 b/g/n/ax

Wi-Fi frequency: 2401 – 2483 MHz

Wi-Fi max RF power: < 20 dBm

Wi-Fi range: Up to 30 m indoors / 50 m outdoors

Bluetooth standard: BLE 5.0

Bluetooth frequency: 2402 – 2480 MHz

Bluetooth max RF power: < 4 dBm

Bluetooth range: Up to 10 m indoors / 30 m outdoors

Zigbee standard: IEEE 802.15.4

Zigbee frequency: 2405 – 2480 MHz

Zigbee max RF power: < 20 dBm

Zigbee range: Up to 100 m indoors / 300 m outdoors

Processor: ESP32-C6

Clock speed: 80 MHz

Flash memory: 8 MB

Automations: 20 timers and advanced scheduling

Webhook support: 20 webhooks, up to 5 URLs per webhook

Scripting support: Yes

MQTT support: Yes

KVS support: Yes

KNXnet/IP support: Yes

Virtual components: Yes

Local and cloud operation: Yes

Hub required: No

Compatible platforms: Home Assistant, Google Home, Amazon Alexa, Samsung SmartThings

Size: 38.5 × 43.5 × 17 mm

Weight: 28.5 g

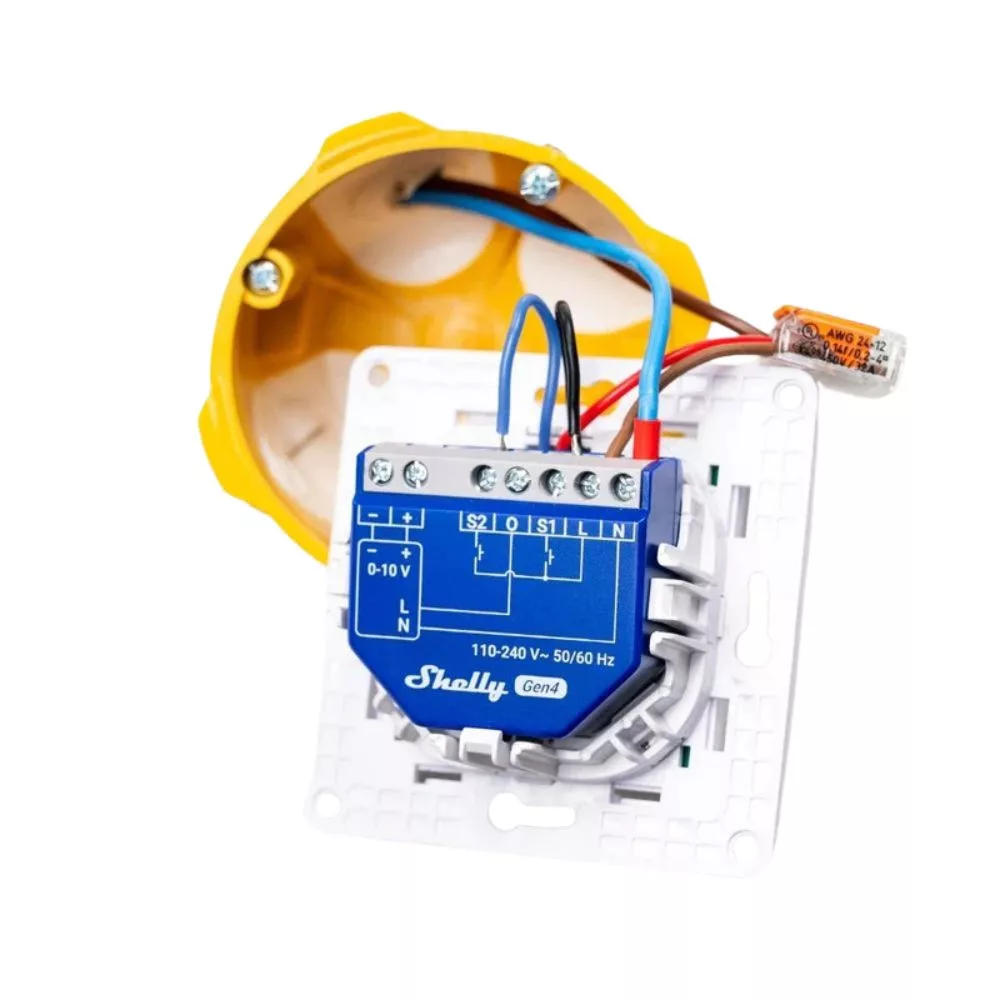

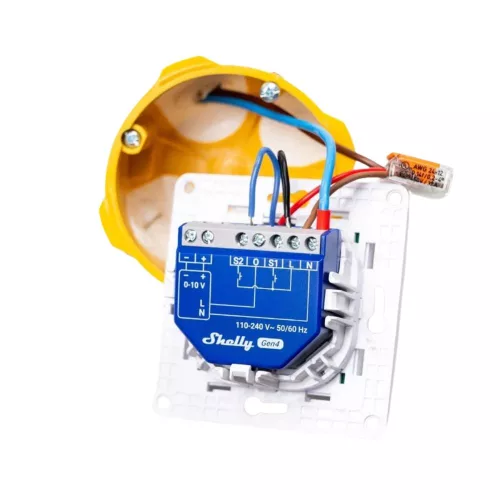

Installation: Behind wall switches or ceiling installations

Wire cross-section: 0.2 – 2.5 mm² (24–14 AWG)

Wire stripping length: 5 – 6 mm

Terminal torque: 0.4 Nm

Housing material: Plastic

Housing color: Blue (Pantone 2736C) with white labeling

Connector color: Gray

Operating temperature: -20°C – +40°C

Operating humidity: 30 – 70% RH

Max. installation altitude: 2000 m

Control button functions: AP mode activation, Bluetooth activation, factory reset, Matter/Zigbee profile switching, Zigbee pairing restart

LED indicators: Wi-Fi status, Zigbee/Matter pairing, OTA update, cloud connection, and system status indication
