Shelly Camera – Camera, indoor, with AI object recognition, 1080P, Bluetooth, Wi-Fi, white (S1CM-0DXW00)

The Shelly Camera is an indoor Wi-Fi camera with 1920 × 1080 pixel Full HD video resolution, black-and-white night vision and image-based motion detection. The field of view is 110° horizontally and 70° vertically. The built-in microphone and speaker enable two-way audio communication.

The camera's live view can be accessed both over the local network and through the cloud. Recordings can be saved to a microSD card with a capacity of up to 512 GB, Shelly Cloud storage, or both simultaneously. Through the RTSP protocol, the camera can be connected to compatible DVR/NVR systems, while WebRTC supports direct live video streaming. The camera supports up to 10 configurable motion and privacy zones.

The Shelly Camera supports both 2.4 GHz and 5 GHz Wi-Fi networks, while Bluetooth 4.2 is also available for setup. It can be integrated with Home Assistant and Frigate NVR, while MQTT, WebSocket, scripting and webhooks can be used for local integrations. Power is supplied via USB-C at 5 V DC / 1 A.

About Shelly

Shelly manufactures smart home devices, in-wall and DIN rail-mounted relay modules, energy meters, dimmers, smart plugs, sensors, cameras, wall controllers and other building automation devices.

Depending on the model, Shelly products use Wi-Fi, Bluetooth, Zigbee, Matter and Z-Wave communication. In addition to the Shelly Smart Control platform, many devices can also be integrated with Home Assistant, MQTT and other local or cloud-based systems.

Key product features

• Dual-band Wi-Fi with Bluetooth support: The camera supports both 2.4 GHz and 5 GHz Wi-Fi networks and also features Bluetooth connectivity.
• Full HD 1080p video with live view: The camera supports 1920 × 1080 pixel video and live video viewing.
• Black-and-white night vision: Black-and-white night monitoring is available in low-light conditions.
• Motion detection: Up to 10 configurable motion zones can be defined for image-based motion detection.
• Motion notifications: Instant notifications can be sent when motion is detected.
• Cloud-based AI object detection: Shelly's cloud-based AI functionality supports object detection.
• Two-way audio: The built-in microphone and speaker allow the camera to be used for two-way audio communication.
• Privacy features: Privacy masking zones can be configured, while Privacy Mode disables video recording, the microphone and the speaker.
• Local and cloud storage: Recordings can be stored locally on a microSD card and downloaded, while optional Shelly Cloud storage hosted in the EU can also be used.
• USB-C power supply: The camera requires a 5 V DC / 1 A power supply via USB-C.

Smart home protocols and platform compatibility

• Wi-Fi: Dual-band Wi-Fi connectivity using the IEEE 802.11 b/g/n standard, supporting both 2.4 GHz and 5 GHz frequency ranges.
• Bluetooth: Bluetooth 4.2 connectivity, including support for device setup.
• Shelly Smart Control: Can be used for live viewing, remote access, recording management, notifications and camera settings.
• Home Assistant: The manufacturer specifies compatibility with Home Assistant.
• Frigate NVR: The camera can also be used with Frigate NVR.
• RTSP: A local video stream can be sent to RTSP-compatible DVR/NVR systems and other local integrations.
• WebRTC: Supports peer-to-peer live video viewing.
• MQTT: Native MQTT support is available for automation and integration purposes.
• WebSocket: WebSocket-based integration is supported.
• Scripting: Locally running Shelly Scripts can be used for custom automations.
• Webhooks: Up to 20 webhooks can be configured, with up to 5 URLs per webhook.

Smart features

• Live view: The camera feed can be viewed live over the local network or through a cloud connection.
• Motion detection: Motion is detected through video analysis of the camera image.
• Motion zones: Up to 10 motion or privacy zones can be configured, allowing you to define which areas of the image should be monitored or masked.
• Motion notifications: An instant notification with a preview image can be sent when motion is detected.
• Automatic recording: Video recording can be started automatically when motion is detected.
• Manual recording: Video recording can also be started and stopped manually.
• Photo capture: Still images can be captured in addition to video.
• Two-way audio: The built-in microphone and speaker allow you to hear sounds around the camera and transmit audio back through the camera.
• Night vision: Black-and-white night monitoring is available in low-light conditions.
• Privacy Mode: When activated, video recording, the microphone and the speaker are disabled.
• Privacy zones: Selected areas of the camera image can be masked.
• Cloud-based AI object detection: Shelly's cloud service supports AI-based detection of people, pets and vehicles.
• Local AI integration: The manufacturer also provides a low-resolution stream for local AI processing and integrations running on your own hardware.
• Recording storage: Local microSD storage, Shelly Cloud storage, or simultaneous local and cloud storage can be selected.
• Recording export: Recordings can be exported in MP4 format through the built-in web interface.
• Schedules: Up to 20 schedules can be configured.

Power supply and operation

• Power supply: 5 V DC / 1 A.
• Connection: USB-C.
• USB-C cable: The manufacturer includes a 2-metre USB-C cable.
• Local storage: A microSD card with a capacity of up to 512 GB, formatted with the FAT32 file system, can be used.
• microSD card: Not included in the package.

Technical specifications

• Product name: Shelly Camera
• Colour: White

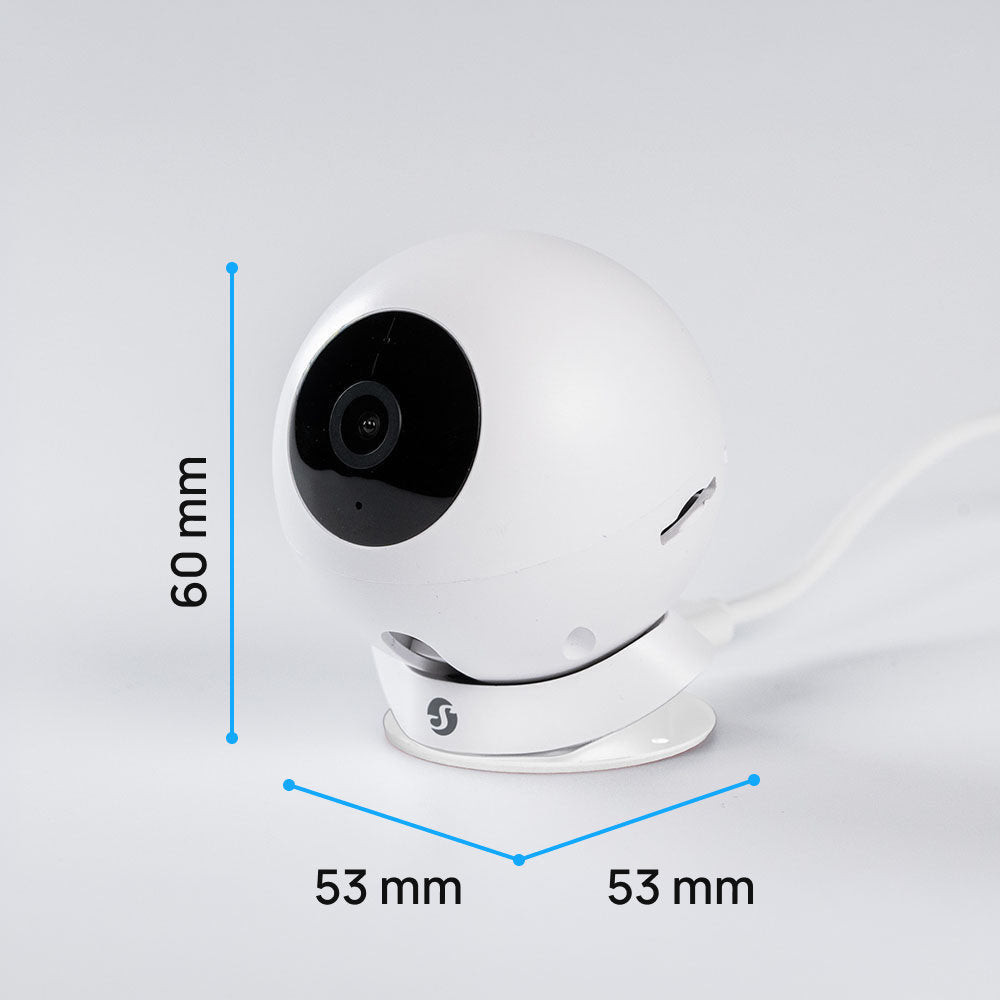

• Dimensions: 60 × 53 × 53 mm
• Installation: Can be placed on a flat surface using its integrated base, or mounted on a wall or ceiling using the magnetic base and included self-adhesive metal plate.
• Camera direction adjustment: Manually adjustable horizontally and vertically.
• Housing material: Plastic
• Available housing colours: Black and white
• Operating temperature: -20 °C to +40 °C
• Operating humidity: 30–70% relative humidity
• Maximum operating altitude: 2000 m
• Power supply: 5 V DC / 1 A, USB-C
• Data export: MP4 format through the built-in web interface
• Microphone: Yes
• Speaker: Yes
• Video resolution: 1920 × 1080 pixels
• Field of view: 110° horizontally, 70° vertically
• Night vision: Black and white
• Audio: Two-way
• Motion detection: Camera image-based video analysis
• Camera zones: Up to 10 motion or privacy zones
• Streaming: Local and cloud-based
• WebRTC: Peer-to-peer live video viewing
• RTSP: Local streaming to compatible DVR/NVR systems
• Recording formats: Video and photo
• Recording mode: Automatic, motion-triggered, or manually started and stopped
• Recording location: Local storage, cloud storage or both
• Local storage: microSD card up to 512 GB, formatted as FAT32
• Recording duration with a microSD card: Limited by the available storage capacity
• Recording duration without a microSD card: Depends on the network connection; with a slower connection, approximately 20 seconds at 720p or approximately 10 seconds at 1080p, while longer recordings may be possible with a faster connection
• Wi-Fi: IEEE 802.11 b/g/n
• Wi-Fi frequency range: 2401–2483 MHz and 5150–5850 MHz
• Maximum Wi-Fi RF power: <20 dBm
• Wi-Fi range: Up to 30 m indoors and 50 m outdoors, depending on environmental conditions
• Bluetooth: 4.2
• Bluetooth frequency range: 2400–2483.5 MHz
• Maximum Bluetooth RF power: <20 dBm
• Bluetooth range: Up to 10 m indoors and 30 m outdoors, depending on environmental conditions
• CPU: Ingenic T23N
• Schedules: 20
• Webhooks: 20, with up to 5 URLs per webhook
• Scripting: Yes
• MQTT: Yes
• Encryption: Yes

Additional features

• Indoor camera: Suitable for monitoring homes, offices and other indoor spaces.
• Flexible placement: Can be placed on a flat surface or mounted on a wall or ceiling using the magnetic base and included self-adhesive metal plate.
• Manual direction adjustment: The camera direction can be adjusted manually; it does not feature motorised pan/tilt movement.
• Local operation: Thanks to the built-in web interface, RTSP, microSD storage, MQTT, scripting and other local integration options, multiple functions are available without using Shelly Cloud.
• Cloud features: Shelly Cloud storage and cloud-based AI object detection are also available. Some cloud features may require a subscription.
• Local video systems: RTSP support allows the camera to be used with compatible DVR/NVR software and systems.
