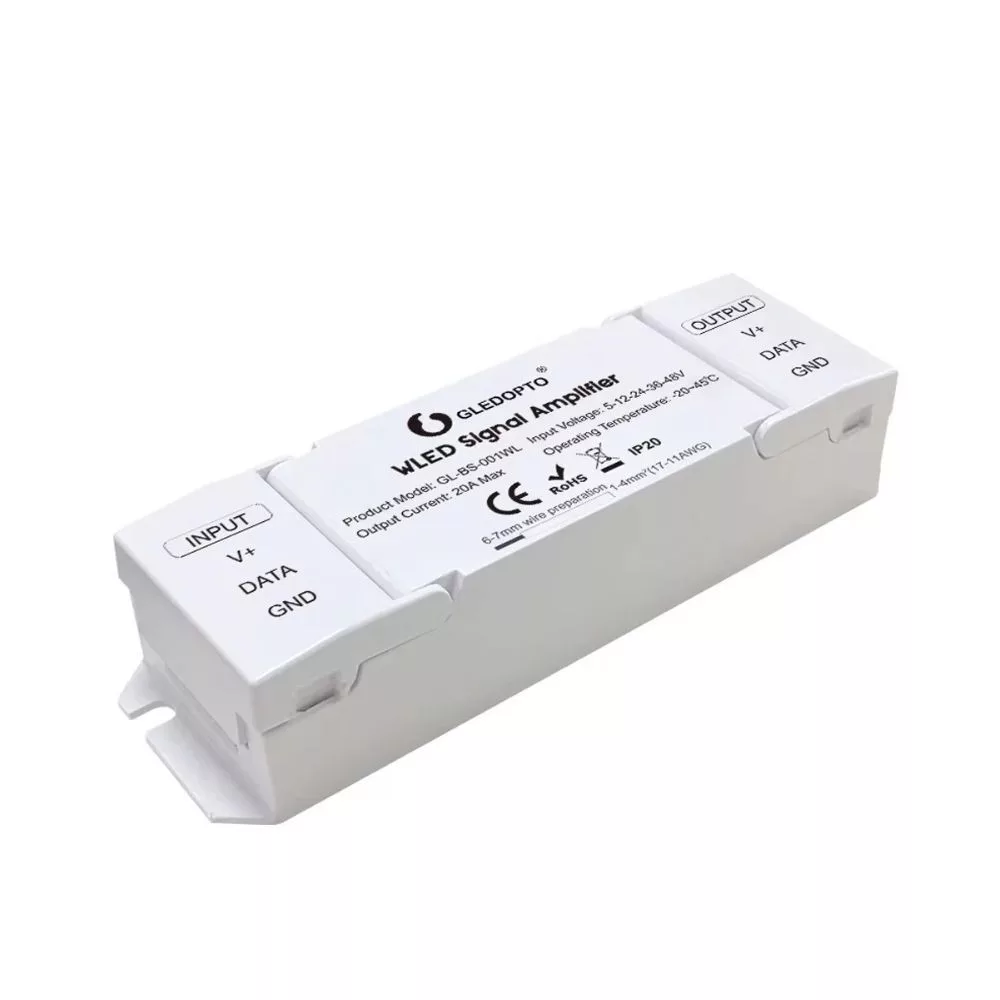

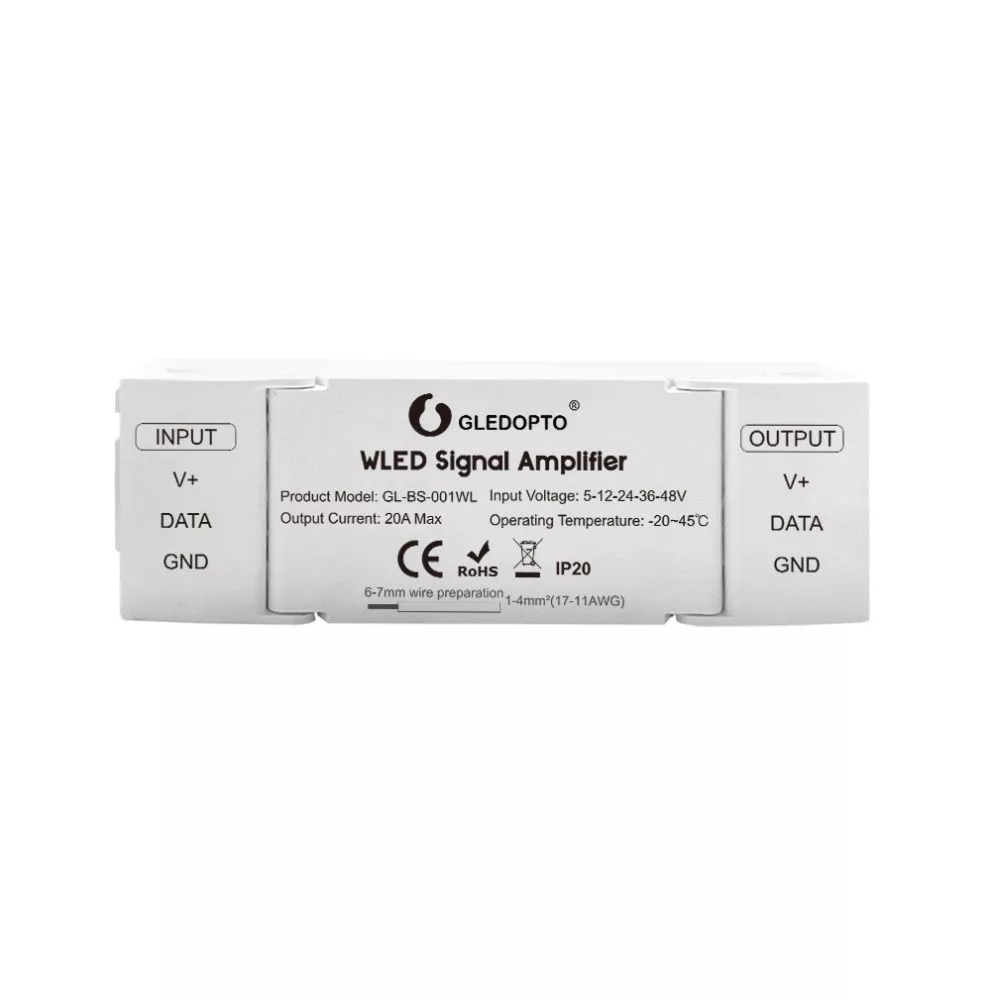

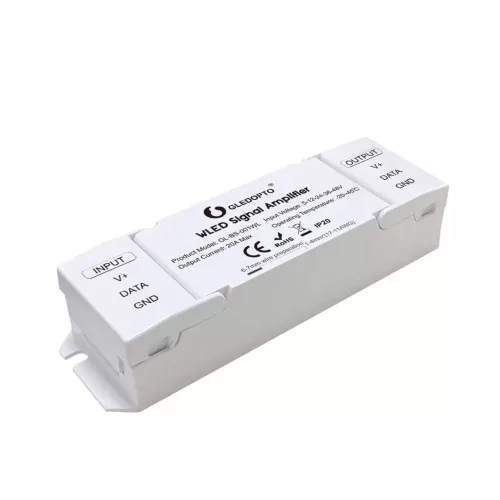

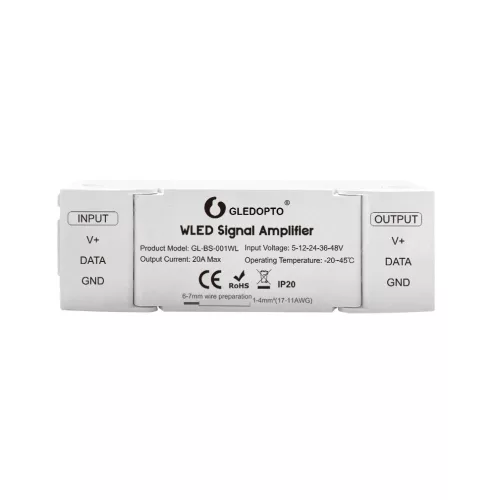

Gledopto WLED Signal Amplifier – WLED digital LED signal repeater, 5–48V DC (GL-BS-001WL)

The Gledopto WLED Signal Amplifier (GL-BS-001WL) is a WLED digital LED signal amplifier designed to regenerate and retransmit the data signal for individually addressable digital LED strips. The device is not a standalone LED controller and can only be used between an existing WLED controller and a digital LED strip.

The signal amplifier regenerates the digital data signal, ensuring reliable communication over longer LED strips or across multiple consecutive LED sections. The GL-BS-001WL is particularly suitable for installations where the number of LEDs or the cable length would otherwise degrade the signal quality.

The device operates from a 5–48 V DC power supply, making it compatible with most common digital LED systems. It does not control LEDs, does not run WLED firmware, and does not connect to any smart home network. Its sole purpose is to regenerate and forward the digital data signal.

The Gledopto WLED Signal Amplifier (GL-BS-001WL) is compatible with the Gledopto WLED controller family, including the GL-C-615WL, GL-C-616WL, GL-C-618WL, and GL-C-620WL models. It is recommended for installations where the length of the digital LED strip or the distance between the controller and the LED strip requires signal regeneration.

About Gledopto

Gledopto manufactures LED lighting controllers and lighting automation products. Its product portfolio includes Zigbee, Matter, WLED, and 2.4 GHz RF-based LED controllers, digital LED controllers, PWM LED controllers, and various accessories.

The Gledopto WLED Elite product family consists of ESP32-based digital LED controllers and related accessories designed primarily for use with Home Assistant, MQTT, and other open automation systems.

Key Product Features

• Digital LED signal amplifier: Regenerates and retransmits the digital LED data signal.
• Designed for WLED systems: Intended for use as an accessory with Gledopto WLED controllers.
• Wide input voltage range: Operates from a 5–48 V DC power supply.
• Signal regeneration: Improves digital data signal quality for longer LED installations.
• Compact design: Small enclosure suitable for easy installation.
• Flame-retardant enclosure: PC plastic housing for indoor installations.

Compatible LED Protocols and Systems

• Digital LED protocols: Compatible with digital LED ICs supported by compatible WLED controllers, including WS2811, WS2812B, WS2813, WS2815, SK6812, and other compatible types.
• WLED: Designed as an accessory for WLED-based digital LED systems.
• Compatible Gledopto controllers: Including GL-C-615WL, GL-C-616WL, GL-C-618WL, and GL-C-620WL.

Functions

• Regenerates the digital LED data signal.
• Supports reliable operation of longer LED strip installations.
• Supports connecting multiple consecutive LED sections.
• Transmits the regenerated digital data signal to the next LED section.
• Extends the effective operating distance of existing WLED controller installations.

Technical Specifications

• Model: GL-BS-001WL
• Product type: Digital LED Signal Amplifier
• Power supply: 5–48 V DC
• Function: Digital LED data signal regeneration
• Input: Digital LED data signal
• Output: Regenerated digital LED data signal
• Compatibility: WLED systems and supported digital LED protocols
• Enclosure material: Flame-retardant PC plastic
• Colour: White
• Protection rating: IP20
• Dimensions: 115 × 35 × 24 mm
• Weight: 50 g
• Installation environment: Indoor
