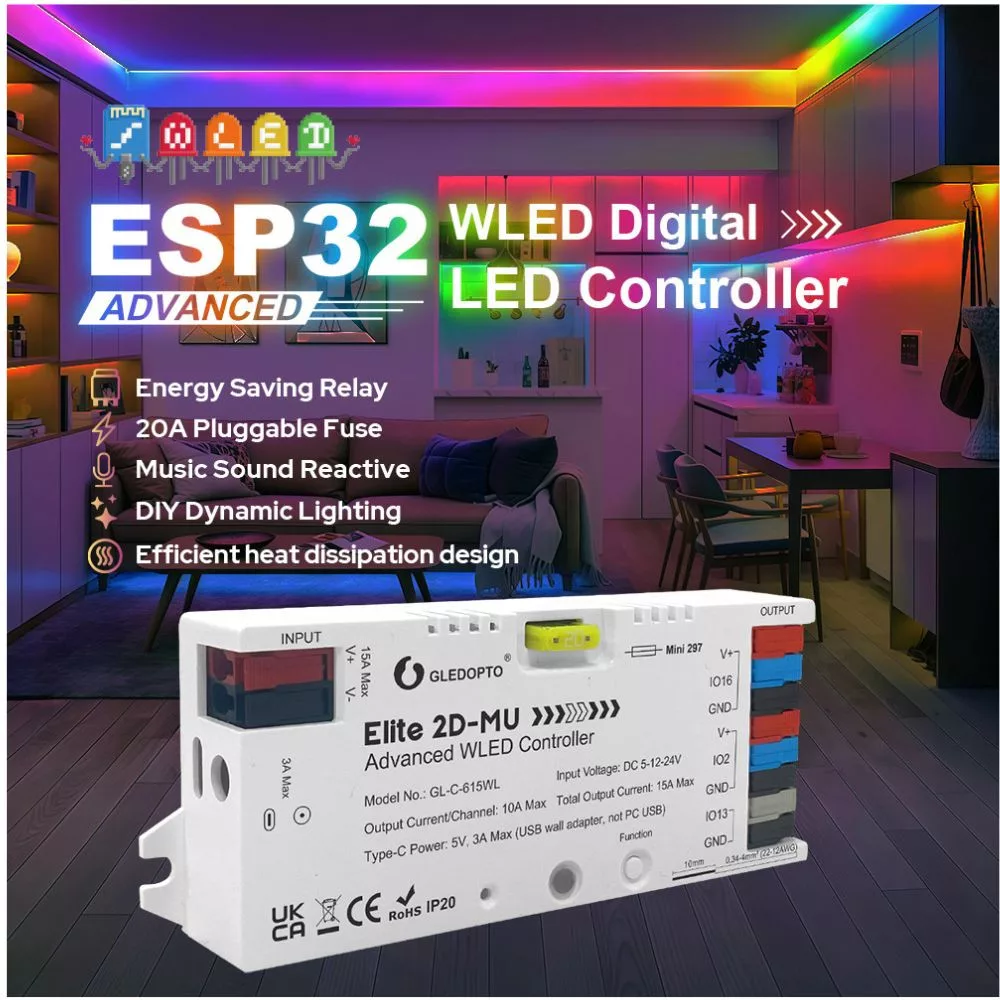

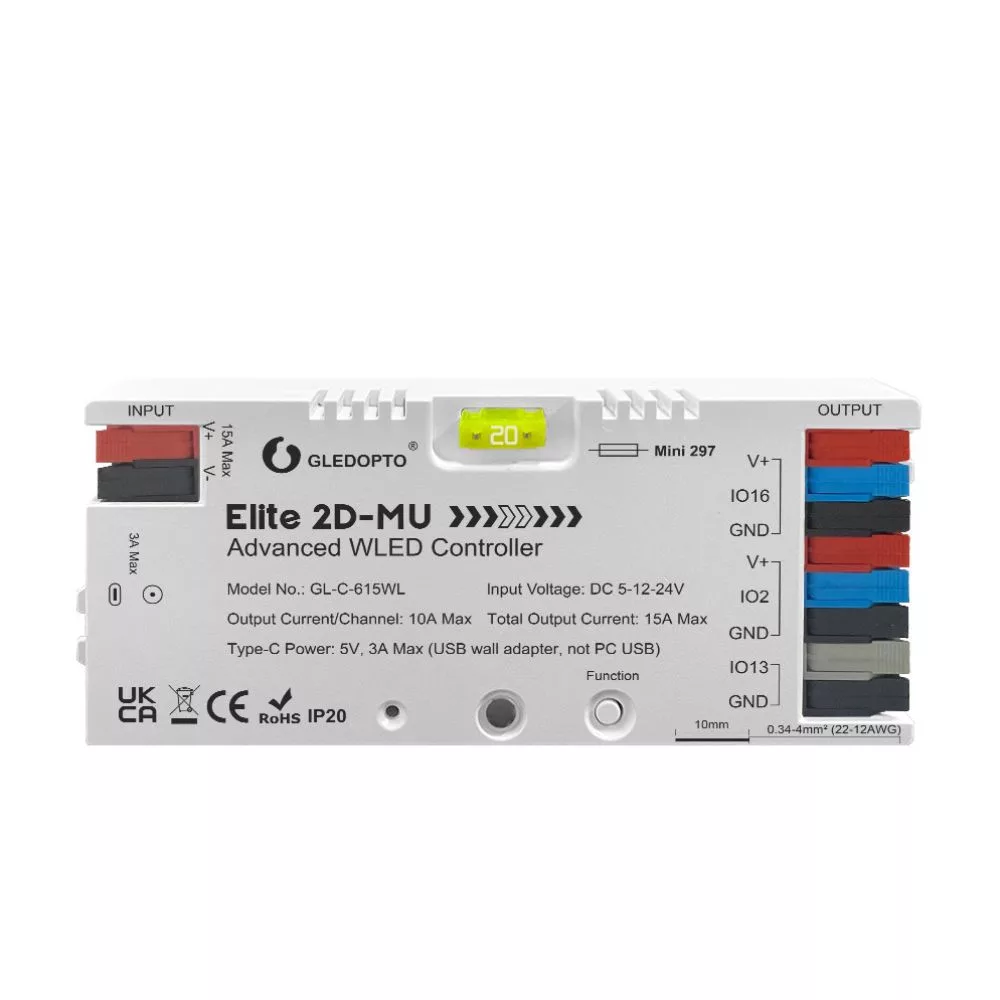

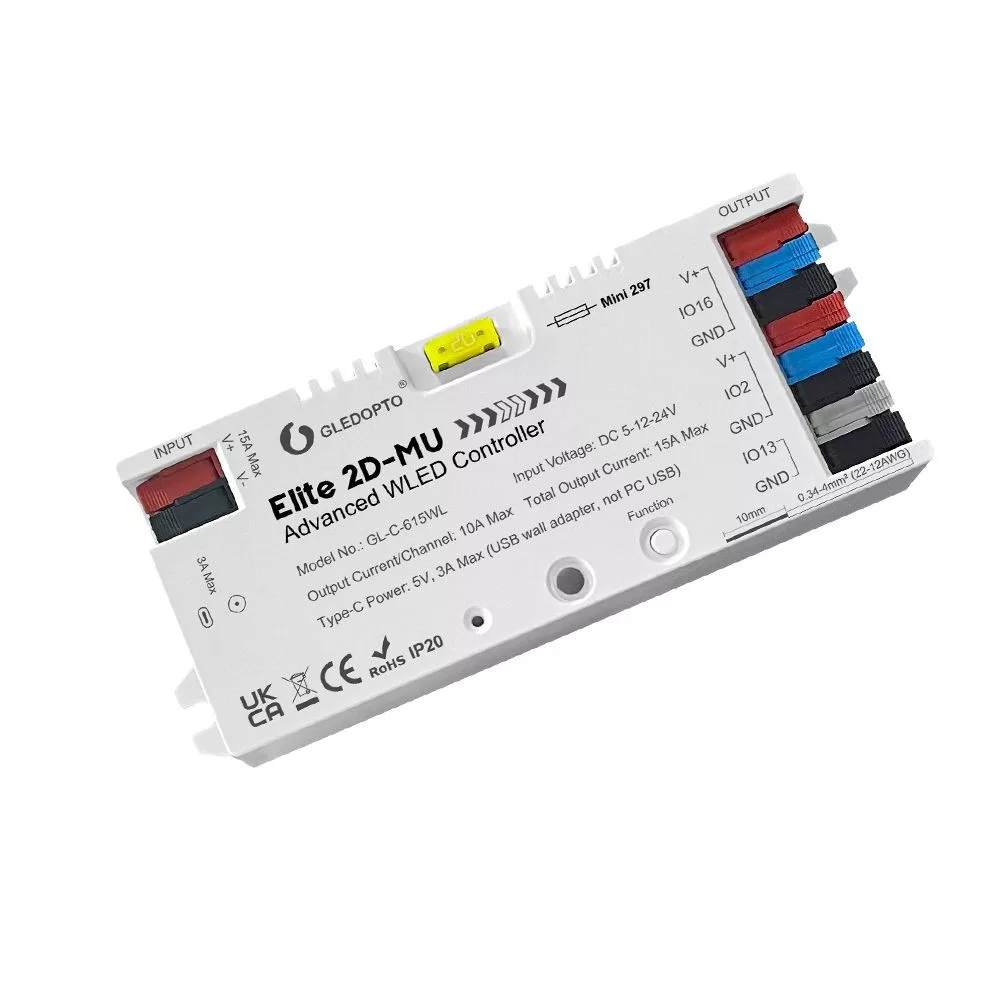

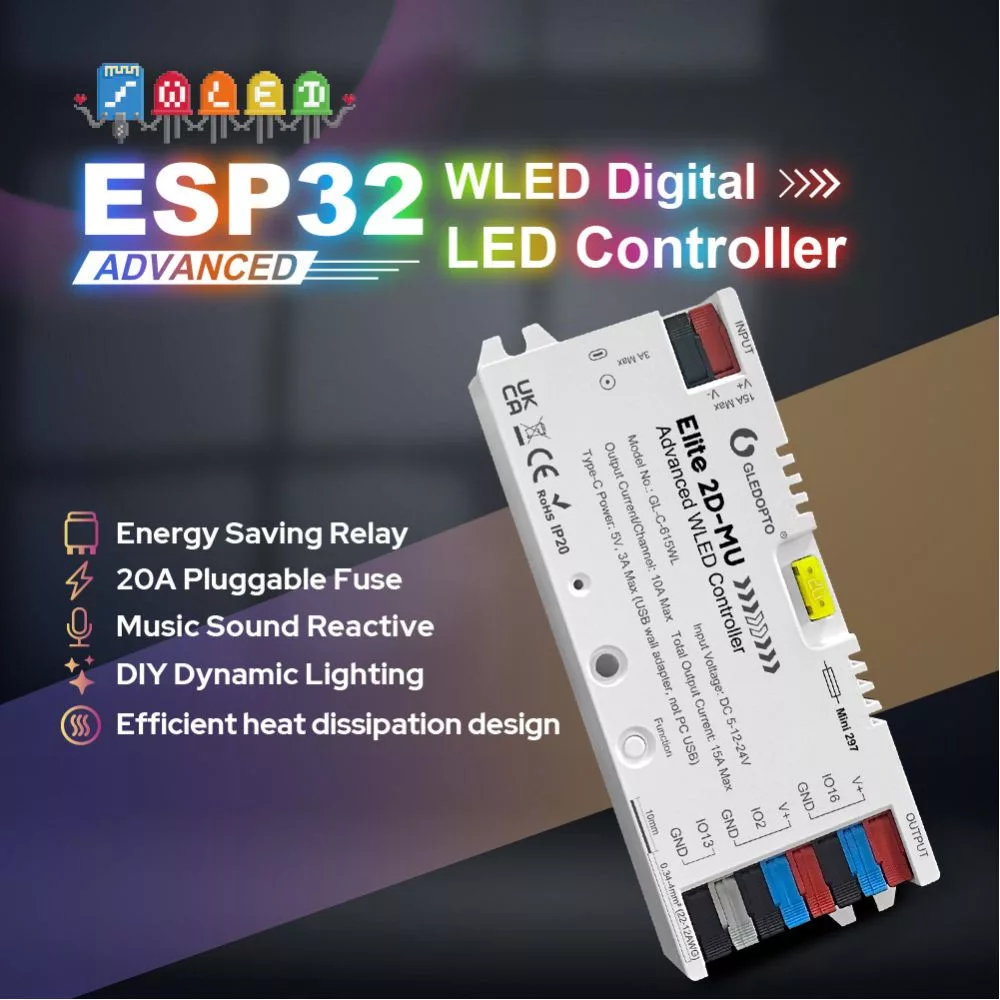

Gledopto Elite 2D-MU Advanced WLED Controller – Two-channel RGBIC LED controller with microphone, USB‑C, ESP32, Wi‑Fi (GL-C-615WL)

The Gledopto GL-C-615WL is an ESP32-based digital LED controller supplied with WLED firmware, designed for controlling addressable digital LED strips such as WS2811, WS2812B, WS2813, WS2815, SK6812 and other compatible LED types. The device features two independent data output channels, allowing control of two separate lighting zones independently.

The controller also includes a built-in microphone, enabling audio-reactive lighting effects that respond to ambient sounds or music with dynamic color and animation changes. It supports the most widely used digital LED protocols, including WS2811, WS2812B, WS2813, WS2815 and SK6812.

To reduce standby power consumption, the controller is equipped with a built-in relay that can physically disconnect power from the connected LED strips when they are turned off. Please note that this relay is intended for LED load disconnection only and is not suitable for switching the LED power supply itself.

The GL-C-615WL is the enhanced successor to the earlier GL-C-016WL-D model. As part of the Elite Series, it features a redesigned PCB, a replaceable fuse, factory-preconfigured firmware, and additional GPIO expansion options. The hardware design focuses on improved reliability, easier maintenance, and greater flexibility for custom development projects.

The controller is optimized for local operation and provides full functionality without an internet connection. It is particularly well suited for users of Home Assistant, Node-RED, MQTT, and other open-source automation platforms. As a DIY-oriented product, it is primarily intended for technically experienced users, with much of the available support provided through community forums and WLED project documentation.

About the Gledopto Brand

Gledopto is a manufacturer of smart LED controllers and lighting automation devices. Its product portfolio includes Zigbee, Wi-Fi, Matter, and WLED-based lighting controllers that can be integrated into both open-source and commercial smart home systems.

The Gledopto Elite Series represents the company's advanced product line, offering enhanced hardware capabilities and extended functionality compared to standard models.

Key Product Features

• Elite Series Design – Enhanced successor to the GL-C-016WL-D with redesigned electronics.
• ESP32-Based Platform – High-performance microcontroller optimized for running WLED firmware.
• Pre-installed WLED Firmware – Ready to use out of the box with factory-installed software.
• Dual Independent Data Outputs – Control two separate LED zones or LED strips independently.
• Built-in Microphone – Enables audio-reactive lighting and music synchronization effects.
• Relay-Based Power Control – Physically disconnects LED strip power when turned off.
• Replaceable Fuse – Simplifies maintenance and protection.
• Additional GPIO Expansion – Suitable for custom developments and integrations.
• USB Type-C Interface – Convenient firmware maintenance and development access.

Smart Home Protocols and Platform Compatibility

• Wi-Fi: IEEE 802.11 b/g/n 2.4 GHz wireless connectivity.
• WLED: Native WLED environment with full local control.
• Home Assistant: Official WLED integration supported.
• MQTT: MQTT communication support for automation systems.
• HTTP API: REST-based control and integration capabilities.
• JSON API: Advanced external system control and automation.
• WebSocket: Real-time communication support.
• E1.31 (sACN): DMX-over-IP lighting control protocol support.
• Art-Net: Compatible with professional lighting control systems.
• Open-Source Platforms: Compatible with Home Assistant, Node-RED, openHAB, Domoticz, and other API-compatible systems.
• Voice Control: Can be integrated with Google Assistant and Amazon Alexa through Home Assistant or other intermediary platforms.
• LAN Mode: Full functionality without internet access on the local network.

Smart Features

• Remote LED control via local network or internet.
• Hundreds of built-in lighting effects and animations.
• Audio-reactive lighting effects using the integrated microphone.
• LED segment creation and independent segment control.
• Synchronization of multiple WLED controllers.
• Scheduled on/off operation.
• Sunrise and sunset-based automations.
• Playlist and effect rotation functions.
• Custom color palettes and animation management.
• OTA firmware updates over the network.
• Automation through MQTT or API integrations.
• Completely local operation without cloud services.

Technical Specifications

• Model: GL-C-615WL Elite
• Controller Platform: ESP32
• Firmware: WLED (pre-installed)
• Power Supply: 5V DC, 12V DC, or 24V DC
• Wireless Communication: IEEE 802.11 b/g/n Wi-Fi, 2.4 GHz
• Digital LED Outputs: 2 independent data channels
• Supported LED ICs: WS2811, WS2812B, WS2813, WS2815, SK6812, and other compatible addressable LED protocols
• Built-in Microphone: Yes
• Built-in Relay: Yes
• Fuse: Replaceable
• USB Port: USB Type-C
• GPIO Expansion Port: Available
• Housing: Plastic enclosure
• Installation: Screw-mount design
• Protection Rating: IP20
• Dimensions: 129 × 50 × 23 mm
