NEW
Gledopto ESP32 Mini WLED Digital LED Controller – Wi-Fi digital RGBIC LED controller, 5V-24V DC, WLED firmware, with microphone (GL-C-310WL)
NEW
in stock (83 pcs)
Brand:
Gledopto

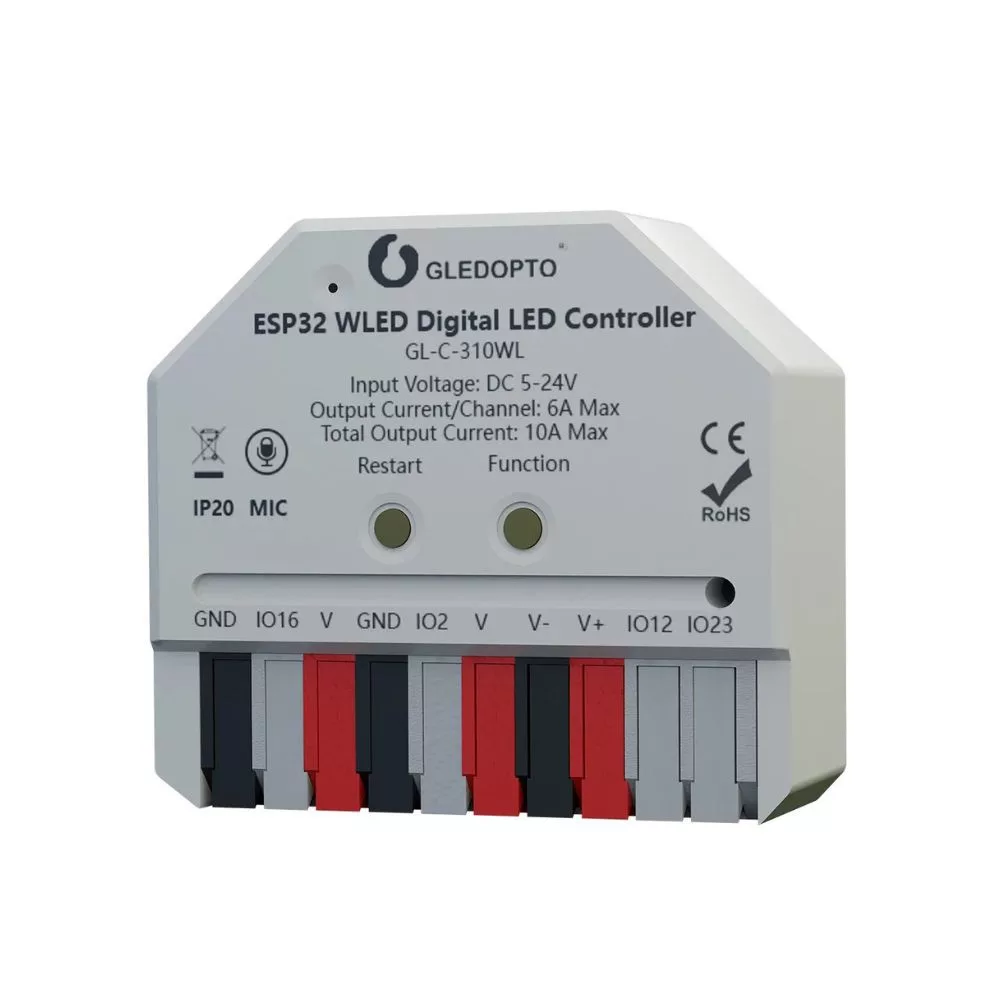

The Gledopto GL-C-310WL is an ultra-compact WLED digital LED strip controller designed for smart control of addressable LED strips via Wi-Fi.
FOR SAME DAY DISPATCH
Don’t miss today’s dispatch – order now!
The Gledopto GL-C-310WL is an ultra-compact WLED digital LED strip controller designed for smart control of addressable LED strips via Wi-Fi. Thanks to its miniature form factor and broad IC compatibility, it is an ideal solution for installations where space is limited but advanced LED control is required.
Compared to its predecessor, the GL-C-309WL, this model introduces a built-in microphone function, allowing the controller to react to ambient sounds and music by dynamically changing colors and lighting effects. This makes it particularly suitable for entertainment areas, gaming rooms, media setups, and decorative lighting applications.
The controller is compatible with the Gledopto GL-RC-002WL remote control (supported from firmware version 0.14.0-beta3 and later), enabling control of up to seven predefined scenes or devices. The S5, S6, and S7 buttons are only supported on specific GLEDOPTO controllers that were individually programmed by the manufacturer, such as the GL-C-615WL.
About Gledopto
Gledopto is a well-known smart home brand recognized for its high-quality smart lighting products. The company offers a wide range of smart LED bulbs, LED controllers, and lighting solutions that combine reliable performance, quality materials, and broad compatibility with modern smart home ecosystems.
The Gledopto WLED controller series is based on the open-source WLED platform, developed for ESP-based controllers. These devices are specifically designed to control digitally addressable LED strips and provide flexible configuration options, extensive effect libraries, automation capabilities, and integration with popular smart home systems.
Key Features
- Ultra-mini design for installations where space is limited
- WLED firmware support for advanced digital LED strip control
- Built-in microphone for sound-reactive lighting effects and music synchronization
- Wide input voltage range: 5–24V DC
- High current capacity of up to 10A per channel
- Wi-Fi connectivity for wireless control and smart home integration
- Quick connector included for simplified installation
- Compatible with a wide range of addressable LED IC chipsets
- Remote control support via Gledopto GL-RC-002WL remote controller
- Support for controlling up to seven predefined scenes or devices
Smart Home Protocols and Platform Compatibility
- Wi-Fi communication for local and network-based control
- WLED platform compatibility
- Home Assistant integration through WLED
- Compatible with smart home systems supporting WLED integrations
- Web-based control interface provided by WLED firmware
- Local control without cloud dependency
- API-based integrations through WLED
- Remote control support with Gledopto GL-RC-002WL
Smart Functions
- Control of digitally addressable LED strips
- Music-reactive lighting effects using the built-in microphone
- Custom color effects and animations
- Predefined lighting scenes and effects
- Wireless control over Wi-Fi
- Smart home automation integration
- Local network control without cloud services
- Scene activation via compatible remote control
- Flexible LED strip configuration through WLED
- Support for advanced addressable LED animations
Technical Specifications
- Product name: Gledopto GL-C-310WL
- Product type: Ultra-mini WLED digital LED strip controller
- Model: GL-C-310WL
- Input voltage: 5–24V DC
- Maximum load power: 240W
- Maximum current per channel: 10A
- Output channels: 2 channels
- Control protocol: WLED
- Wireless communication: Wi-Fi
- Remote control range: Up to 30 m
- Supported IC chipsets: WS2811, WS2812B, WS2813, WS2815, SK6812, SM16703P, TM1814, and others
- Housing material: ABS plastic
- Built-in microphone: Yes
- Compatible remote control: Gledopto GL-RC-002WL (firmware 0.14.0-beta3 or later)
This content is only available to logged in users.
Weight:
25 g/pcs
