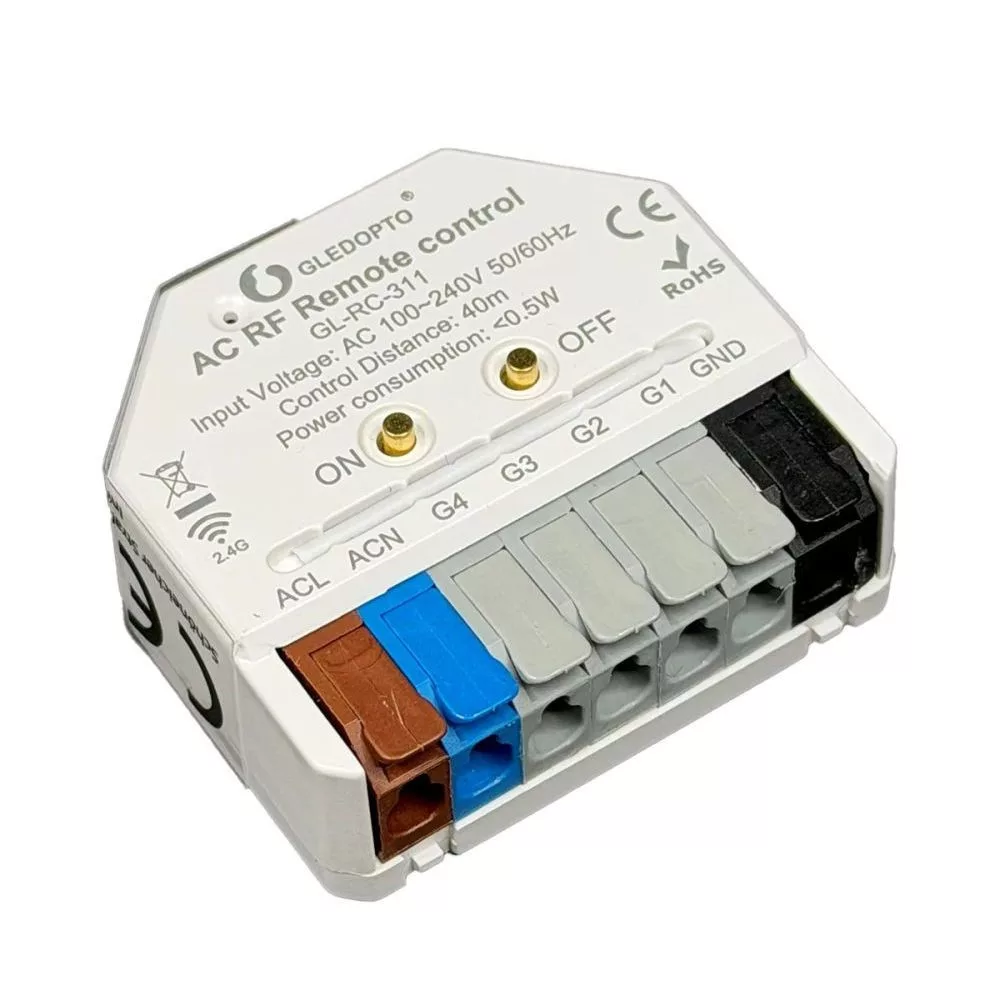

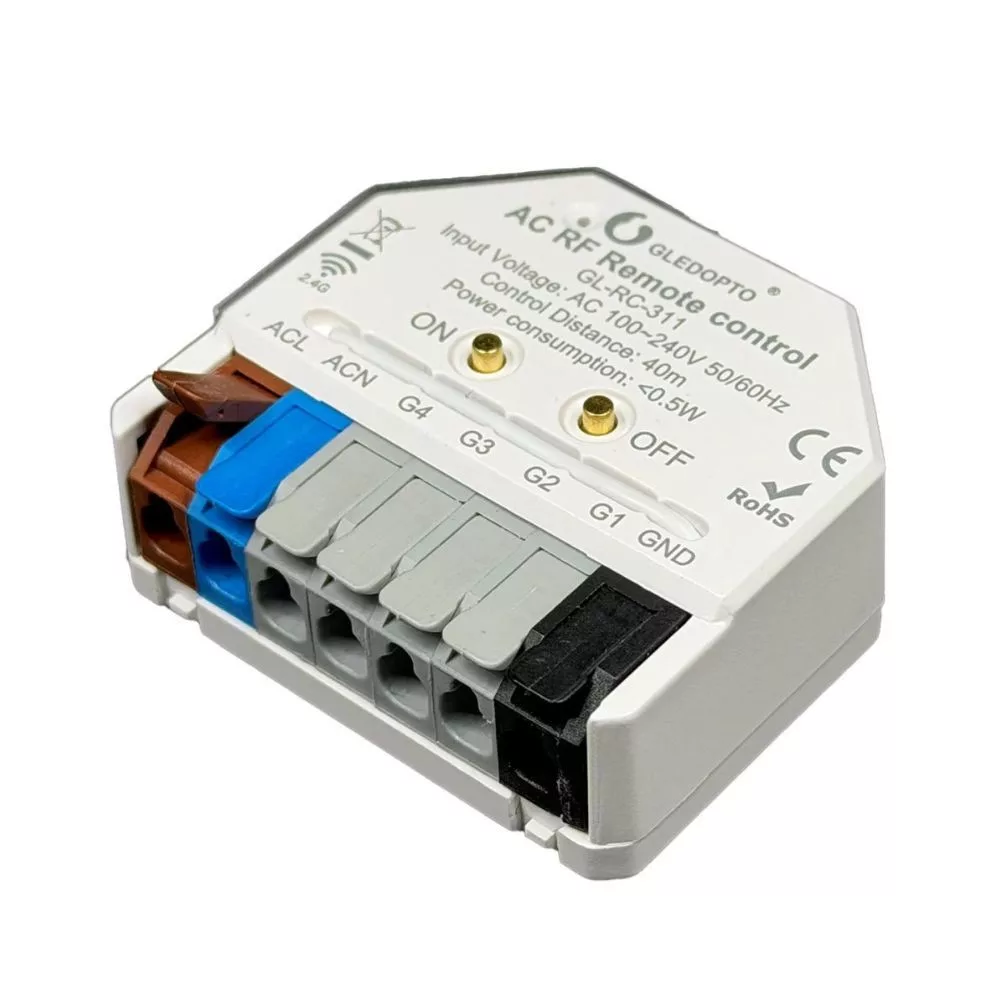

Gledopto AC RF Remote Control (GL-RC-311) – Four‑channel RF (2.4 GHz) remote control for mounting behind a switch (GL‑RC‑311)

The Gledopto AC RF Remote Control (GL-RC-311) is a 2.4 GHz RF wall-mounted remote controller powered directly from the mains, designed for wireless control of compatible Gledopto 2.4 GHz RF lighting controllers. The Gledopto AC RF Remote Control (GL-RC-311) operates from a 100–240 V AC power supply, eliminating the need for batteries or rechargeable cells. The controller does not include a relay output and does not switch lighting loads directly. Instead, it transmits control commands via a 2.4 GHz RF radio connection to paired Gledopto RF relays or LED controllers.

The 2.4 GHz RF communication operates in the 2.4 GHz ISM frequency band. This technology provides low-latency wireless control and can achieve a range of up to approximately 30 metres under suitable conditions. RF control does not require a Wi-Fi network, Zigbee gateway, mobile application, or cloud service.

The product is designed for indoor use with an IP20 protection rating. Functionally, it is a wireless wall transmitter intended for local control of lighting circuits, operating in a similar way to a handheld remote control or wall-mounted RF transmitter.

The GL-RC-311 is compatible with Gledopto 2.4 GHz RF receivers and RF LED controllers. It can be used to control devices such as the GL-C-006P, GL-C-008P, GL-C-009P, GL-C-301P, and other Gledopto products supporting 2.4 GHz RF communication.

About Gledopto

Gledopto manufactures LED lighting controllers, RF remote controls, and Zigbee, Matter, Wi-Fi, and WLED-based lighting control products. Its product range includes LED strip controllers, wall controllers, handheld remotes, and various smart home-compatible lighting control modules.

Gledopto's 2.4 GHz RF product range is designed for local radio-based control. In these systems, control commands are transmitted directly between the RF transmitter and a compatible RF receiver or LED controller.

Key Product Features

• RF wall remote controller: Transmits 2.4 GHz radio commands to compatible Gledopto RF lighting controllers.
• Mains-powered operation: Operates from a 100–240 V AC supply, eliminating the need for battery replacement.
• 2.4 GHz RF communication: Local, low-latency wireless control operating in the 2.4 GHz ISM frequency band.
• Gateway-free operation: Does not require a Zigbee hub, Wi-Fi network, mobile application, or cloud service.
• Group control: Can control multiple lighting groups within a compatible RF system.
• Indoor design: IP20-rated device for dry indoor installations.
• Flame-retardant PC enclosure: Compact housing suitable for wall mounting or installation in a wall back box.

Technical Specifications

• Model: GL-RC-311
• Product type: 2.4 GHz RF wall remote controller / RF transmitter
• Power supply: 100–240 V AC
• Communication: 2.4 GHz RF
• RF range: Up to approximately 30 m, depending on the installation environment
• Relay output: None
• Direct load switching: Not supported
• LED output: None
• Control method: RF command transmission to compatible RF receivers or RF LED controllers
• Enclosure material: Flame-retardant PC plastic
• Colour: White
• Protection rating: IP20

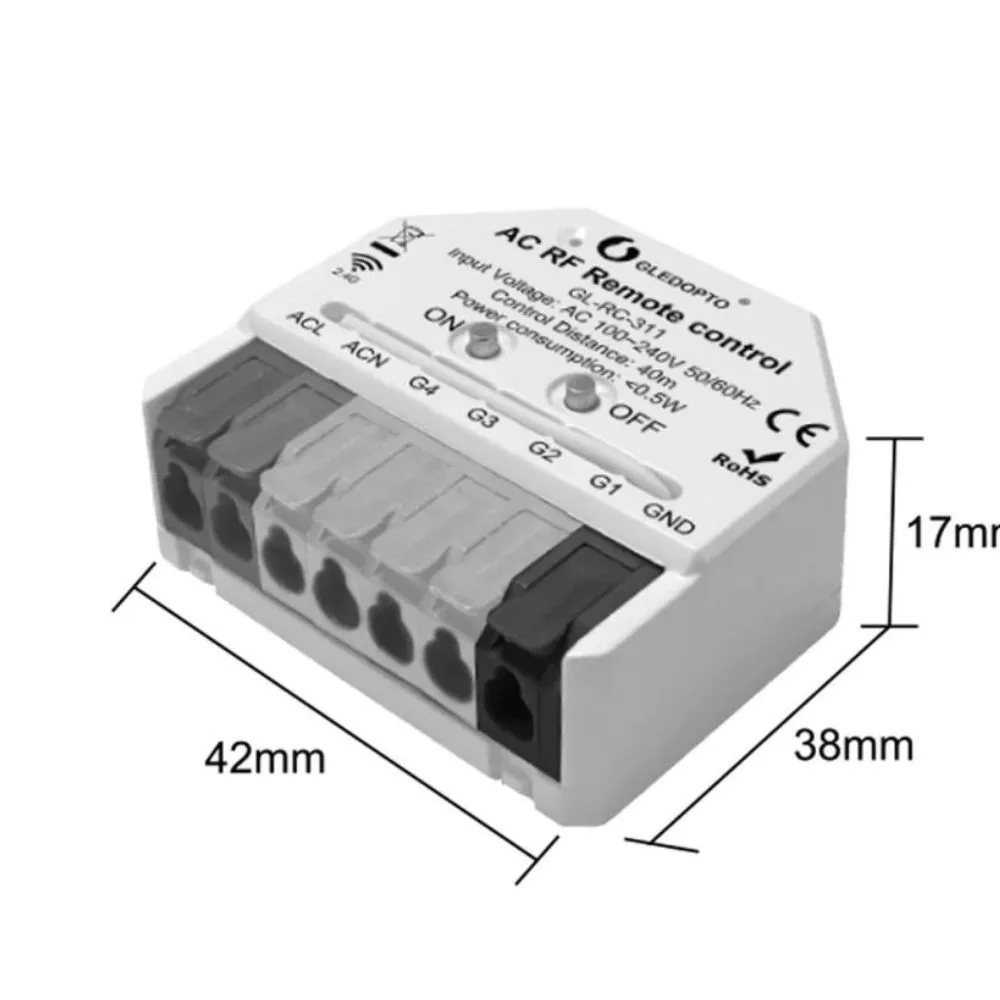

• Dimensions: 42 × 38 × 17 mm
• Weight: 20 g
• Installation environment: Indoor
